Product Overview

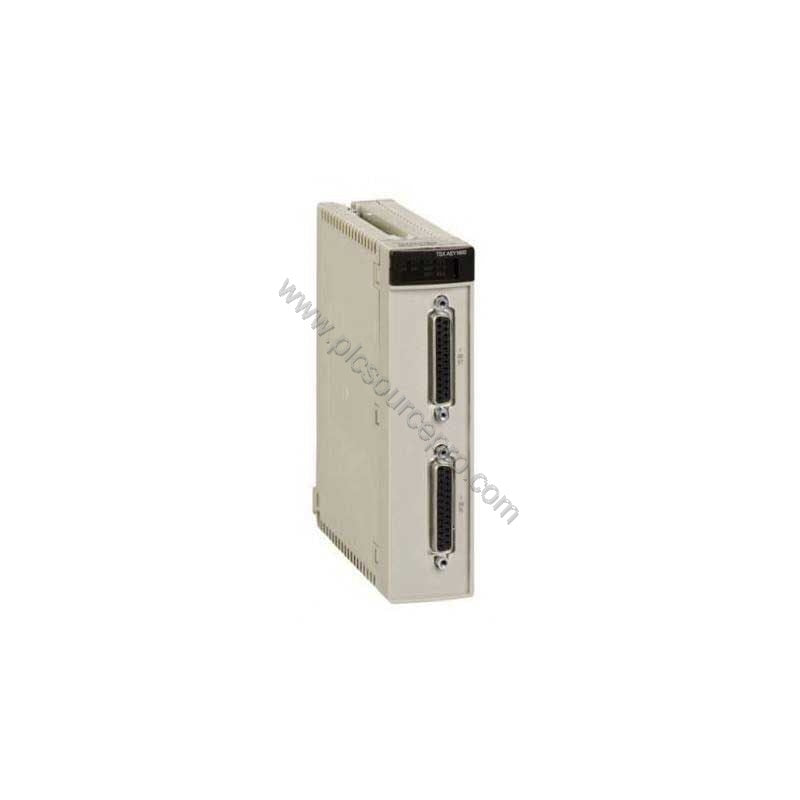

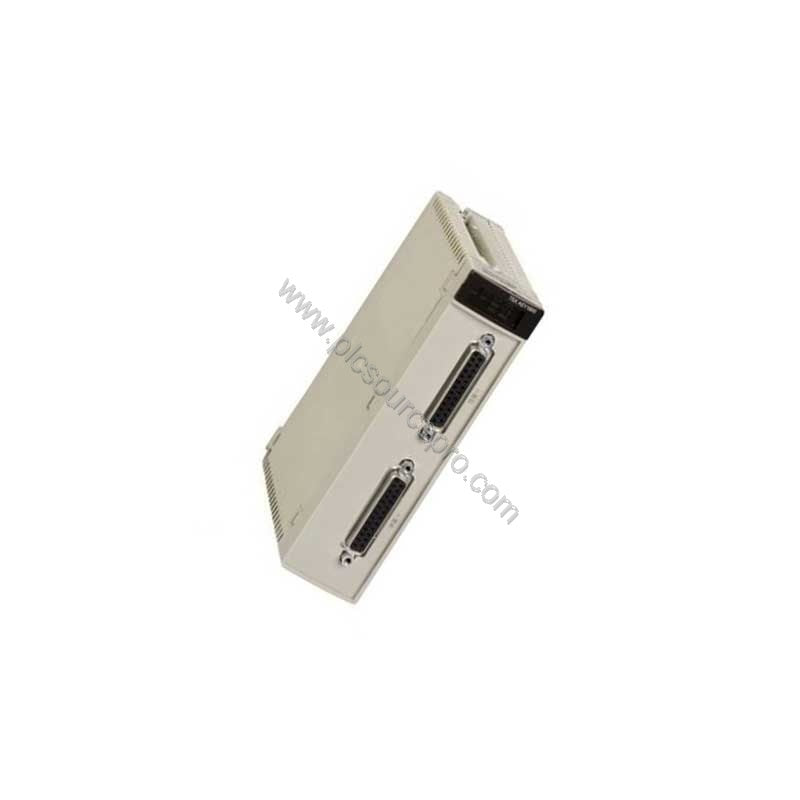

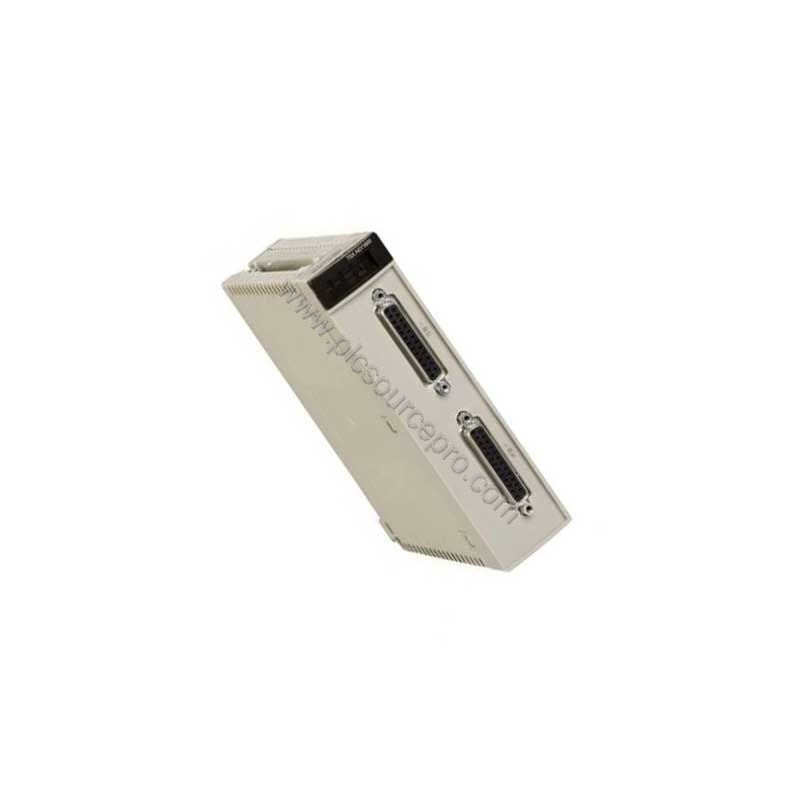

When precise temperature monitoring is critical in your industrial process, the Schneider TSXAEY1614 analog input module provides accurate thermocouple measurements with 16-bit resolution. Part of the TSX Micro PLC series, this module accepts 16 high-level analog inputs, supporting multiple thermocouple types (B, E, J, K, L, N, R, S, T, U) and voltage inputs of ±80 mV. Its robust design ensures reliable data acquisition in demanding environments, reducing measurement errors and improving process efficiency.
Technical Specifications
The Schneider TSXAEY1614 delivers exceptional performance with the following key parameters derived from its datasheet. Each specification contributes to consistent and accurate analog readings.
-
Analog Input Channels: 16 high-level inputs
-
Analog/Digital Conversion: 16 bits
-
Input Types: Thermocouple (B, E, J, K, L, N, R, S, T, U) and Voltage (±80 mV)
-
Nominal Read Cycle Time: 70 ms per channel
-
Isolation: 1000 Vrms between channels and bus; 1000 Vrms between channels and ground
-
Common Mode Voltage: 250 V AC or 280 V AC between channels, 250 V DC between channels and earth
-
Electrical Connection: 2 connectors SUB-D 25
-
Input Overvoltage Protection: -15 to 15 V at state 0, -30 to 30 V at state 1
-
Current Consumption: 300 mA at 5 V DC
-
Weight: 0.35 kg (0.77 lbs)
The measurement error varies by thermocouple type; for example, the TSXAEY1614 achieves ±0.8°C for thermocouple E at 25°C, ensuring high accuracy across the operating temperature range of 0 to 60°C.
Industry Applications
The Schneider TSXAEY1614 excels in applications requiring precise temperature measurement and voltage monitoring. Typical use cases include:
-
Process Control: Monitoring furnace temperatures, heat exchangers, and chemical reactors using thermocouples B, K, or S.
-
HVAC Systems: Accurate duct or zone temperature sensing for energy-efficient building management.
-
Machine Condition Monitoring: Detecting thermal anomalies in motors, bearings, and transformers to prevent unplanned downtime.
By adopting the TSXAEY1614, plant operators benefit from reduced calibration costs and longer equipment life, translating into a strong return on investment.
Selection Guide & Purchasing Advice
Before purchasing, verify that your system uses TSX Micro PLC backplane and that the 300 mA @ 5 V DC power supply can support the module. For wiring, use two SUB-D 25 connectors and ensure proper isolation (1000 Vrms) between channels. As a trusted supplier, UBEST Automation (located at ubest101) offers genuine Schneider TSXAEY1614 modules with competitive pricing and fast shipping. Contact us if you need assistance with installation or system integration.
