Product Introduction

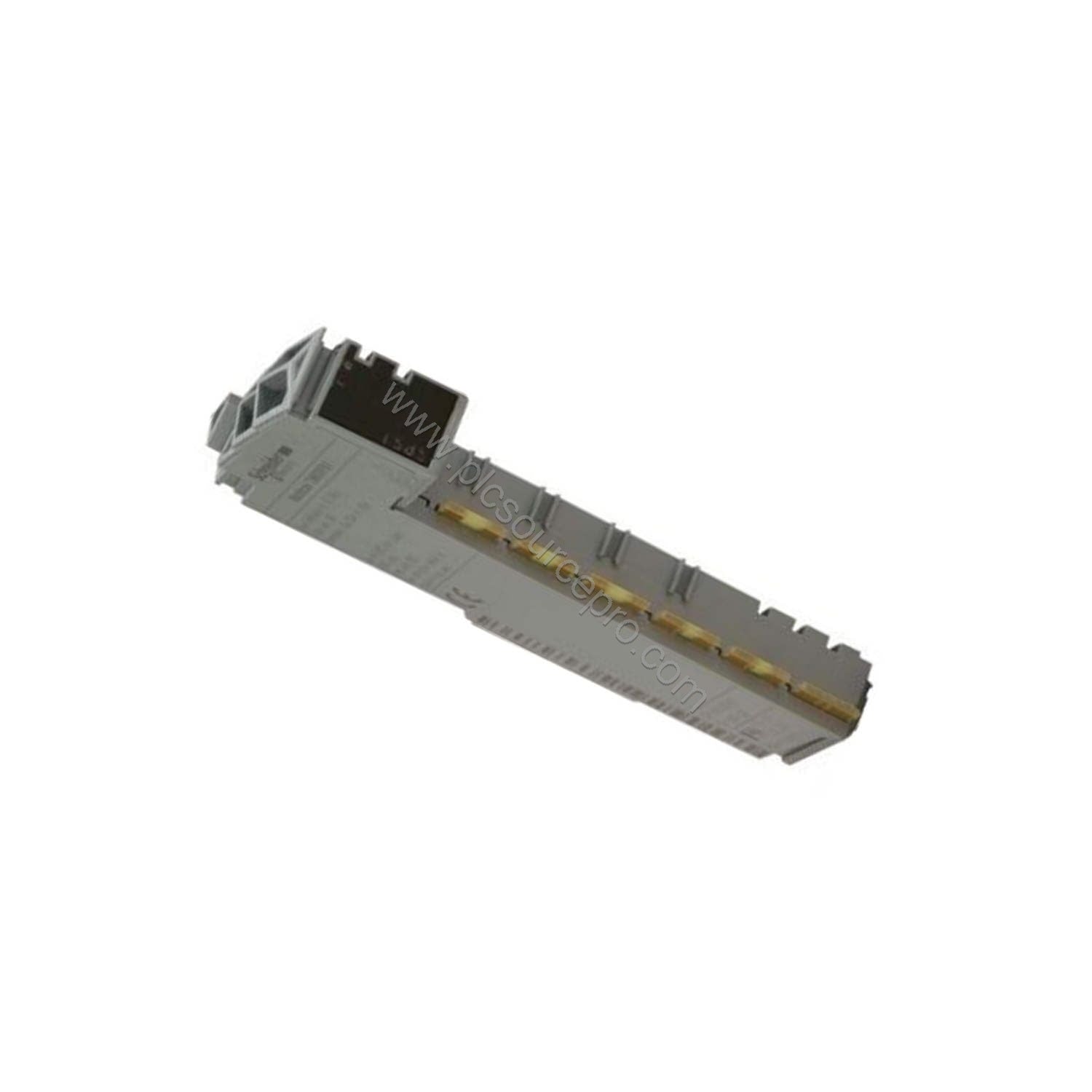

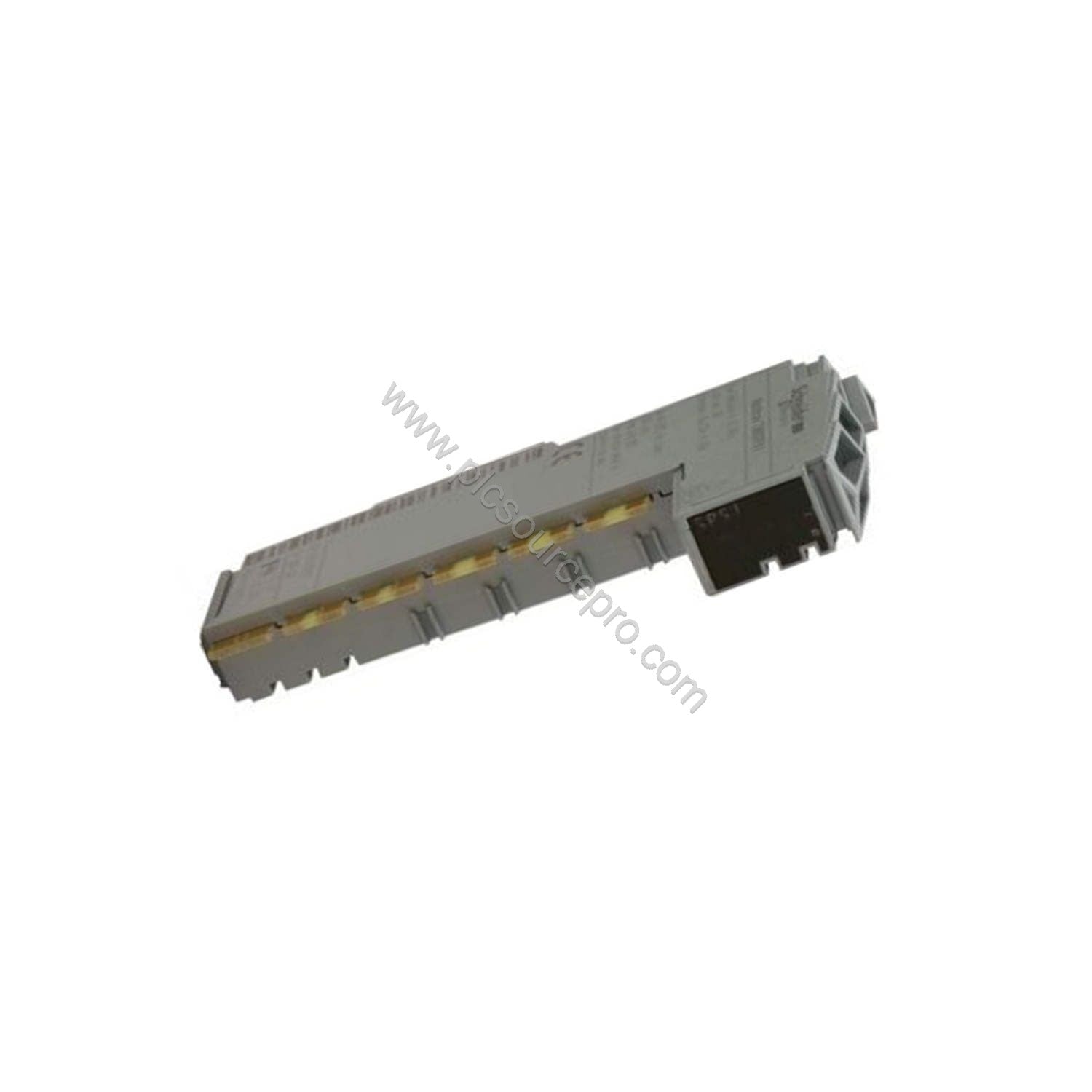

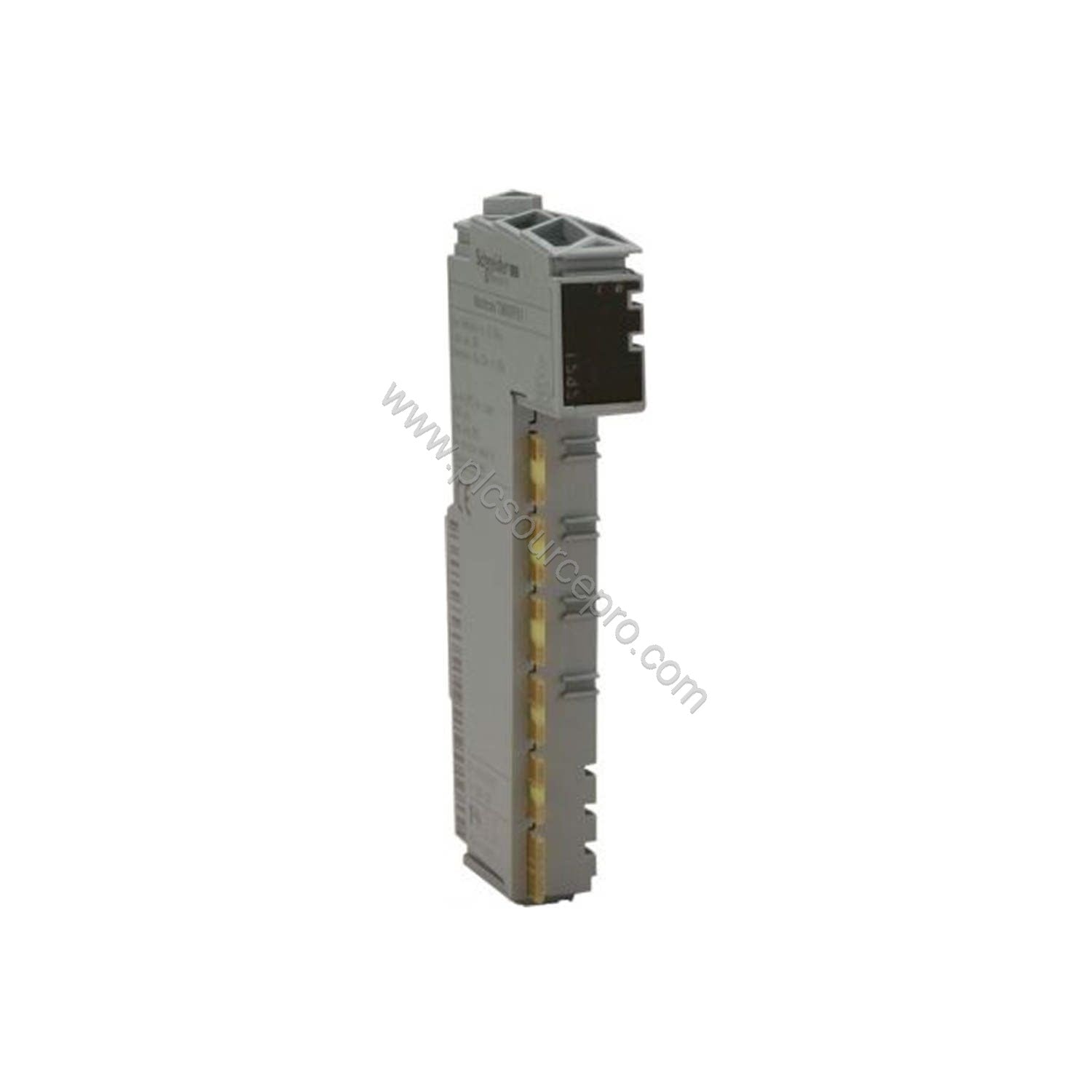

When power distribution failures threaten the uptime of your industrial control system, the Schneider TM5SPS1 Power distribution module delivers the robust, reliable power your Modicon TM5 I/O modules need. Designed as part of the Modicon TM5 family, this module ensures a stable 24 V DC supply to I/O segments, preventing erratic behavior and costly downtime. Its compact form factor and compliance with global standards make it an essential component for high-availability automation environments.
Technical Specifications
The Schneider TM5SPS1 is engineered for performance. Below are the key parameters derived from the product data:
| Parameter |
Value |
| Rated Supply Voltage |
24 V DC |
| Current Supplied |
10 A for I/O power segment |
| Power Dissipation |
0.8 W |
| Current Consumption |
≤25 mA at 24 V DC |
| Short-Circuit Protection |
10 A external fuse |
| Marking |
CE |
| Ambient Temperature (Operation) |
-10…55°C (horizontal), 55…60°C with derating, -10…50°C (vertical) |
| Storage Temperature |
-25…70°C |
| Vibration Resistance |
1 gn at 8.4…150 Hz (DIN rail) |
| Shock Resistance |
15 gn for 11 ms |
| Weight |
36.0 g |
Industry Applications
The Schneider TM5SPS1 finds its place in diverse industrial settings where 24 V DC I/O modules are deployed. Common applications include:
-
Manufacturing Lines: Powers discrete I/O modules in assembly and packaging machinery, reducing power-related faults.
-
Material Handling: Provides clean power to conveyor system I/O, improving sensor reliability and system uptime.
-
Process Control: Supports remote I/O racks in continuous processes, ensuring stable operation even in harsh thermal environments.
By choosing the TM5SPS1, you invest in a power distribution solution that minimizes failure risks and extends the life of your I/O modules.
Installation & Setup Guidance
Mount the Schneider TM5SPS1 onto a standard DIN rail inside your control cabinet. Connect the 24 V DC supply to the input terminals, ensuring the external 10 A fuse is installed for short-circuit protection. The module outputs power to the I/O bus via the TM5 bus connector. For horizontal installation, operate within -10 to 55°C without derating; for vertical mounting, stay within -10 to 50°C. Always follow the wiring diagram provided in your Modicon TM5 system manual.
Compatibility & Integration
The Schneider TM5SPS1 is fully compatible with Modicon M258 and LMC058 logic/motion controllers. It integrates seamlessly into Modicon TM5 I/O architectures, providing dedicated power segments for 24 V DC modules. No additional communication protocols are required—simply plug and play within the TM5 ecosystem.
Selection Guide & Purchasing Advice
Before purchasing the TM5SPS1, confirm your I/O segment current requirements do not exceed 10 A. Verify that your controller is from the Modicon M258 or LMC058 series. For bulk or urgent orders, UBEST Automation (ubest101) offers genuine Schneider spares with fast shipping. Always cross-check your part number to ensure the TM5SPS1 matches your application’s voltage and environmental needs.
