Product Introduction

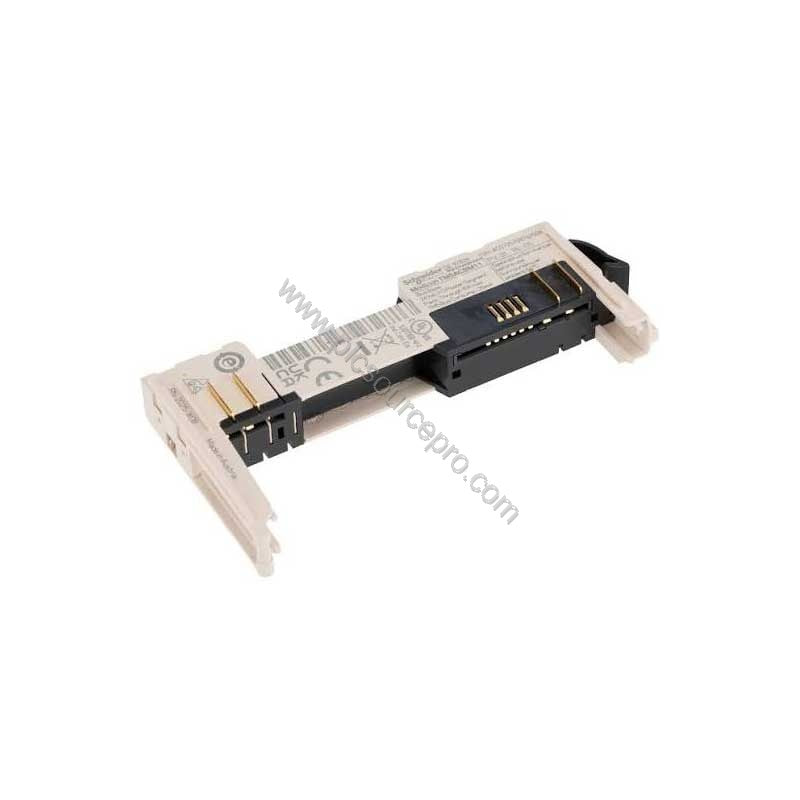

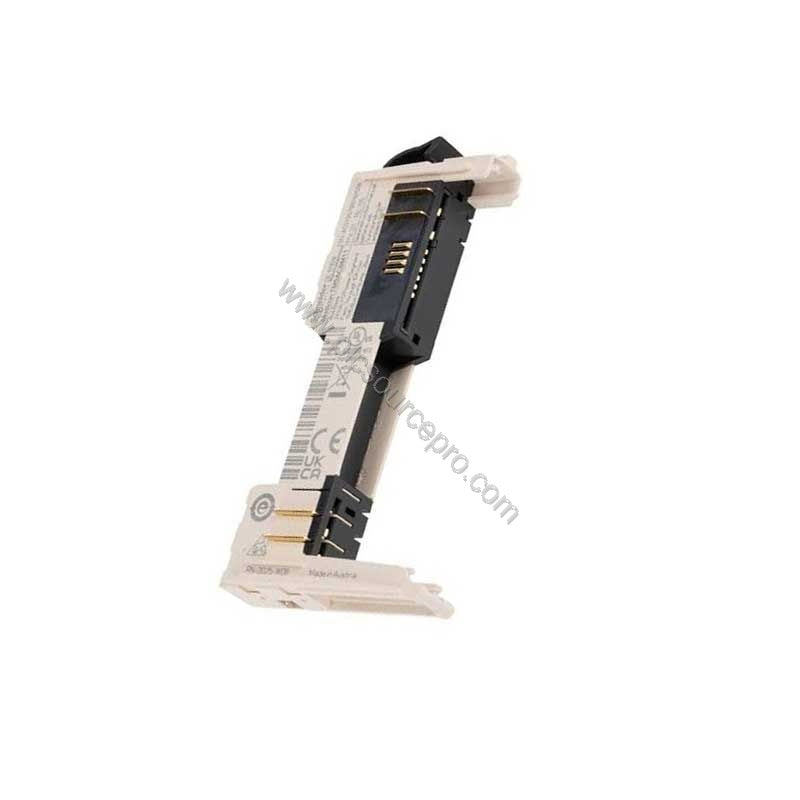

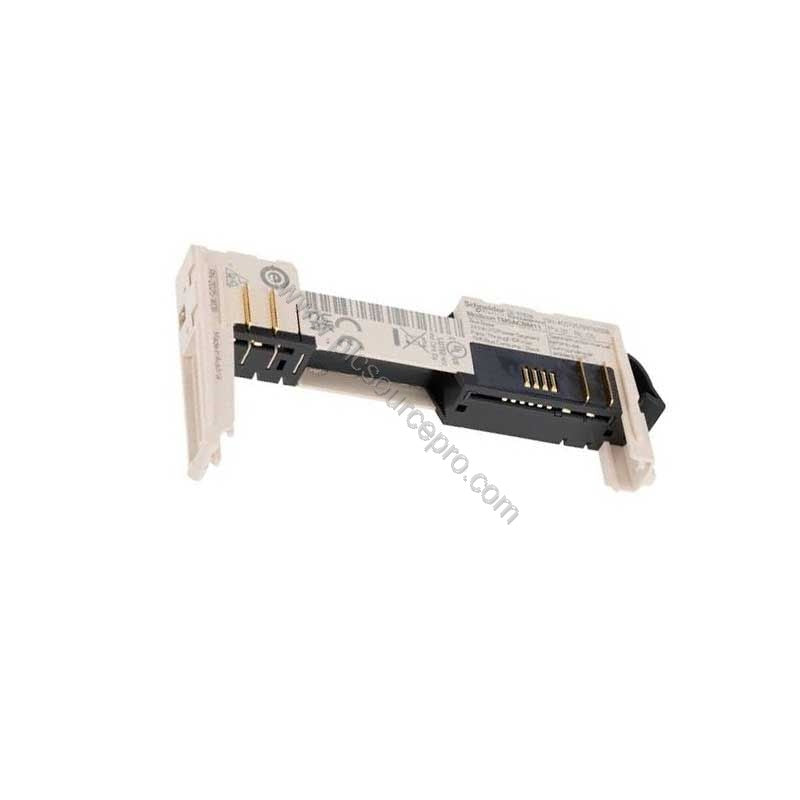

When upgrading your industrial automation system, the Schneider TM5ACBM11 bus base provides a reliable foundation for Modicon TM5 platforms. This bus base is designed to support remote transmitter modules, counter modules, 24V DC slice discrete modules, common distribution modules, and analog modules. It is part of the Modicon TM5 range, compatible with Modicon LMC058 and M258 controllers. The white, compact enclosure ensures easy identification and efficient spacing in control panels.
Technical Specifications
Although detailed technical documentation is available upon request, the Schneider TM5ACBM11 offers these key parameters from product data:
- Rated supply voltage: 24 V DC
- Product weight: 0.02 kg
- Color: White
- Package dimensions: 1.700 cm (H) × 5.400 cm (W) × 10.700 cm (L)
- Package weight: 27.000 g
These specifications confirm the bus base is lightweight and suited for low-power, distributed I/O configurations.
Application Scenarios
The Schneider TM5ACBM11 fits into a variety of industrial settings. For instance, in a packaging line using Modicon M258 controllers, this bus base connects multiple counter and analog modules, streamlining data acquisition. In water treatment plants, it enables reliable communication with remote transmitter modules while maintaining 24V DC isolation. Its compatibility with common distribution modules makes it ideal for complex installations requiring centralized power distribution.
Installation and Setup Guidance
Mounting the Schneider TM5ACBM11 is straightforward. Secure the bus base onto a DIN rail using the integrated clips. Connect the 24V DC supply to the designated terminals, ensuring polarity is correct. Insert compatible modules (sold separately) into the slots without excessive force. Verify all connections before powering the system. For best performance, keep the bus base away from high-heat sources and ensure adequate airflow around the enclosure.
Compatibility and Integration
The Schneider TM5ACBM11 is specifically designed for Modicon TM5 systems. It works seamlessly with Modicon LMC058 and Modicon M258 controllers. Compatible modules include remote transmitter modules, counter modules, 24V DC slice discrete modules, common distribution modules, and analog modules. This bus base acts as the communication backbone, ensuring stable data transfer between the controller and I/O points.
Selection Guide and Purchasing Advice
Before purchasing the Schneider TM5ACBM11, verify that your controller model is within the Modicon TM5 family (LMC058 or M258). Confirm the required number of slots based on your I/O count. This bus base is sold in indivisible quantities of one. For genuine parts and prompt delivery, choose UBEST Automation as your supplier. Visit ubest101.myshopify.com for additional product details and support.
