Product Introduction

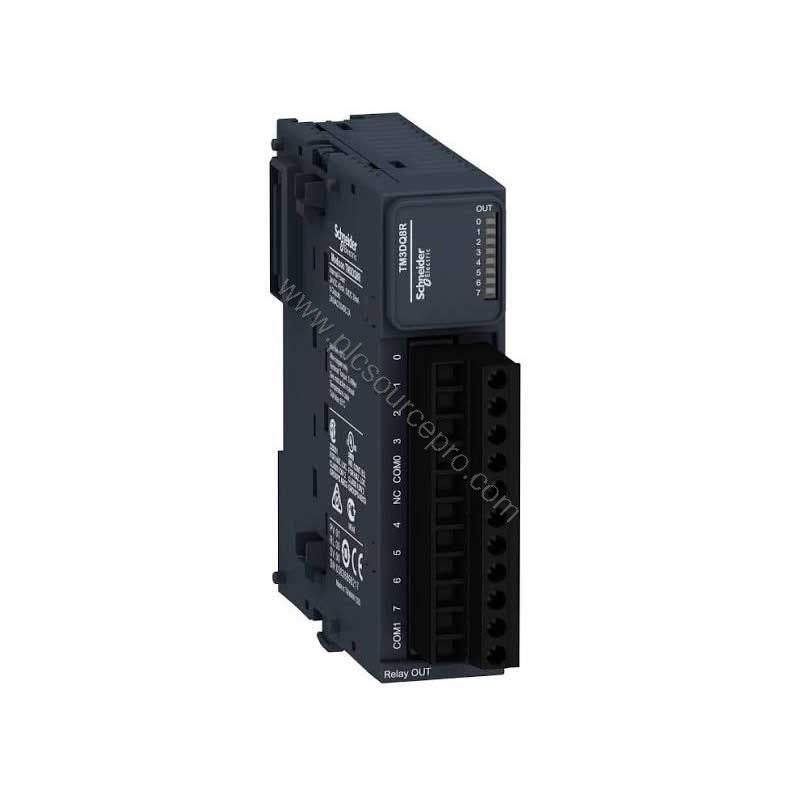

Part of the Modicon TM3 family, the Schneider TM3DQ8R discrete output module provides reliable relay outputs for industrial automation systems. Designed for use with Modicon M221, M241, M251, and M262 controllers, this module offers eight normally open relay outputs with screw terminal connections. The TM3DQ8R is an essential component for controlling actuators, solenoids, and other discrete loads.
Compatibility & Integration
The Schneider TM3DQ8R is fully compatible with the Modicon M221, M241, M251, and M262 programmable logic controllers. It connects via the bus connector and integrates seamlessly into the Modicon TM3 I/O system. This module supports both positive and negative logic, making it versatile for various control schemes.
Industry Applications
Typical applications for the TM3DQ8R include conveyor systems, packaging machinery, material handling, and general discrete manufacturing. The relay outputs handle high currents and provide electrical isolation, suitable for driving contactors and other industrial loads. In many factory automation setups, the TM3DQ8R serves as a reliable interface between the PLC and field devices.
Installation & Setup
Mount the Schneider TM3DQ8R on a standard DIN rail (TH35) or panel using the provided fixing kit. Wiring is performed via the 11-pin removable screw terminal block with a 5.08 mm pitch. Ensure proper cable routing and maintain distances according to the installation guidelines. The module requires no additional configuration beyond addressing in the PLC system.
Maintenance & Reliability
With its solid construction and adherence to industrial standards, the TM3DQ8R is built for long service life. Regular inspection of connections and environment conditions will help maintain optimal performance. For detailed technical specifications and life cycle data, please refer to the product documentation or contact UBEST Automation.
Selection Guide & Purchasing Advice
When selecting the TM3DQ8R, verify compatibility with your controller model and power supply requirements. UBEST Automation stocks genuine Schneider parts and can provide further assistance. For complete specifications, visit ubest101.myshopify.com or contact our sales team.
