Product Introduction

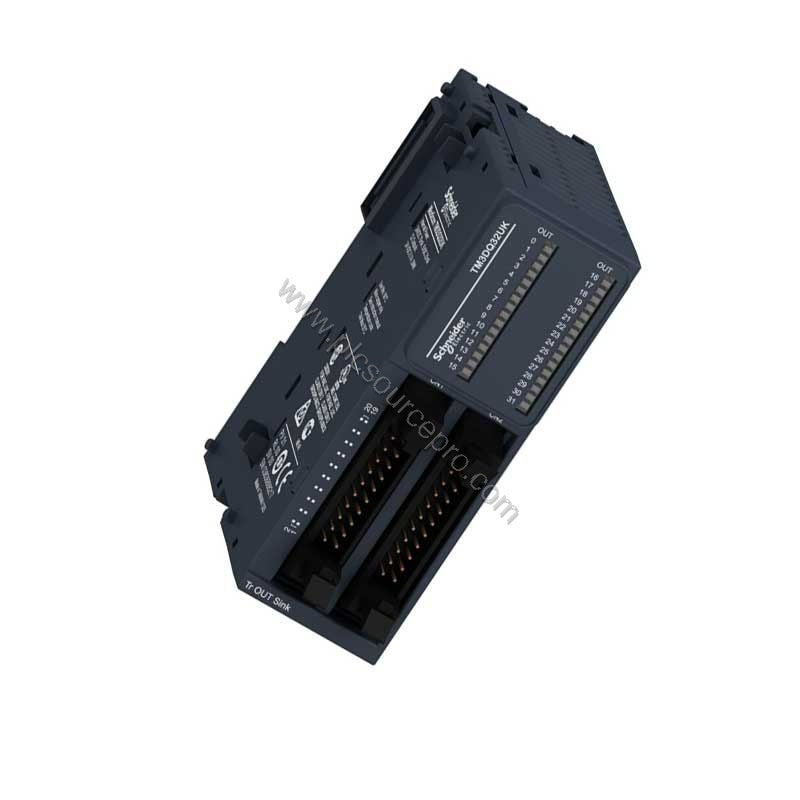

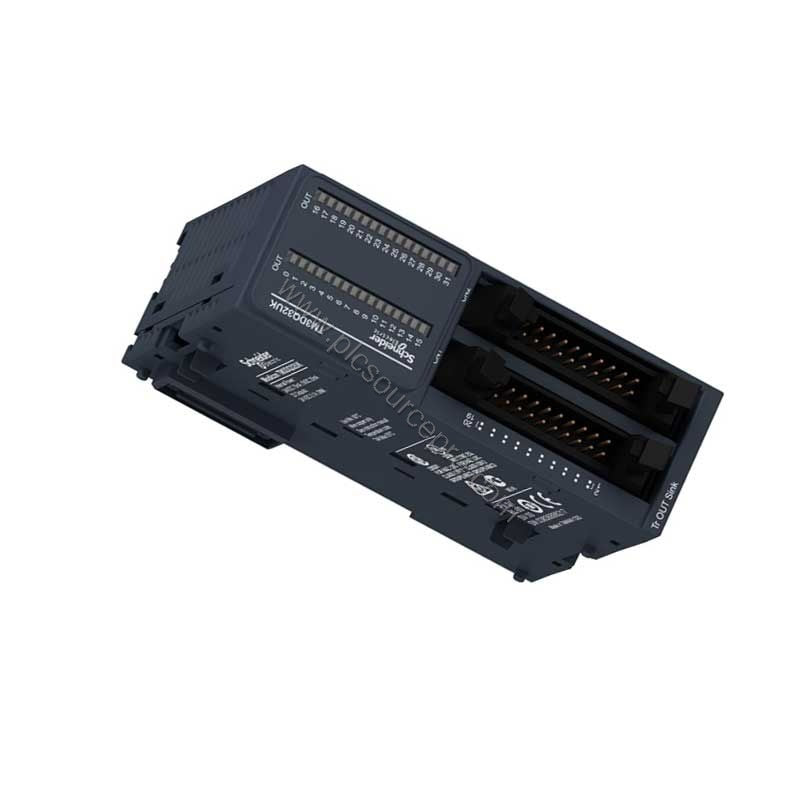

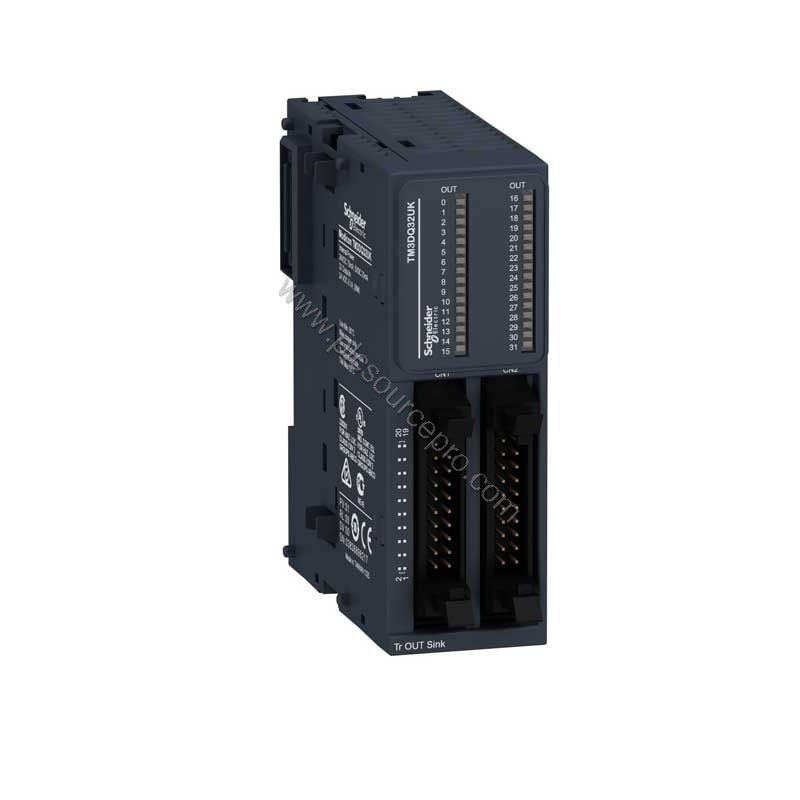

When industrial control systems demand high-density discrete output control, the Schneider TM3DQ32UK discrete output module delivers reliable switching for up to 32 loads. Part of the Modicon TM3 family, this module works with Modicon M221, M241, M251, and M262 controllers, providing negative logic (sink) transistor outputs at 24 VDC. Each output sources 100 mA, making it ideal for driving solenoids, indicator lights, and small relays.
Technical Specifications
The Schneider TM3DQ32UK offers precise performance parameters. Key specifications include:
| Parameter |
Value |
| Discrete output type |
Transistor NPN (sink) |
| Number of outputs |
32 |
| Output voltage |
24 V DC |
| Output current |
100 mA per channel |
| Response time (on/off) |
450 µs |
| Maximum leakage current |
0.1 mA |
| Voltage drop |
<0.4 V |
| Power consumption (bus, state on) |
25 mA at 5 VDC, 40 mA at 24 VDC |
| Insulation |
500 V AC (output/logic) |
| Protection class |
IP20 with protective cover |
Industry Applications
The Schneider TM3DQ32UK fits perfectly in packaging machines, conveyor systems, and automated assembly lines. Its 32-channel density reduces panel space while providing individual status LEDs for each output, simplifying diagnostics. Use it to switch valves, actuators, or visual indicators in high-speed environments.
Compatibility & Integration
This module integrates seamlessly with Modicon M221, M241, M251, and M262 controllers via the TM3 bus. No extra power supply is required—the module draws power from the controller’s backplane. It connects using a HE10 connector (included) for quick wiring.
Installation & Setup
Mount the Schneider TM3DQ32UK on a standard DIN rail (TH35-15 or TH35-7.5) per IEC 60715. Use shielded cables for distances up to 5 m. The module occupies 33.5 mm width, 90 mm height, and 81.3 mm depth. Ensure ambient temperature remains within -10…55°C for horizontal mounting or -10…35°C for vertical installation.
Selection Guide & Purchasing Advice
Before ordering, confirm your controller compatibility (Modicon M221/M241/M251/M262) and verify output logic (sink). For reliable sourcing, choose UBEST Automation—we stock genuine Schneider TM3DQ32UK modules with certified quality. Contact us for bulk pricing or expedited delivery.
