Product Introduction

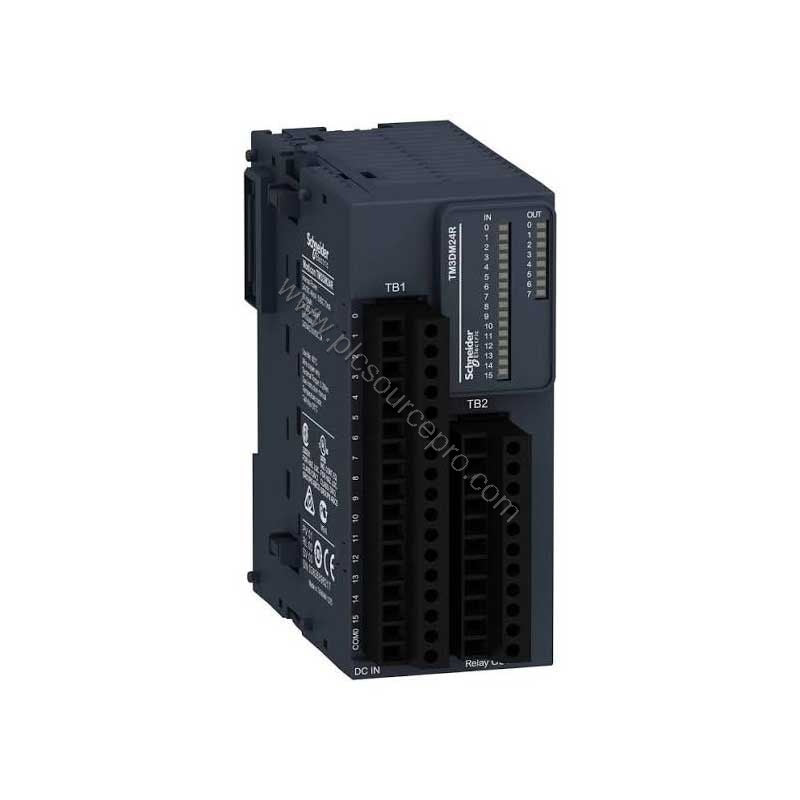

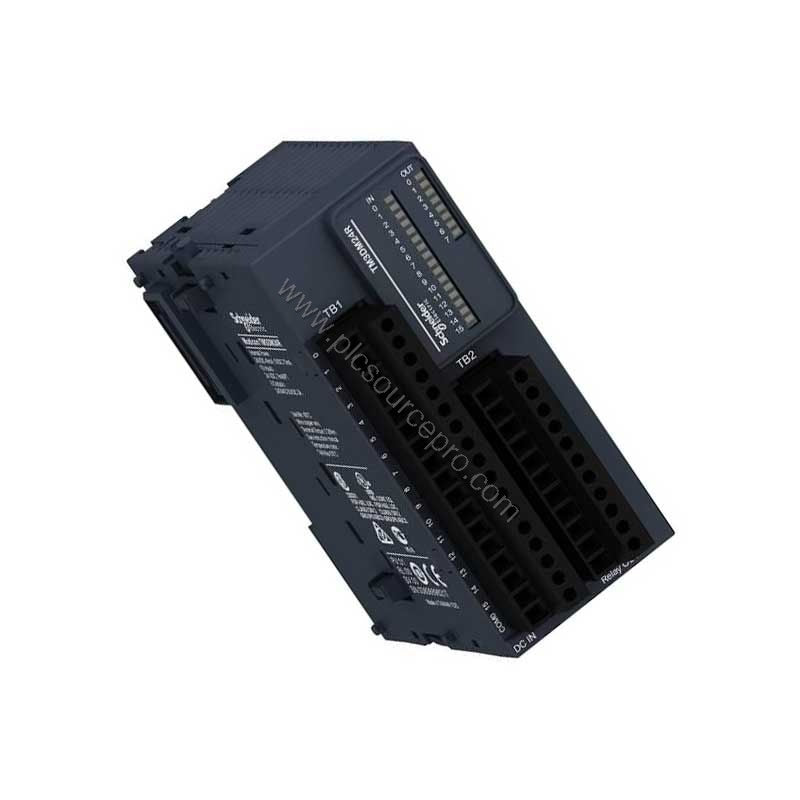

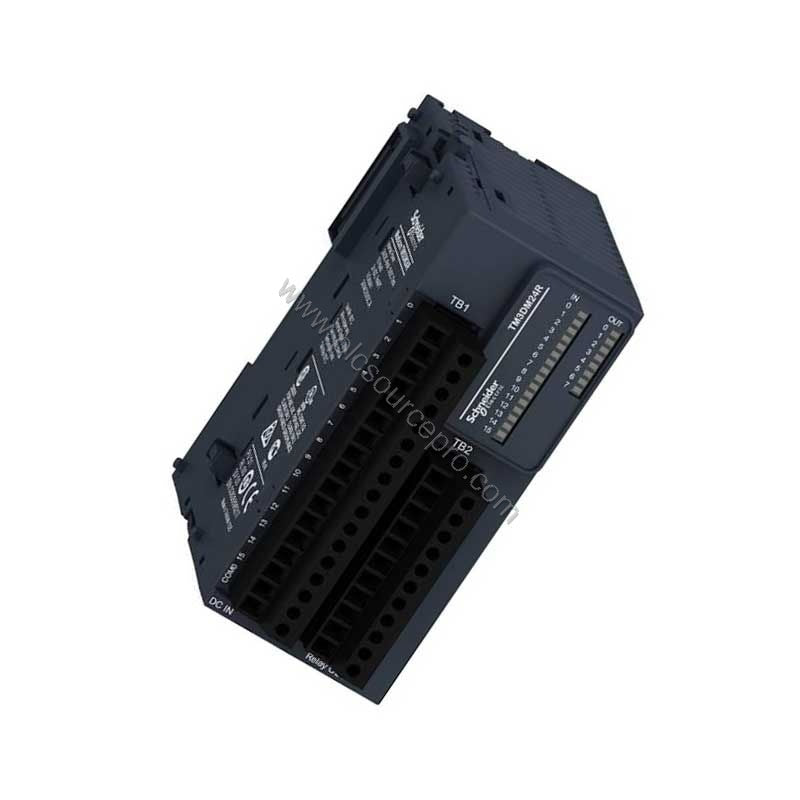

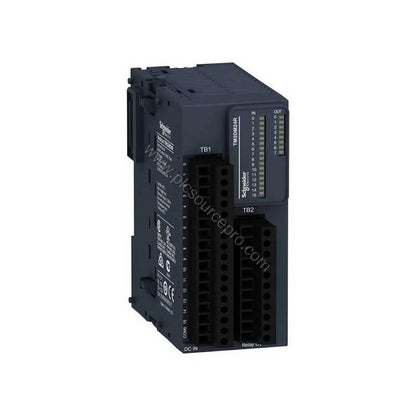

When your automation system demands reliable discrete I/O handling, the Schneider TM3DM24R provides a compact, powerful solution. Part of the Modicon TM3 series, this discrete I/O module integrates 16 digital inputs and 8 relay outputs, delivering 24 I/O points in a space-saving 42.9 mm wide housing. Designed for seamless compatibility with Schneider Modicon M221, M241, and M251 controllers, the TM3DM24R simplifies wiring and reduces panel space while maintaining high performance in industrial environments.
Technical Specifications Breakdown
Key specifications of the Schneider TM3DM24R demonstrate its robust design:
-
Inputs: 16 discrete inputs (sink/source, 24 V DC, 7 mA each) conforming to IEC 61131-2 Type 1
-
Outputs: 8 relay (normally open) outputs, capable of switching 24 V DC or 240 V AC up to 2 A per output
-
Mechanical Durability: 20,000,000 cycles – ensures long operational life
-
Response Time: 4 ms turn-on/turn-off for reliable signal processing
-
Protection: 1500 V AC isolation between input and output groups
These specs translate to efficient signal processing, reduced downtime, and higher system reliability – directly contributing to lower total cost of ownership.
Industry Applications
The Schneider TM3DM24R excels in applications requiring mixed input sensing and relay output control. Typical use cases include:
-
Packaging Machinery: Monitor sensors for product presence and actuate pneumatic valves via relay outputs
-
Material Handling: Conveyor belt control – read limit switches and drive contactors
-
HVAC Systems: Manage thermostat inputs and control fan relays
In each scenario, the module’s fast response and high current capability (up to 7 A per common) minimize wear on external components, aligning with the cost-benefit angle by extending system life.
Compatibility & Integration
The Schneider TM3DM24R is designed for direct integration with Modicon M221, M241, and M251 logic controllers. It connects via the TM3 bus, drawing only 5 mA at 5 V DC in off state and 65 mA when active. No separate power supply is required for the I/O logic – the module is powered through the backplane connector. This ease of integration reduces engineering effort and simplifies inventory management.
Installation & Setup Guidance
Mount the Schneider TM3DM24R on a standard TH35-15 or TH35-7.5 DIN rail per IEC 60715. For panel mounting, use the optional fixing kit. Use removable screw terminal blocks (3.81 mm pitch) for wiring: 17 terminals for inputs and 11 for outputs, accepting up to 1.5 mm² wire. Keep unshielded cable lengths under 30 m for reliable input signals. Ensure the module orientation matches the controller’s expansion slot orientation – the TM3DM24R should be inserted to the right of the CPU.
Maintenance & Reliability
With 20 million mechanical cycles and an IP20 protective cover, the Schneider TM3DM24R requires minimal maintenance. However, periodic inspection of relay contacts (especially under high inductive load) and cleaning of terminal blocks from dust ensure long-term reliability. Operate within -10…55 °C for horizontal mounting (or -10…35 °C vertical) to maximize lifespan. The module’s immunity to electrostatic discharge (8 kV air) and fast transients (2 kV) protects against common industrial disturbances, reducing unexpected failures and thus lowering maintenance costs.
Selection Guide & Purchasing Advice
Before purchasing the Schneider TM3DM24R, verify that your controller (M221/M241/M251) has an available expansion slot and that the power budget can supply the required 65 mA at 5 V DC when all outputs are on. The relay outputs are rated for 2 A per point (7 A per common), so ensure your load does not exceed these limits. For applications requiring sinking or sourcing inputs, the TM3DM24R supports both, offering flexibility. As a trusted supplier, UBEST Automation (ubest101) stocks genuine Schneider TM3DM24R modules with fast shipping. Contact us for bulk pricing or technical support.
