Product Overview

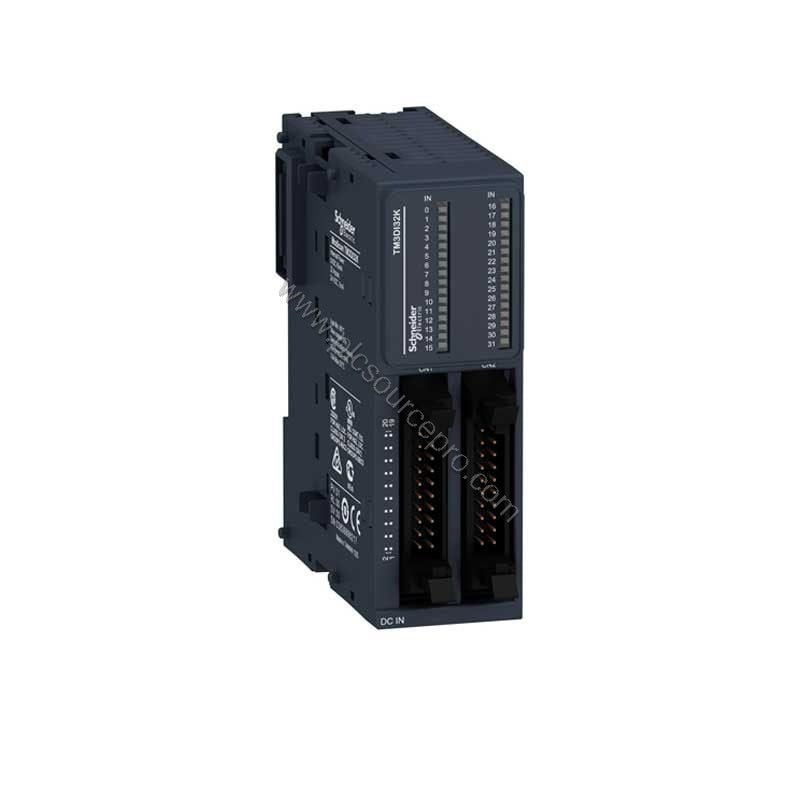

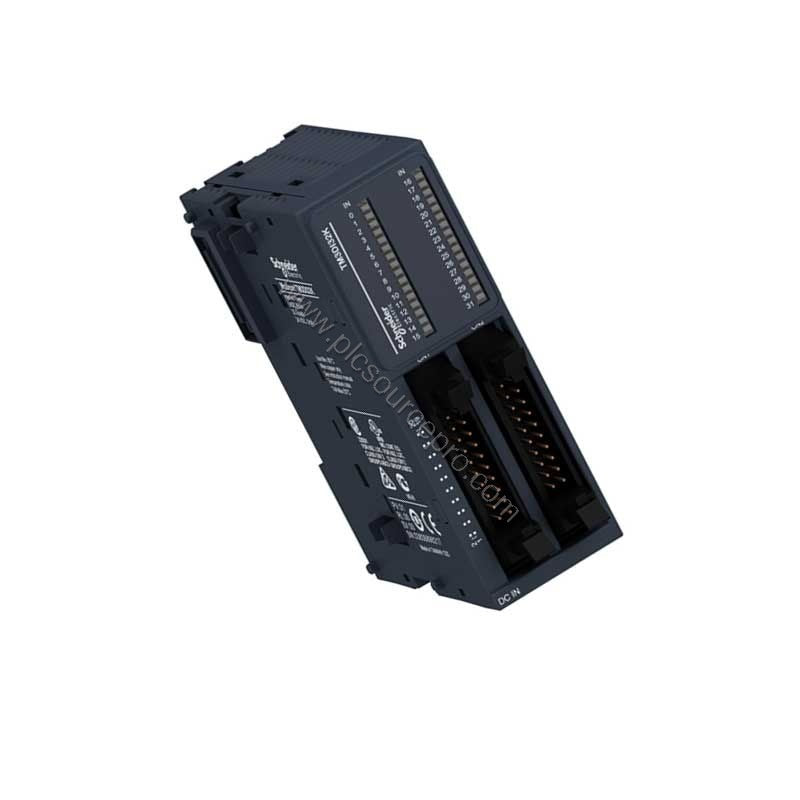

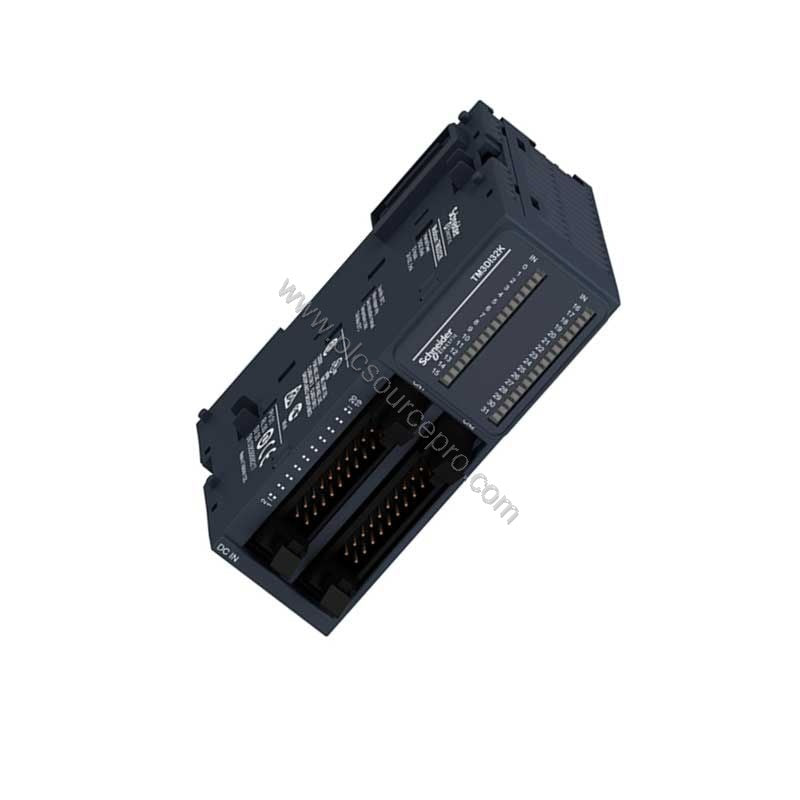

The Schneider TM3DI32K discrete input module is designed for high‑reliability industrial sensing and monitoring. As part of the Modicon TM3 family, it interfaces directly with Modicon M221, M241, M251, and M262 controllers, providing 32 sink/source inputs that accept 24 V DC signals. The module’s robust construction and fast 4 ms response time make it ideal for applications where precise input detection and noise immunity are critical.
When electrical noise or cable length compromises input integrity, the Schneider TM3DI32K maintains reliable state detection thanks to its 500 V AC isolation between input and internal logic and immunity to electrostatic discharge up to 8 kV in air. The HE10 connector simplifies wiring, while the compact 33.5 mm width saves valuable cabinet space.
Technical Specifications
Below are the key performance parameters of the Schneider TM3DI32K discrete input module. All values are taken directly from the manufacturer’s documentation.
| Parameter |
Value |
| Discrete input number |
32 (IEC 61131‑2 Type 1) |
| Input logic |
Sink or source (positive/negative) |
| Input voltage |
24 V DC |
| Input current per channel |
5 mA |
| Voltage state 1 guaranteed |
15…28.8 V |
| Voltage state 0 guaranteed |
0…5 V |
| Current state 1 guaranteed |
≥ 2.5 mA |
| Current state 0 guaranteed |
≤ 1 mA |
| Input impedance |
4.4 kOhm |
| Turn‑on/turn‑off time |
4 ms / 4 ms |
| Bus current consumption (5 V DC, state on) |
65 mA |
| Electrical connection |
HE‑10 connector |
| Insulation (input to logic) |
500 V AC |
| Dimensions (H × W × D) |
90 × 33.5 × 81.3 mm |
| Weight |
0.1 kg |
| IP degree |
IP20 with cover |
| Operating temperature |
-10…55 °C (horizontal), -10…35 °C (vertical) |
| Certifications |
CE, CULus, UKCA, RCM, EAC |
Industry Applications
Manufacturing plants use the Schneider TM3DI32K to monitor pushbuttons, limit switches, and proximity sensors on conveyor systems. Its 24 V DC inputs are compatible with most industrial sensors, and the module’s high noise immunity reduces false triggers, minimizing downtime.
In packaging lines, the module reads photoelectric and capacitive sensors at high speed, ensuring accurate product counting. The fast 4 ms response time allows it to keep pace with rapid machine cycles.
Compatibility & Integration
The Schneider TM3DI32K is designed for seamless integration with Modicon M221, M241, M251, and M262 automation controllers. It connects via the TM3 bus connector and is supported by EcoStruxure Machine Expert software. No additional power supply is needed; the module draws power directly from the bus.
Its HE10 connector simplifies wiring to field devices. For distances up to 30 m with unshielded cable, the module maintains reliable signal transmission.
Troubleshooting & Common Issues
If inputs do not register correctly, first verify that power to the module is within 24 V DC ±20%. Confirm that the input devices sink or source the required 5 mA. Loose connections on the HE10 connector are a frequent source of intermittent faults—ensure all wires are securely seated.
When erratic reading occurs, check for electromagnetic interference near the cable path. The Schneider TM3DI32K resists 10 V/m fields up to 1 GHz, but routing cables away from high‑current conductors further improves reliability. For extreme environments, install the included protective cover to maintain IP20 protection.
Selection Guide & Purchasing Advice
Before purchasing the Schneider TM3DI32K, verify that your controller supports the TM3 expansion bus and that the HE10 connector type matches your existing wiring scheme. This module works with both sink and source field devices, making it a versatile choice for mixed sensor arrays.
For consistent quality and guaranteed authentic parts, source your modules from UBEST Automation (ubest101). Our inventory includes factory‑sealed units with full traceability, ensuring your automation system runs without unexpected failures.
