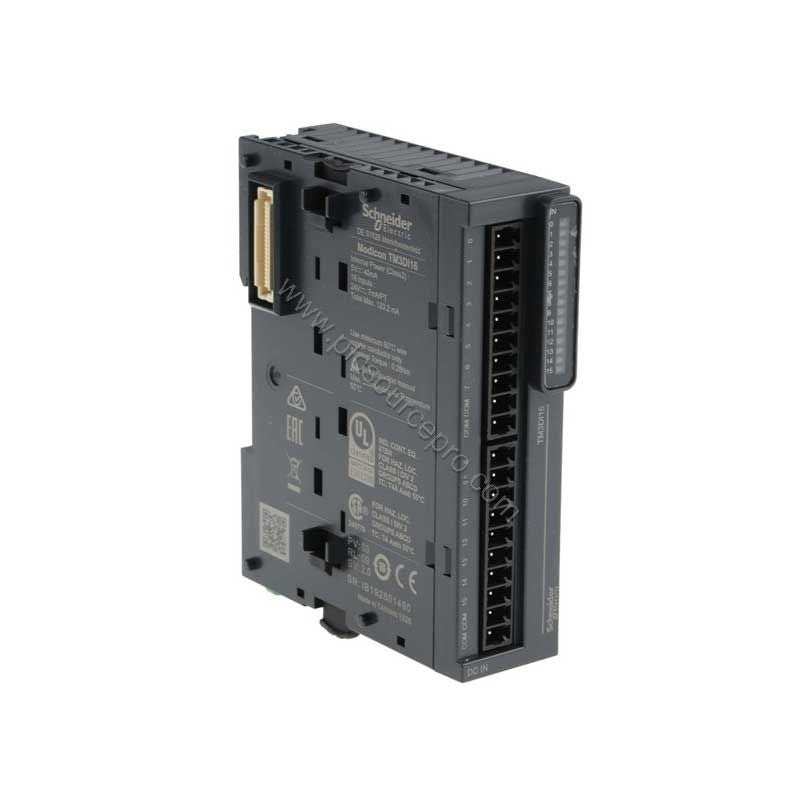

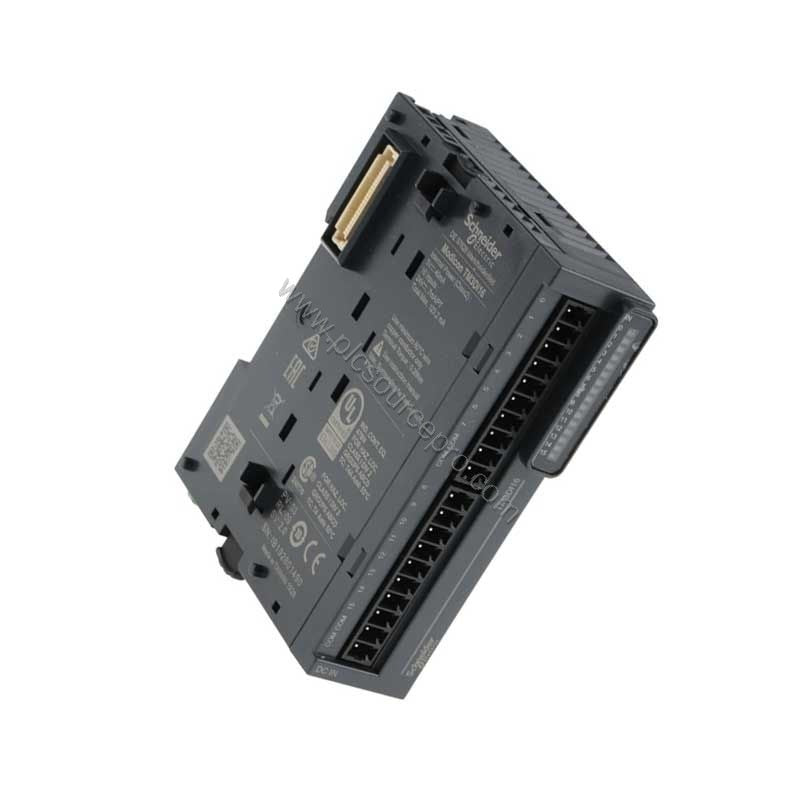

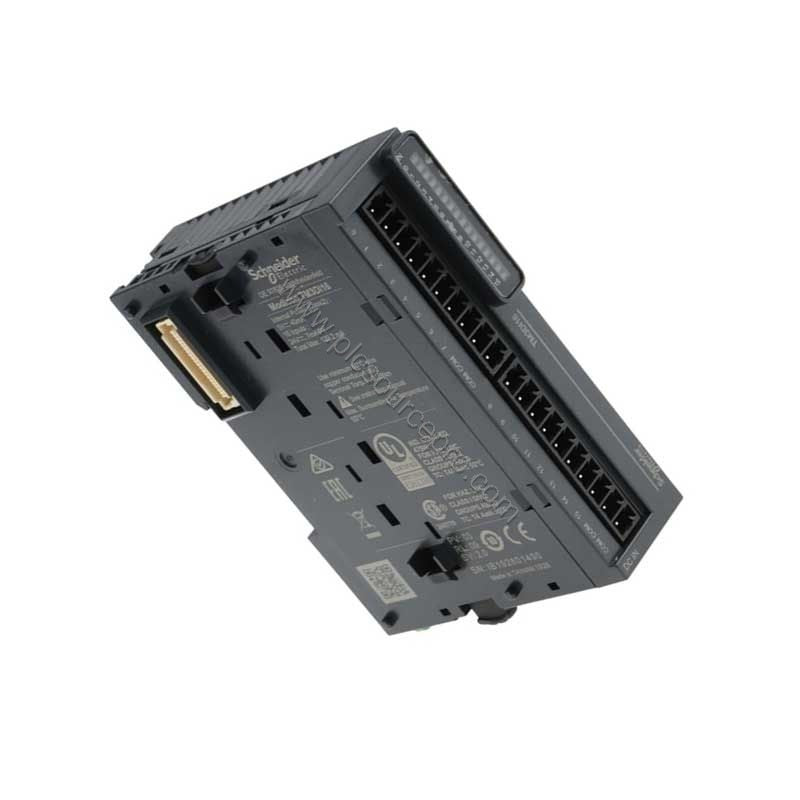

Introduction: The Schneider TM3DI16 Discrete Input Module
When electrical noise and voltage fluctuations threaten machine reliability, the Schneider TM3DI16 discrete input module provides robust signal acquisition. Part of the Modicon TM3 family, this module accepts 16 sink/source inputs at 24 VDC, meeting IEC 61131-2 Type 3 standards. It is designed for seamless integration with Modicon M221, M241, and M251 controllers, making it a reliable choice for demanding industrial automation tasks.
Technical Specifications Breakdown
The Schneider TM3DI16 ensures precise input detection with a guaranteed voltage range of 15 to 28.8 VDC for logic 1 and a response time of just 4 ms for both turn-on and turn-off. Key specifications include:
- Input current: 7 mA per channel
- Input impedance: 3.4 kΩ
- Current consumption: 40 mA at 5 VDC via bus when inputs are on; 5 mA when off
- Isolation: 500 VAC between input and logic
- EMC resistance: withstands 4 kV contact ESD, 10 V/m RF fields, and 1 kV fast transients
These parameters guarantee reliable operation even in electrically harsh environments, reducing false triggering and equipment downtime.
Real-World Applications
The TM3DI16 excels in applications requiring high noise immunity. For example, in automotive assembly lines, it reliably reads limit switches near welding arcs. In packaging machinery, its fast 4 ms response captures high-speed sensor signals. The module's wide input voltage tolerance (15–28.8 VDC) ensures stable operation even when power supplies experience sags. By choosing the Schneider TM3DI16, engineers minimize unexpected shutdowns caused by electrical interference.
Compatibility and Integration
The Schneider TM3DI16 is part of the Modicon TM3 I/O ecosystem, designed to work natively with Modicon M221, M241, and M251 programmable logic controllers. It connects via the bus connector and mounts on standard TH35-15 or TH35-7.5 DIN rails. The removable screw terminal block (3.81 mm pitch) accepts wires up to 1.5 mm², simplifying field wiring. No special adapters are needed for sink or source wiring; the module supports both logic types.
Troubleshooting and Common Issues
One frequent issue in discrete inputs is false triggering due to electrical noise. The TM3DI16 addresses this with built-in immunity: it rejects conducted disturbances up to 10 Vrms and radiated fields up to 10 V/m. For turn-off leakage currents below 1 mA, the module guarantees a logic 0 state. If inputs fail to register, check the voltage at the terminal — it must be within 15–28.8 VDC for logic 1. Also verify that the cable length does not exceed 50 m for unshielded cable. For persistent problems, inspect the mounting: the module is rated IP20 with protective cover, so ensure the environment is free of conductive dust.
