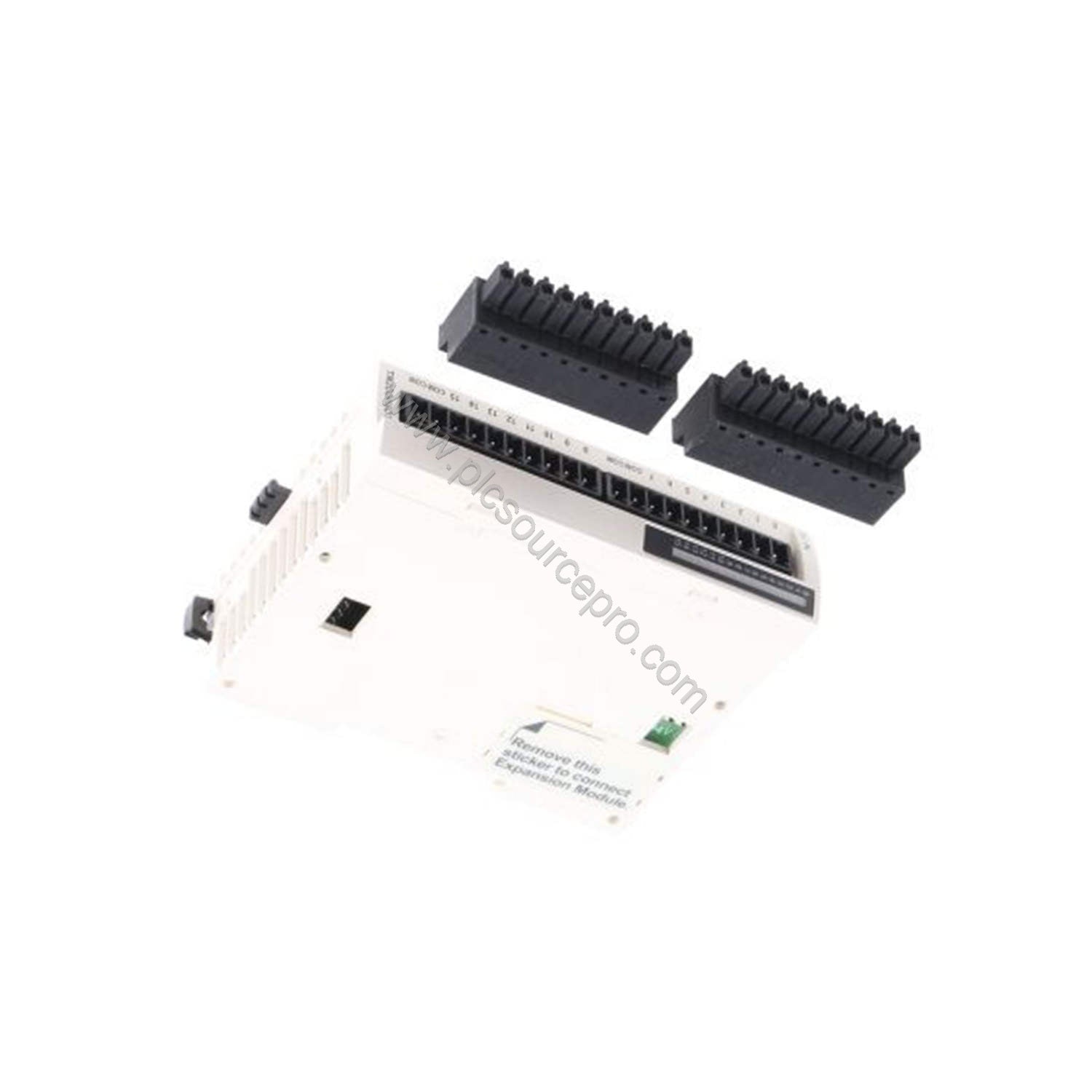

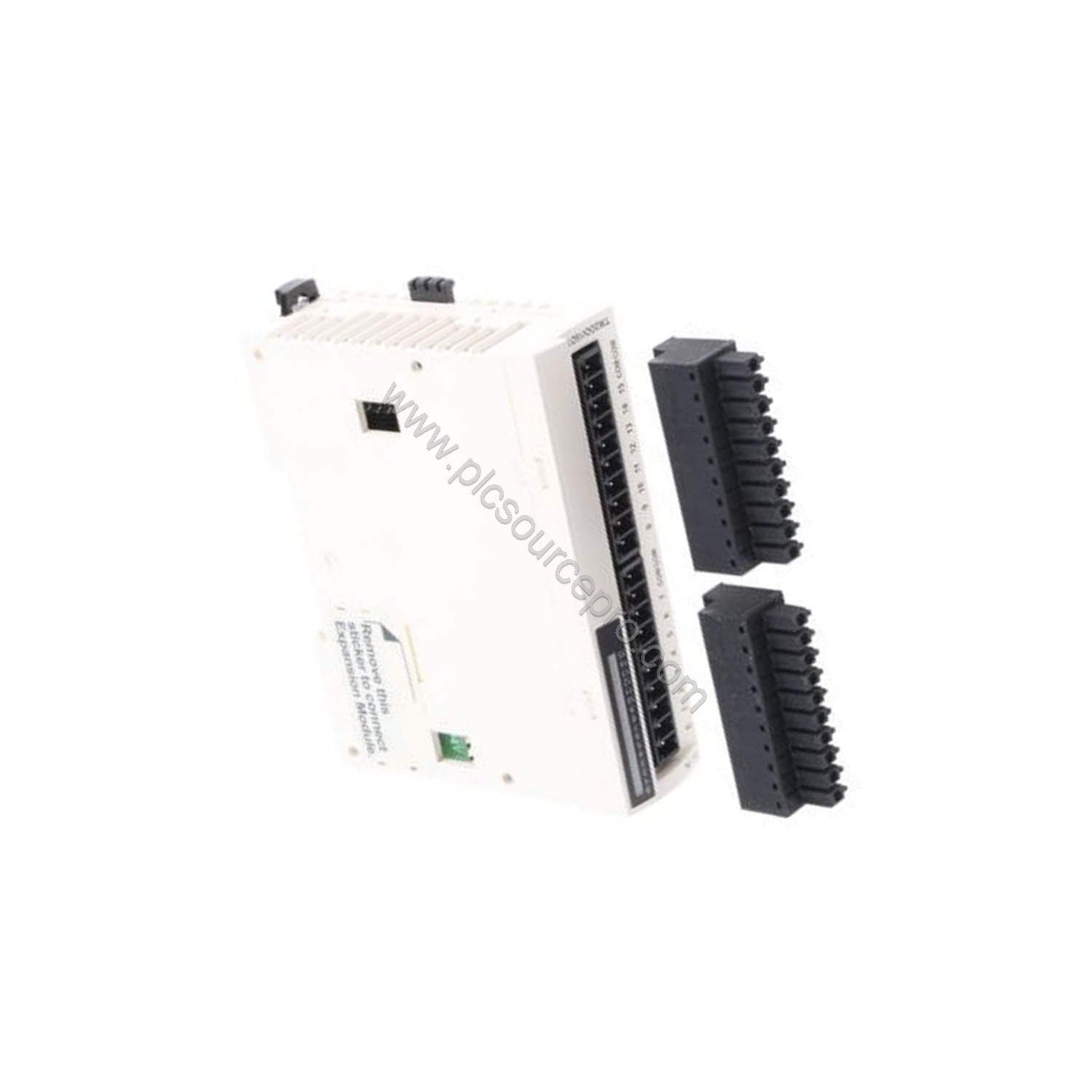

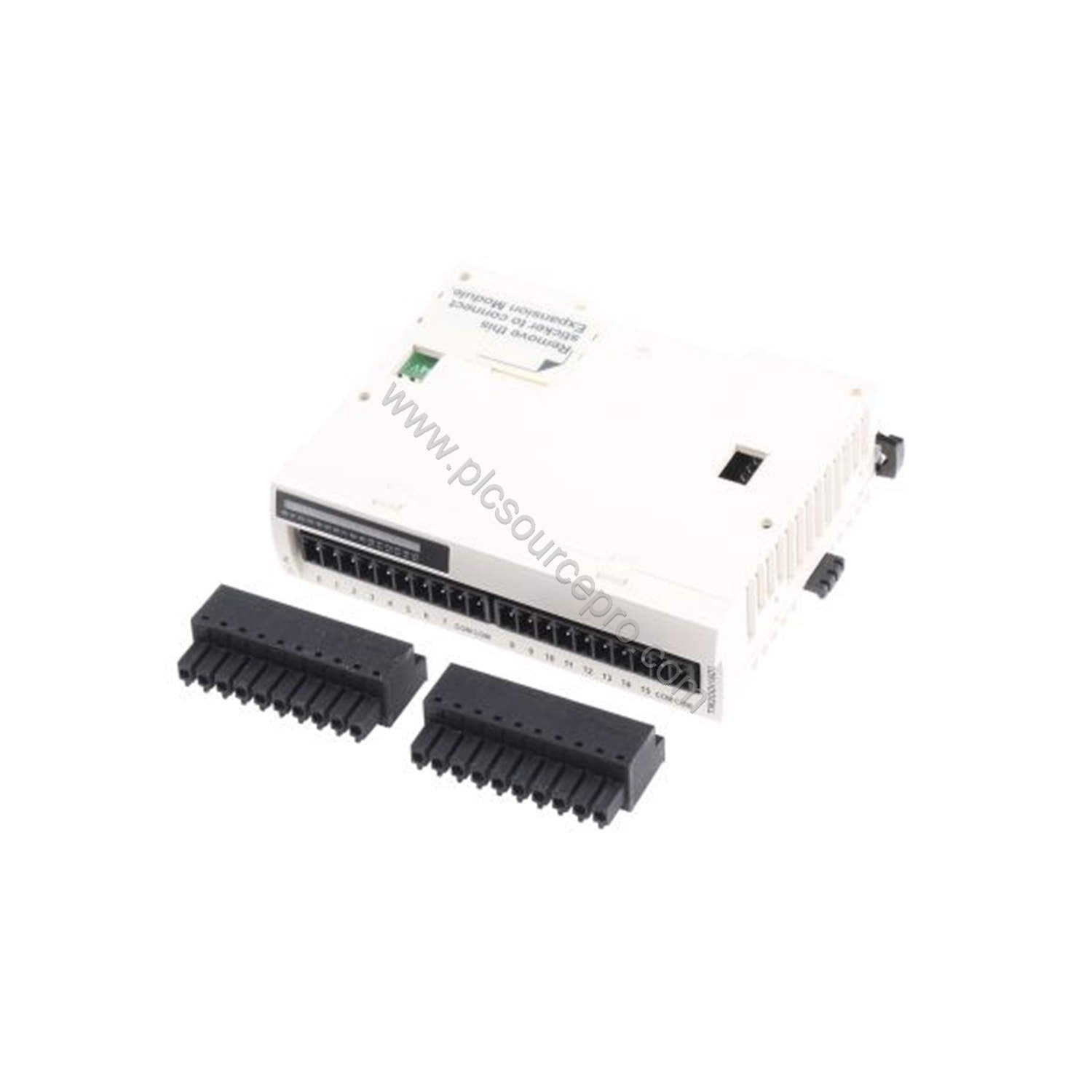

Schneider TM2DDI16DT Digital Input Module Overview
The Schneider TM2DDI16DT is a reliable discrete input expansion module from the Modicon M238 family. It provides 16 inputs at 24 V DC with both sink and source logic, making it versatile for various industrial control applications. Designed for seamless integration, this module ensures precise signal acquisition with a fast 4 ms response time.
Technical Specifications
Below are the key specifications of the Schneider TM2DDI16DT:
| Parameter |
Value |
| Discrete Input Number |
16 |
| Input Voltage Type |
DC, 24 V |
| Input Voltage Limits |
20.4...28.8 V |
| Input Current |
7 mA |
| Input Impedance |
3.4 kOhm |
| Response Time (state 0/1) |
4 ms / 4 ms |
| Isolation (channel to logic) |
500 V for 1 minute |
| Current Consumption (5 V DC) |
40 mA at state 1 |
| Connection |
1 removable screw terminal block |
| Mounting |
35 mm DIN rail |
| Dimensions (W x H x D) |
23.5 x 90 x 84.6 mm |
| Weight |
0.065 kg |
Industry Applications
The Schneider TM2DDI16DT excels in real-world automation scenarios. For example, in packaging lines, its 4 ms response time accurately detects product presence, reducing false triggers. In conveyor systems, the wide input voltage range (20.4-28.8 V) ensures stable operation despite voltage fluctuations. The sink or source logic simplifies wiring in both legacy and modern control cabinets.
Installation & Setup Guidance
Mount the Schneider TM2DDI16DT on a 35 mm DIN rail using the integrated clip. Connect field devices to the removable screw terminal block with proper wire torque (0.5-1.2 N·m typical). Ensure the DC supply is within 20.4-28.8 V. Use a common point for group isolation. Verify module status via the local signalling block.
Maintenance & Reliability
With no moving parts and an isolation of 500 V between channels and logic, the Schneider TM2DDI16DT requires minimal maintenance. Periodically check terminal tightness and inspect for signs of dust or corrosion. The low power consumption (40 mA at 5 V) reduces heat stress, extending service life. This module is built for demanding 24/7 industrial environments.
Selection Guide & Purchasing Advice
Before ordering the Schneider TM2DDI16DT, confirm compatibility with your Modicon M238 base controller. This module supports Twido and Advantys OTB ranges. For bulk or urgent needs, UBEST Automation stocks genuine units ready to ship. Visit ubest101.myshopify.com for pricing and availability.
Troubleshooting Common Issues
If the Schneider TM2DDI16DT fails to read inputs, first verify the DC supply voltage is within 20.4-28.8 V. Check that the input logic (sink or source) matches field devices. A slow response may indicate high capacitance on the line; ensure wiring length does not exceed recommended limits. The module's 500 V isolation protects against ground loops, but always use shielded cable in noisy environments.
