Product Introduction

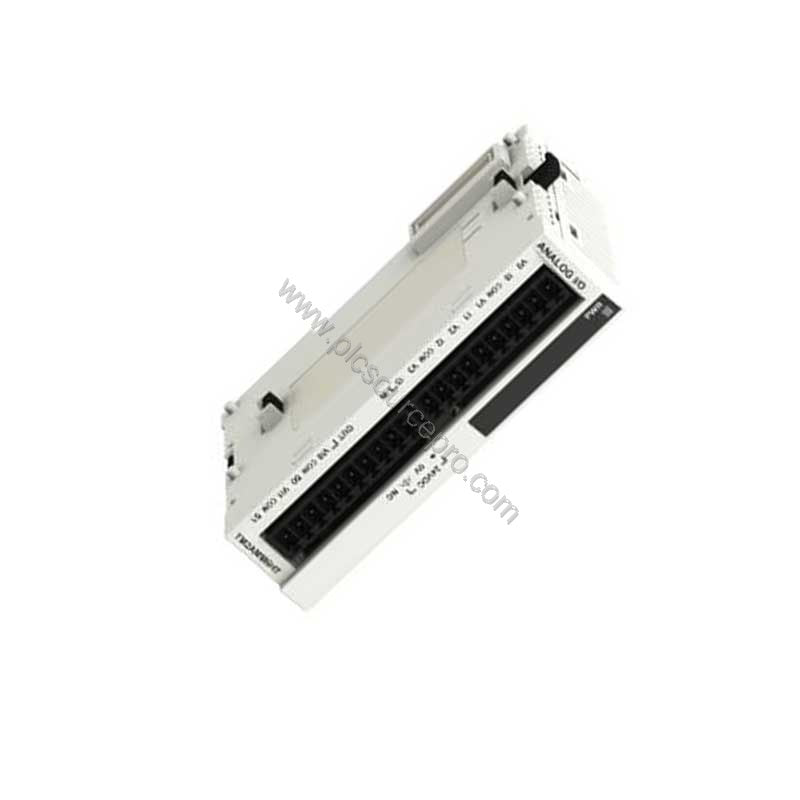

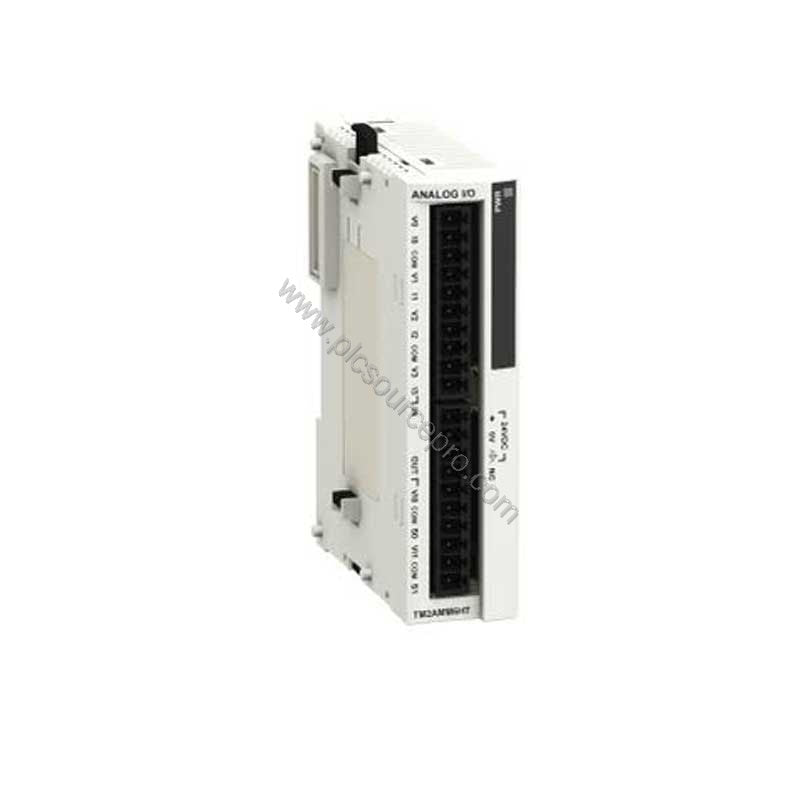

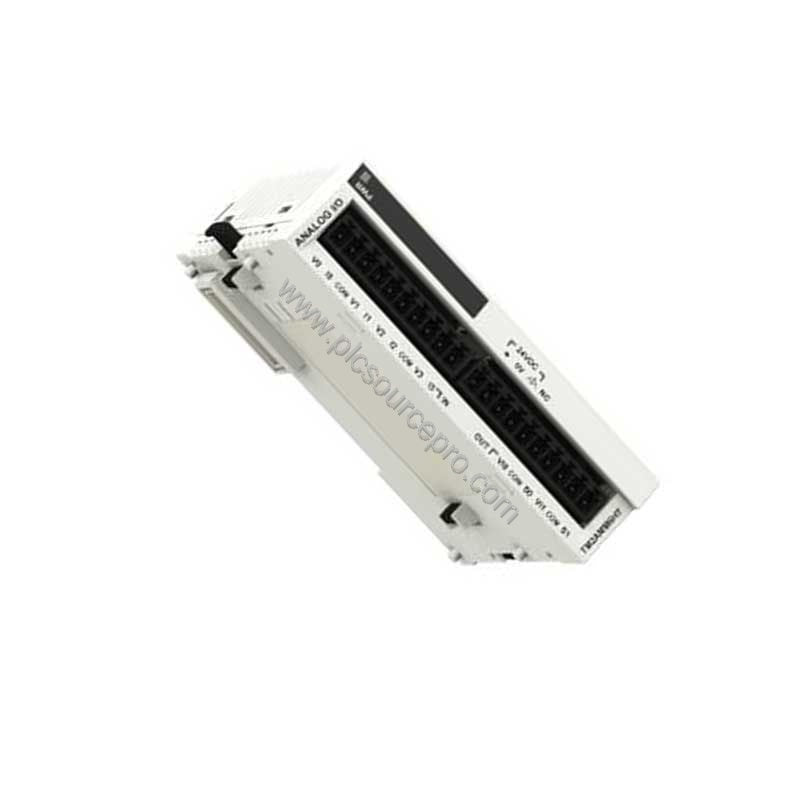

In industrial automation, analog signal degradation often leads to costly downtime and measurement errors. The Schneider TM2AMM6HT Input/Output Analog Module directly addresses this challenge by providing stable, high-accuracy signal conditioning. Designed for the Modicon M238 logic controller series, this module offers four analog inputs and two analog outputs, supporting both current (4–20 mA) and voltage (0–10 V) signals. Its robust construction and low crosstalk ensure reliable data acquisition in harsh environments.
Technical Specifications Breakdown
The TM2AMM6HT delivers 12-bit resolution on both inputs and outputs, with an LSB value of 2.5 mV for voltage and 4 µA for current. This precision translates to repeat accuracy of ±0.5% FS for inputs and ±1% FS for outputs, minimizing drift over time. The module's total error is ±1.5% FS for both current and voltage outputs, while input errors remain within ±0.5% FS at 25 °C. A temperature coefficient of ±0.02% FS/°C ensures performance stability across varying operating conditions. Key specs include:
- Inputs: 4 channels, 4–20 mA or 0–10 V, non-differential
- Outputs: 2 channels, 4–20 mA or 0–10 V
- Conversion time: 20 ms + 1 controller cycle time
- Stabilization time: 20 ms
- Insulation: Photocoupler isolation between channel and internal logic
- Supply: 24 V DC (19.2–30 V range), 80 mA external
Industry Applications
Manufacturing lines that rely on precise analog measurement for flow, pressure, or level control benefit directly from the TM2AMM6HT's low error rate. For example, in a chemical dosing system where 4–20 mA signals from transmitters must be read accurately, the module's ±0.5% full-scale input error ensures consistent mixture ratios. Similarly, in HVAC building management, the 0–10 V outputs can drive variable frequency drives with minimal ripple (≤1 LSB), preventing unstable fan speeds.
Installation & Setup Guidance
Mount the TM2AMM6HT on a DIN rail within the Modicon M238 rack. Use shielded twisted-pair cables for all analog connections to minimize electromagnetic interference. Connect a 24 V DC external supply to the dedicated terminals; the module draws 80 mA. The removable screw terminal block simplifies wiring and future servicing. Ensure the controller cycle time is configured to accommodate the 20 ms conversion time plus one scan cycle for optimal performance.
Selection Guide & Purchasing Advice
Before purchasing the TM2AMM6HT, verify that your Modicon M238 base unit has an available slot and supports this analog module. Confirm the voltage supply range (19.2–30 V DC) and that your sensors match the input types (current or voltage). For large orders or technical support, trust UBEST Automation—your reliable source for genuine Schneider replacement modules. Visit ubest101 for pricing and availability.
Troubleshooting & Common Issues
If output readings drift, check the external supply stability—the module requires clean 24 V DC. For input errors exceeding ±1% FS, inspect cable shielding and ensure no ground loops exist. The photocoupler insulation protects against surges up to 1500 V between I/O and supply, but frequent overvoltage may degrade performance. If conversion time seems slow, verify that the controller cycle time does not add excessive delay.
