Product Overview

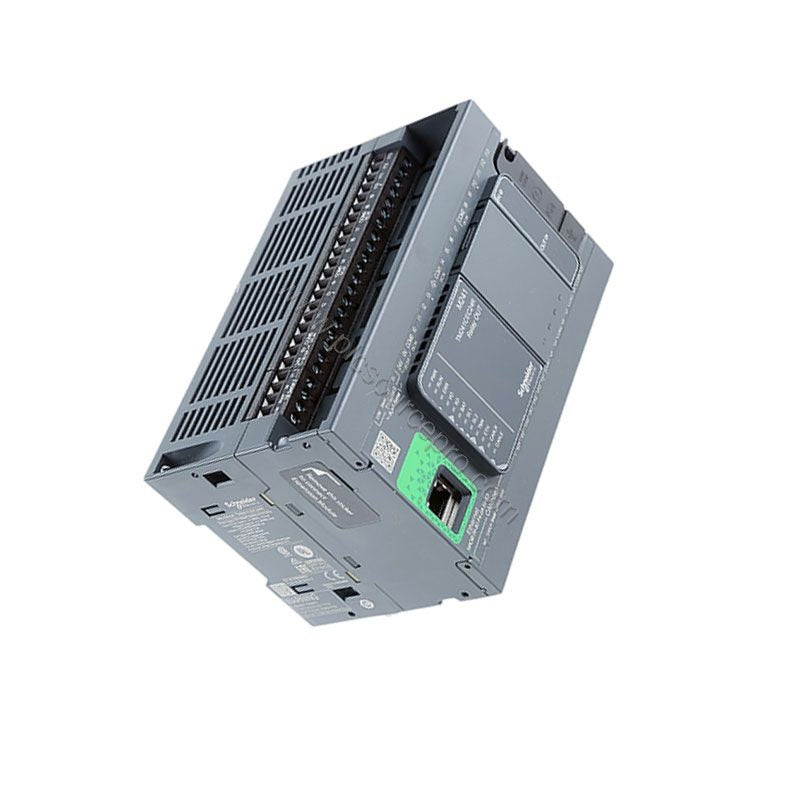

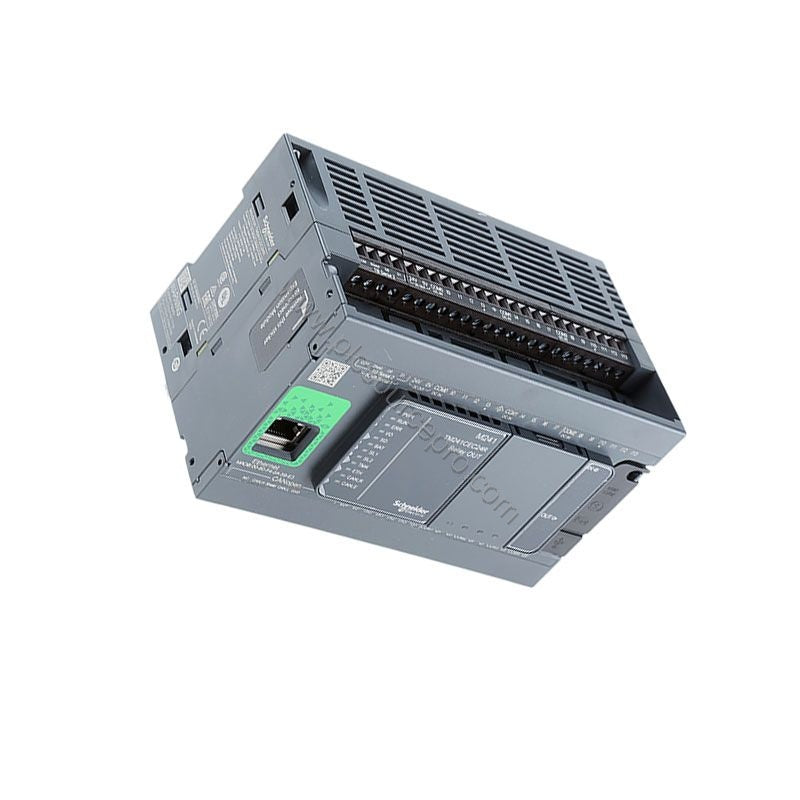

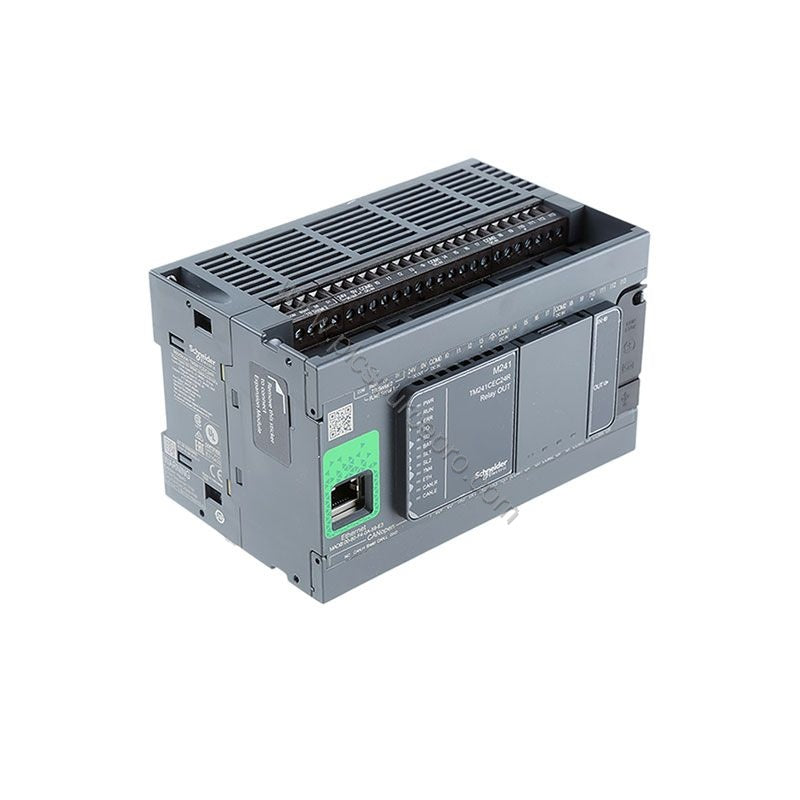

The Schneider TM241CEC24R Logic Controller from the Modicon M241 series delivers powerful control in a compact package. With 24 I/O points including 6 relay and 4 transistor outputs, this controller handles diverse automation tasks. The TM241CEC24R integrates Ethernet and CANopen for flexible connectivity, making it ideal for distributed systems.
Technical Specifications
The TM241CEC24R operates on a 100–240 V AC supply and features 14 discrete inputs (8 fast) and 10 discrete outputs. Below are key specifications:
| Parameter |
Value |
| Rated Supply Voltage |
100...240 V AC |
| Discrete Inputs |
14 (8 fast, IEC 61131-2 Type 1) |
| Discrete Outputs |
6 relay + 4 transistor (4 fast) |
| Max Expansion Modules |
7 local / 14 remote |
| Communication Ports |
Ethernet, CANopen, RS232/485, USB |
| Memory |
64 MB RAM, 128 MB Flash |
| Dimensions (W×H×D) |
150 × 90 × 95 mm |
| Weight |
0.53 kg |
These specifications ensure the TM241CEC24R handles high-speed counting, positioning, and real-time control tasks efficiently.
Real-World Applications
In manufacturing lines, the TM241CEC24R controls conveyors and sorting systems using its fast outputs and CANopen master capability. For packaging machinery, the integrated Ethernet supports seamless data exchange with supervisory systems. The TM241CEC24R also excels in material handling applications where precise relay control and high-speed inputs are crucial.
Compatibility and Integration
The TM241CEC24R communicates via Modbus TCP, EtherNet/IP, CANopen, and serial links (RS232/RS485). It integrates with HMIs, drives, and sensors from various brands. The controller supports up to 63 CANopen slaves, making it a central node in distributed automation networks. Use the USB port for quick programming via SoMachine software.
Selection Guide and Purchasing Advice
Before purchasing the TM241CEC24R, verify your I/O count and communication needs. The controller supports up to 7 local expansion modules (TM4 series). For remote architectures, add 14 modules. Consider the SD card slot for data logging. UBEST Automation supplies genuine Schneider parts with fast delivery. Contact ubest101 for bulk pricing and lead times.
