Product Introduction

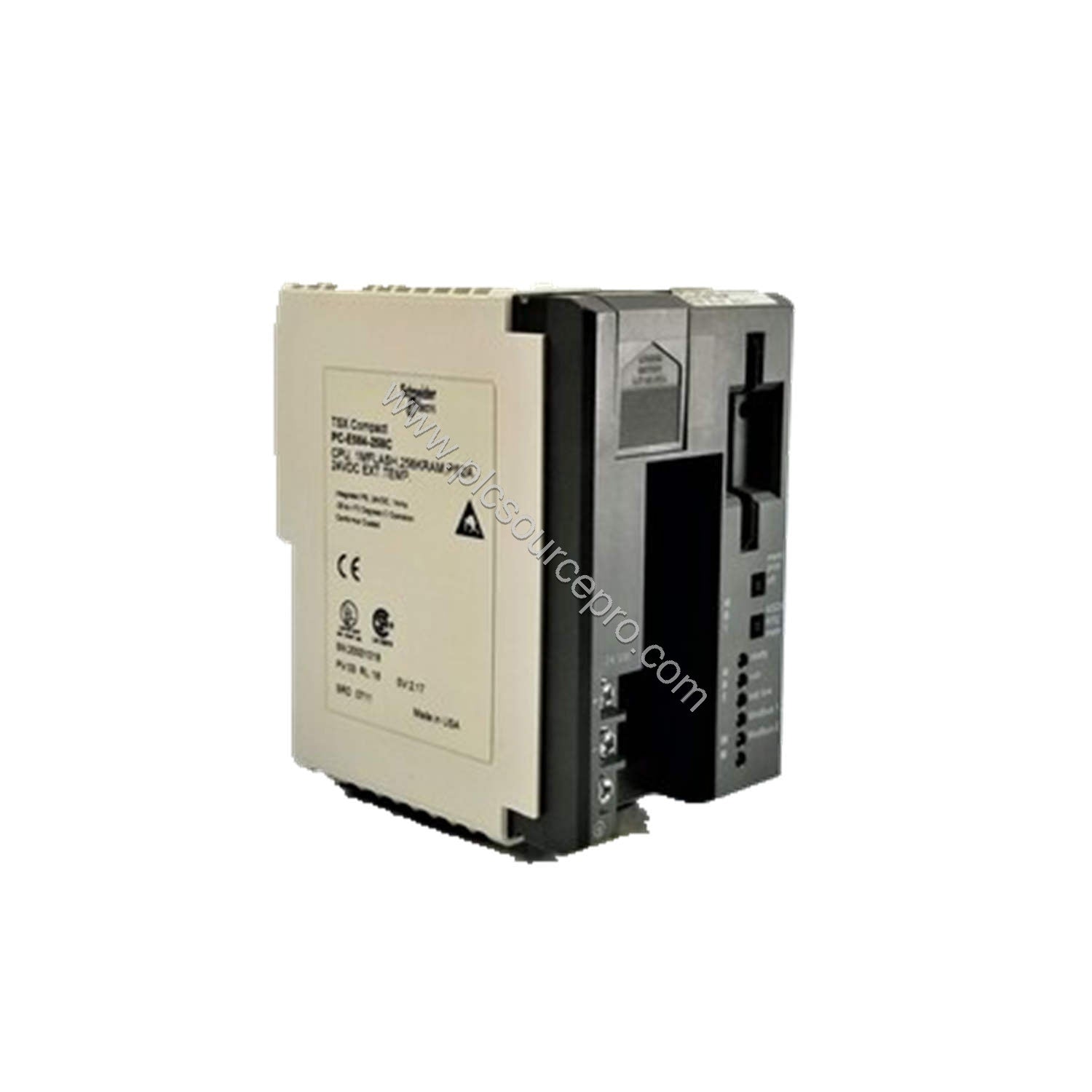

In demanding industrial automation environments, reliable control is essential. The Schneider PC-E984-285C compact controller delivers robust performance with 32K logic memory and 64K data memory, supporting diverse control algorithms. Part of the Modicon series, this unit serves as a reliable upgrade path for older Modicon systems.
Technical Specifications
| Parameter |
Value |
| Manufacturer |
Schneider Electric |
| Product Type |
Compact Controller |
| Product Line |
Modicon |
| Part Number |
PC-E984-285C |
| Logic Memory |
32 K |
| Data Memory |
64 K |
| Clock Speed |
12 MHz |
| I/O Capacity |
256 Digital I/O |
| Input Voltage |
24 VDC |
| Communication |
PROFIBUS-DP |
| Mounting Type |
DIN Rail |
| Protection Class |
IP20 |
| Temperature Range |
0°C to 55°C |
| Operating Humidity |
5% to 95% RH |
| Weight |
0.69 lbs (0.31 kg) |
Application Scenarios
The Schneider PC-E984-285C is ideal for small to medium automation systems. Its 256 digital I/O capacity suits applications like conveyor control, packaging machines, and assembly lines. The PROFIBUS-DP interface ensures seamless integration with existing industrial networks. This controller is commonly used in material handling and discrete manufacturing.
Installation & Setup

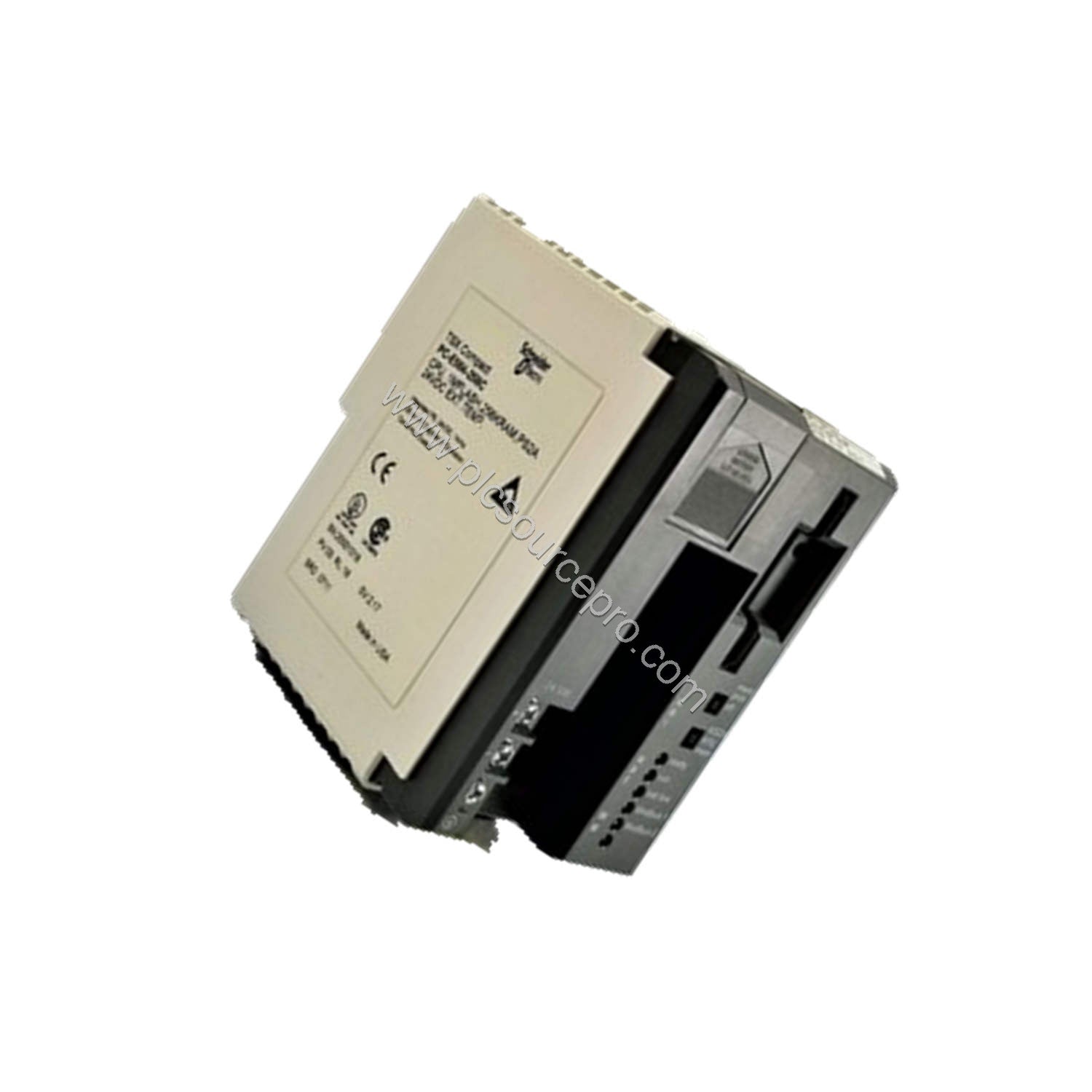

Install the PC-E984-285C on a standard DIN rail. With IP20 protection, mount it inside a clean enclosure. Connect 24 VDC power and configure using the PROFIBUS-DP network. Ensure ambient temperature stays within 0°C to 55°C for optimal performance.
Selection Guide & Purchasing Advice
When selecting the PC-E984-285C, verify compatibility with your existing Modicon system. For a reliable supply of authentic parts, contact ubest101 at the PLC Source PRO store.
