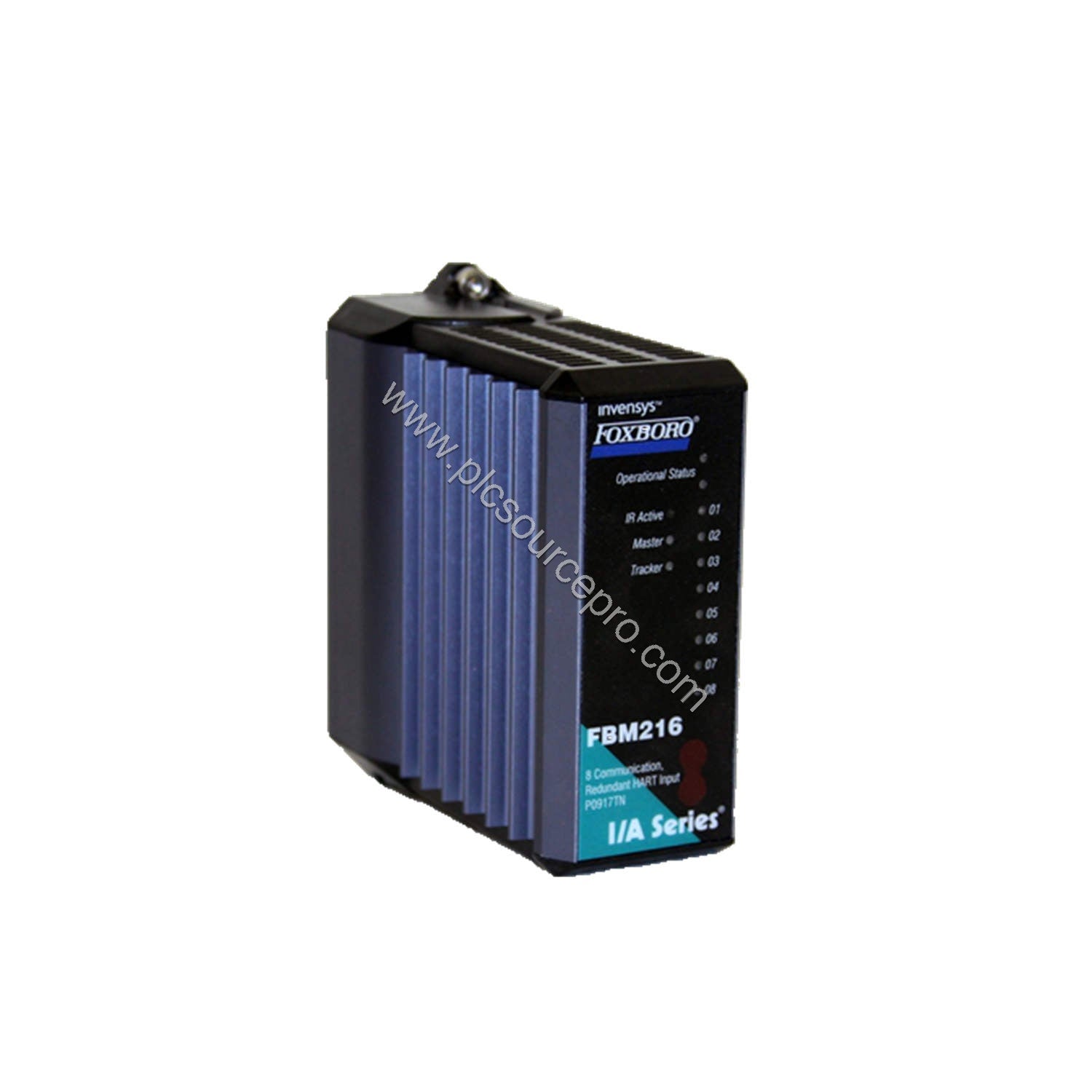

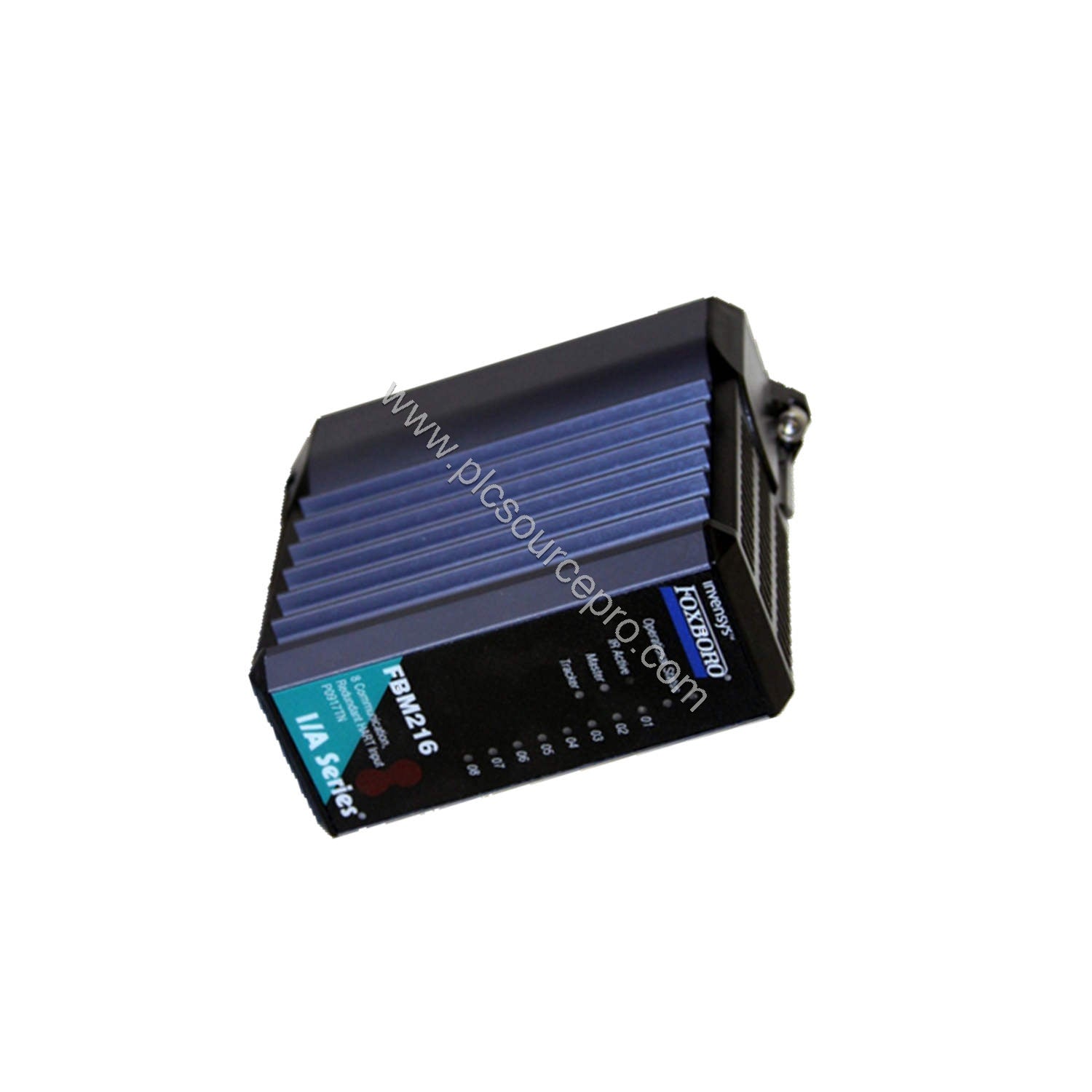

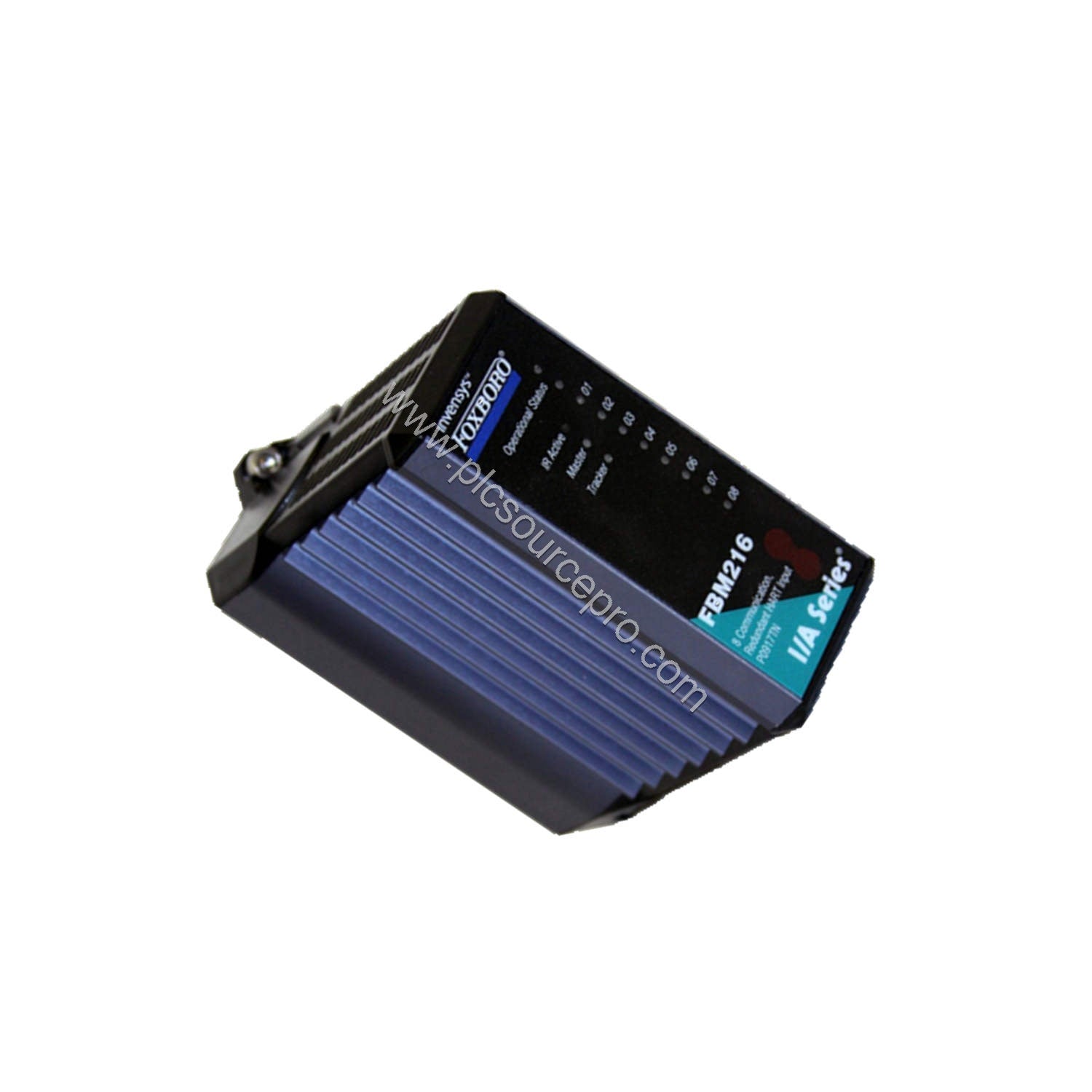

What Is the FBM216?
When signal integrity is critical in industrial process control, the Schneider FBM216 HART Communication Redundant Input Interface Module ensures reliable data acquisition. Part of the Foxboro by Schneider Electric family, this module provides eight individually isolated channels for HART instruments compliant with Version 5, 6, or 7 specifications. Its redundant input design enhances system availability, preventing data loss during field device maintenance or channel faults.
Key Technical Specifications
-
Interface: 8 individually isolated channels
-
Communication: Point-to-point, master/slave, asynchronous, half-duplex at 1200 baud
-
Analog Accuracy: ±0.075% of full scale
-
Resolution: 15 bits
-
Update Rate: 100 ms
-
Common Mode Rejection: >100 dB at 50 or 60 Hz
-
Normal Mode Rejection: >35 dB at 50 or 60 Hz
-
Loop Supply Compliance: 18.5 V DC minimum at 20.5 mA
-
Input Resistance (Internally Powered): 302 Ω
-
Input Resistance (Externally Powered): 282 Ω
-
Power Consumption: 7 W (maximum)
-
Heat Dissipation: 4 W (maximum)
-
Operating Temperature: -20 to +70°C
-
Isolation: Galvanic, withstands 600 V AC common mode
Industry Applications
The FBM216 excels in demanding environments such as oil refineries, chemical plants, and power generation facilities where HART field devices are widely deployed. At a typical refinery, the module interfaces with pressure transmitters and flow meters, providing redundant measurement paths. This redundancy ensures that even if one channel fails, the control system continues to receive critical process data, minimizing downtime and safety risks.
System Integration
This module integrates seamlessly with Schneider's I/A Series software v8.2 to v8.8 or Foxboro Evo Control Core Services v9.0 or later. It supports point-to-point master/slave communication with error checking via parity and CRC. The FBM216 is designed to work with a redundancy adapter, enabling hot-swappable field connections without interrupting loop power. For purchasing the FBM216 module, visit ubest101.myshopify.com.
Troubleshooting and Reliability
Field communication issues often stem from ground loops or signal noise. The Schneider FBM216 mitigates these problems through complete galvanic isolation per channel, which eliminates common-mode interference. Each channel is individually current-limited and voltage-regulated, protecting against overcurrent conditions. With a temperature coefficient of just 50 PPM/°C, accuracy remains stable across wide thermal ranges. Regular inspection of termination assemblies and adherence to HCF_SPEC-54 cabling distances (up to 3030 m) ensure long-term reliability.
