Product Overview

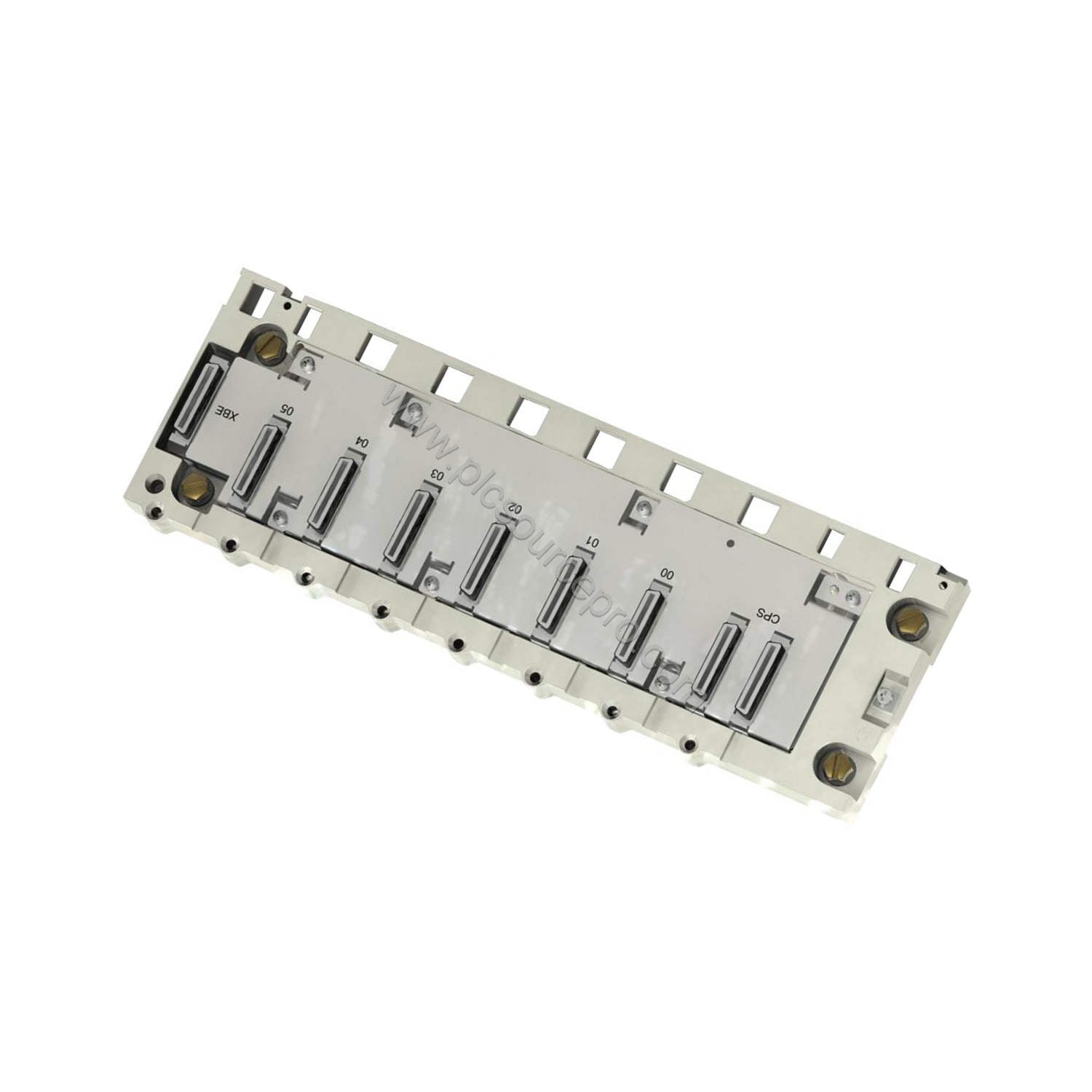

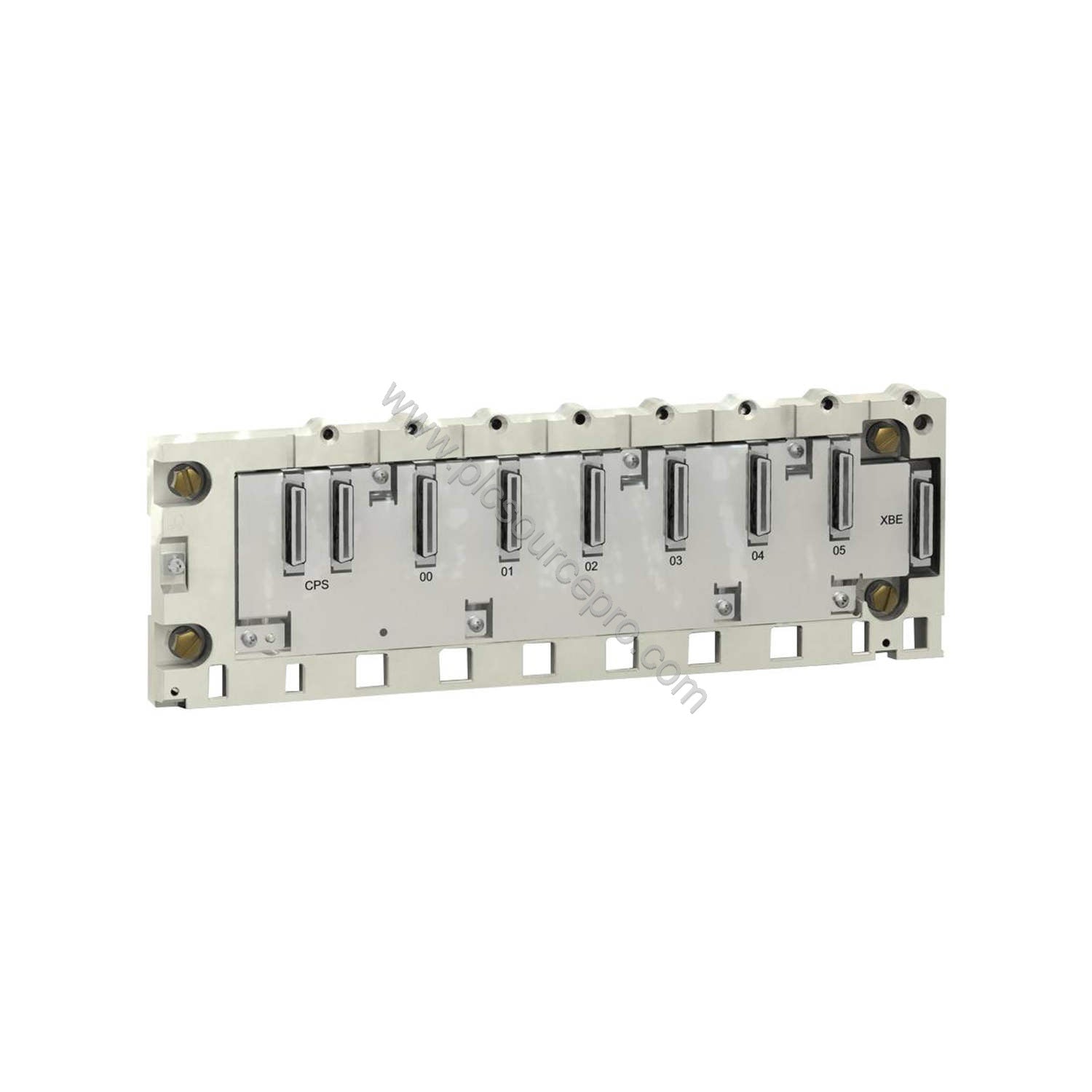

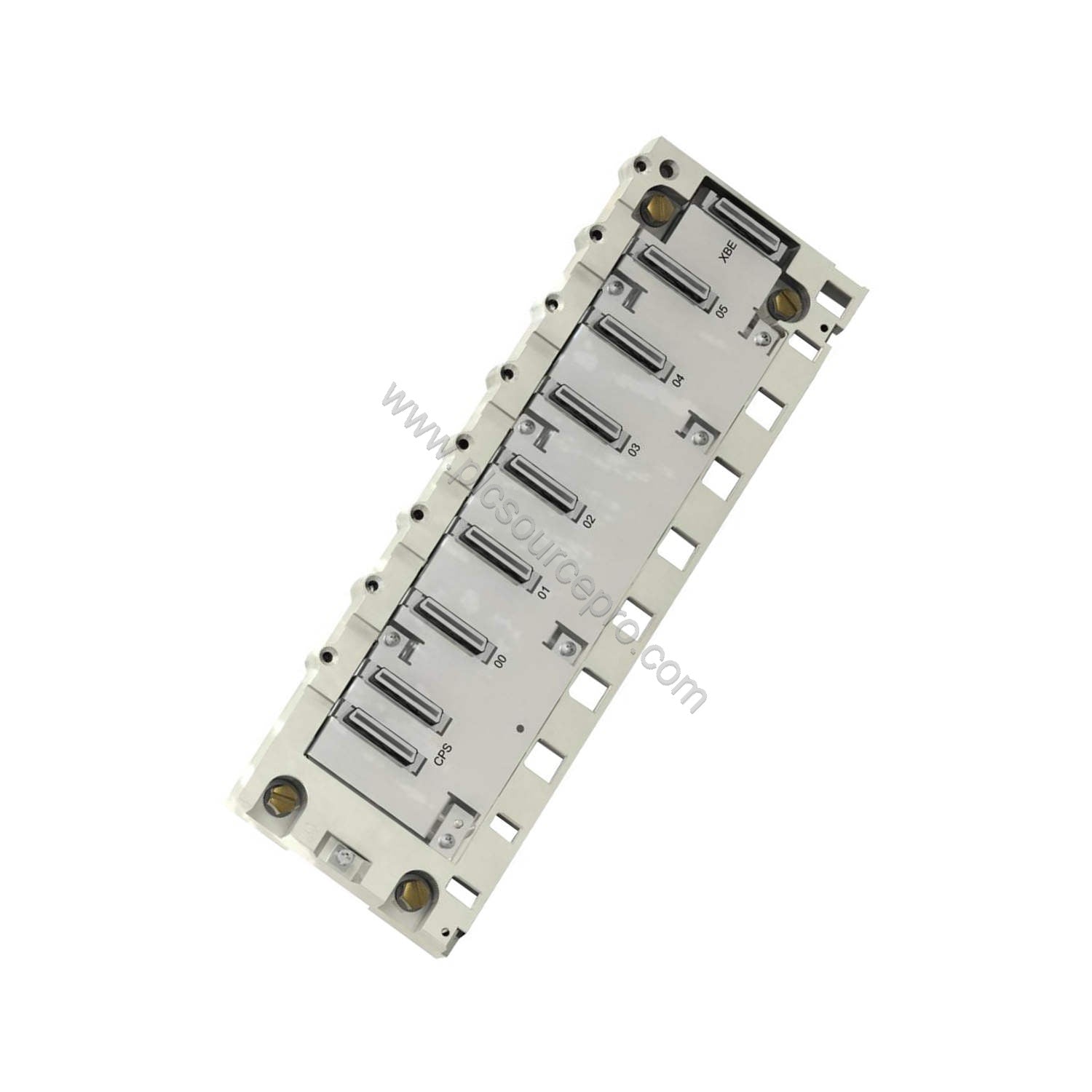

The Schneider BMXXBP0600 backplane is a critical component for building robust Modicon automation systems. With six dedicated bus slots, this backplane provides the foundation for integrating processors like the BMXP34 and power supplies like the BMXCPS. Its compact design, slim 0.7-inch depth, and lightweight construction (0.94 kg) simplify panel installation while maintaining reliability. Power consumption is only 1.68 W, contributing to energy-efficient operations and lower total cost of ownership.
Technical Specifications
| Parameter |
Value |
| Manufacturer |
Schneider Electric |
| Part Number |
BMXXBP0600 |
| Product Type |
Backplane |
| Number of Slots |
6 bus X |
| Power Consumption |
1.68 W |
| Electrical Connection |
1 expansion module connector (XBE) |
| Fixing Mode |
By 4 M4/M5/M6 screws (panel mount) |
| Height |
103.7 mm |
| Width |
307.6 mm |
| Depth |
0.7 in |
| Weight |
2.06 lb (0.94 kg) |
| IP Degree of Protection |
IP20 |
| Ambient Air Temperature |
32…140 °F (0…60 °C) |
| Relative Humidity |
10…95% (non-condensing) |
| Compatibility |
BMXP34 processor, BMXCPS power supply, I/O modules |
| Certifications |
CE, UL, CSA, Merchant Navy |
| Standards |
EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201 |
Compatibility & Integration
The Schneider BMXXBP0600 is designed for seamless integration within the Modicon automation ecosystem. It supports BMXP34 processors and BMXCPS power supplies, making it a reliable backbone for control systems. The single XBE expansion connector allows straightforward addition of modules for increased I/O capacity or specialized functions. This backplane also works with standard I/O modules, ensuring flexibility in system scaling.
Industry Applications
In manufacturing lines, the Schneider BMXXBP0600 provides stable communication between PLC modules, reducing signal degradation. Process control environments benefit from its wide temperature range (0–60 °C) and humidity tolerance (10–95%). For discrete automation, such as packaging or material handling, the IP20 rating ensures protection from dust and accidental contact. The low power draw aligns with energy-conscious facility goals, minimizing operational costs without sacrificing performance.
Installation & Setup Guidance
Mount the BMXXBP0600 backplane using four M4, M5, or M6 screws onto a sturdy panel. Ensure the ambient temperature remains within 0–60 °C and avoid condensing humidity. The XBE connector simplifies adding expansion modules—simply plug and secure. Verify that the processor and power supply are correctly seated before powering the system. No special tools are required beyond standard screwdrivers.
Selection Guide & Purchasing Advice
Before ordering, confirm that your system uses the Modicon series and that the 6-slot configuration meets your I/O needs. The Schneider BMXXBP0600 is available at UBEST Automation (ubest101), a trusted industrial automation parts supplier. We stock genuine components to ensure long-term reliability. Contact our team if you need assistance selecting compatible modules or verifying system compatibility.
