Product Introduction

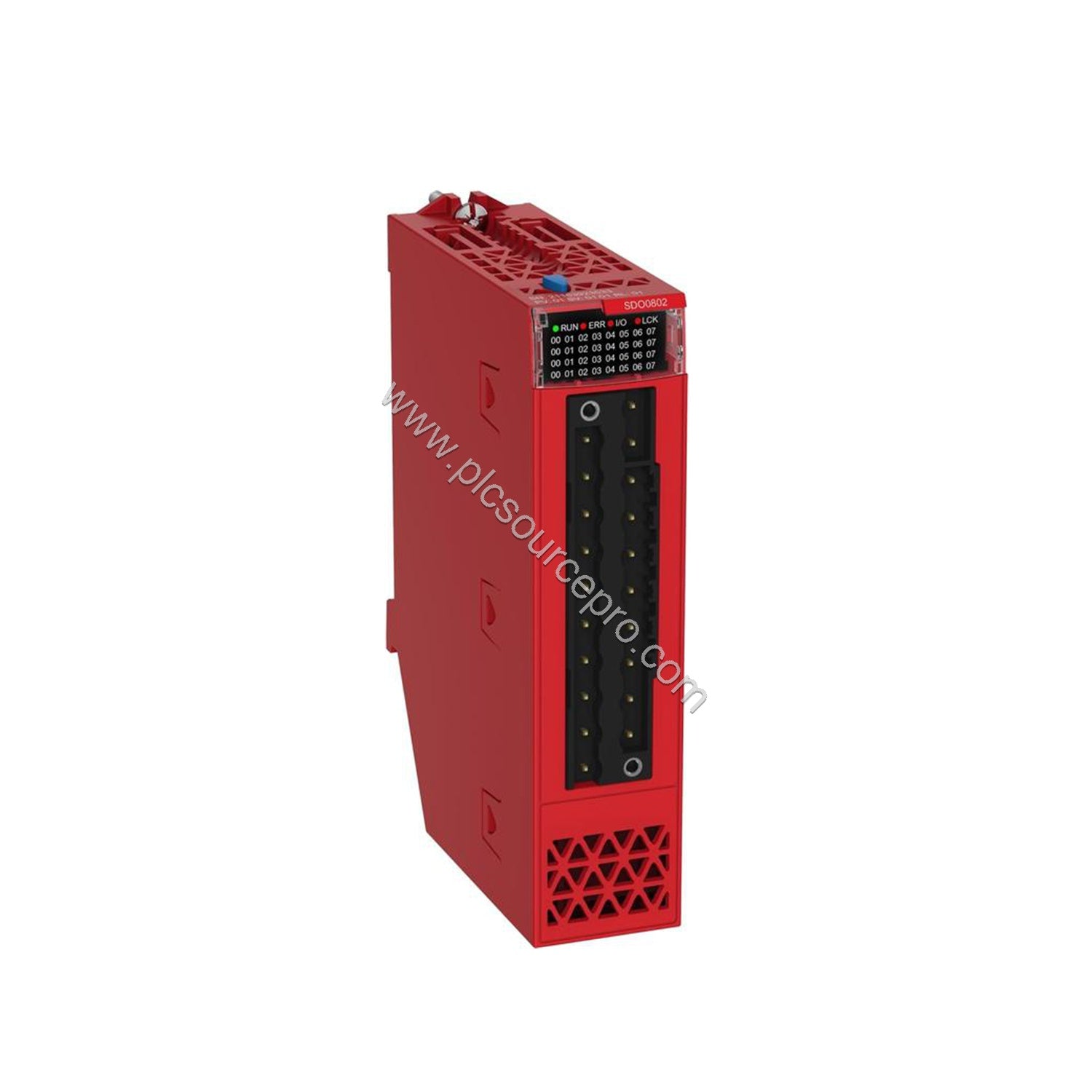

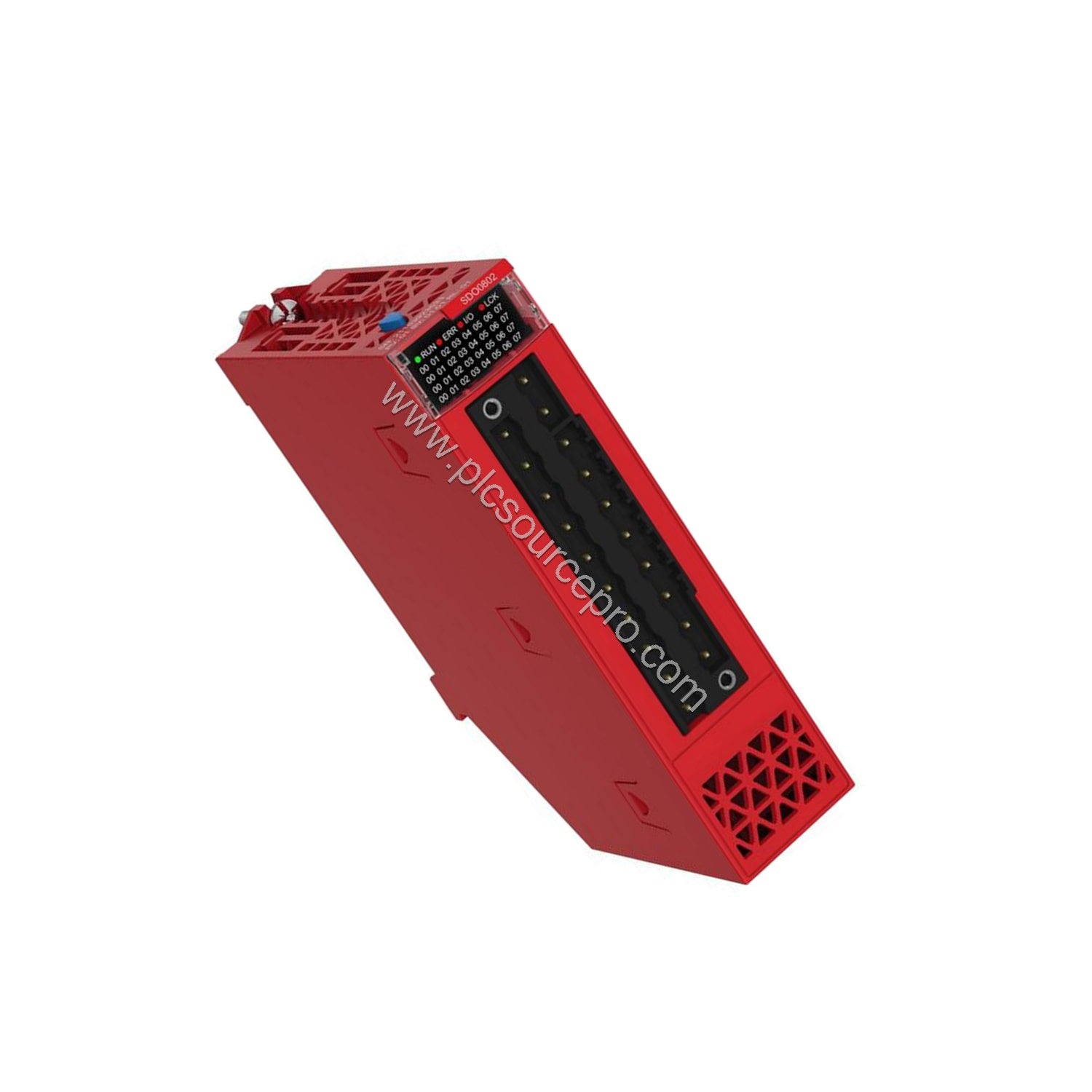

When industrial safety systems demand robust output control, the Schneider BMXSDO0802 safety discrete output module delivers. This Modicon X80 series module provides 8 solid-state, positive-logic outputs rated at 24V DC (19...30V DC range) with 0.5A per output. Designed for high-reliability applications, the BMXSDO0802 integrates multiple protection features to prevent common failure modes such as overload, short-circuit, overvoltage, and reverse polarity. Its compact design and IP20 enclosure make it suitable for control cabinets in harsh environments.
Technical Specifications Breakdown
Key specifications from the manufacturer's data include:
-
Output Current per Channel: 0.625 A maximum, with a module total of 10 A.
-
Leakage Current: Only 0.5 mA at state 0, ensuring reliable OFF-state detection.
-
Voltage Drop: <1.2 V at state 1, minimizing power loss.
-
Response Time: 1.2 ms fast switching for time-critical processes.
-
Protection Types: Overload (current limiter + electronic circuit breaker 1.5 In < Id < 2 In), overvoltage (transil diode), short-circuit (external 2A fuse), and reverse polarity (reverse-mounted diode).
-
Dielectric Strength: 1500 V AC for 1 minute between output/ground and output/internal logic.
These specs directly address failure modes like output burnouts due to overload or voltage spikes, making the BMXSDO0802 a resilient choice.
Industry Applications
The Schneider BMXSDO0802 is ideal for safety-critical control systems in manufacturing, chemical processing, and power generation. For example, in a conveyor safety system, the module ensures that disable commands reach solenoid valves within 1.2 ms, preventing accidents. In a burner management system, the positive logic (24V DC) reliably drives safety relays even under dusty conditions (IP20). The built-in voltage detection threshold (<14 V DC sensor fault, >18 V DC sensor OK) helps maintain sensor integrity.
Installation & Setup Guidance

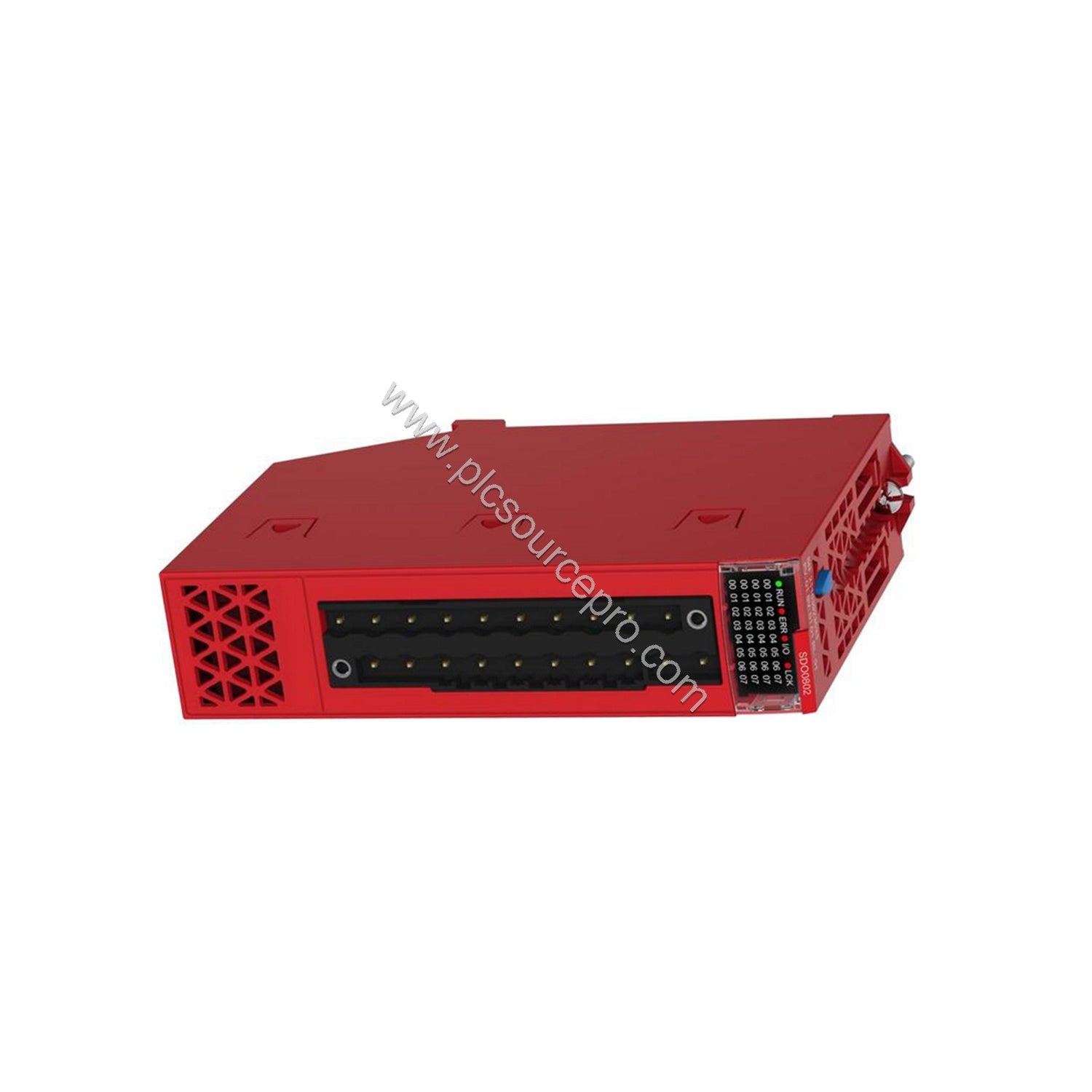

Mount the BMXSDO0802 in a Modicon X80 rack following standard DIN rail or panel installation. Ensure the ambient temperature stays between -25°C and 60°C. Use a 2 A external fuse on each output for short-circuit protection as specified. For parallel outputs (up to 2), verify load impedance ≥48 Ohm to stay within safe switching frequency (0.5/LI² Hz). Connect 24V DC power with reverse polarity protection built-in. The front panel LEDs provide quick status: green for RUN, red for module error, and individual green per channel.
Maintenance & Reliability
With an MTBF of 383,000 hours, the BMXSDO0802 requires minimal intervention. Regular inspection of the conformal coating and IP20 seal ensures protection against gases (class Gx, 3C4), dust (3S4), sand (3S4), salt (level 2), mold (3B2), and fungal spores (3B2). Vibration resistance of 3 gn and shock resistance of 15 gn guarantee performance in industrial environments. For maximum lifespan, keep relative humidity below 95% at 55°C without condensation. The BMXSDO0802 is designed to reduce downtime through its comprehensive protection features, aligning with a cost-benefit ROI approach.
Troubleshooting & Common Issues
Common problems with discrete output modules include output stuck ON due to overvoltage or short circuit. The BMXSDO0802 prevents this via its transil diode and electronic circuit breaker. If a channel fails to activate, check the external fuse (2 A) and the load impedance (≥48 Ohm). The voltage detection threshold LED helps diagnose sensor faults: if the sensor voltage drops below 14V DC, the module flags it. The MTBF figure assures long-term reliability; however, if faults occur, the built-in diagnostics (green/red LEDs) speed up repair. For advanced troubleshooting, consult the Modicon X80 user manual.
