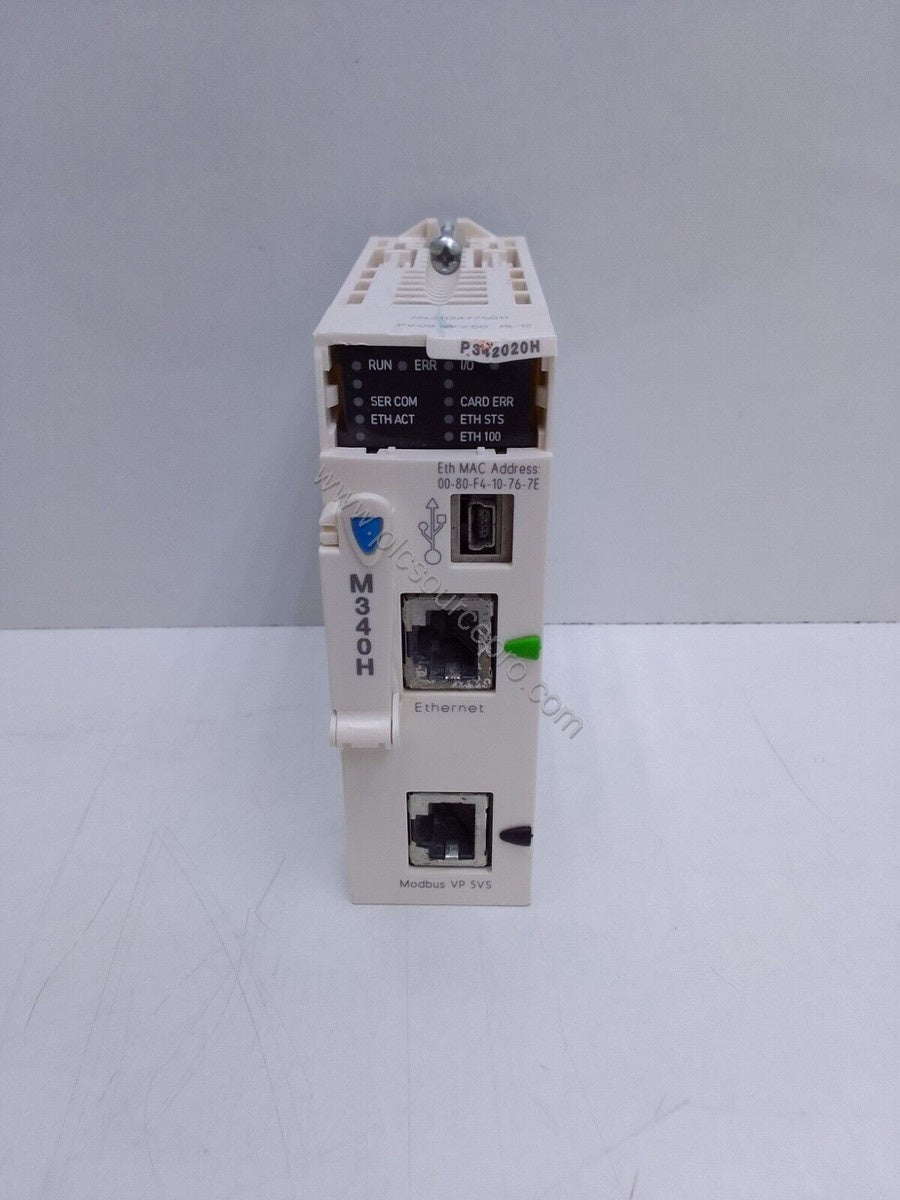

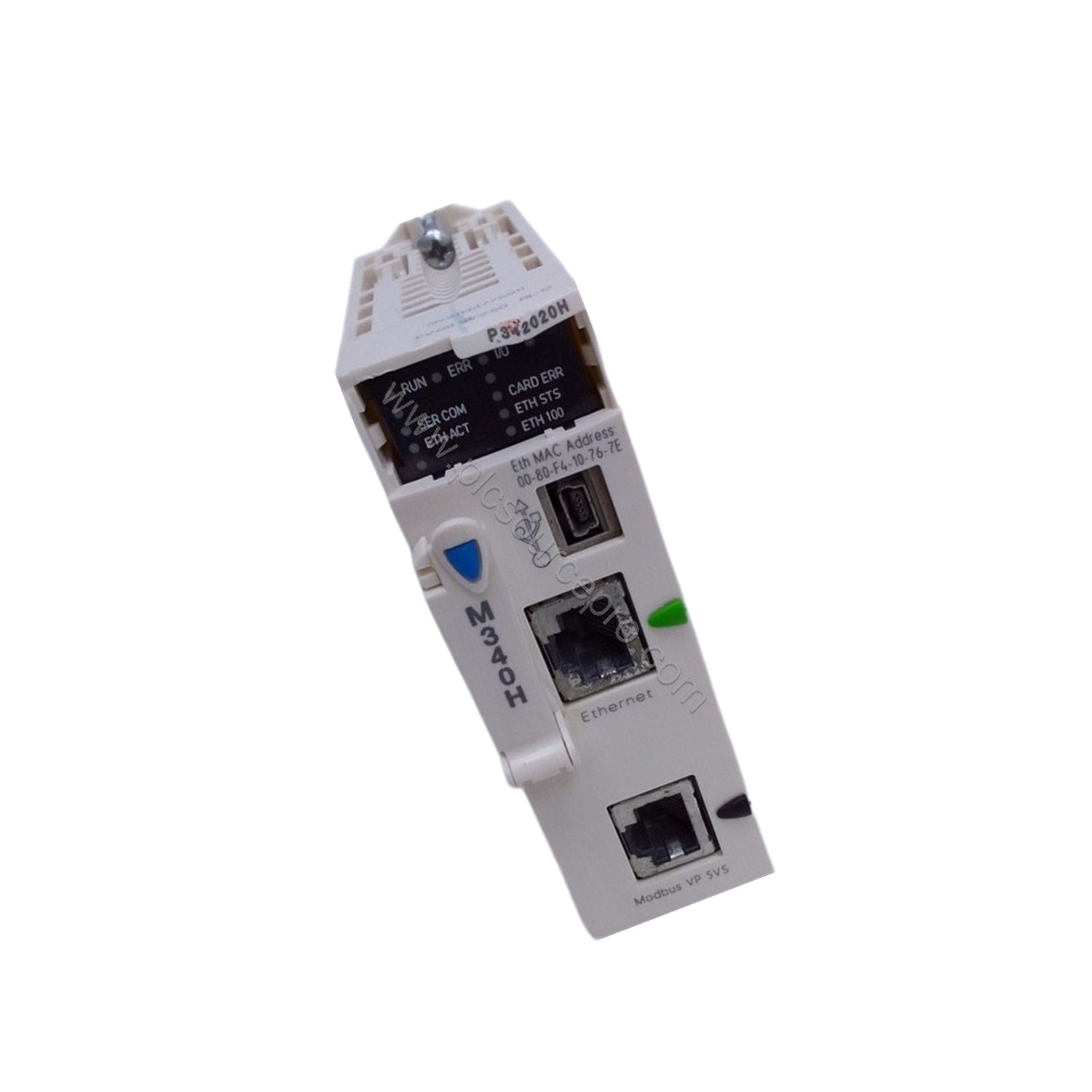

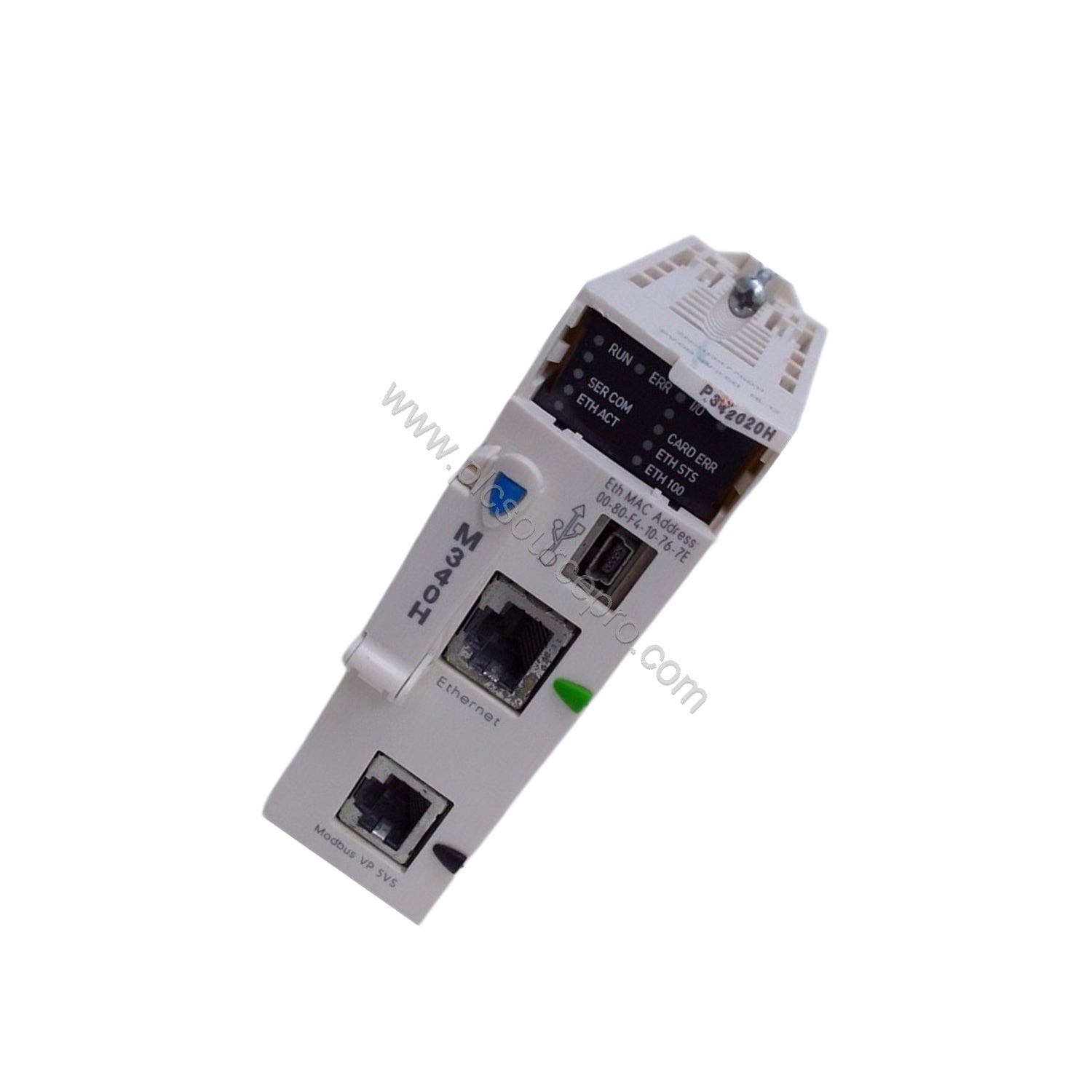

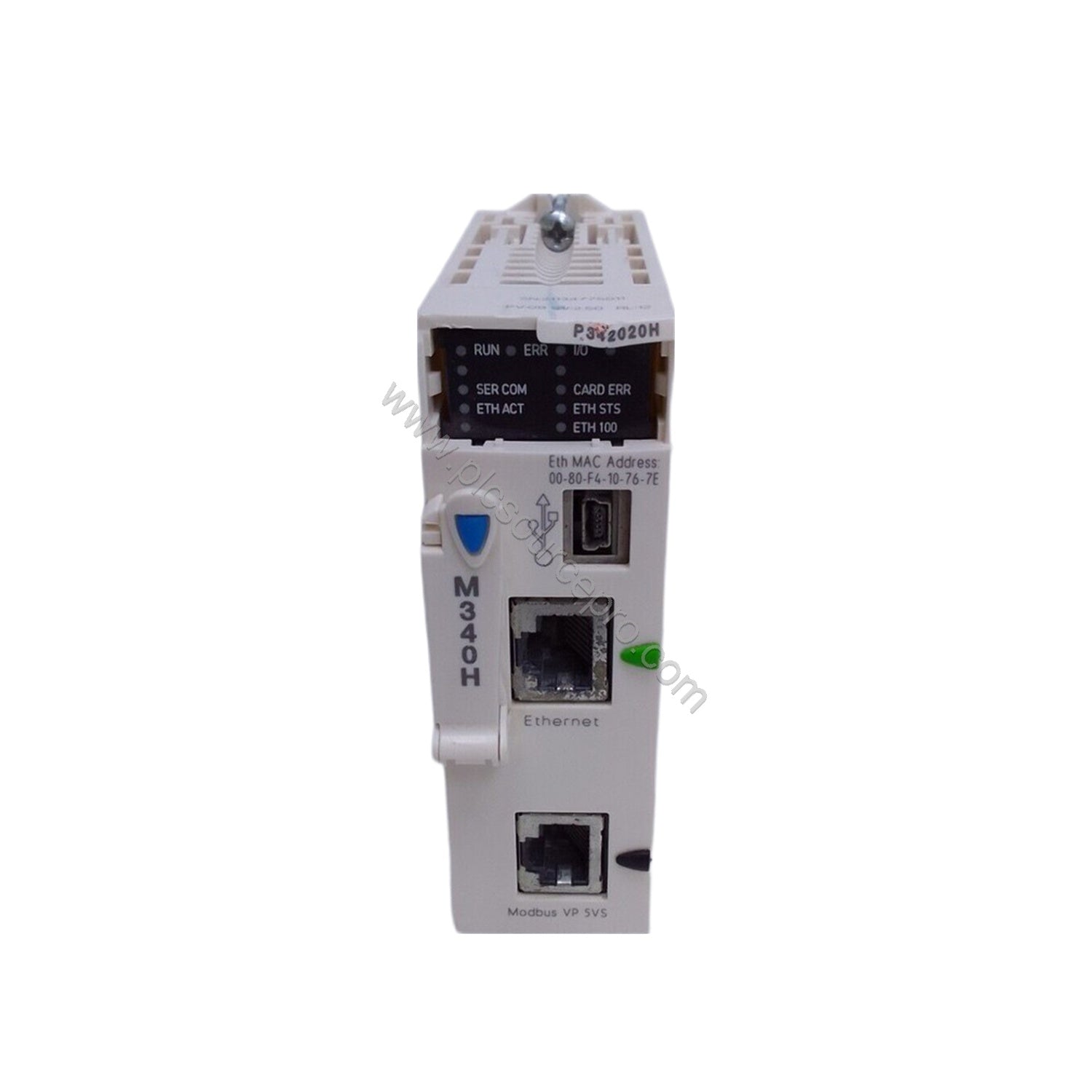

Introduction to the Schneider BMXP342020H Processor Module
The Schneider BMXP342020H is a high-performance processor module designed for the Modicon M340 automation platform. Built for severe environments, this module delivers robust control and reliable operation under extreme conditions. With support for up to 1024 discrete I/O and 256 analog I/O, the BMXP342020H handles complex automation tasks efficiently. Its integrated Modbus and Ethernet communications enable seamless integration into existing networks.
Technical Specifications of the Schneider BMXP342020H
The Schneider BMXP342020H offers a comprehensive set of technical features optimized for demanding industrial applications. Key specifications include:
- Discrete I/O processor capacity: 1024 I/O in multi-rack configuration, 704 I/O in single-rack
- Analog I/O processor capacity: 256 I/O in multi-rack, 66 I/O in single-rack
- Memory: 4096 kB internal RAM, 256 kB data, 3584 kB program/constants/symbols; supplied memory card BMXRMS008MP
- Execution time: 0.12 µs for Boolean instructions, 0.25 µs for single-length words
- Current consumption: 95 mA at 24 V DC
- Communication: Ethernet TCP/IP 10/100 Mbit/s, USB 12 Mbit/s, serial links RS232C/RS485 with Modbus RTU/ASCII
- Environmental rating: -25 to 70 °C operating temperature, IP20, conformal coating, ATEX Zone 2/22, IECEx Zone 2/22
- Certifications: CE, UL, CSA, RCM, EAC, Merchant Navy
Applications and Cost-Benefit Analysis
The Schneider BMXP342020H excels in harsh environments such as chemical plants, oil and gas facilities, and offshore platforms. Its conformal coating and wide temperature range reduce downtime, offering long-term cost savings. For example, in a remote pipeline monitoring system, the BMXP342020H's robust design minimizes maintenance interventions, directly improving ROI. The module's high I/O capacity also allows consolidation, reducing hardware costs.
Compatibility and Integration
The Schneider BMXP342020H integrates seamlessly with Modicon M340 racks and supports up to 4 racks and 11 slots. It accommodates up to 2 Ethernet communication modules and 4 AS-Interface modules. The embedded Ethernet TCP/IP service provides bandwidth management, Modbus TCP messaging, and SNMP network administration. Serial links support Modbus RTU/ASCII and character mode, making it compatible with a wide range of field devices.
Selection Guide from UBEST Automation
When selecting the Schneider BMXP342020H, verify your system's rack configuration and I/O requirements. The module comes with a supplied memory card (BMXRMS008MP) for program backup. For additional support, contact UBEST Automation at ubest101.myshopify.com to ensure correct ordering and availability. Investing in the BMXP342020H ensures long-term reliability in severe applications.
