Product Overview

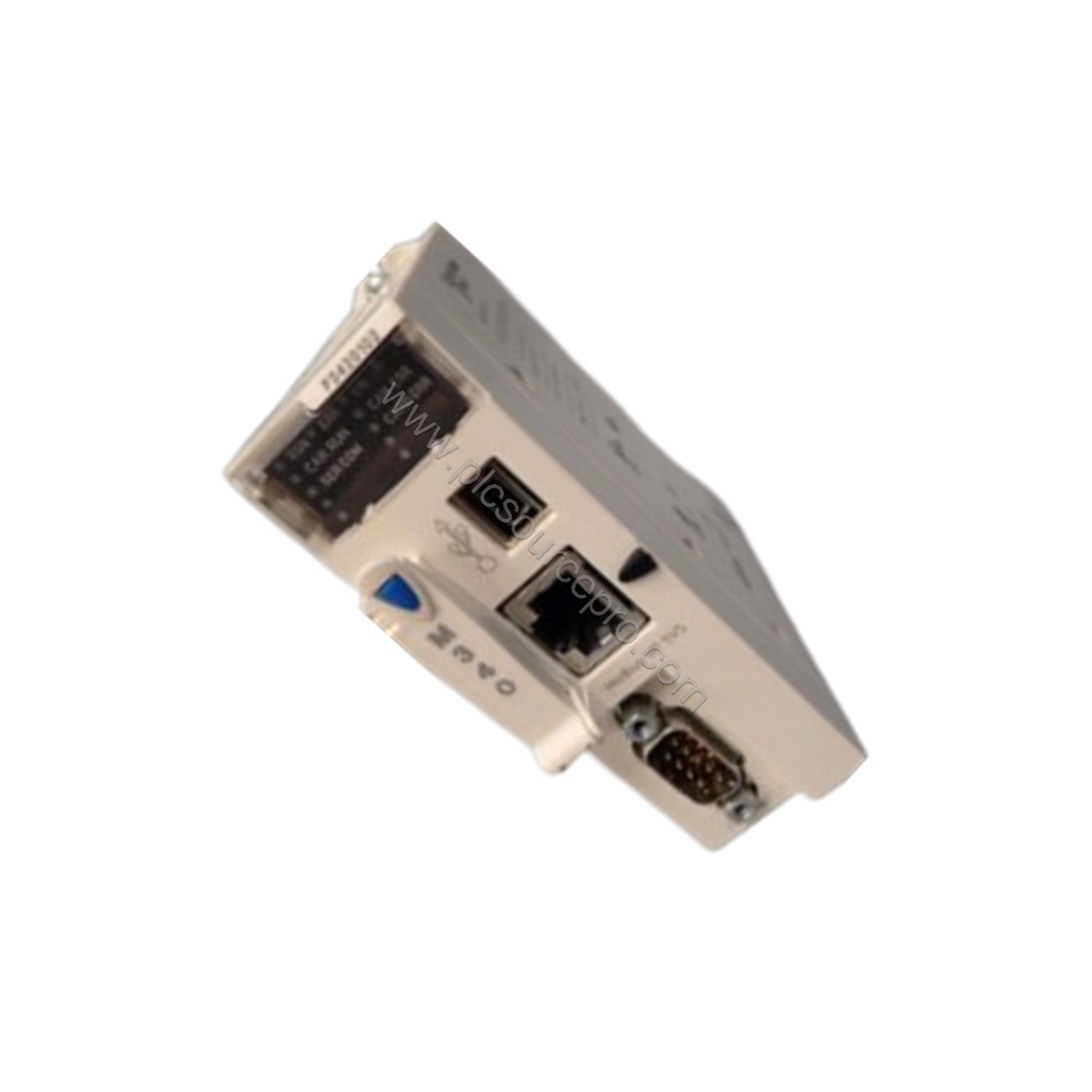

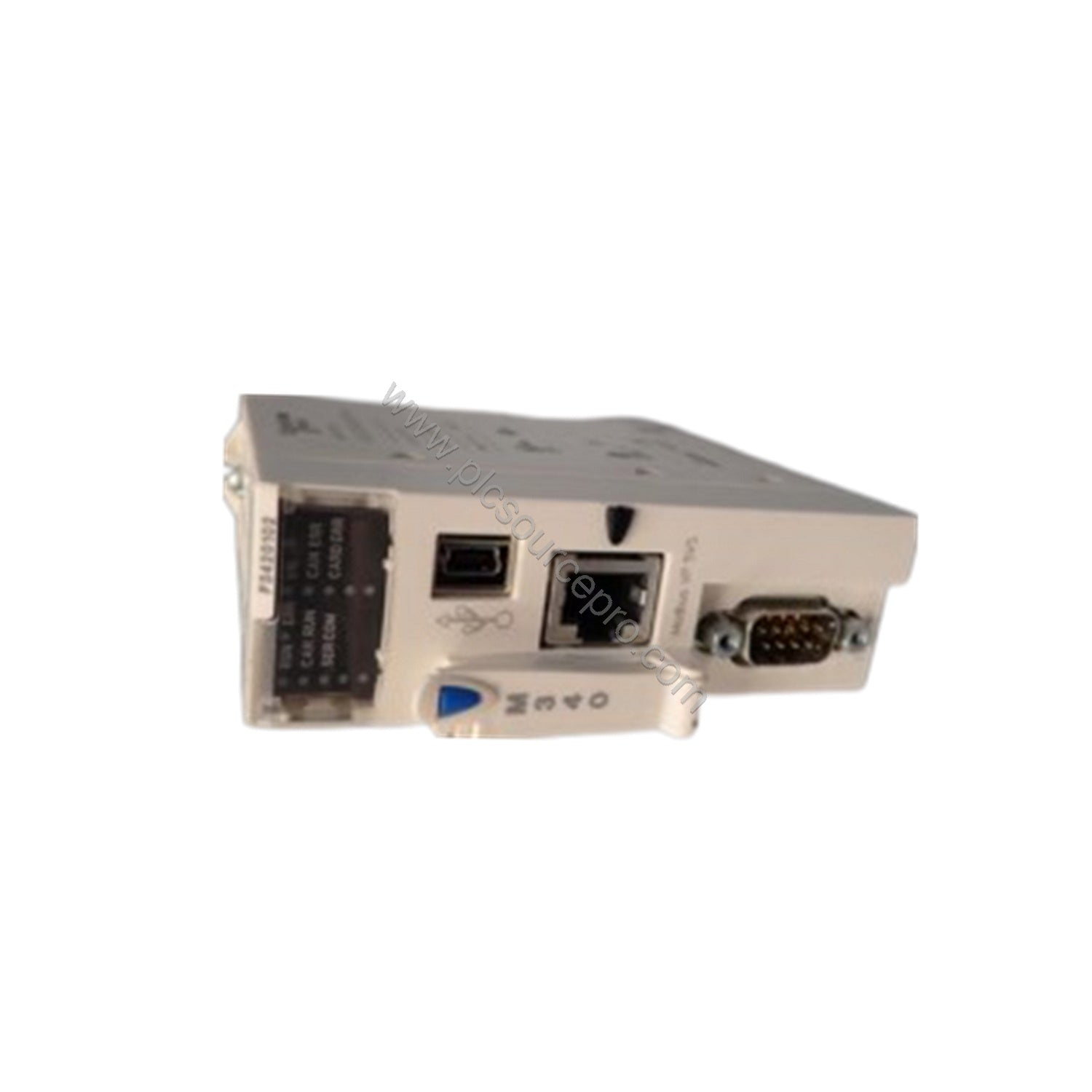

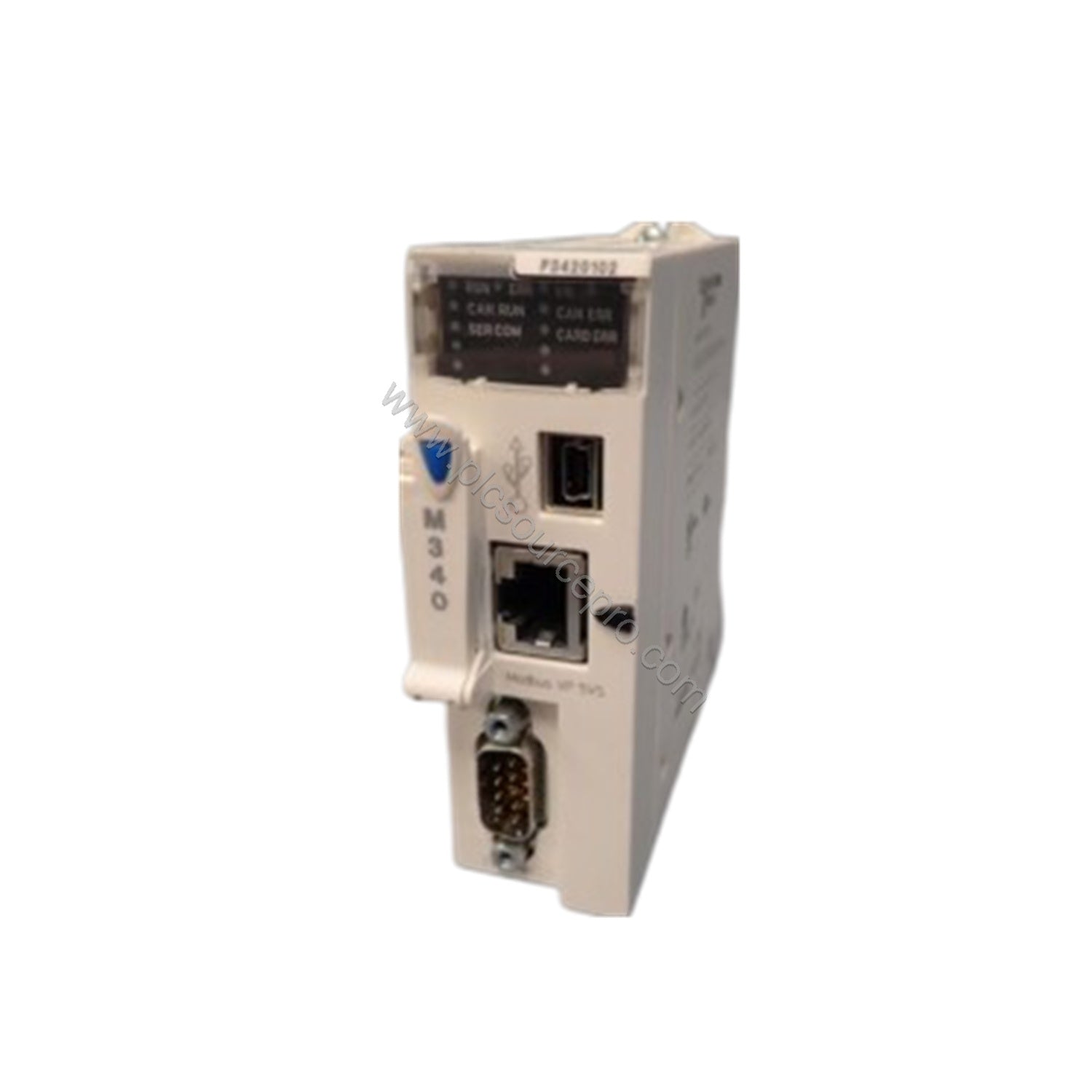

In multi-rack automation environments requiring high I/O density and robust communication, the Schneider BMXP3420102 processor module delivers exceptional performance. Part of the Modicon M340 automation platform, this processor module is designed to handle up to 1024 discrete I/O and 256 analog I/O in multi-rack configurations. It integrates Modbus and CANopen communication protocols, making it suitable for distributed control systems. The BMXP3420102 also features an embedded USB port and diagnostic counters for simplified troubleshooting.
Technical Specifications
| Parameter |
Value |
| Discrete I/O Capacity (multi-rack) |
1024 I/O |
| Analog I/O Capacity (multi-rack) |
256 I/O |
| Number of Racks |
4 |
| Number of Slots |
11 |
| Execution Time (Boolean) |
0.12 µs |
| Program Memory |
3584 kB (program, constants, symbols) |
| Data Memory |
256 kB |
| Integrated Connections |
RS232C/RS485 serial (Modbus), USB, CANopen |
| Current Consumption |
90 mA at 24 V DC |
| Ambient Temperature |
32…140 °F (0…60 °C) |
| Certifications |
CE, UL, CSA, RCM, EAC |
Industry Applications
The Schneider BMXP3420102 processor module is ideal for medium-sized control applications such as packaging lines, material handling, water treatment, and building management. Its CANopen master capability enables seamless integration with drives and remote I/O, while Modbus serial links ensure compatibility with legacy devices. With support for up to 36 application-specific channels, it can handle specialized functions like motion control and high-speed counting.
Compatibility and Integration
This processor module integrates with Modicon M340 backplanes and racks. It supports up to two Ethernet communication modules and four AS-Interface modules for expanded connectivity. The embedded CANopen interface allows connection to up to 63 server devices. The BMXP3420102 can also communicate via Modbus RTU/ASCII and character mode serial links, making it versatile for various industrial networks.
Selection Guide and Purchasing Advice
When selecting the Schneider BMXP3420102, verify that your application requires the stated I/O capacities and communication protocols. Ensure the memory card (BMXRMS008MP) is included for program backup. For further assistance or to place an order, contact UBEST Automation by visiting ubest101.myshopify.com. We offer genuine parts with fast worldwide shipping.
