Product Overview

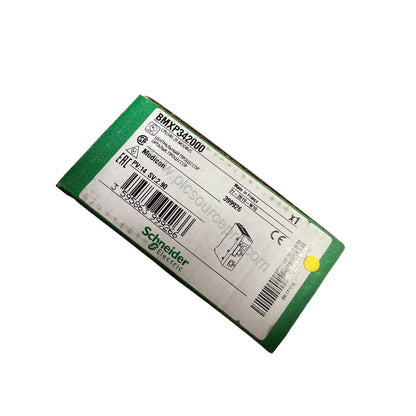

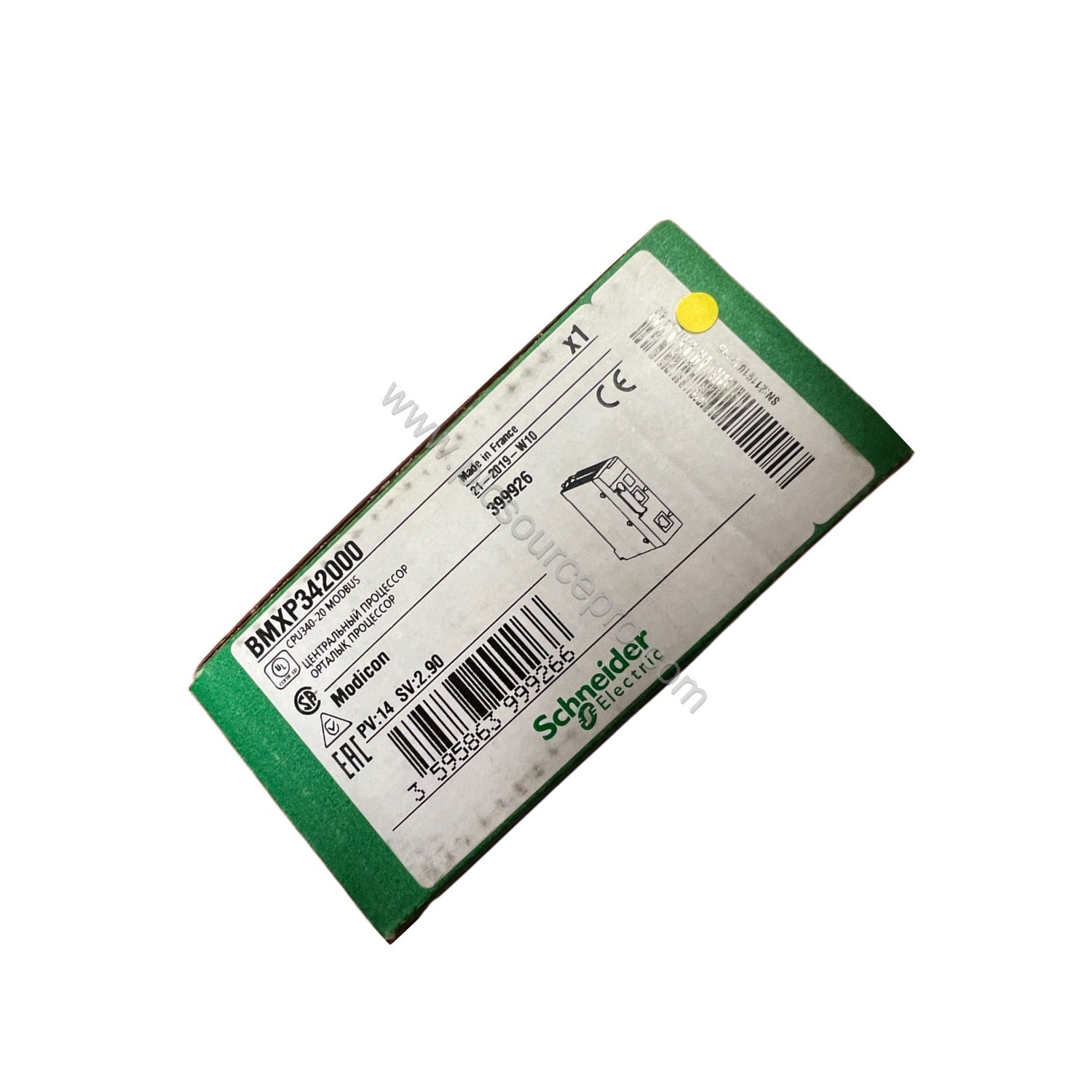

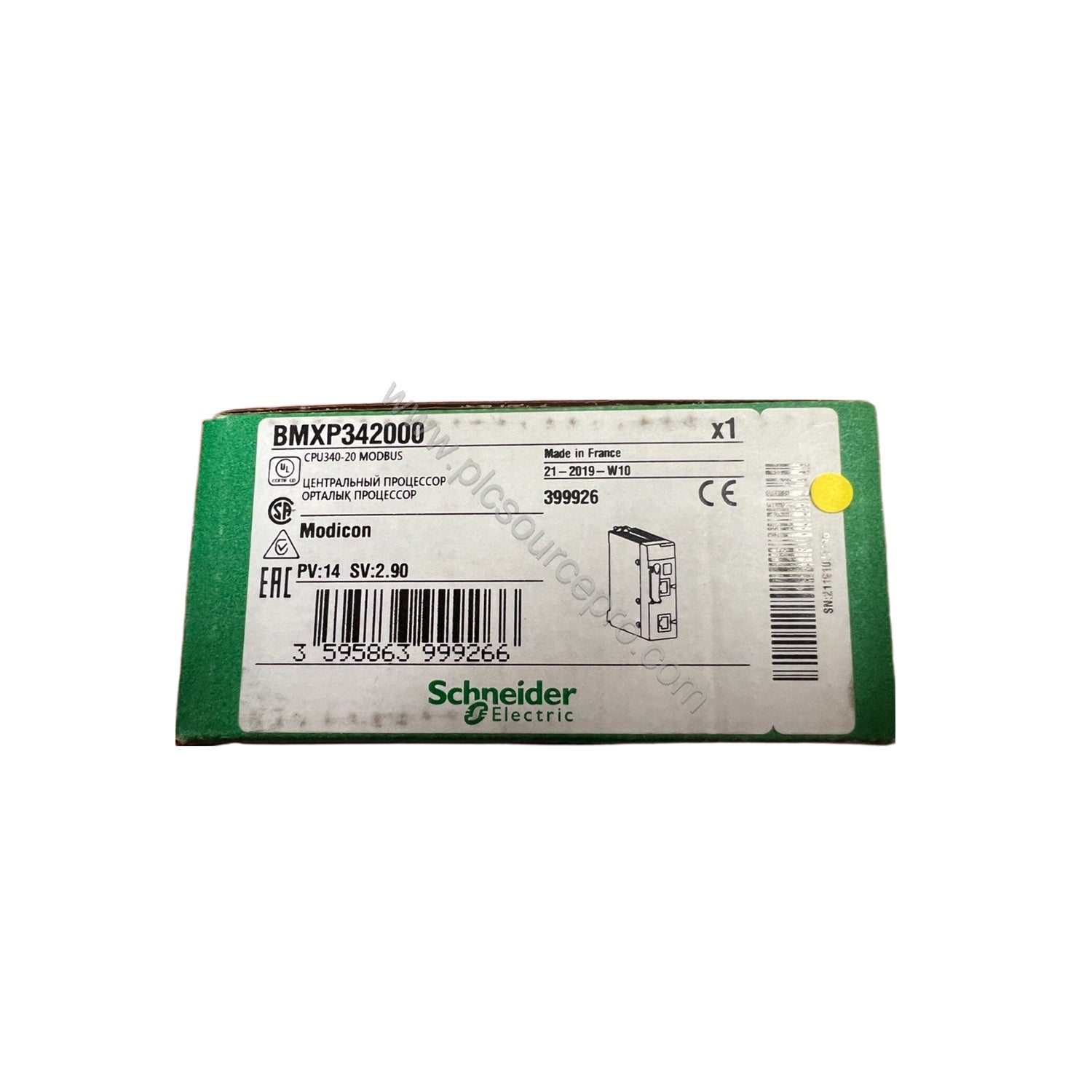

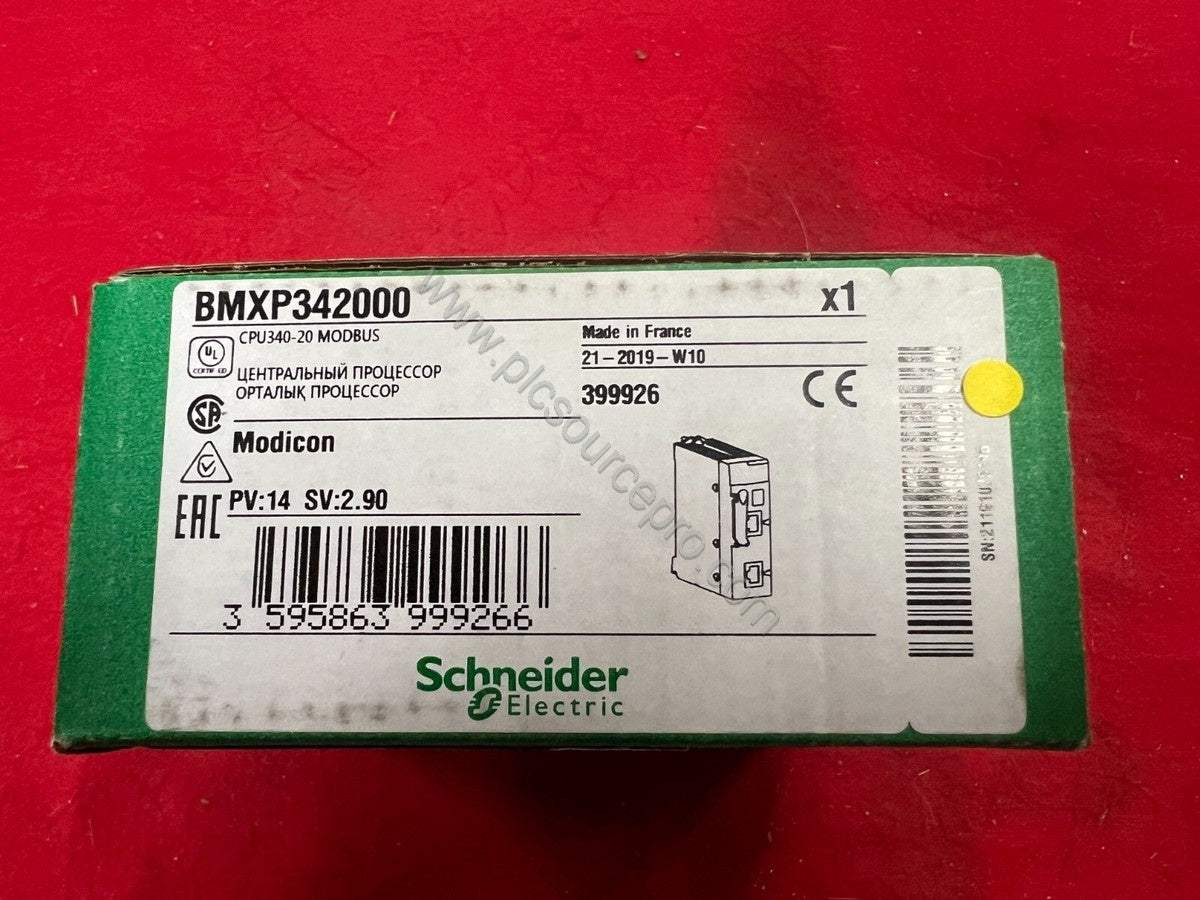

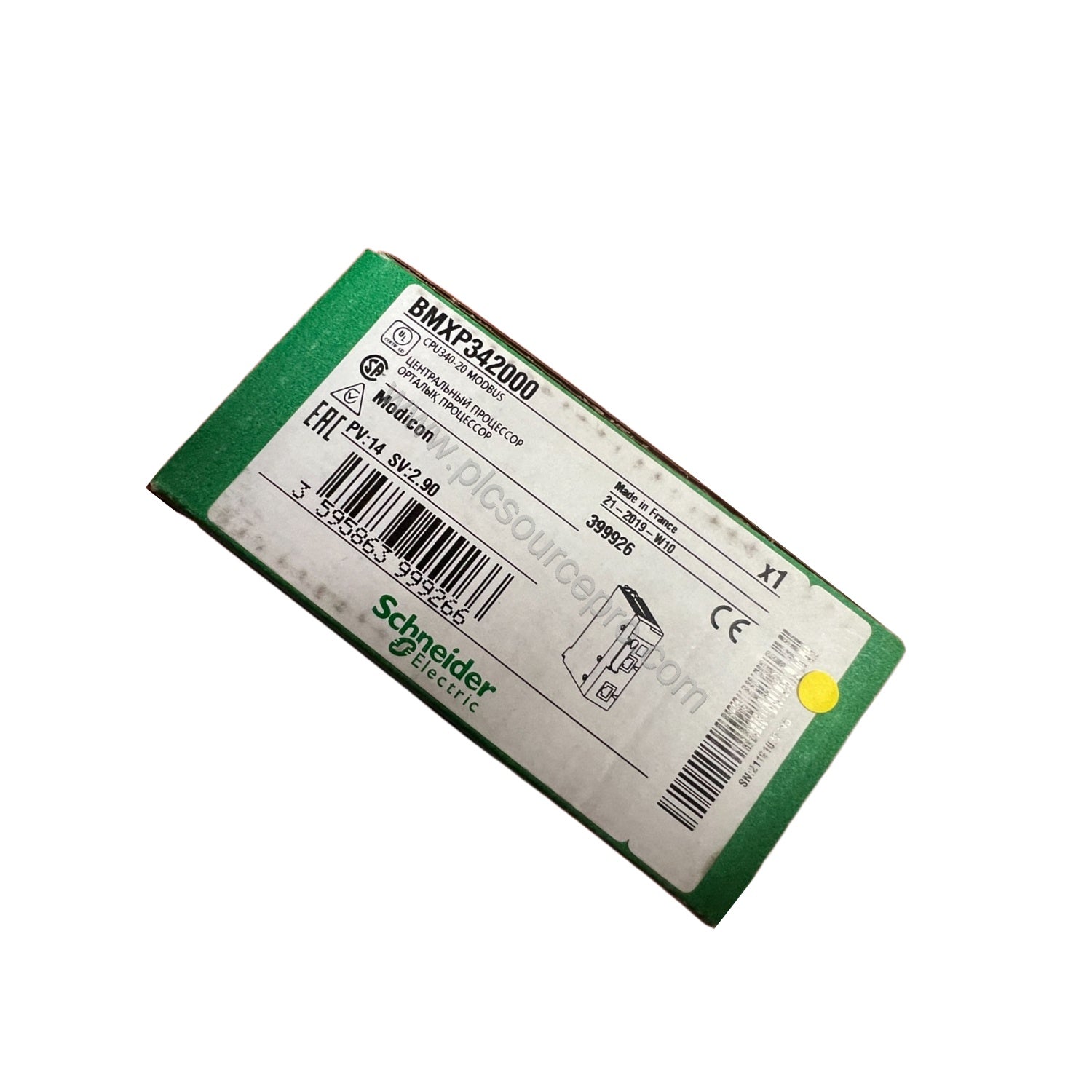

The Schneider BMXP342000 processor module is a key component of the Modicon M340 automation platform, designed to serve as the control brain in moderate-complexity industrial systems. It supports up to 1024 discrete I/O points and 256 analog I/O channels, making it an excellent choice for upgrading from older Modicon platforms or for new installations requiring reliable, scalable processing. With built-in Modbus serial communication and a generous 4 MB internal RAM (including 256 kB data and 3584 kB program/constants/symbols), the BMXP342000 handles demanding control tasks efficiently.
Technical Specifications
| Parameter |
Value |
| Discrete I/O Capacity |
1024 I/O single-rack |
| Analog I/O Capacity |
256 I/O multi-rack; 66 I/O single-rack |
| Internal RAM |
4096 kB total (256 kB data, 3584 kB program/constants/symbols) |
| Execution Time |
0.18 µs Boolean, 1.74 µs floating point |
| Communication Ports |
2 non-isolated serial RJ45 (RS232C/RS485) for Modbus master/slave, ASCII/RTU; 1 USB port 12 Mbit/s |
| Power Consumption |
72 mA at 24 V DC via rack |
| Operating Temperature |
0…60 °C (32…140 °F) |
| Protection |
IP20; CE, UL, CSA, EAC certified |
| Net Weight |
0.2 kg (0.4 lb) |
Industry Applications
The BMXP342000 excels in applications such as water treatment, material handling, and packaging lines where moderate I/O counts and deterministic control are required. For example, in a conveyor sorting system, its 1024 discrete I/O capacity handles numerous sensors and actuators, while the Modbus serial link integrates easily with variable-frequency drives and HMIs. In a wastewater treatment upgrade project, replacing an older PLC with the Schneider BMXP342000 reduces downtime while offering robust analog I/O for pH and flow monitoring.
Compatibility & Integration
This processor module fits into a single-rack or multi-rack Modicon M340 backplane with 11 slots. It supports up to 2 Ethernet communication modules and 4 AS-Interface modules for expanded networking. The BMXP342000 uses the Modbus RTU/ASCII protocol over RS232C or RS485, enabling communication with a wide range of legacy and modern devices. It also includes a USB port for local programming via EcoStruxure Control Expert.
Selection Guide & Purchasing Advice
When upgrading or replacing a control system, ensure the existing rack and power supply are compatible with the Modicon M340 platform. The BMXP342000 requires a supplied memory card (BMXRMS008MP) for reliable program backup. For questions about integration or to confirm your current configuration, contact UBEST Automation via ubest101 for expert support. We stock this processor module ready to ship.
