Product Introduction

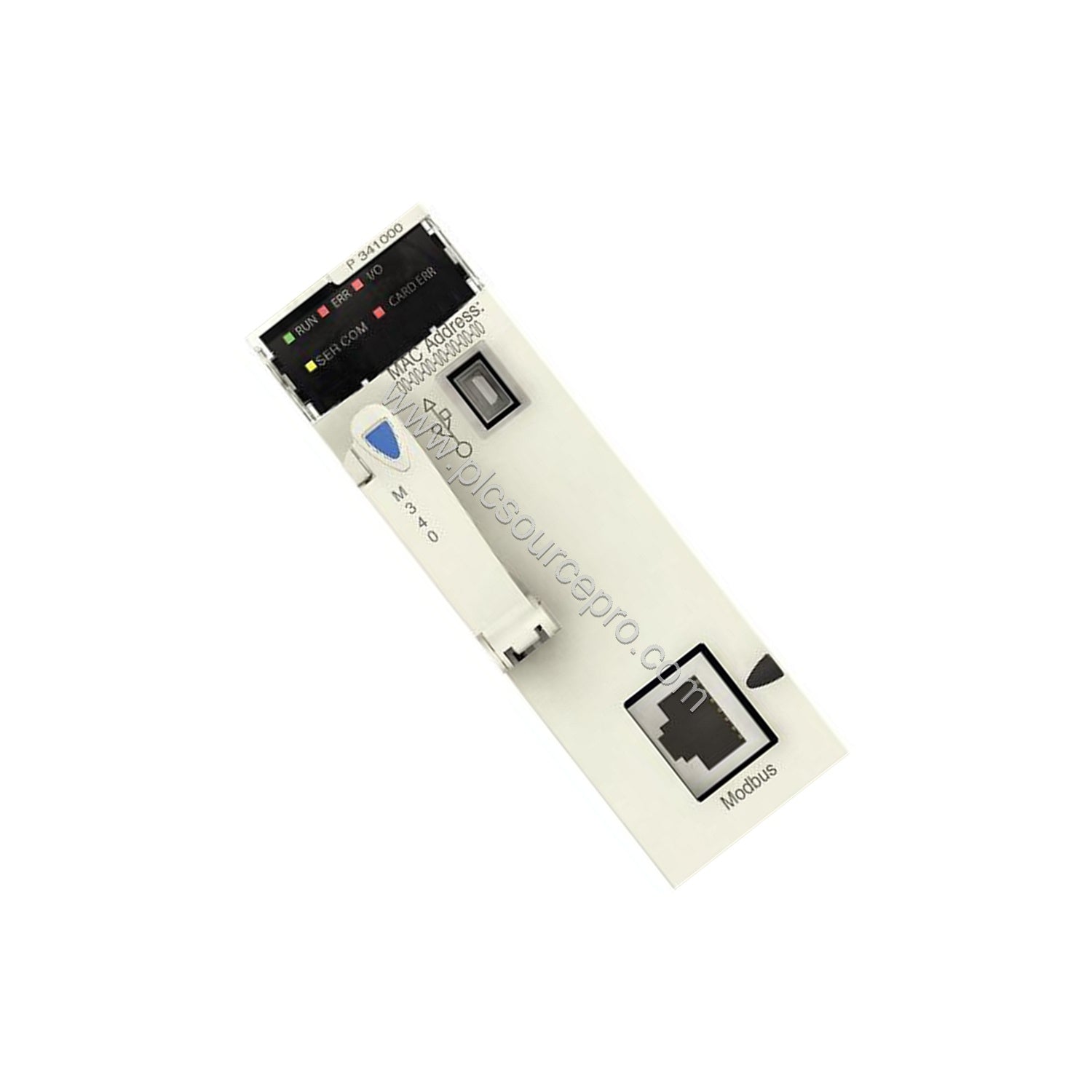

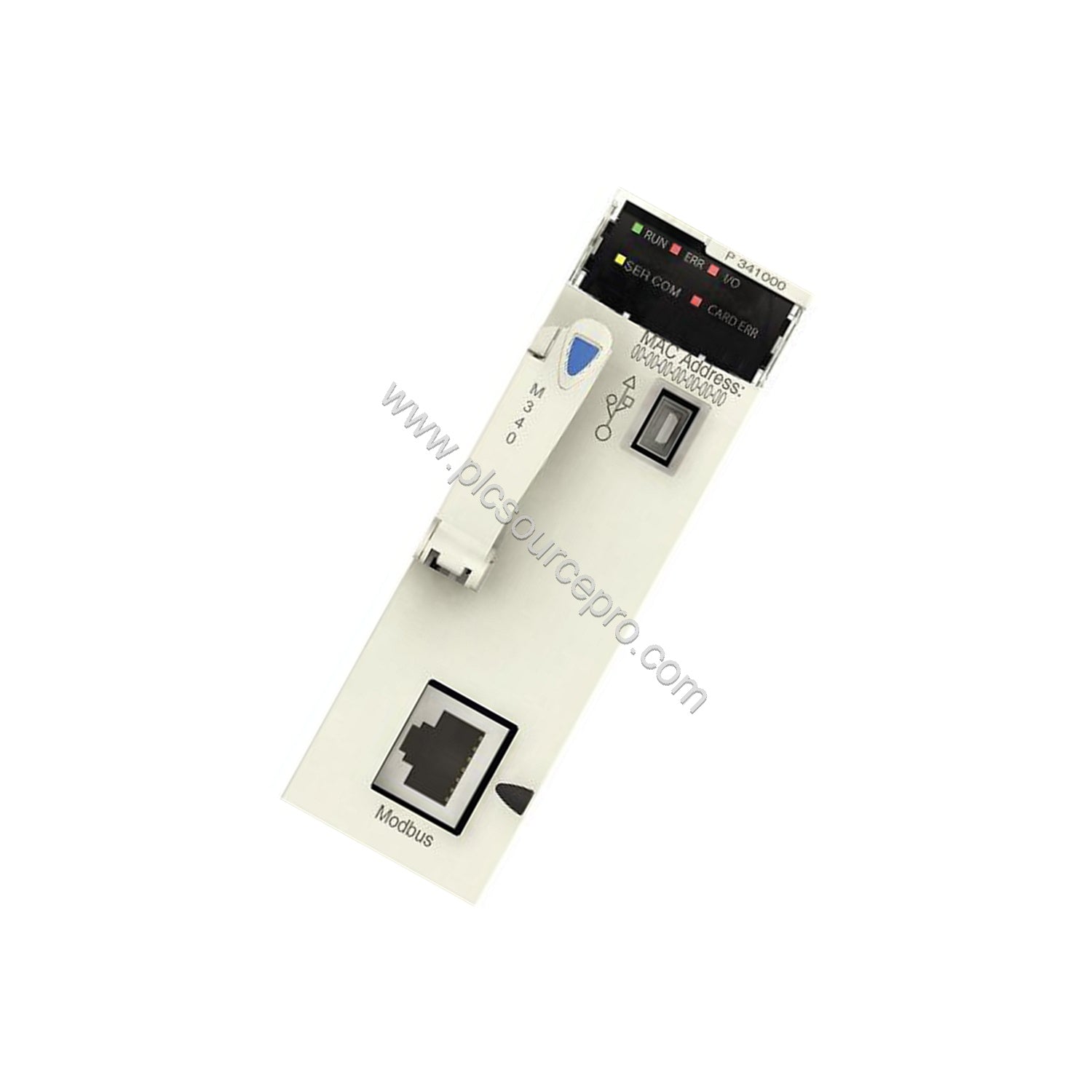

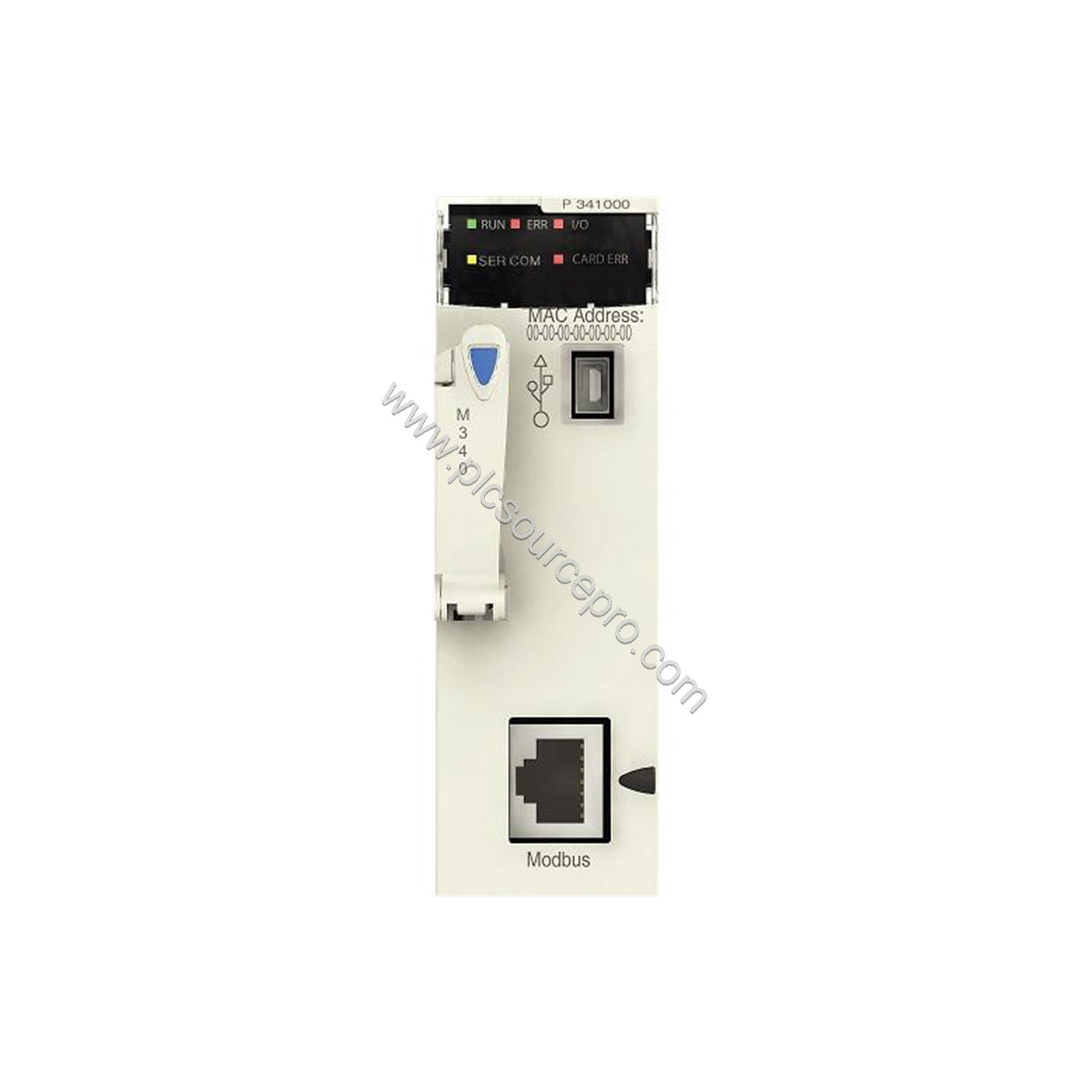

The Schneider BMXP341000H is a high-performance processor module from the Modicon M340 automation platform. Designed specifically for severe environments, this BMXP341000H industrial automation module excels in applications requiring robust operation under extreme temperatures, humidity, and corrosive conditions. With a conformal coating and IP20 protection, it ensures reliable control even in harsh settings.
Technical Specifications Breakdown
Key technical parameters of the Schneider BMXP341000H include:
-
Discrete I/O capacity: 512 I/O in single-rack configuration
-
Analog I/O capacity: 128 I/O in multi-rack configuration (66 in single-rack)
-
Internal RAM: 2048 kB total (128 kB data, 1792 kB program/constants/symbols)
-
Execution time: 0.18 µs for Boolean instructions, 1.74 µs for floating point
-
Current consumption: 72 mA at 24 V DC
-
Ambient temperature range: -25 to 70 °C (-13 to 158 °F)
These specifications make the BMXP341000H ideal for complex automation tasks requiring fast processing and large I/O counts. The processor supports up to 2 racks and 11 slots, with integrated RS232C/RS485 serial links for Modbus communication.
Industry Applications
Due to its rugged design, the Schneider BMXP341000H is commonly deployed in:
-
Oil & gas facilities: With ATEX Zone 2/22 and IECEx certification, it withstands explosive atmospheres.
-
Water treatment plants: Its conformal coating resists moisture and chemical exposure.
-
Mining operations: The wide temperature range and vibration tolerance ensure uninterrupted control.
By choosing the BMXP341000H, operators reduce downtime from environmental failures, directly improving return on investment.
Compatibility & Integration
The BMXP341000H integrates seamlessly with the Modicon M340 platform. It supports:
- Up to 2 Ethernet communication modules
- Up to 2 AS-Interface modules
- Modbus RTU/ASCII serial communication at 19.2 kbit/s
- USB port at 12 Mbit/s for local programming
This compatibility allows easy connection to existing PLC networks and SCADA systems, reducing integration time and cost.
Maintenance & Reliability
To maximize the lifespan of the Schneider BMXP341000H, follow these guidelines:
- Keep the enclosure clean and ensure proper ventilation to avoid overheating.
- Periodically check the status LEDs (RUN, ERR, I/O, CARD ERR, SER COM) for early fault detection.
- Replace the memory card (BMXRMS008MP) as needed to prevent data loss.
- Inspect serial cable connections for corrosion or damage, especially in harsh environments.
The BMXP341000H offers diagnostic counters and event counters via Modbus, enabling predictive maintenance and reducing unplanned downtime.
Selection Guide & Purchasing Advice
Before purchasing the BMXP341000H, verify your system requirements:
- Confirm the number of discrete and analog I/O points needed (max 512 discrete, 128 analog).
- Ensure the rack and power supply are compatible with the Modicon M340 series.
- Check environmental conditions: the BMXP341000H operates from -25°C to 70°C with up to 95% humidity.
For genuine Schneider BMXP341000H modules with fast shipping, trust PLC Source PRO. We are a reliable industrial automation supplier dedicated to quality and customer satisfaction.
