Product Introduction

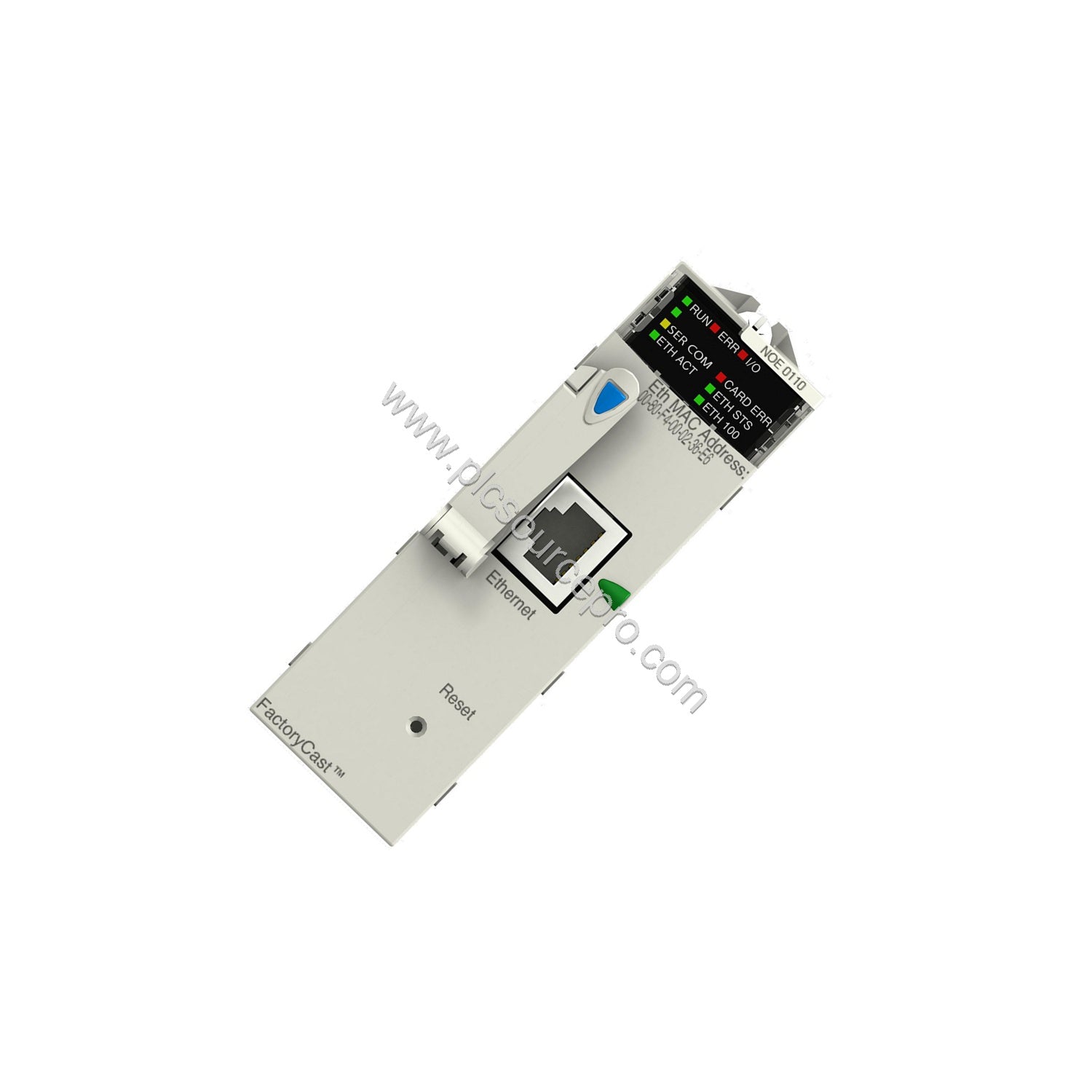

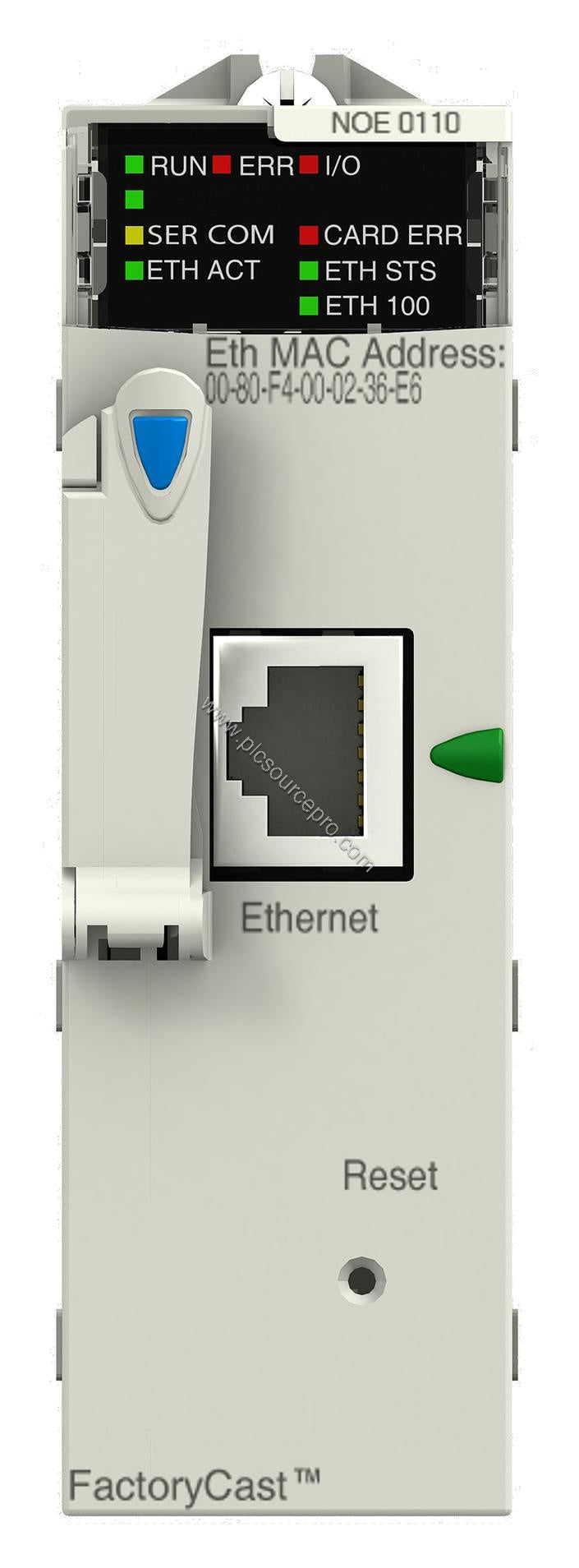

The Schneider BMXNOE0110H is an Ethernet TCP/IP network module designed for the Modicon M340 automation platform. It is classified as a Transparent Ready class C30 server, providing robust network connectivity for industrial applications. This module is specifically intended for severe environments, featuring conformal coating to protect against moisture and contaminants. With support for 10/100 Mbit/s Ethernet via RJ45, the BMXNOE0110H ensures reliable data exchange across your control system.
Technical Specifications
| Parameter |
Value |
| Product Type |
Ethernet TCP/IP network module |
| Range |
Modicon M340 |
| Connection |
Ethernet TCP/IP RJ45, 10/100 Mbit/s, 1 twisted pair |
| Protocols |
Modbus TCP, Global Data, I/O scanning, FDR server, SNMP, Web server |
| Memory |
Supplied Flash memory card (BMXRWSC016M), Internal RAM 16000 kB |
| Power Supply |
Via rack, 90 mA at 24 V DC |
| Net Weight |
0.4 lb (US) (0.2 kg) |
| Operating Temperature |
-13…158 °F (-25…70 °C) |
| Relative Humidity |
10…95 % without condensation |
| IP Rating |
IP20 |
| Certifications |
CE, UL, CSA, RCM, EAC, ATEX zone 2/22, IECEx zone 2/22 |
The Schneider BMXNOE0110H includes comprehensive communication services: bandwidth management, Rack Viewer, and SOAP XML Web service. Its local signaling with six LEDs provides instant status feedback.
Integration and Compatibility
The BMXNOE0110H integrates seamlessly into the Modicon M340 automation platform. It supports Modbus TCP messaging for interoperability with a wide range of devices. Global Data and I/O scanning enable efficient data sharing across multiple controllers. The module also functions as an FDR server, simplifying device replacement. For network management, it includes SNMP support and a configurable web server accessible via PC, pocket PC, or PDA terminal.
Maintenance and Reliability

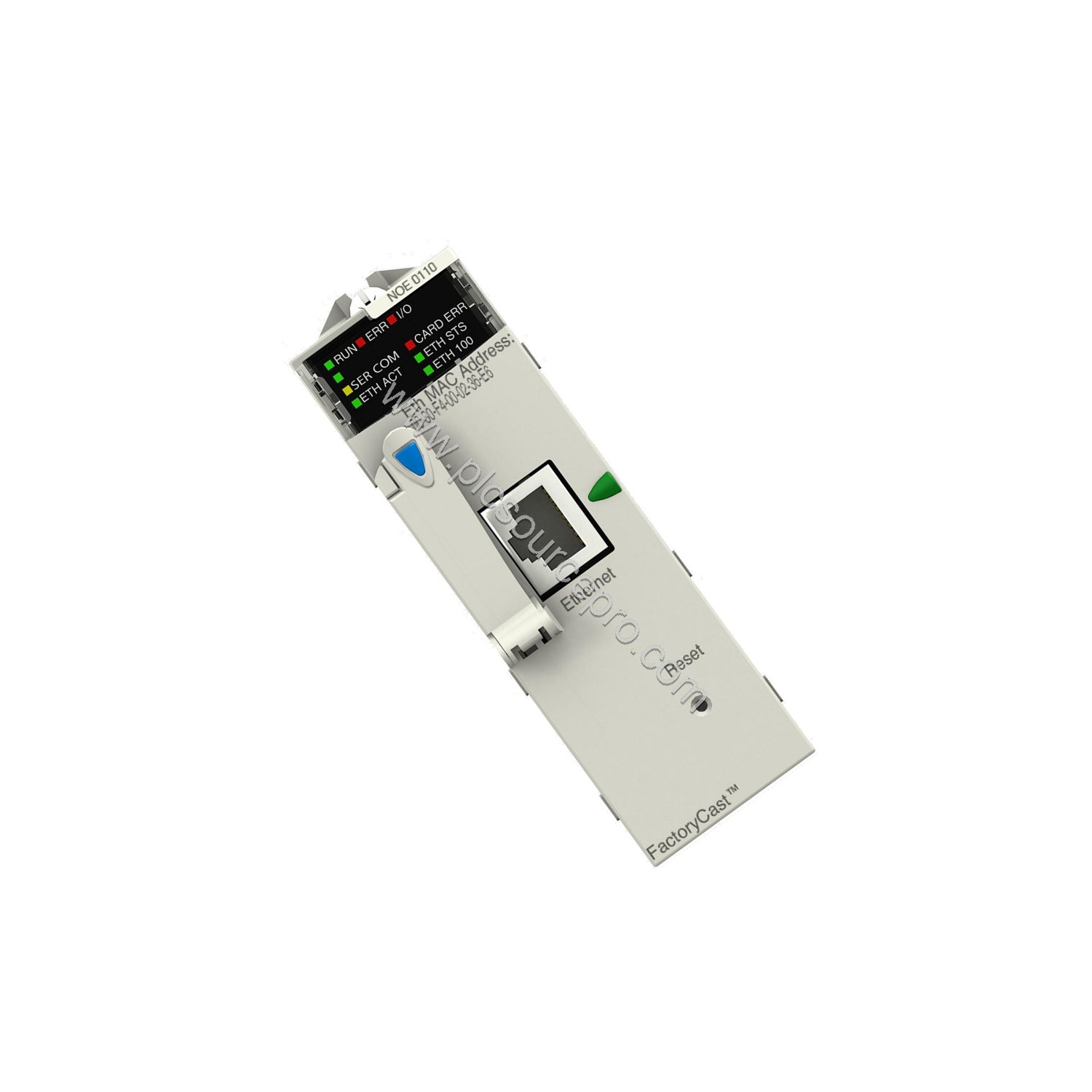

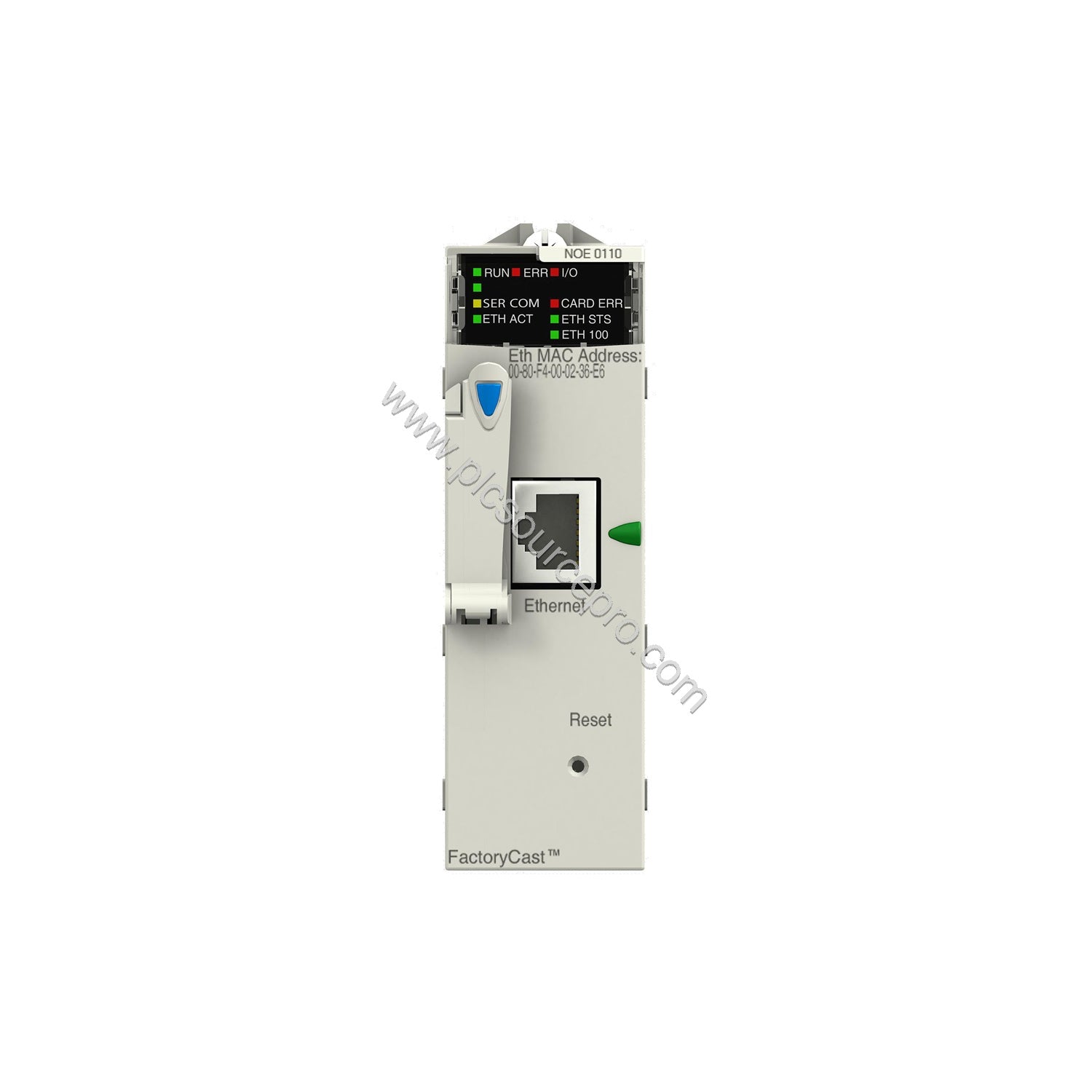

Designed for severe environments, the Schneider BMXNOE0110H features conformal coating and meets stringent standards including IEC 61131-2 and UL 61010-2-201. It is resistant to gas, dust, sand, salt, mold, and fungal spores, ensuring long-term reliability. The module operates in temperatures from -25 to 70 °C and humidity up to 95% without condensation. Regular inspection of the LEDs (RUN, ETH ACT, ETH STS, ETH 100, CARD ERR, ERR) allows quick diagnostics. With no moving parts, maintenance is minimal, contributing to a lower total cost of ownership.
Selection Guide
When purchasing the Schneider BMXNOE0110H, verify that your Modicon M340 backplane has an available slot. The module is powered internally via the rack, so no external power supply is required. Ensure your network infrastructure supports 10/100BASE-TX Ethernet. For specifications or ordering, contact ubest101 (the store link: ubest101.myshopify.com) for availability and competitive pricing.
