Product Overview

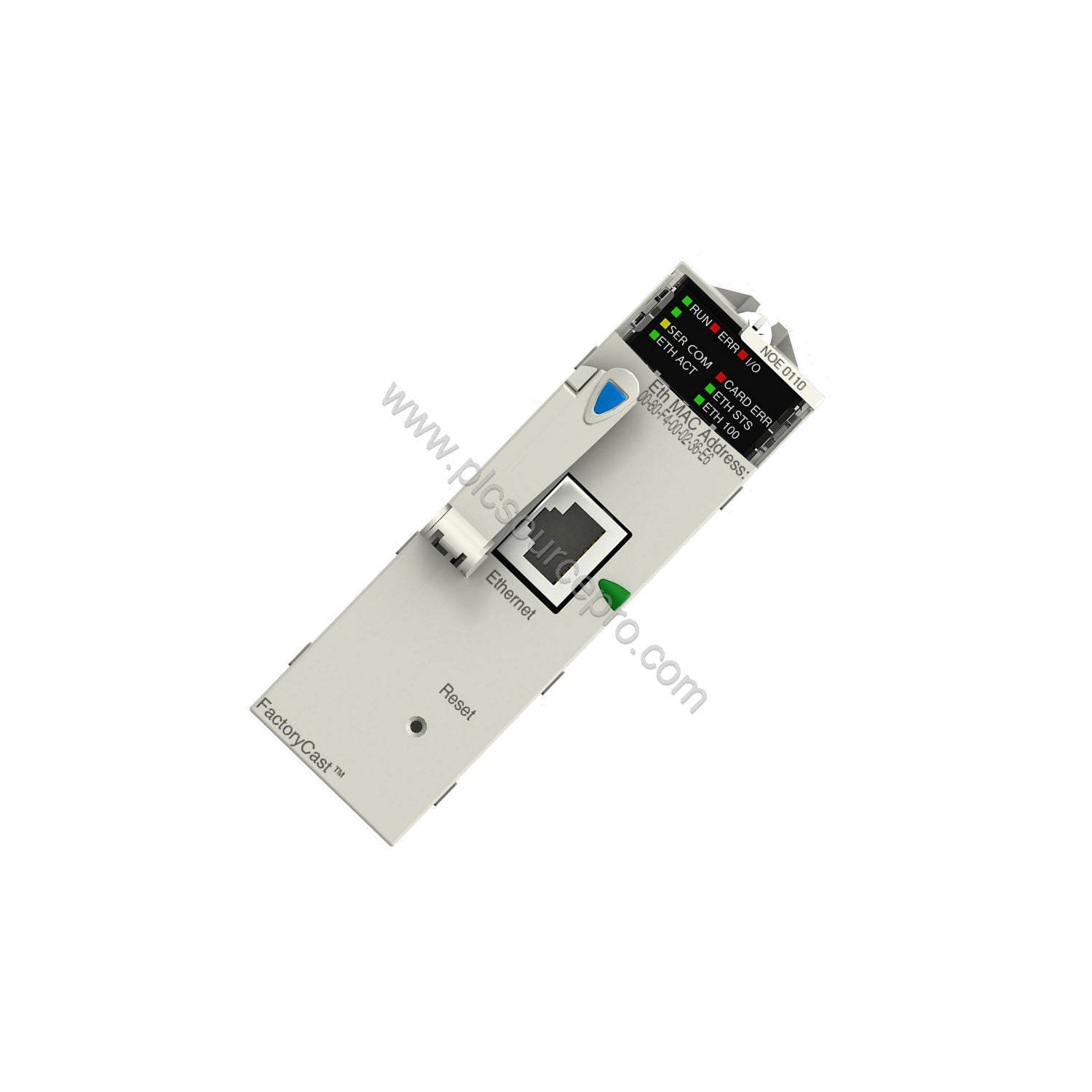

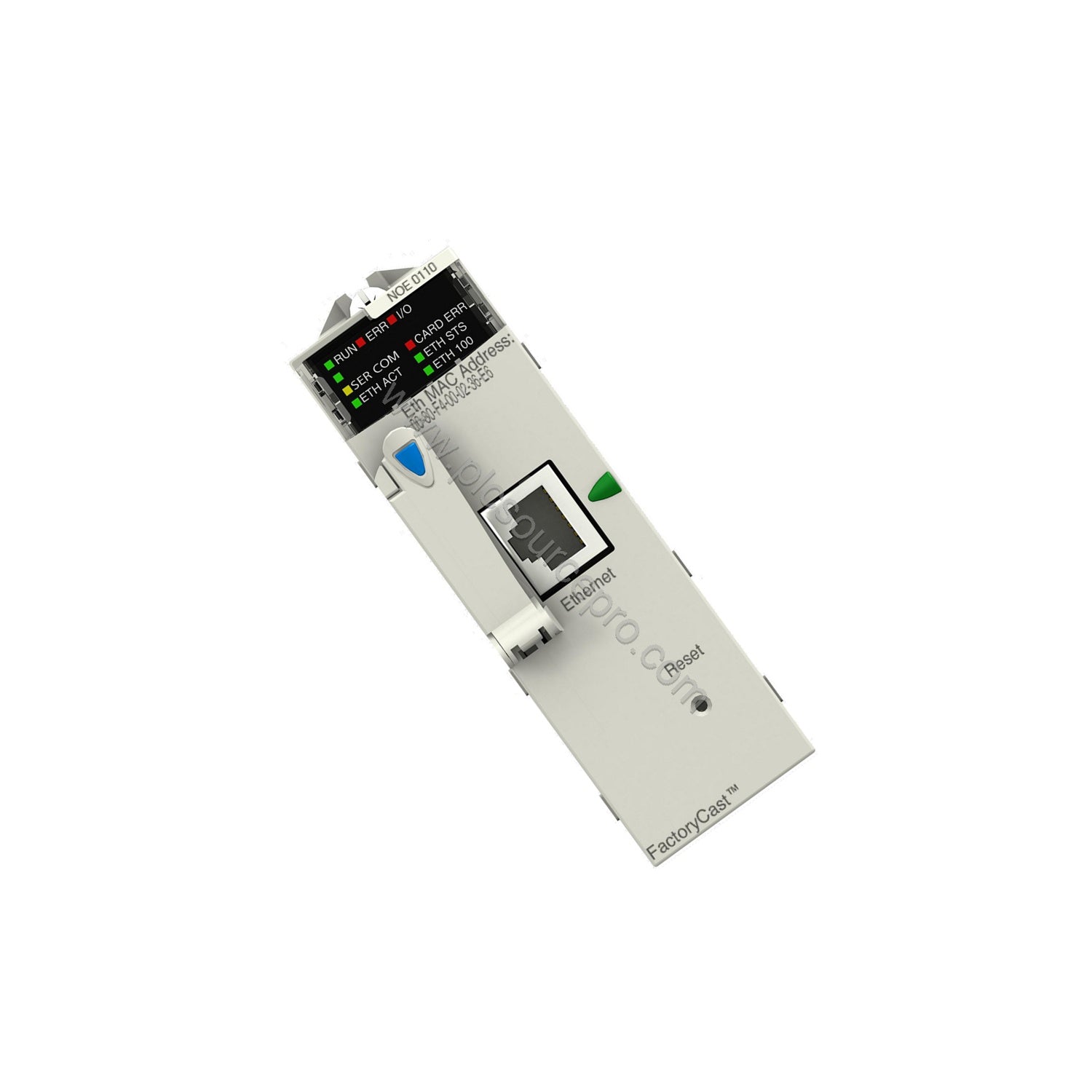

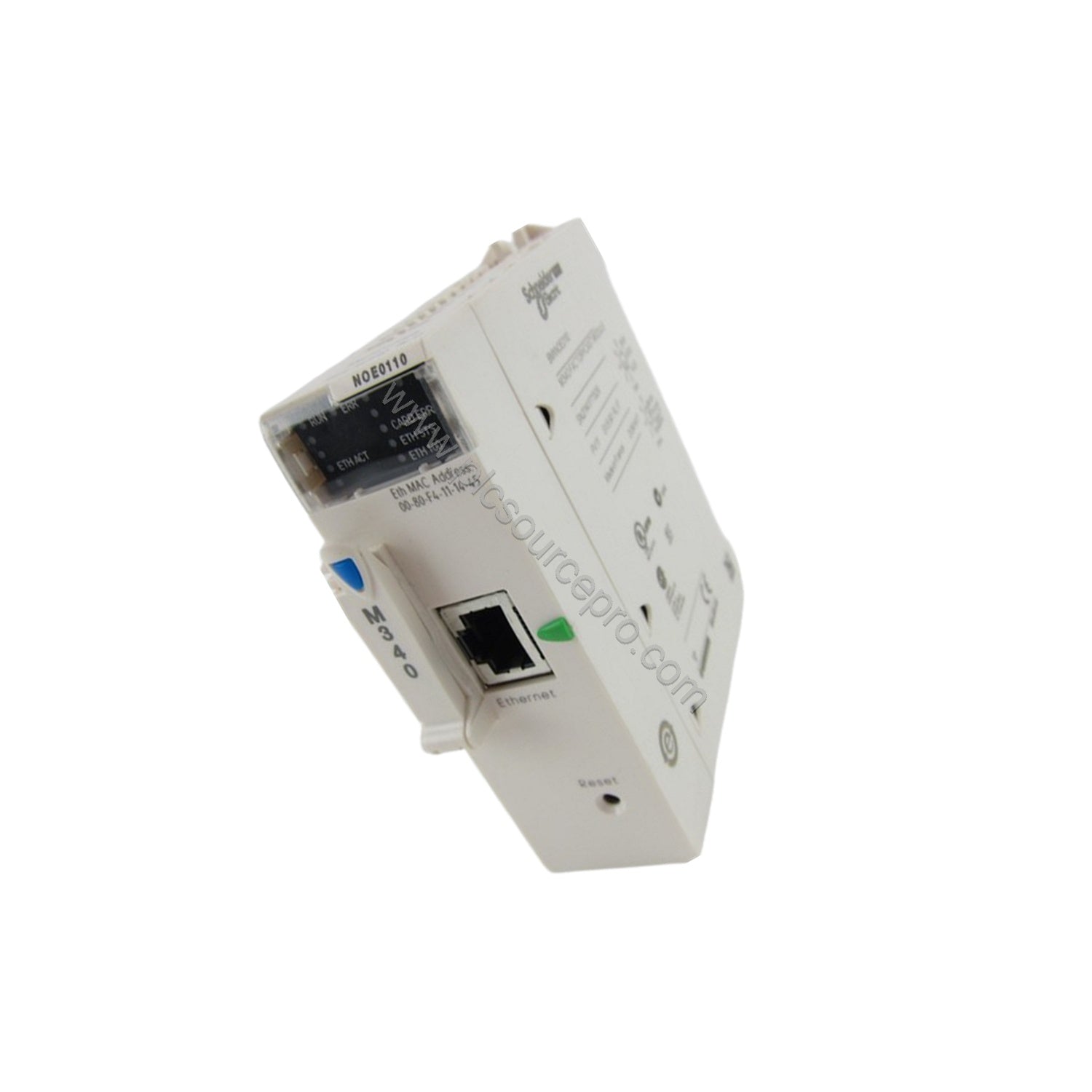

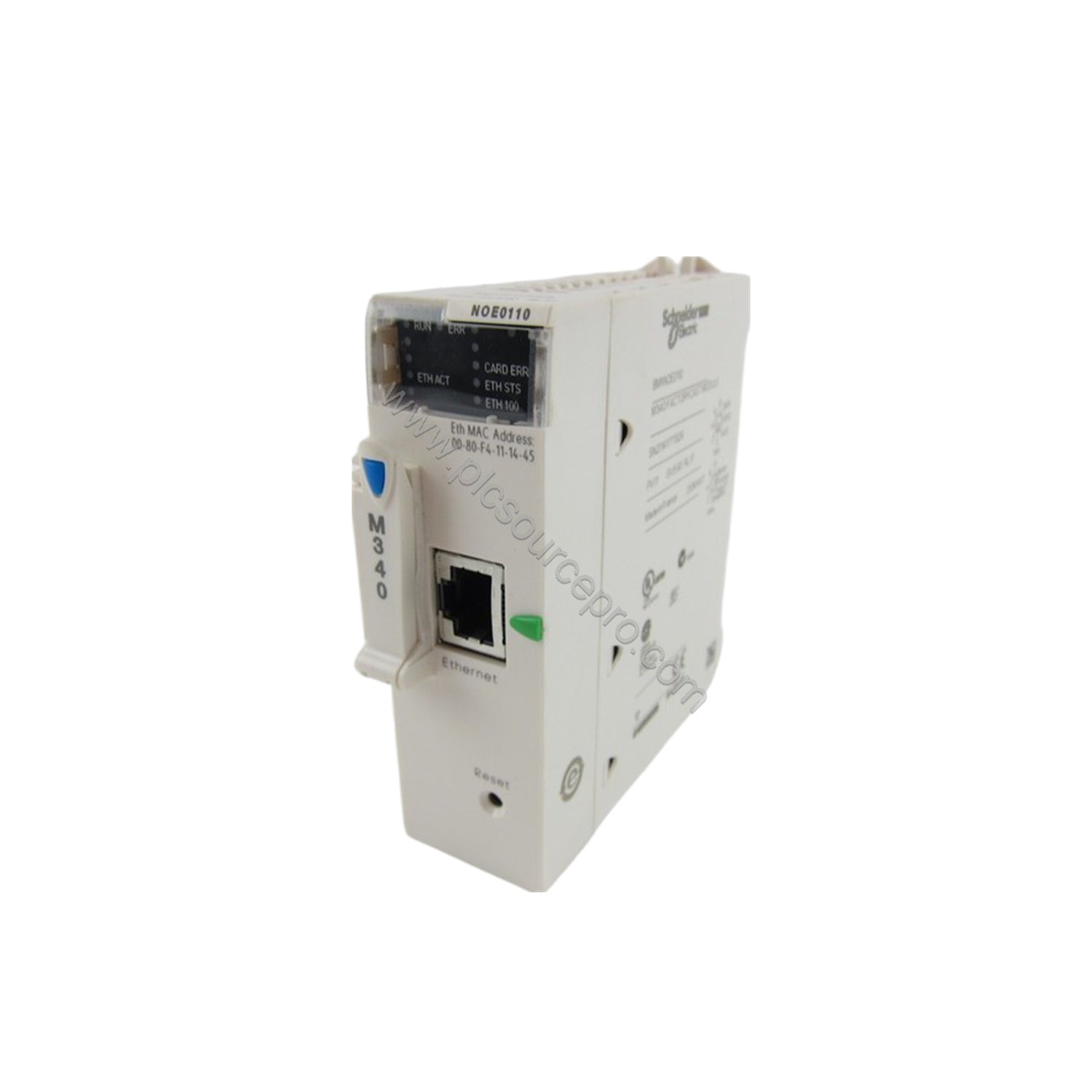

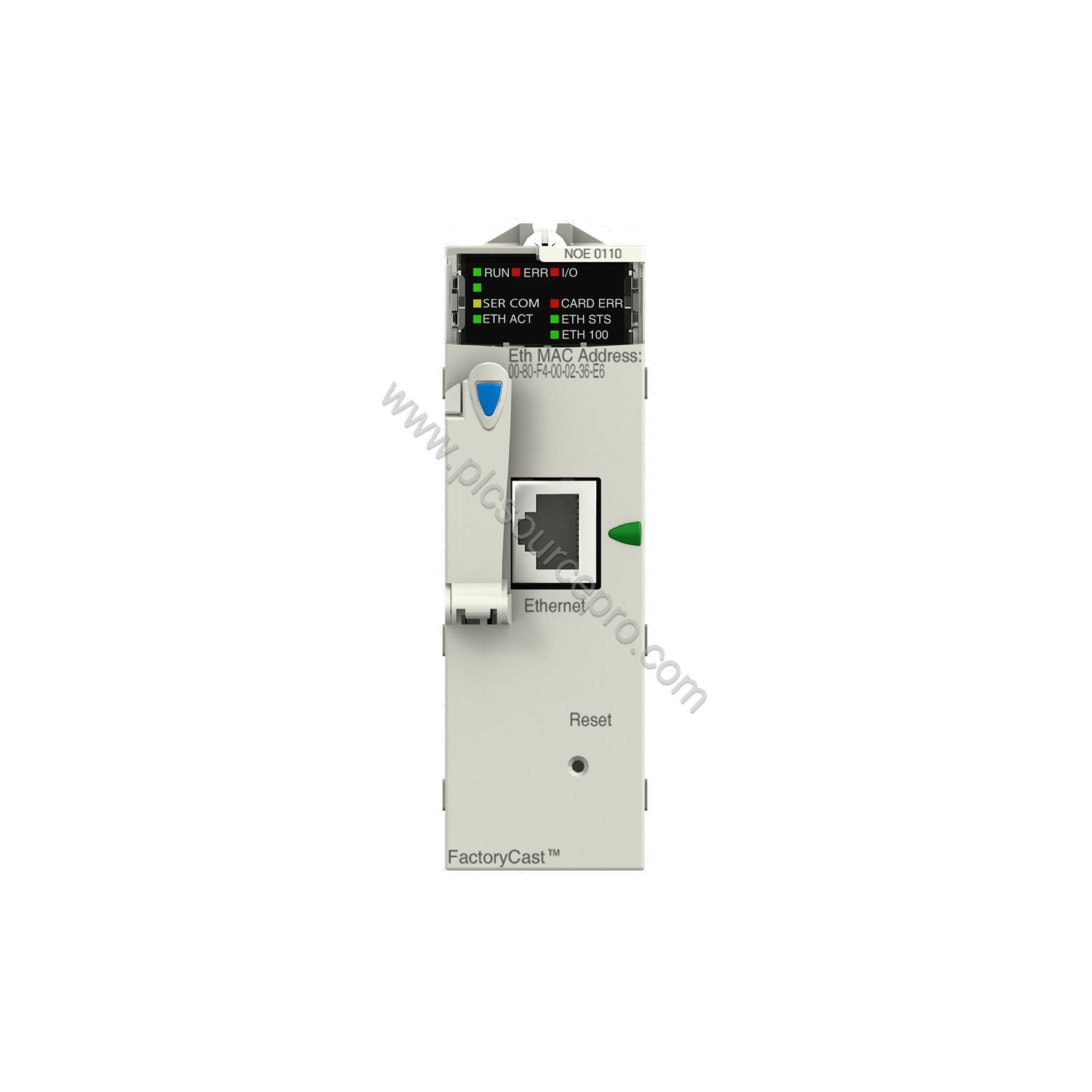

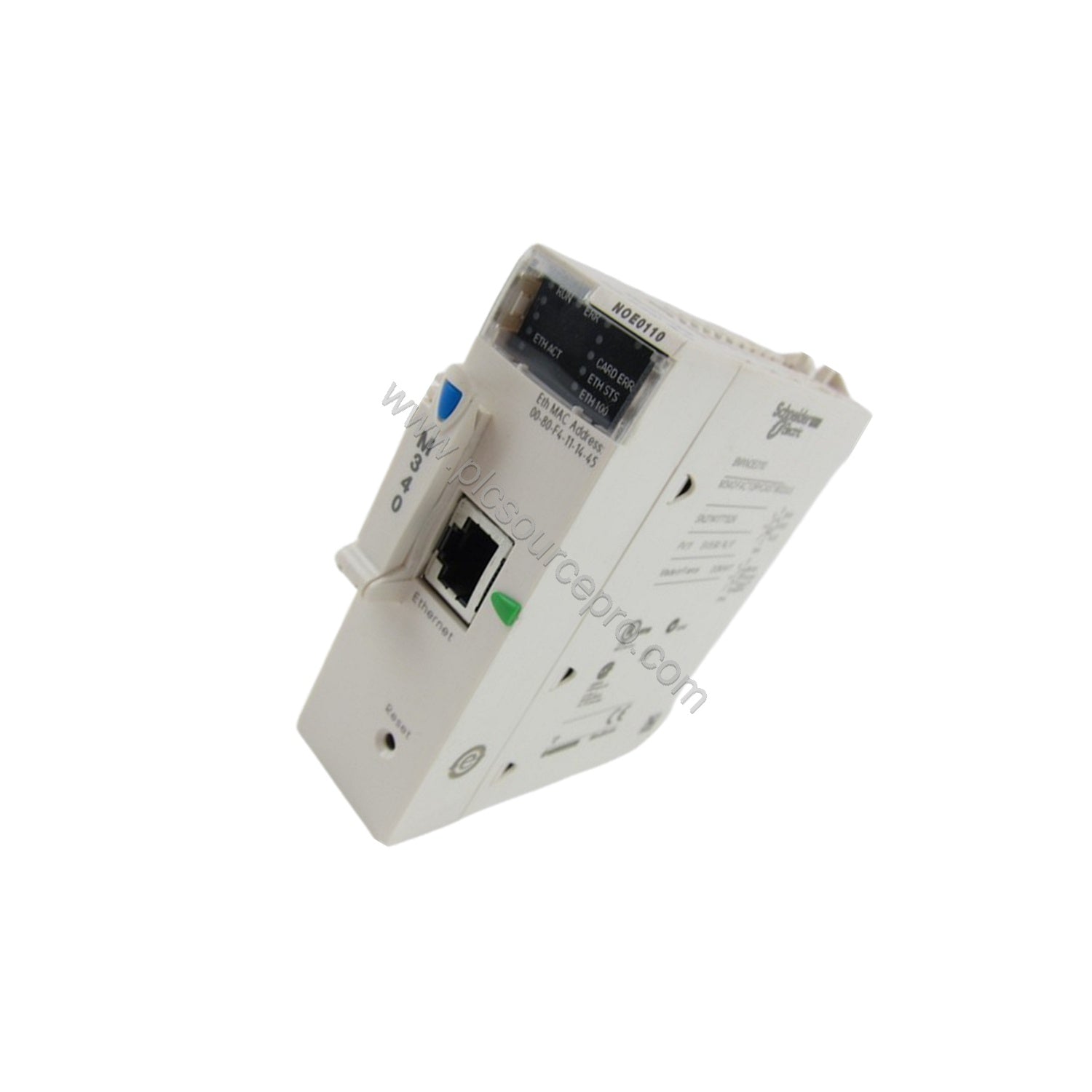

When network congestion threatens uptime in your Modicon M340 system, the Schneider BMXNOE0110 Ethernet TCP/IP network module delivers transparent ready class C30 performance. With integrated web server, FDR server, and bandwidth management, this module reduces troubleshooting time and improves network efficiency. Part of the Modicon M340 automation platform, the BMXNOE0110 is designed for demanding industrial environments.
Technical Specifications
| Parameter |
Value |
| Product Type |
Ethernet TCP/IP network module |
| Integrated Connection |
1 × RJ45 10/100 Mbit/s, twisted pair, transparent ready class C30 |
| Communication Services |
Bandwidth management, FDR server, Rack Viewer, SNMP network administrator, Global Data, I/O scanning, Modbus TCP messaging, Web server configurable, Data Editor, SOAP XML Web service (server) |
| Memory |
Internal RAM 16000 kB; Supplied Flash memory card (BMXRWSC016M) |
| Current Consumption |
90 mA at 24 V DC |
| Net Weight |
0.4 lb (0.2 kg) |
| Ambient Temperature (Operation) |
32…140 °F (0…60 °C) |
| Relative Humidity |
10…95% without condensation |
| IP Degree of Protection |
IP20 |
| Marking |
CE |
Application Scenarios
In a packaging line using a Modicon M340 controller, the Schneider BMXNOE0110 enables real-time I/O scanning and Modbus TCP messaging to coordinate multiple drives and sensors. The integrated web server allows operators to monitor production metrics via any web browser, reducing downtime for diagnostics. For remote water treatment facilities, the FDR server and SNMP network administration simplify fault recovery and bandwidth allocation, ensuring consistent communication over long distances.
Compatibility and Integration
The BMXNOE0110 is designed exclusively for the Modicon M340 automation platform. It supports communication services including Global Data, I/O scanning, Modbus TCP messaging, and SOAP XML web services. It works with the BMXRWSC016M flash memory card supplied in the box. The module mounts directly into any standard M340 rack and draws power internally via the rack backplane.
Selection Guide and Purchasing Advice
Before purchasing a Schneider BMXNOE0110, verify that your system uses the Modicon M340 platform and that the rack has an available slot. The module comes with a pre-installed flash memory card; no additional accessories are required for basic operation. For genuine Schneider components and reliable supply, choose UBEST Automation – your trusted source for industrial automation spares.
