Product Overview

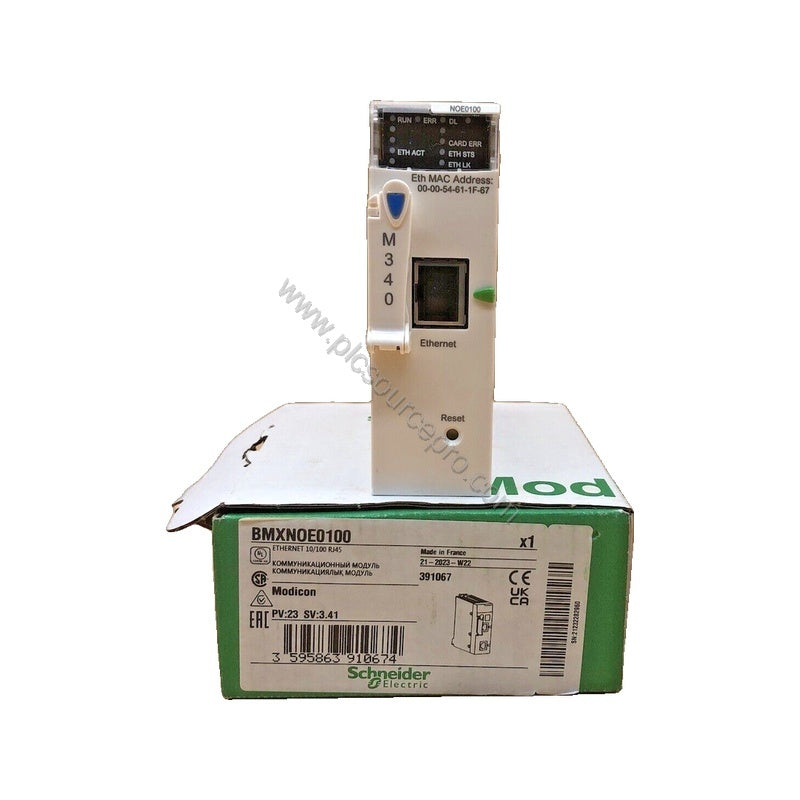

The Schneider BMXNOE0100 TCP/IP Ethernet Network Module is a critical component for the Modicon M340 automation platform. This module provides transparent ready connectivity, enabling seamless integration of industrial control systems with Ethernet TCP/IP networks. Designed for demanding environments, the BMXNOE0100 supports 10/100 Mbit/s data rates via a single RJ45 port, ensuring robust and reliable data exchange.
Industry Applications
In manufacturing plants, the Schneider BMXNOE0100 enables real-time communication between PLCs, HMIs, and SCADA systems. For example, in a packaging line, this module facilitates synchronized control of multiple machines by transmitting process data over Modbus TCP. In water treatment facilities, the BMXNOE0100 supports remote monitoring and diagnostics, reducing unscheduled downtime through its built-in web server and FDR server capabilities.
Installation & Setup Guidance
Mount the Schneider BMXNOE0100 directly into the Modicon M340 rack. Ensure the power supply is disconnected during installation. Connect the Ethernet cable to the RJ45 port labeled ETH. After power-up, verify the LED indicators: green ETH ACT for activity, green RUN for processor operation, and green ETH STS for network status. The red ETH 100 LED lights when operating at 100 Mbit/s. Use the RESET button to perform a cold start if needed.
Maintenance & Reliability
Regularly inspect the BMXNOE0100 for dust accumulation on LEDs and connectors. Keep the operating temperature between 0°C and 60°C and relative humidity below 95% non-condensing to ensure long service life. The module’s IP20 rating protects against solid objects but requires installation in a clean, dry cabinet. Periodic checks of the internal supply voltage (24 V DC) and current consumption (90 mA) help prevent power-related failures.
Troubleshooting & Common Issues
If the ERR LED (red) lights, check for processor or system errors. The CARD ERR LED indicates memory card problems; verify the supplied Flash Card (BMXRWSC016M) is properly seated. For network issues, confirm the Ethernet cable is Category 5e or higher and that the switch port supports auto-negotiation. The Schneider BMXNOE0100 includes diagnostic tools like SNMP and a web server to isolate faults quickly. For detailed specifications not listed here, please contact UBEST Automation at ubest101.
