Product Overview
The Schneider BMXNGD0100 is a high-performance Ethernet TCP/IP network module designed for the Modicon M580 automation platform. This module delivers reliable global data service and Modbus TCP messaging, enabling fast and deterministic data exchange across distributed control systems. As a key component in modern industrial networks, the BMXNGD0100 supports seamless integration into existing architectures while reducing wiring and improving system responsiveness.

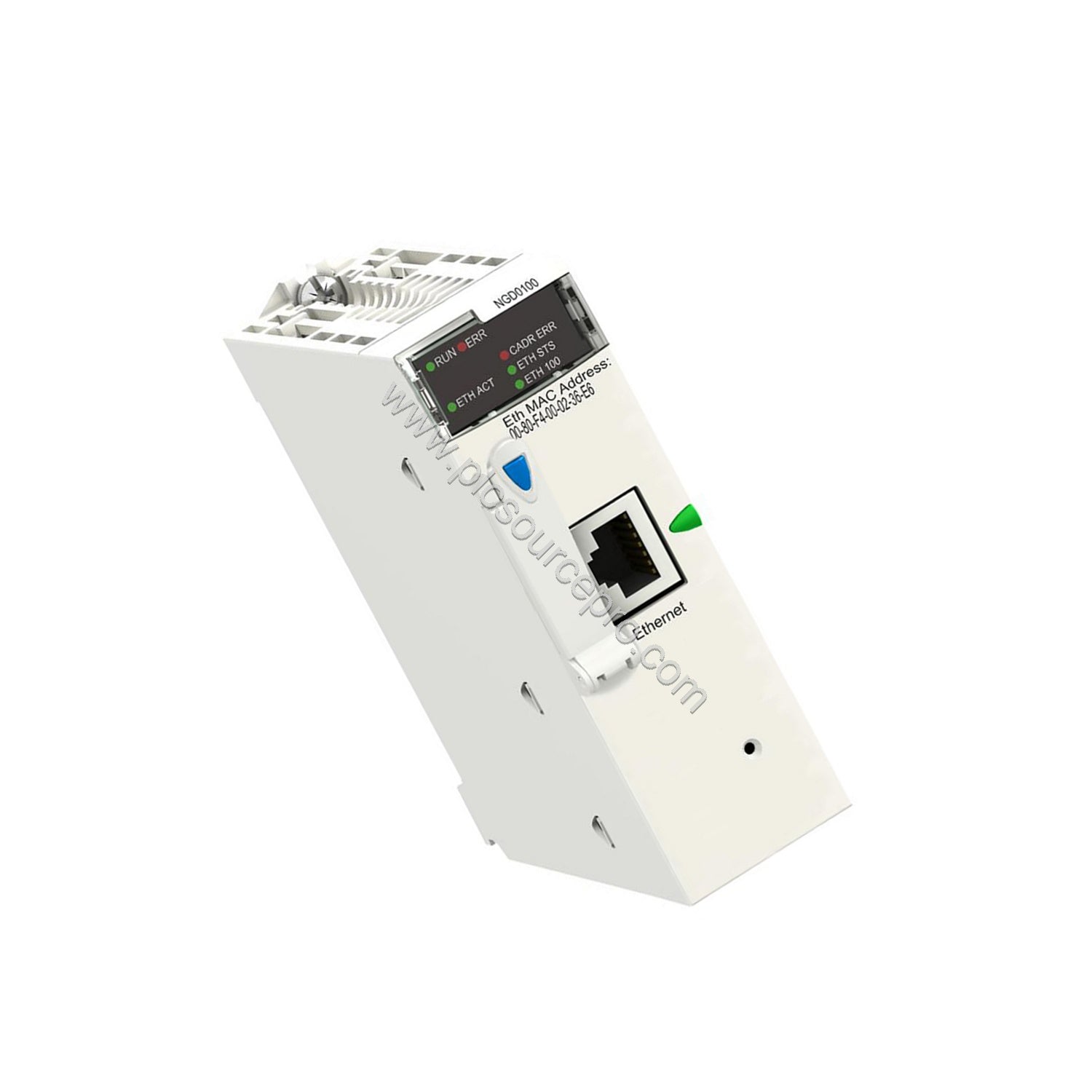

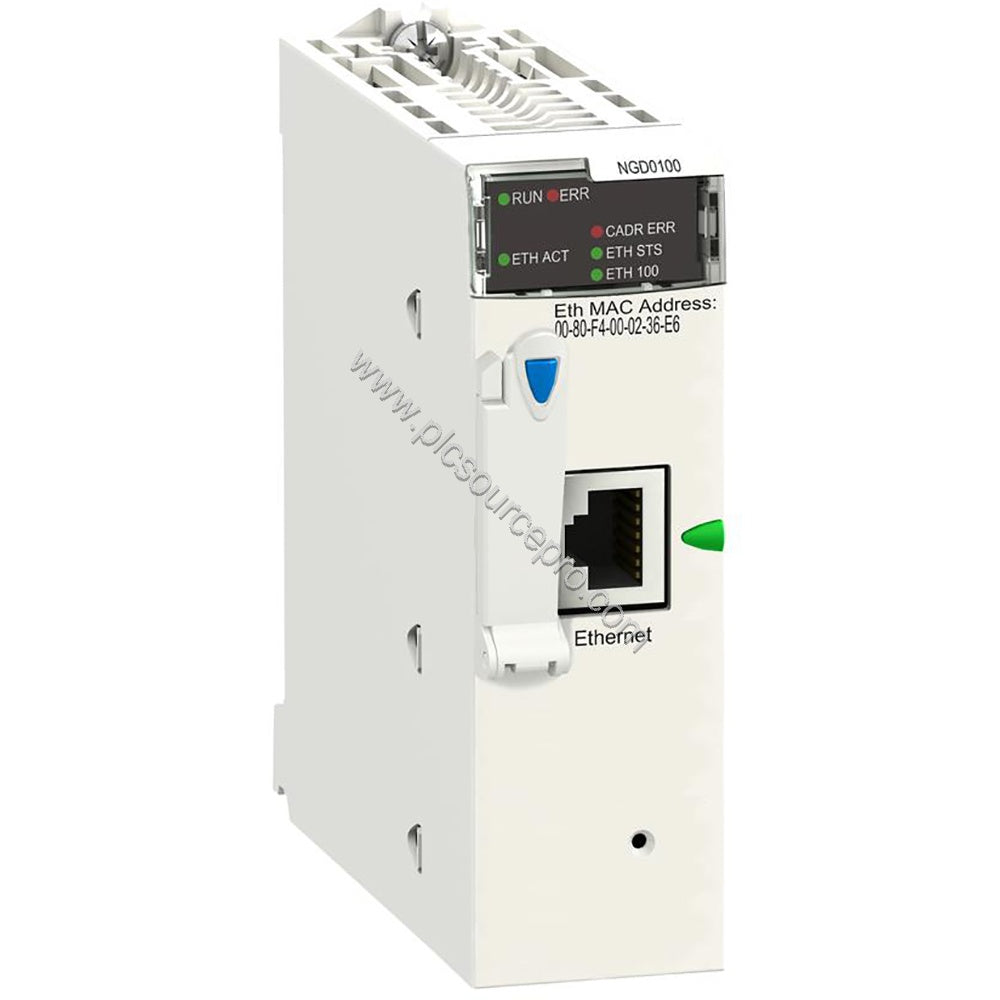

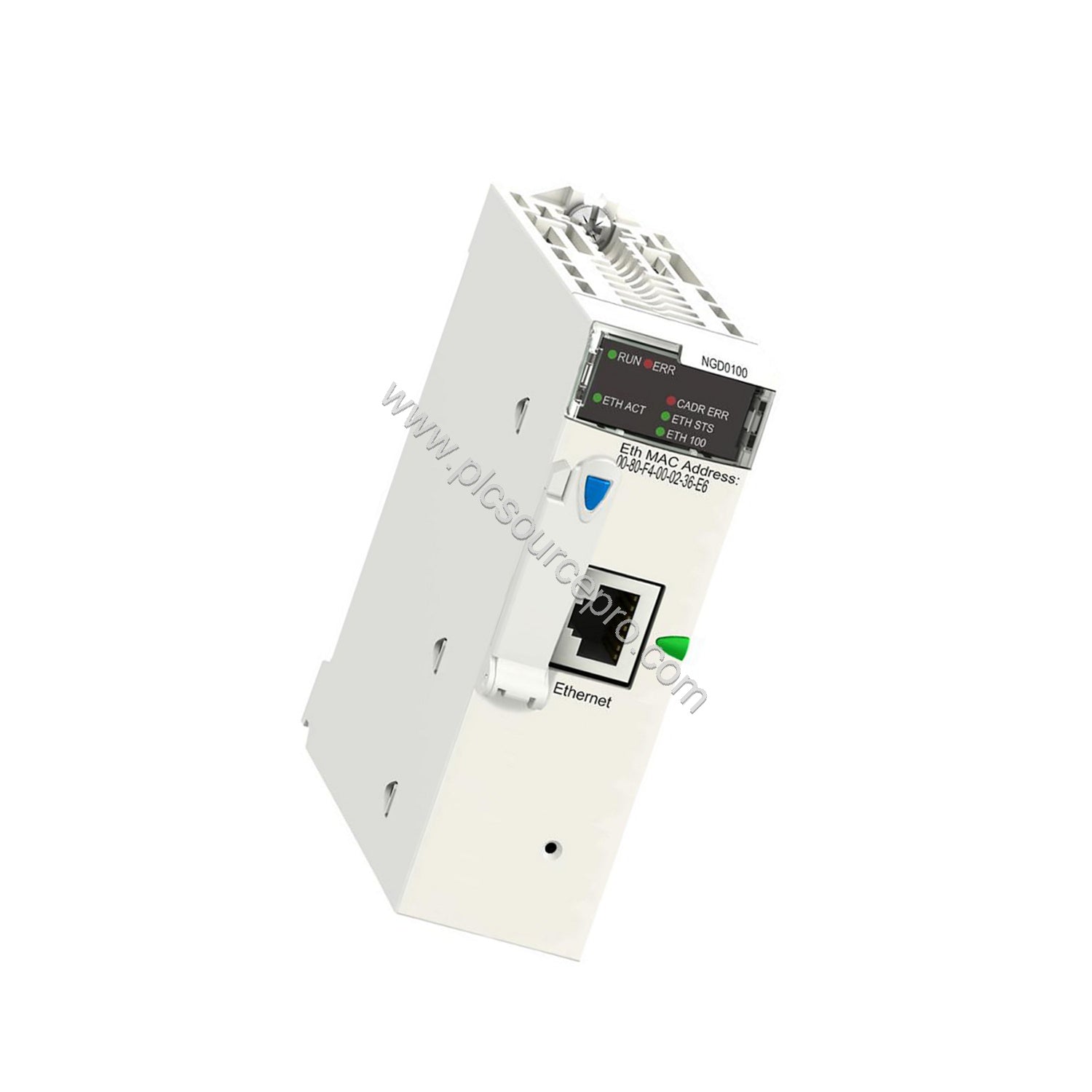

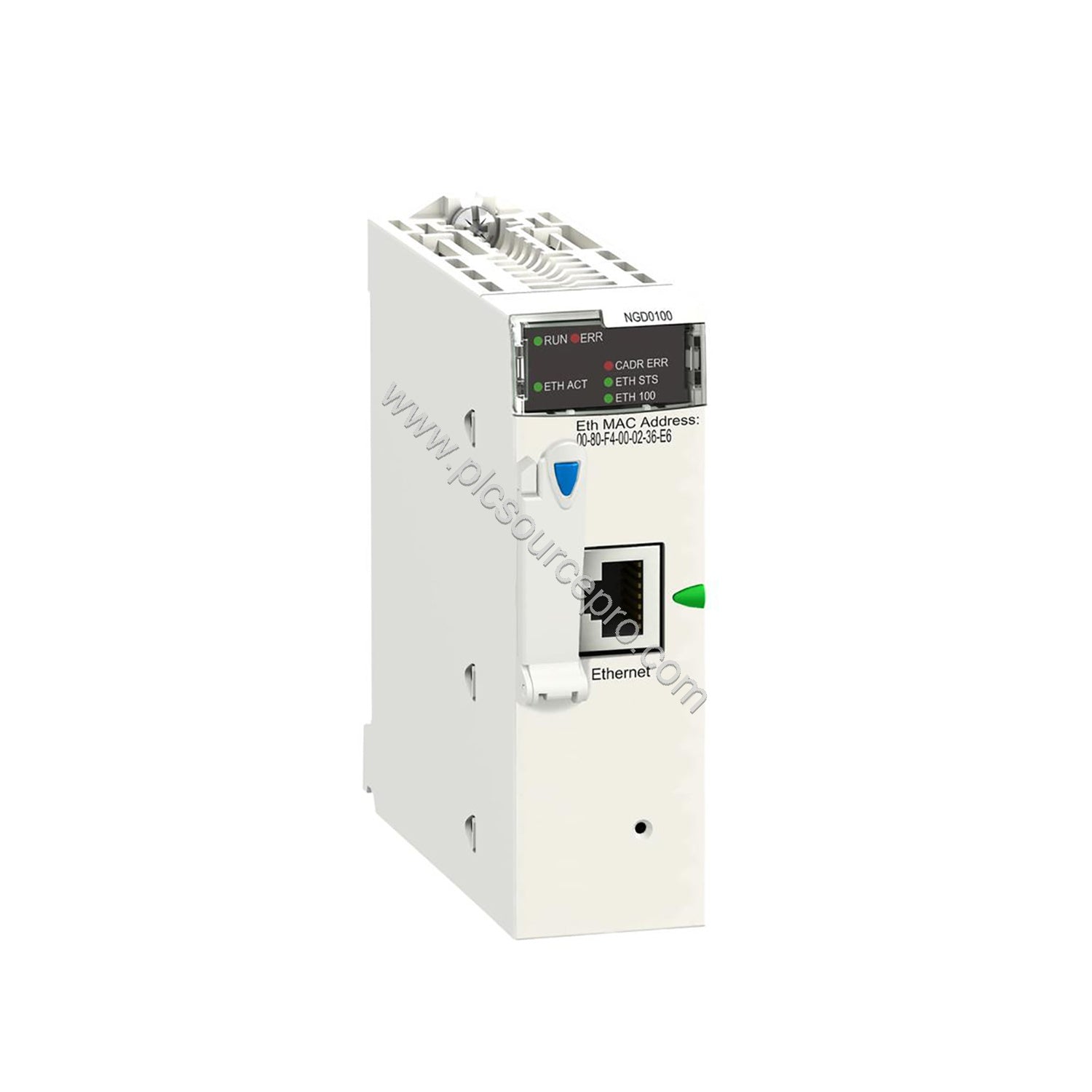

Built for demanding environments, the BMXNGD0100 features an internal power supply via rack, drawing just 90 mA at 24 V DC. It comes with a supplied Flash memory card (BMXRWSC016M) and provides comprehensive local signaling through six LEDs for network activity, processor status, and fault indication. The module also includes a RESET push-button for cold restart, simplifying maintenance and troubleshooting.
Technical Specifications
| Parameter |
Value |
| Product Range |
Modicon M580 |
| Communication Service |
Global Data, Modbus TCP messaging |
| Connection Type |
Ethernet RJ45 10/100 Mbit/s, 1 twisted pair |
| Supply Voltage |
24 V DC (via rack) |
| Current Consumption |
90 mA |
| Memory Card Supplied |
BMXRWSC016M Flash |
| Local Signaling |
6 LEDs: ETH ACT, RUN, ETH STS, ETH 100, CARD ERR, ERR |
| Control Type |
RESET push-button for cold restart |
| Environmental Rating |
IP20 |
| Operating Temperature |
32…140 °F (0…60 °C) |
| Relative Humidity |
10…95 % (non-condensing) |
| Net Weight |
0.4 lb (0.2 kg) |
| Compliance |
CE, 2014/35/EU, 2014/30/EU |
Industry Applications
The Schneider BMXNGD0100 excels in applications requiring low-latency data sharing between multiple controllers. Typical uses include:
-
Distributed Control Systems (DCS): Enables real-time data exchange between process controllers for synchronized operations in chemical plants or refineries.
-
Material Handling: Coordinates multiple PLCs in conveyor systems, ensuring smooth product flow and reducing downtime.
-
Water Treatment: Supports global data service for remote monitoring and control of pumps, valves, and sensors across expansive facilities.
When upgrading from older Modicon platforms, the BMXNGD0100 offers a direct path to modern Ethernet-based communication while preserving existing investments through backward compatibility within the M580 ecosystem.
Installation & Setup Guidance
Installing the BMXNGD0100 is straightforward. Mount the module in a standard Modicon M580 rack and connect via the internal backplane for power and data. Use an Ethernet RJ45 cable (Cat5e or better) for network connection. The module automatically detects 10BASE-T or 100BASE-TX speeds. After insertion, verify LED status: the green ETH ACT LED indicates network activity, RUN LED confirms processor operation, and ETH STS shows network status. For initial configuration, use the RESET button to perform a cold restart if needed. No additional power supply is required as the module draws power directly from the rack.
Compatibility & Integration
The BMXNGD0100 integrates seamlessly with other Modicon M580 modules and controllers. It supports both Global Data (publisher/subscriber) and Modbus TCP messaging, making it compatible with a wide range of supervisory systems and HMIs. The module works with third-party devices supporting Modbus TCP/IP, and its RJ45 connection standard simplifies network topology design. For multi-controller systems, the Global Data service reduces programming complexity by eliminating the need for custom data exchange routines. Partners include Rockwell Automation, Siemens, and other platforms when using gateway interfaces, though native best performance is with Schneider M580 ecosystem.
Selection Guide & Purchasing Advice
Before ordering the Schneider BMXNGD0100, verify that your rack provides an available slot and supports internal power supply. Ensure your network infrastructure matches the 10/100 Mbit/s Ethernet standard. For large-scale upgrades, consider ordering the optional Flash memory card (BMXRWSC016M) if not included. PLC Source PRO stocks genuine Schneider BMXNGD0100 modules with full warranty. For volume discounts or urgent requirements, contact ubest101 directly for fast shipping and expert support. Always confirm the part number matches your system requirements – the BMXNGD0100 is specifically designed for Modicon M580 controllers.
Frequently Asked Questions
What is the primary function of the BMXNGD0100?
The Schneider BMXNGD0100 is an Ethernet TCP/IP network module for Modicon M580 that provides Global Data service and Modbus TCP messaging for high-speed data exchange between controllers.
What power supply does the BMXNGD0100 require?
It draws internal power via the rack at 24 V DC with a current consumption of 90 mA. No external power supply is needed.
Can I use the BMXNGD0100 in an existing Modicon M340 system?
The BMXNGD0100 is designed for the Modicon M580 platform. For M340 systems, please check compatibility with your specific controller. However, it may be used as part of a migration strategy.
What do the LEDs on the front panel indicate?
Six LEDs provide status: ETH ACT (network activity), RUN (processor running), ETH STS (network status), ETH 100 (data rate), CARD ERR (memory card fault), and ERR (processor/system fault).
What environmental conditions can the BMXNGD0100 withstand?
It operates at 32…140 °F (0…60 °C) and 10…95% relative humidity (non-condensing), with an IP20 rating.
