Product Overview: The BMXFTB4000 from Schneider

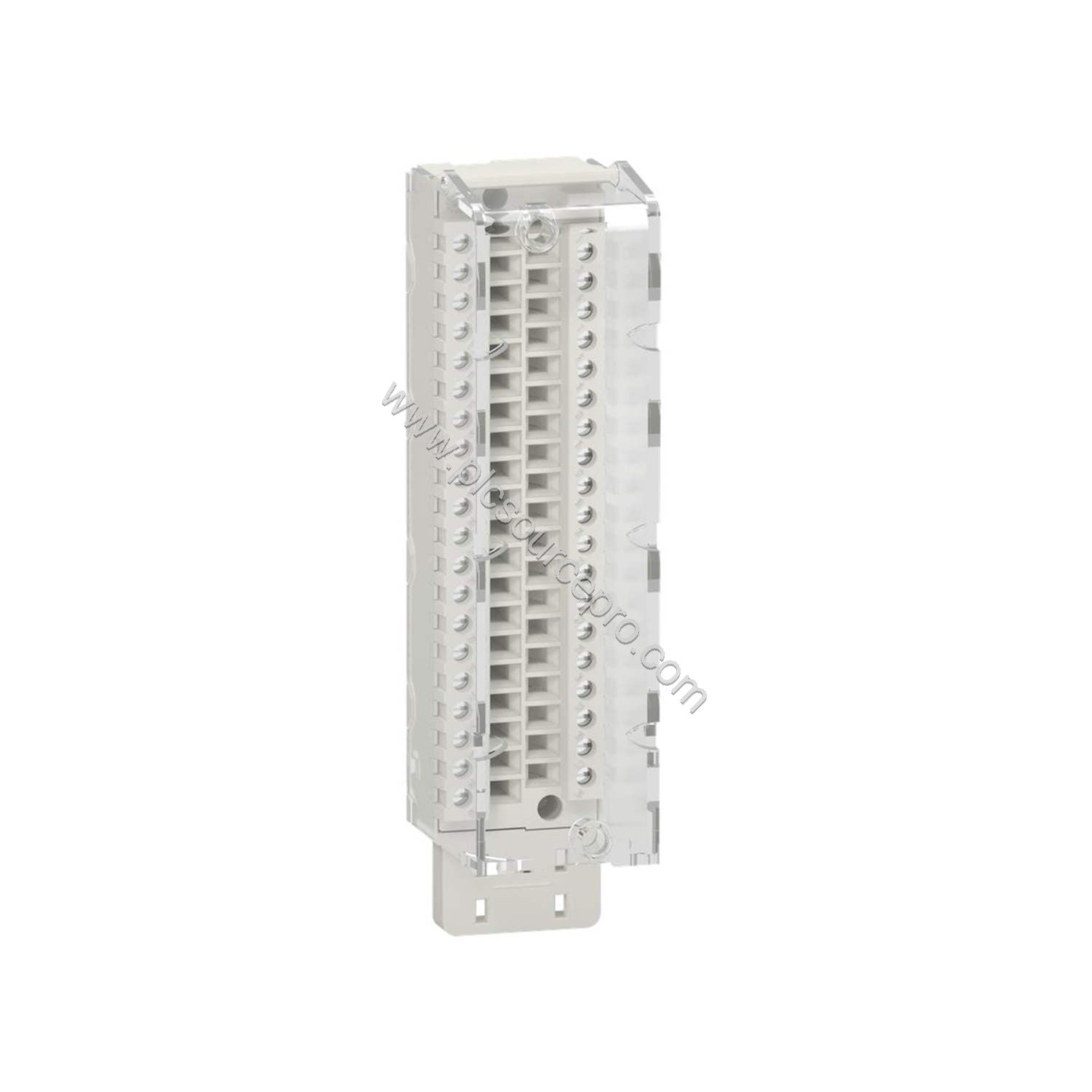

When your Modicon X80 system demands reliable wiring, the Schneider BMXFTB4000 removable connection block delivers a straightforward upgrade path. Designed as a direct replacement for older terminal blocks, this compact gray unit offers 40 cage clamp terminals in a removable design, simplifying field wiring and maintenance.
Technical Specifications: Critical Parameters for the BMXFTB4000
The table below summarizes key specifications for the Schneider BMXFTB4000. All values are taken from the official product database.
| Parameter |
Value |
| Number of Terminals |
40 (cage clamp) |
| Terminal Block Height |
53 mm |
| Mounting Type |
Removable |
| Protection Rating |
IP20 |
| Operating Temperature |
0°C to 60°C |
| Storage Temperature |
-25°C to 70°C |
| Relative Humidity |
5% to 95% (non‑condensing) |
| Vibration Resistance |
5–9 Hz: 0.75 mm amplitude; 9–150 Hz: 1 g acceleration |
| Shock Resistance |
15 g for 11 ms |
| Flammability Rating |
UL94 V-0 |
| Certifications |
CE, UL, cUL |
| Net Weight |
0.19 kg (0.42 lb) |
Real‑World Applications: Where the BMXFTB4000 Excels
In process control cabinets and discrete manufacturing lines, the Schneider BMXFTB4000 provides secure wiring for up to 40 signals. Its IP20 housing is ideal for clean control rooms, while the cage clamp terminals ensure gas‑tight connections that resist vibration—especially important in environments where 15 g shock events can occur. When upgrading from older screw‑type blocks, the removable design allows pre‑wiring of the terminal block offline, reducing downtime during system modifications.
Maintenance & Reliability: Keeping Your System Running
Routine inspection of the BMXFTB4000 should focus on verifying that all cage clamp levers are fully engaged and that no mechanical damage has occurred. The UL94 V-0 rated housing provides fire resistance, and the CE, UL, and cUL certifications confirm compliance with international safety standards. Operating within the 0°C to 60°C range ensures long service life. For extreme storage, the block withstands -25°C to 70°C.
Selection Guide & Purchasing Advice
Before ordering, confirm that your Modicon X80 module requires a 40‑pin removable terminal block. The BMXFTB4000 is designed specifically for modules with a 40‑pin connector. For reliable sourcing, you can purchase this genuine Schneider part from PLC Source PRO (ubest101.myshopify.com). Always check compatibility with your existing controller to avoid returns.
