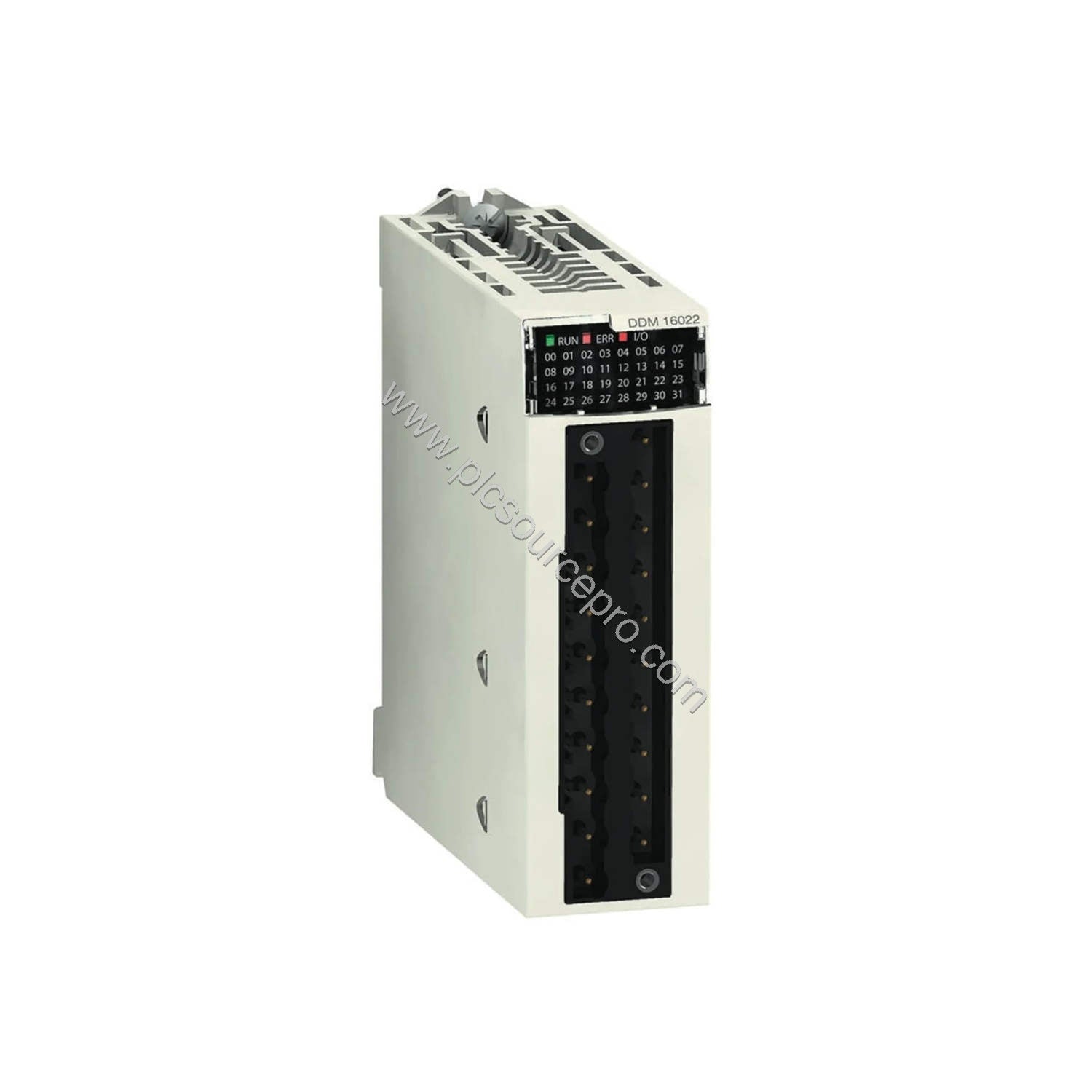

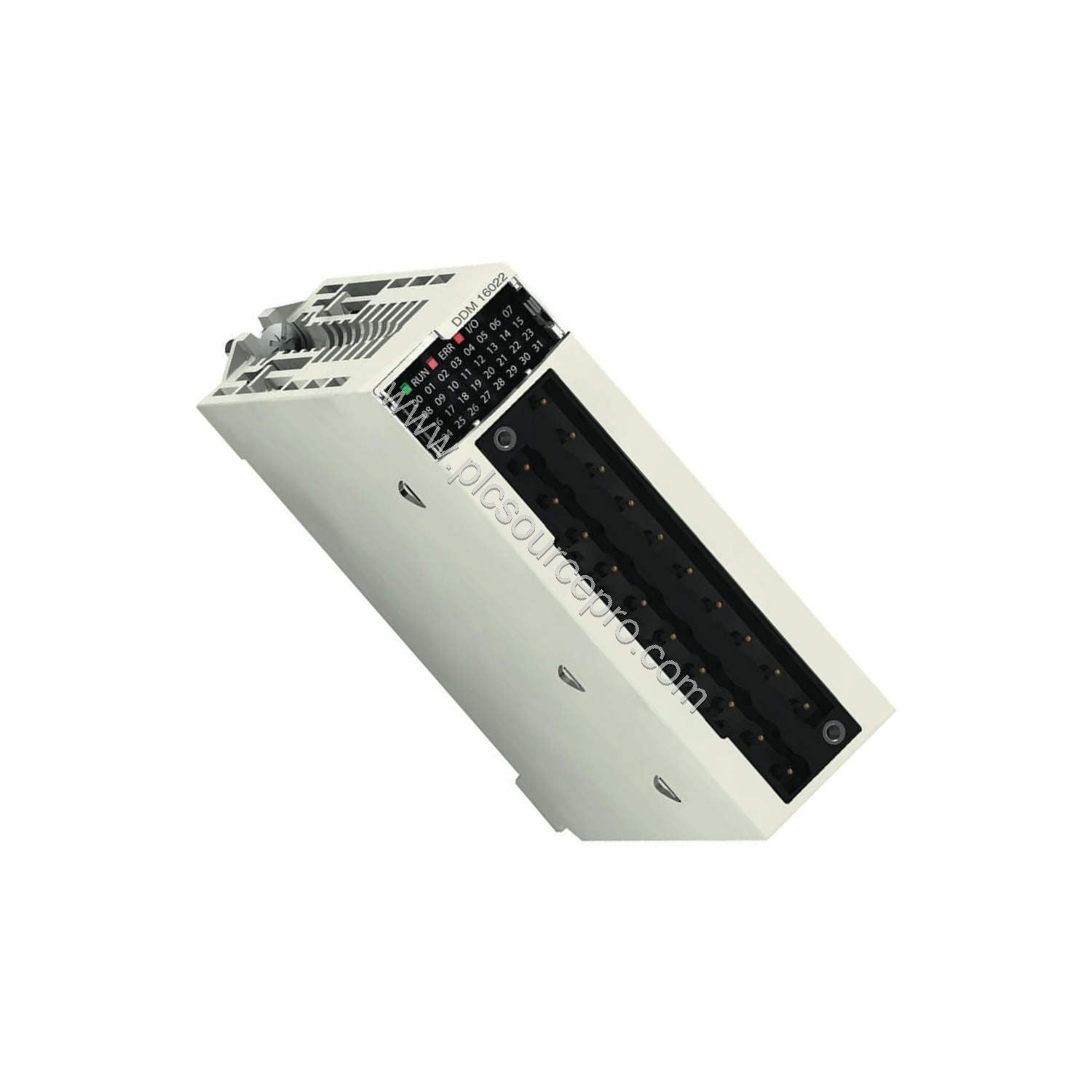

Product Overview

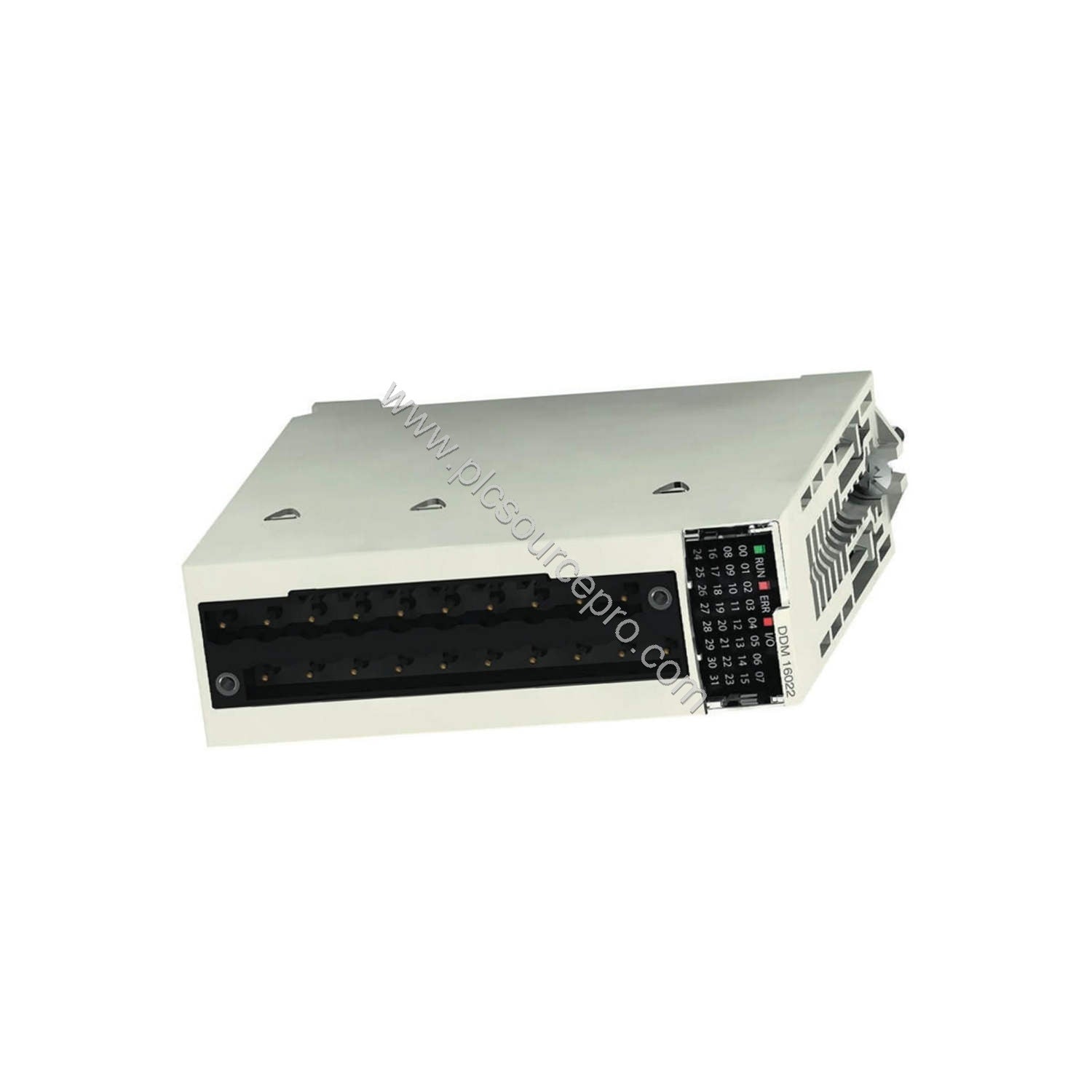

The Schneider BMXDDM16022 is a discrete mixed input/output module engineered for the Modicon X80 family. This Schneider BMXDDM16022 module provides 8 input channels and 8 output channels, each operating at 24 V DC. Its solid-state outputs guarantee swift switching and long-term dependability, making the BMXDDM16022 an ideal choice for demanding industrial environments.
With a typical response time of only 4 ms and an MTBF of 450,000 hours, the BMXDDM16022 minimizes downtime and reduces total cost of ownership. The module's robust protection features—including overvoltage, reverse polarity, and short-circuit safeguards—further enhance system reliability.
Technical Specifications
The following table summarizes key parameters from the manufacturer's datasheet. All values are for the Schneider BMXDDM16022.
| Parameter |
Value |
| Discrete Inputs |
8 (current sink, logic positive) |
| Discrete Outputs |
8 (solid state) |
| Input Voltage |
24 V DC positive |
| Output Voltage |
24 V DC (19…30 V) |
| Output Current per Channel |
0.625 A (max 5 A per module) |
| Typical Response Time (Input) |
4 ms |
| Maximum Response Time (Input) |
7 ms |
| Response Time on Output |
1.2 ms |
| Input Impedance |
6800 Ohm |
| Insulation Resistance |
> 10 MOhm at 500 V DC |
| Power Dissipation |
3.7 W |
| Operating Temperature |
-20 °C to 60 °C |
| Communication Protocol |
Modbus |
| Protection Rating |
IP20 |
| Mounting |
DIN rail |
| Net Weight |
0.115 kg (0.254 lb) |
Real-World Applications
The BMXDDM16022 suits a wide range of discrete automation tasks. For instance, in conveyor systems, the module's 8 inputs connect to position sensors while its 8 outputs drive motor contactors. Its 4 ms response ensures precise timing, reducing material jams and improving throughput.
In packaging machinery, the Schneider BMXDDM16022 provides reliable I/O for labeling and sealing stations. The solid-state outputs eliminate mechanical wear, extending service life and lowering maintenance costs—a clear ROI advantage.
Another application is in water treatment plants where the module interfaces with level switches and pump controls. The built-in reverse polarity and overvoltage protection protect the module in harsh electrical environments.
Compatibility & Integration
The Schneider BMXDDM16022 integrates seamlessly with Modicon M340, M580, and other Modicon X80 backplanes. It communicates via Modbus, allowing easy data exchange with PLCs, HMIs, and SCADA systems. The module supports 2-wire and 3-wire proximity sensors per IEC 60947-5-2 and IEC 61131-2 type 3, simplifying sensor selection.
For output paralleling, you can connect up to two outputs in parallel to share load current. This flexibility reduces the need for external relays in certain applications.
Troubleshooting Common Issues
If the BMXDDM16022 fails to power up, check the 24 V DC supply and verify polarity. The green RUN LED indicates normal operation; a red ERR LED signals a module fault. Use the channel LEDs to diagnose input/output status.
For output overload situations, the module includes a current limiter and an electronic circuit breaker (1.5 In < Id < 2 In). If a channel trips, remove the overload and cycle power to reset. Ensure external fuses are rated as specified: 0.5 A fast blow for input groups and 2 A for output short-circuit protection.
When using sensor power, verify that the voltage stays within 19…30 V. A pre-actuator or sensor fault is indicated when voltage drops below 14 V. Use the diagnostic LEDs to quickly isolate issues.
Selection Guide & Purchasing Advice
Before ordering the Schneider BMXDDM16022, confirm that your backplane supports this discrete I/O module. The unit packs as a single PCE with dimensions 5.5 cm × 11 cm × 11.7 cm. For volume requirements, check package configurations with your supplier.
PLC Source PRO offers genuine BMXDDM16022 modules with fast shipping. Visit ubest101.myshopify.com to check stock and pricing. Always verify the serial number and packaging to ensure you receive a factory-fresh unit.
