Product Introduction

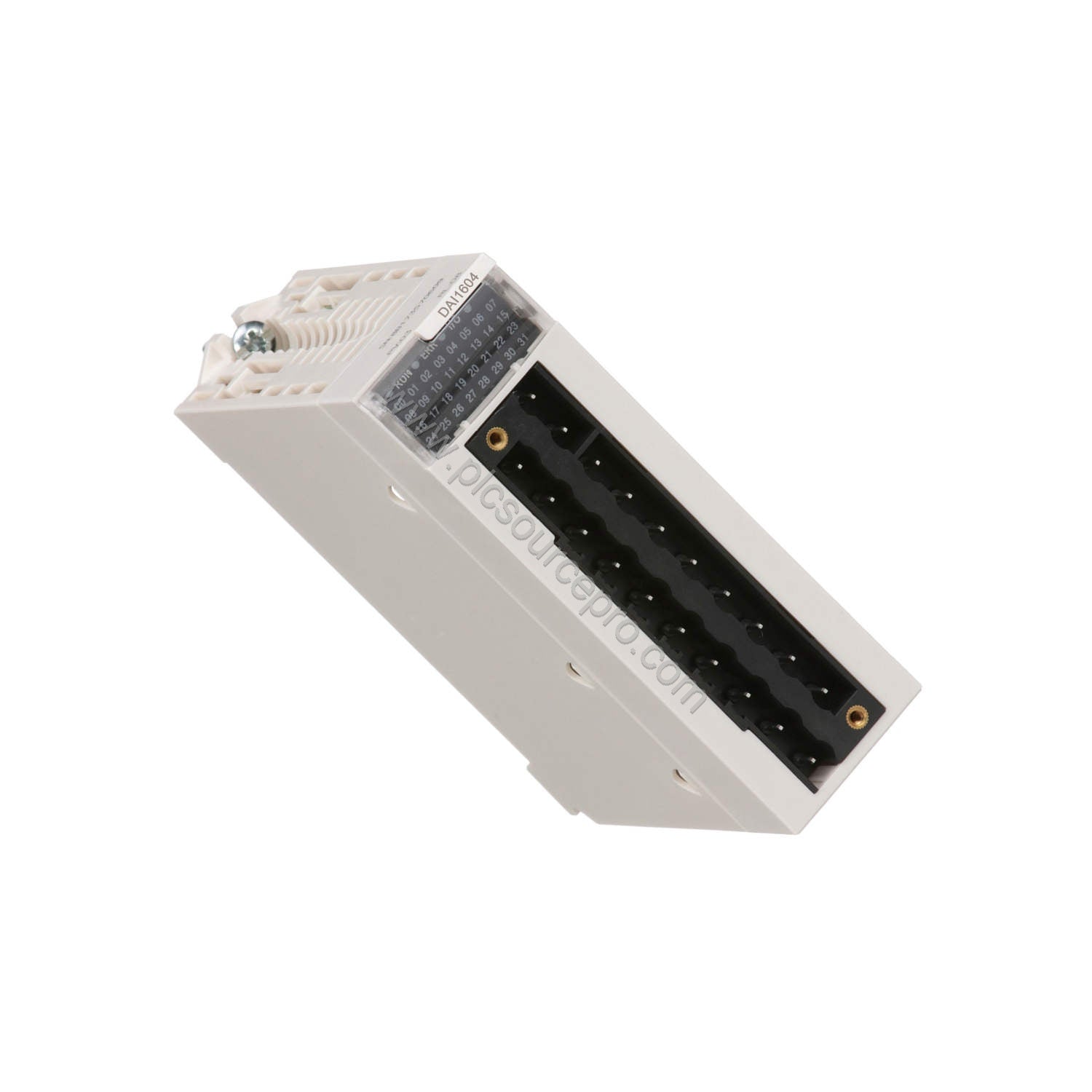

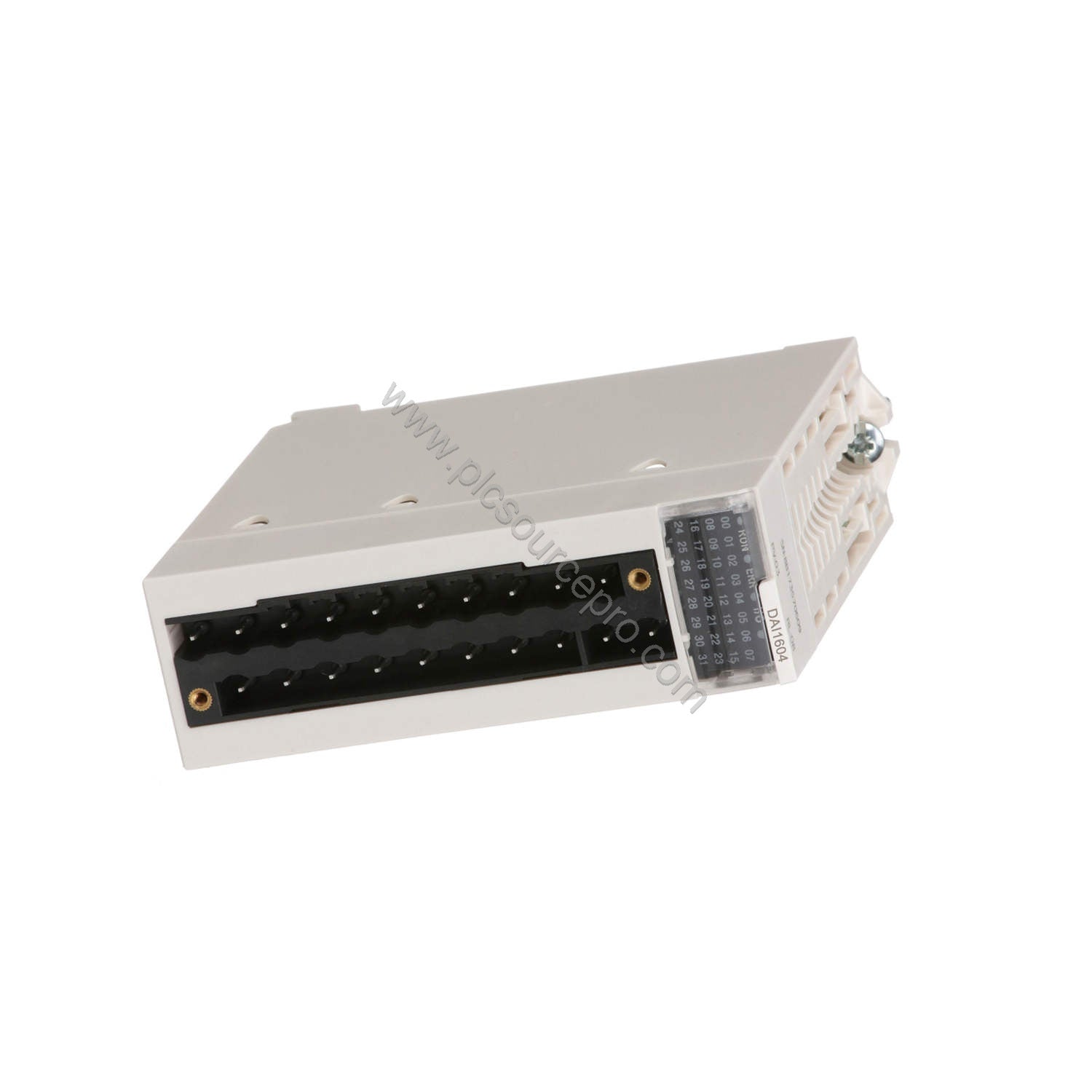

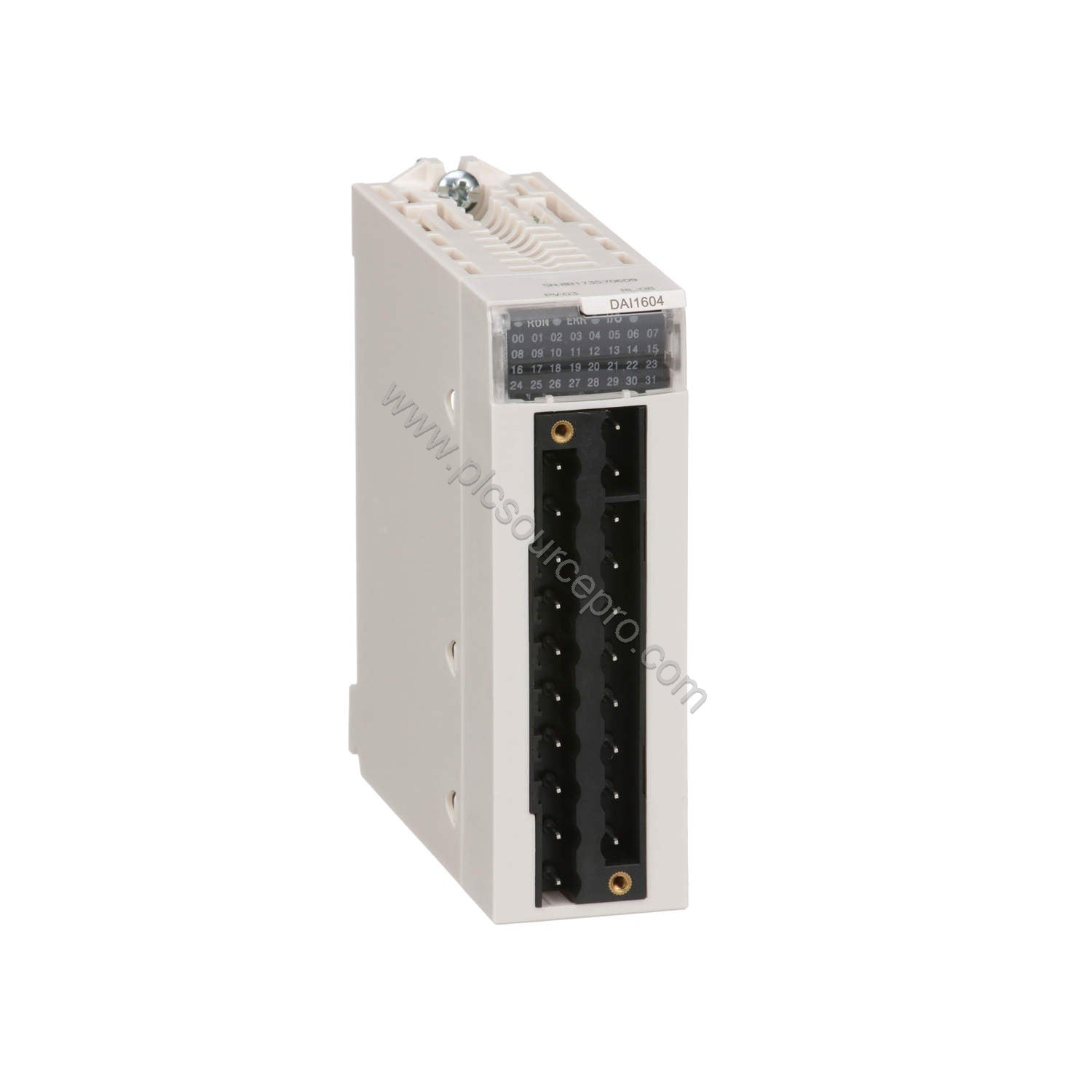

The Schneider BMXDAI1604 Digital Input Module from the Modicon X80 series handles 16 capacitive digital inputs with a voltage range of 100-120 VAC. Designed for reliable signal processing, this module supports both 2-wire and 3-wire proximity sensors, making it versatile for various industrial environments. Its robust construction ensures consistent performance even in demanding applications.
Technical Specifications Breakdown
The BMXDAI1604 module offers essential technical parameters that guarantee stable operation:
-
Input Type: 16 capacitive, isolated discrete inputs
-
Input Voltage: 100...120 V AC
-
Input Impedance: 13000 Ohm
-
Power Consumption: ≤ 3.8 W
-
Protection: IP20
-
Certifications: CE, CSA, UL, RCM, EAC
These specifications ensure the BMXDAI1604 integrates seamlessly into control systems while maintaining low energy use.
Industry Applications
In manufacturing lines, the Schneider BMXDAI1604 module reliably acquires status signals from limit switches and push buttons. For packaging machinery, it handles high-speed input detection with capacitive sensors. The module's 50/60 Hz frequency compatibility allows use across global electrical infrastructures.
Maintenance & Reliability
With an MTBF of 1,504,958 hours, the BMXDAI1604 minimizes downtime. Regular visual inspections of the IP20 enclosure and status LEDs ensure early issue detection. Its low power dissipation (≤3.8 W) reduces thermal stress, extending service life. The module's built-in diagnostic LEDs (RUN, channel, error) simplify troubleshooting.
Selection Guide & Purchasing Advice
Before purchasing the BMXDAI1604, verify compatibility with your Modicon X80 rack and power supply. Ensure your input voltage matches 100-120 VAC. For additional support, contact UBEST Automation (ubest101) for detailed selection assistance. This module is ideal for upgrading older systems needing capacitive input handling.
