Product Overview

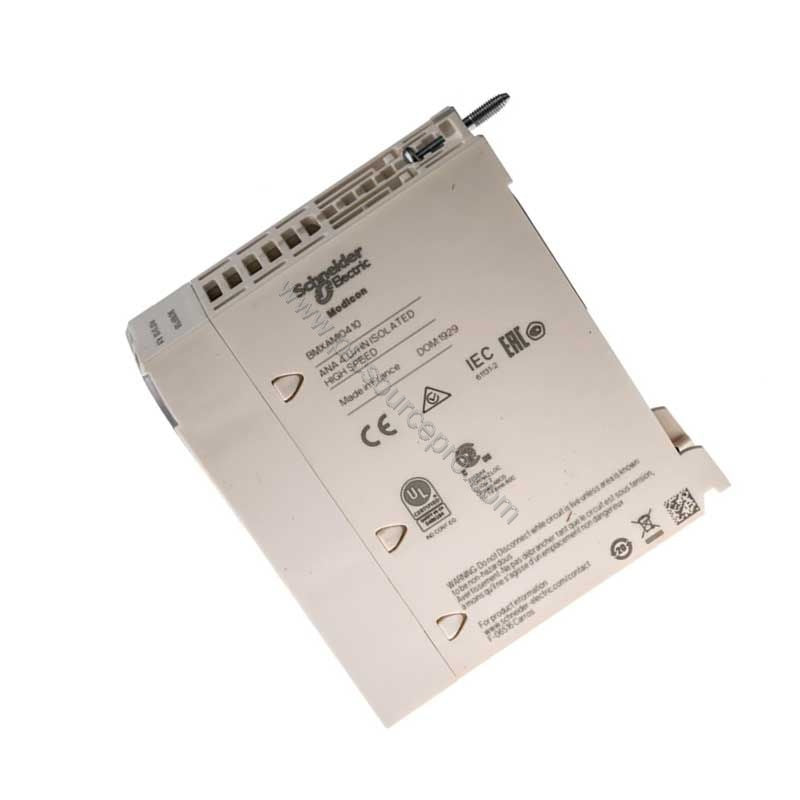

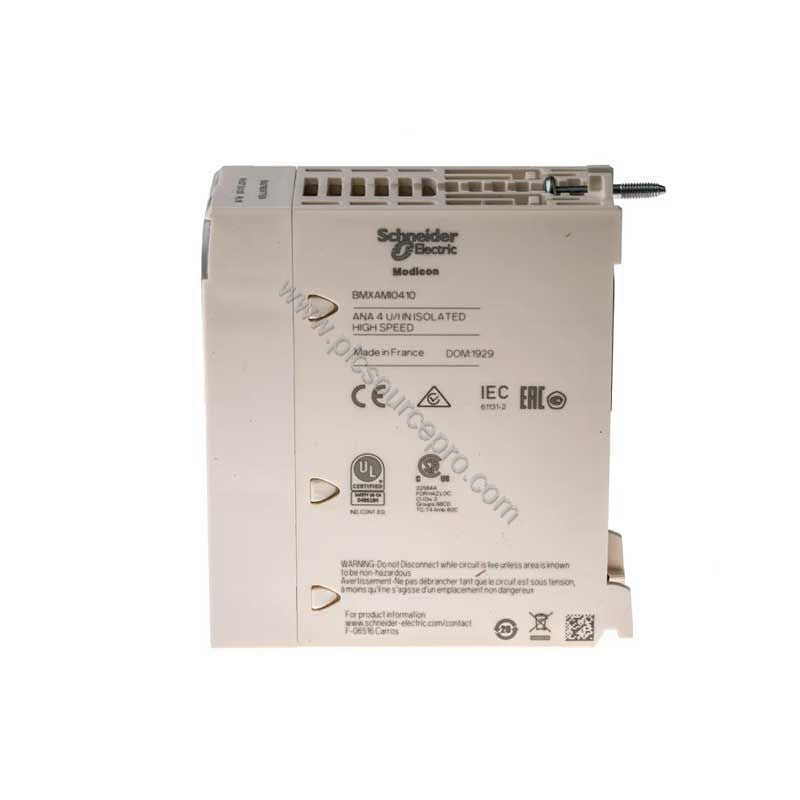

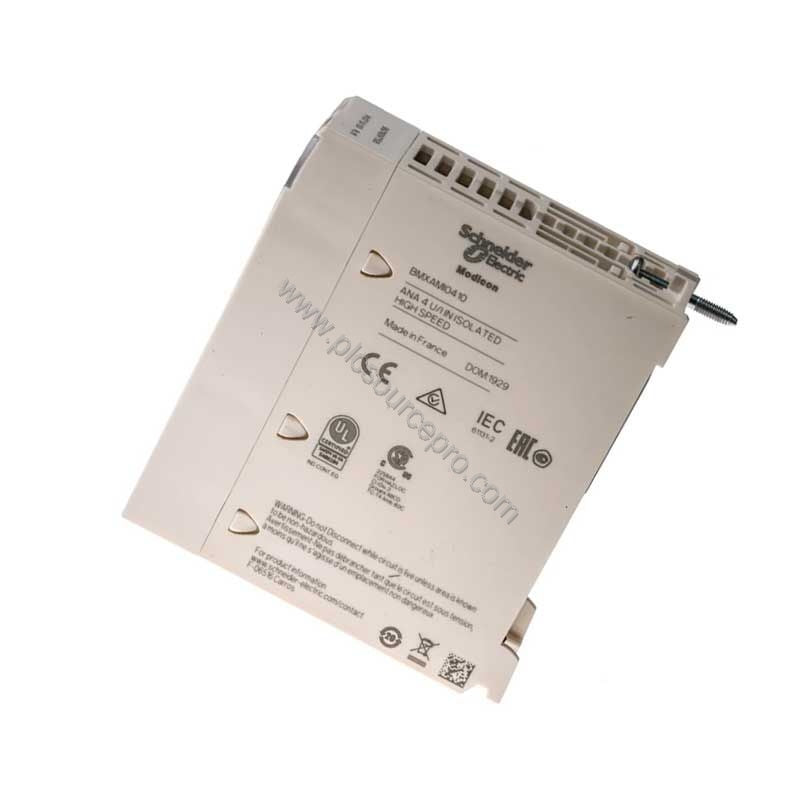

The Schneider BMXAMI0410 analog input module delivers high-speed, high-accuracy measurement for demanding industrial processes. Part of the Modicon X80 range, this module accepts current (0/4-20 mA) and voltage (±10 V, ±5 V, 0-10 V, 0-5 V, 1-5 V) inputs across four isolated channels. With 24-bit analog-to-digital conversion and 16-bit resolution, the BMXAMI0410 ensures precise signal conditioning, reducing measurement error to ≤0.1% of full scale for voltage ranges (0-60°C). This translates directly into improved process control and minimized waste, making it a cost-effective choice for manufacturers seeking to enhance product quality and reduce downtime.
Technical Specifications
| Parameter |
Value |
| Analogue input type |
Current: ±20 mA, 0-20 mA, 4-20 mA; Voltage: ±10 V, ±5 V, 0-10 V, 0-5 V, 1-5 V |
| Conversion resolution |
24 bits (ADC), 16 bits (input) |
| Input impedance |
10 MOhm |
| Common mode rejection |
120 dB |
| Isolation voltage |
300 V DC between channels; 1400 V DC between channels and ground/bus |
| Fast read cycle time |
1 ms + 1 ms × number of channels active |
| Nominal read cycle time |
5 ms for 4 channels |
| Measurement error (voltage) |
≤0.1% of full scale (0-60°C), 0.075% at 25°C |
| Measurement error (current) |
≤0.3% of full scale (0-60°C), 0.15% at 25°C |
| Power consumption |
150 mA at 3.3 V DC; 45 mA at 24 V DC |
| Weight |
0.143 kg |
Installation & Setup Guidance
Mount the Schneider BMXAMI0410 on a standard DIN rail within the Modicon X80 rack. The 20-way connector uses spring-clamp terminals for secure wiring. Ensure input wiring is shielded twisted-pair to maintain signal integrity across long distances. Calibration is internal, requiring no external adjustments. The first-order digital filter can be configured via software to match process dynamics. For optimal noise immunity, maintain separation between analog and digital cables in the cabinet.
Selection Guide & Purchasing Advice
Before purchasing the BMXAMI0410, verify that your controller supports Modicon X80 backplane communication (e.g., M340 or M580 CPUs). Consider the input type and range required for your sensors—this module covers both current loops and voltage signals. For applications needing ultra-fast sampling, enable only the necessary channels to achieve 1 ms cycle per active channel. UBEST Automation offers this module as a genuine Schneider spare, backed by full traceability and support. Ensure your order includes the mating connector if not already present in the rack system.
Maintenance & Reliability
Routine inspection of the BMXAMI0410 involves checking LED status (RUN green, ERR red, I/O red) and verifying input signals against expected values. The IP20 rating protects from dust and casual contact, but the module should be installed in a clean, dry environment (-40°C storage, 0-60°C operation). With a shock resistance of 30 gn and vibration resistance of 3 gn, it withstands industrial conditions. The Green Premium sustainability status ensures RoHS compliance and environmental responsibility, contributing to lower lifecycle costs.
