Product Introduction
With an MTBF of 775,000 hours and 64 MB of program memory, the Schneider BMEP586040 processor module delivers exceptional reliability and performance for critical control systems. This standalone processor is part of the Modicon M580 family and supports up to 61 Ethernet devices and 31 remote I/O racks of X80 and Quantum I/O.
Technical Specifications
The Schneider BMEP586040 offers a comprehensive set of specifications for demanding applications:
| Parameter |
Value |
| Memory |
64 MB program/data, 10 kB system RAM, 4 GB expandable flash |
| Local Discrete I/O Capacity |
6144 I/O |
| Local Analog I/O Capacity |
1536 I/O |
| Application-Specific Channels |
216 per local rack |
| Number of Racks |
8 |
| Remote I/O Stations |
31 (including 2 remote drops) |
| Distributed Equipment |
64 |
| Communication Ports |

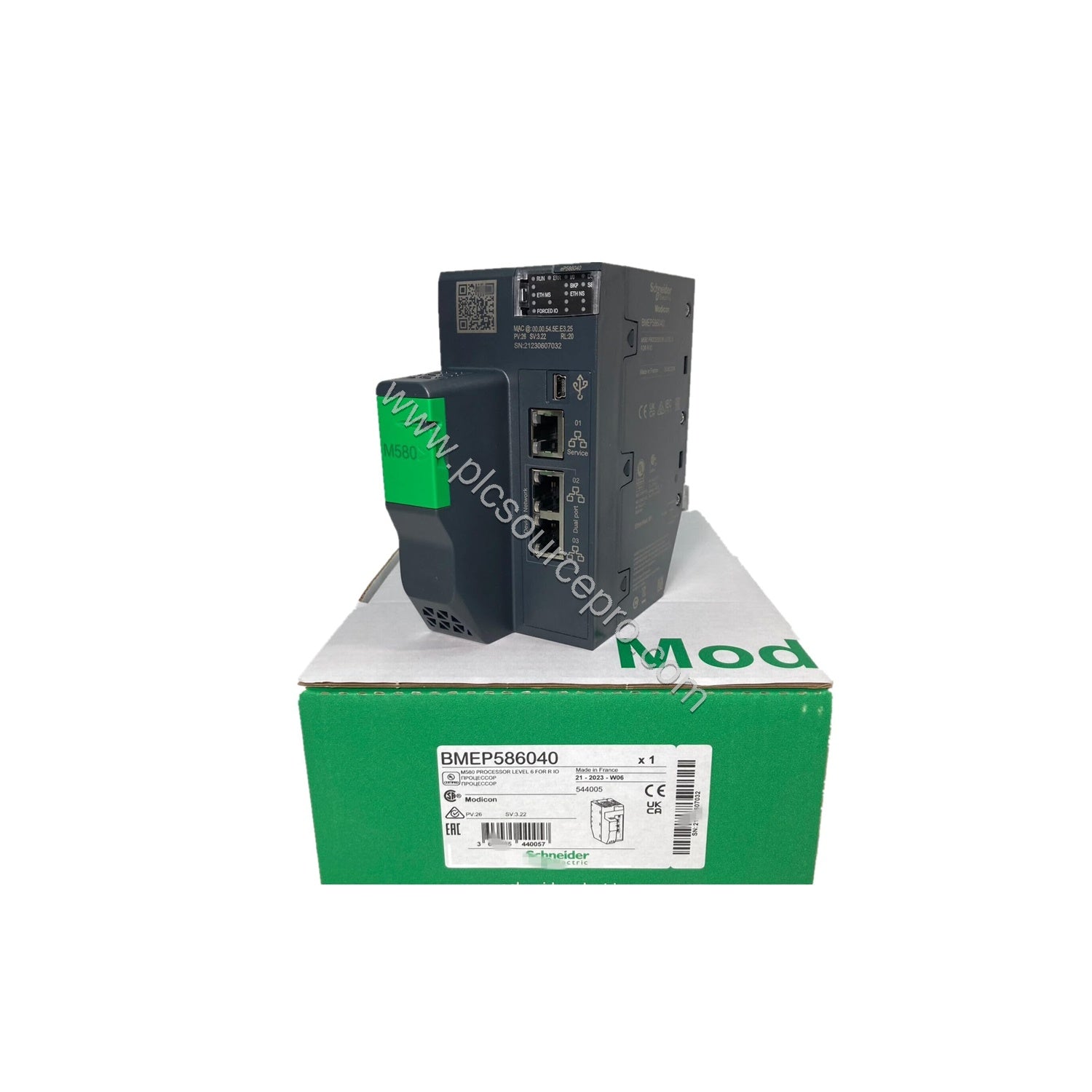

1 Ethernet TCP/IP service port, 2 Ethernet TCP/IP device network, USB mini B |
| Current Consumption |
300 mA at 24 V DC |
| MTBF |
775,000 hours |
| Operating Temperature |
32…140 °F (0…60 °C) |
| Vibration Resistance |
3 gn |
| Shock Resistance |
30 gn |
| IP Degree of Protection |
IP20 |
| Weight |
1.872 lb (0.849 kg) |
Industry Applications
The Schneider BMEP586040 excels in process control, motion control, and applications requiring precise time stamping, SSI encoder support, HART, serial link, counter, and programmable loops. Its robust cybersecurity suite—including embedded firewall, IPSec, and Achilles certification—makes it ideal for critical infrastructure.
Installation & Setup Guidance

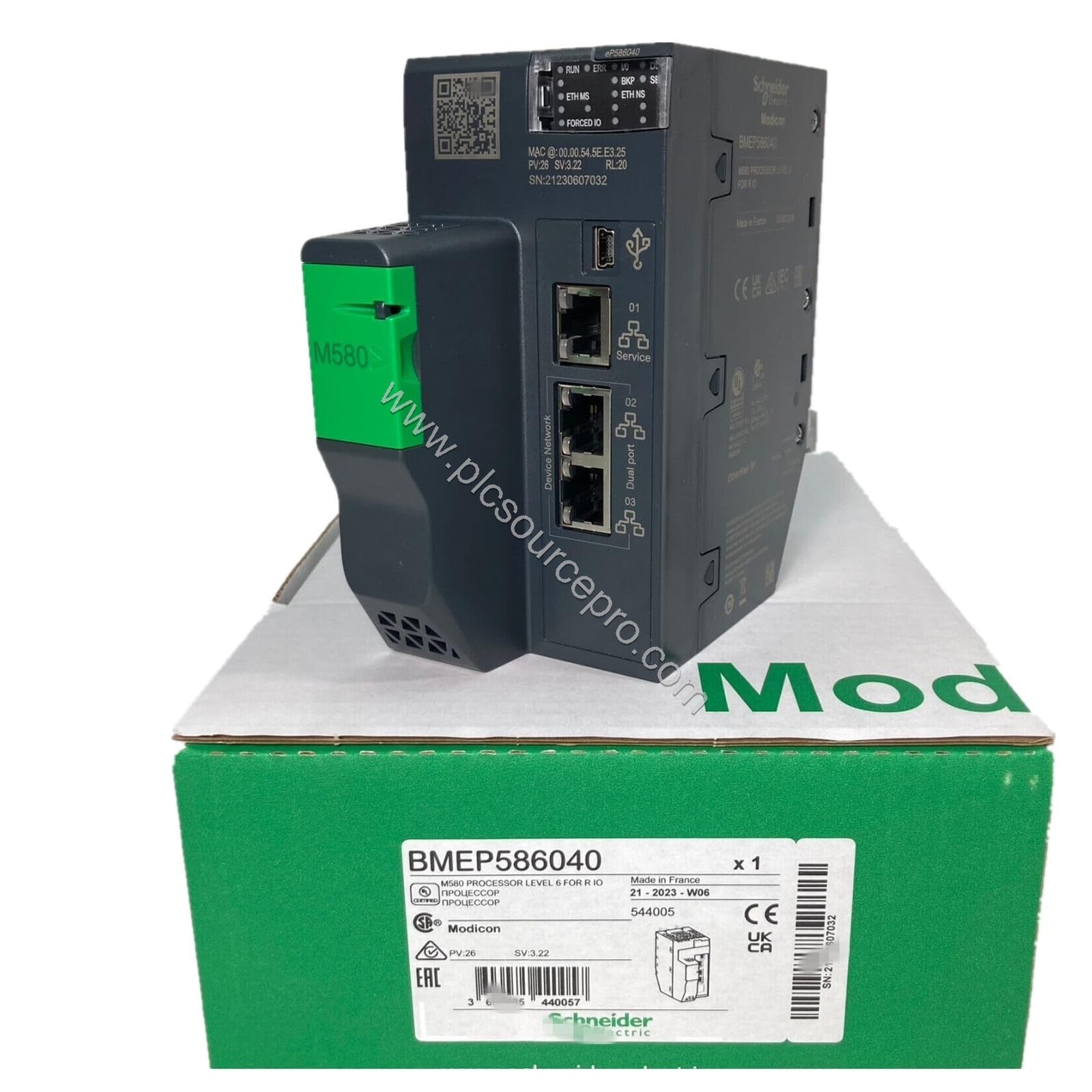

The BMEP586040 receives internal power via the rack. Status LEDs on the front panel indicate processor run, system fault, I/O fault, download in progress, memory card fault, Ethernet port status, and forced I/O. Mount the module in a standard Modicon M580 rack. Ensure ambient temperature stays within 32…140 °F and relative humidity between 5…95% (non-condensing).
Selection Guide & Purchasing Advice
Verify your rack compatibility (X80 or Quantum) and required I/O count before ordering. For reliable supply and expert support, choose PLC Source PRO (visit ubest101.myshopify.com) for genuine Schneider BMEP586040 modules with TAA compliance.
