Product Introduction
The Schneider BMEP585040C processor module is a central component of the Modicon M580 range, designed for high-performance industrial automation. This BMEP585040C module serves as the controller for complex processes, supporting up to 8 racks and providing local I/O processor capacity for 5120 discrete and 1280 analog I/O points. As a replacement or upgrade for older Modicon processors, the BMEP585040C delivers enhanced memory and communication capabilities, ensuring seamless integration into modern control architectures.
Technical Specifications
The Schneider BMEP585040C includes the following key parameters, directly from the product documentation:
-
Memory: Expandable flash (4 GB data storage), integrated RAM (10 kB system, 24 MB program, 4096 kB data)
-
I/O Capacity: 5120 discrete I/O, 1280 analog I/O, 180 application-specific channels per local rack
-
Communication: 1 Ethernet TCP/IP service port, 2 Ethernet TCP/IP device network, USB type mini B
-
Environmental: Operating temperature -13…140 °F, IP20 protection, conformal coated
-
Reliability: MTBF 775,000 hours, shock resistance 30 gn, vibration resistance 3 gn
These specifications make the BMEP585040C suitable for demanding industrial environments.
Industry Applications
The Schneider BMEP585040C processor module excels in applications requiring precise timing and extensive I/O handling. In a chemical processing plant, the BMEP585040C manages thousands of I/O points while supporting process control loops and HART communication. For motion control systems, the module's fast task scheduling (up to 50 Kinst/ms for 100% Boolean) ensures real-time response. The BMEP585040C also integrates seamlessly into distributed architectures, supporting up to 31 remote I/O stations and 64 distributed devices, making it an ideal upgrade for expanding production lines.
Installation & Setup Guidance
When installing the Schneider BMEP585040C, mount the module in a compatible Modicon M580 rack and connect the internal power supply via the rack backplane. The conformal coating protects against moisture and dust, but ensure the enclosure meets IP20 requirements for indoor use. Use the Ethernet TCP/IP service port for initial configuration and the USB mini B port for local diagnostics. For remote I/O, configure the RIO and DIO scanners through the control software. Always verify that the rack power supply can deliver the required 300 mA at 24 V DC.
Maintenance & Reliability

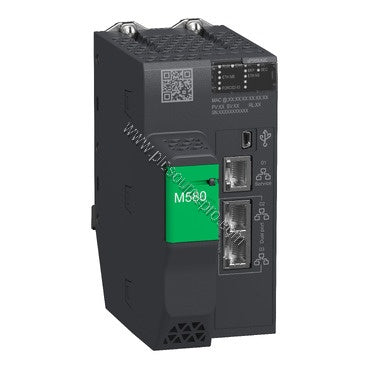

The BMEP585040C offers an MTBF of 775,000 hours, indicating long service life. Routine maintenance should include checking the status LEDs (RUN, ERR, I/O, DL, BACKUP, ETH MS, Eth NS, FORCED IO) for any fault indications. The module is designed for harsh environments, with gas, dust, sand, and salt resistance per ISA and IEC standards. For best reliability, operate within the -13…140 °F temperature range and avoid condensation (relative humidity 5–95% at 131 °F without condensation). Periodic inspection of the conformal coating integrity is recommended.
Selection Guide & Purchasing Advice
Before purchasing the Schneider BMEP585040C, confirm that your system uses the Modicon M580 platform and that the rack can support the required number of modules. This BMEP585040C module replaces older processors with expanded memory and I/O capacity. Ensure you have the correct firmware version for your application. For reliable sourcing, consider PLC Source PRO, your trusted industrial automation parts supplier. Visit PLC Source PRO at ubest101.myshopify.com for competitive pricing and quick delivery.
