Product Introduction

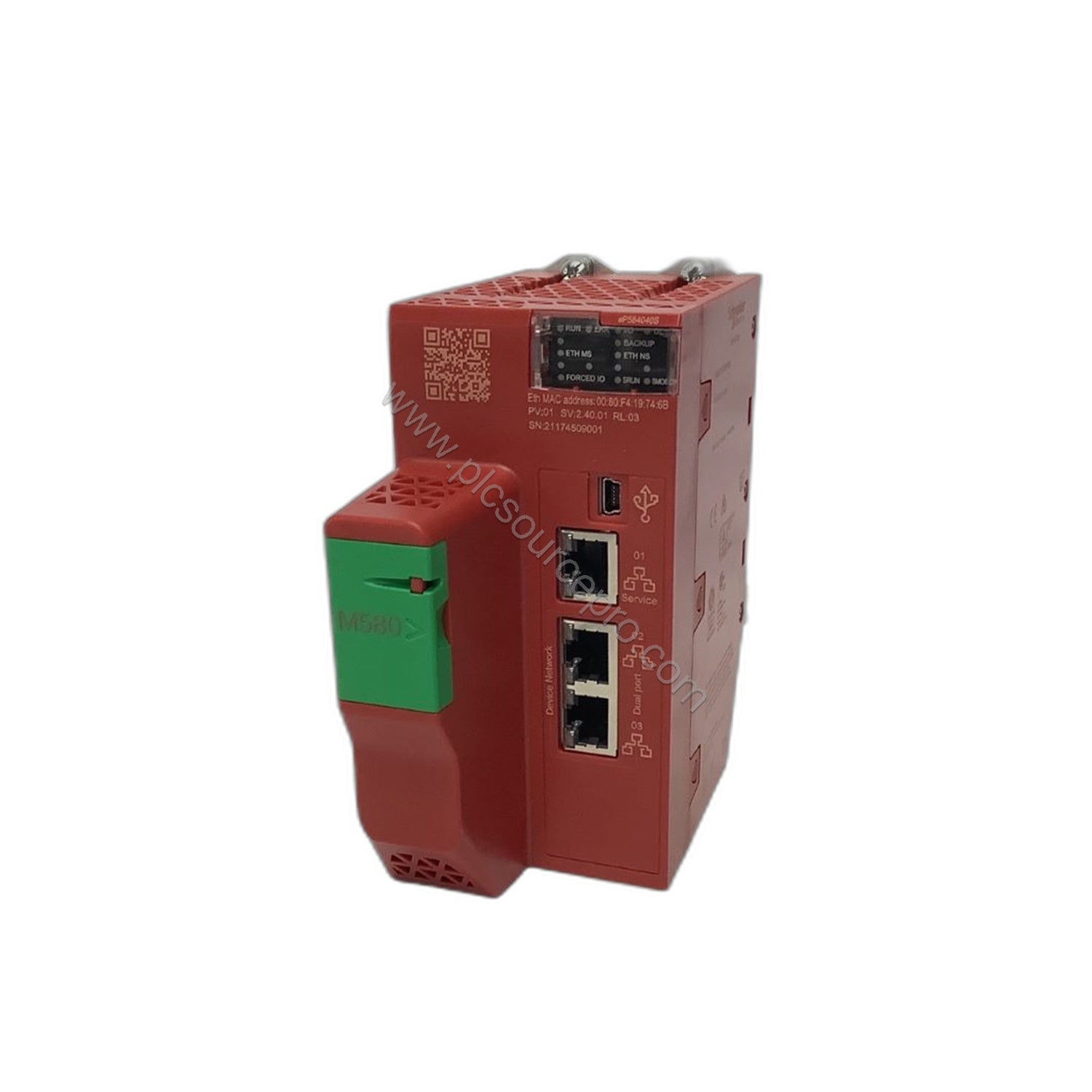

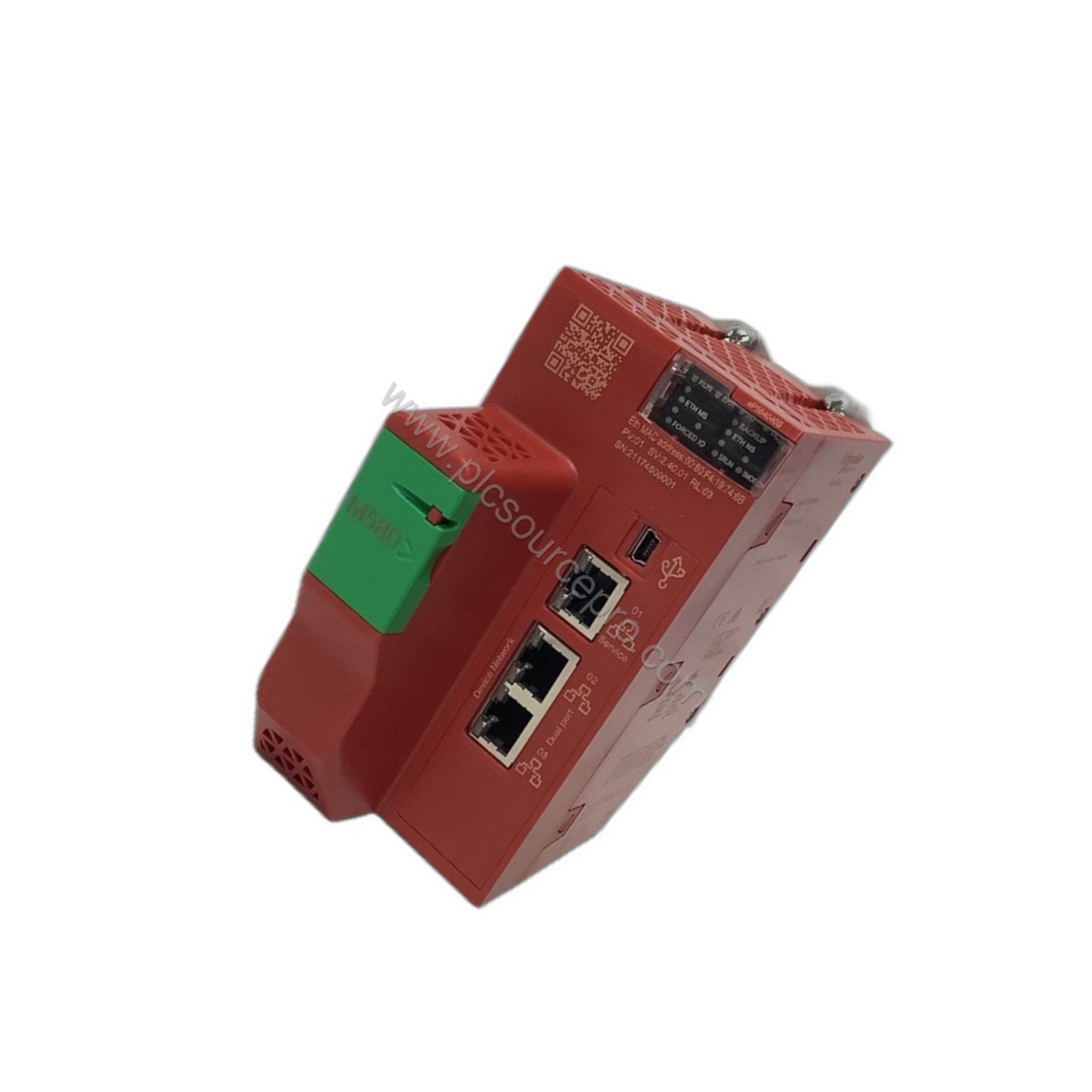

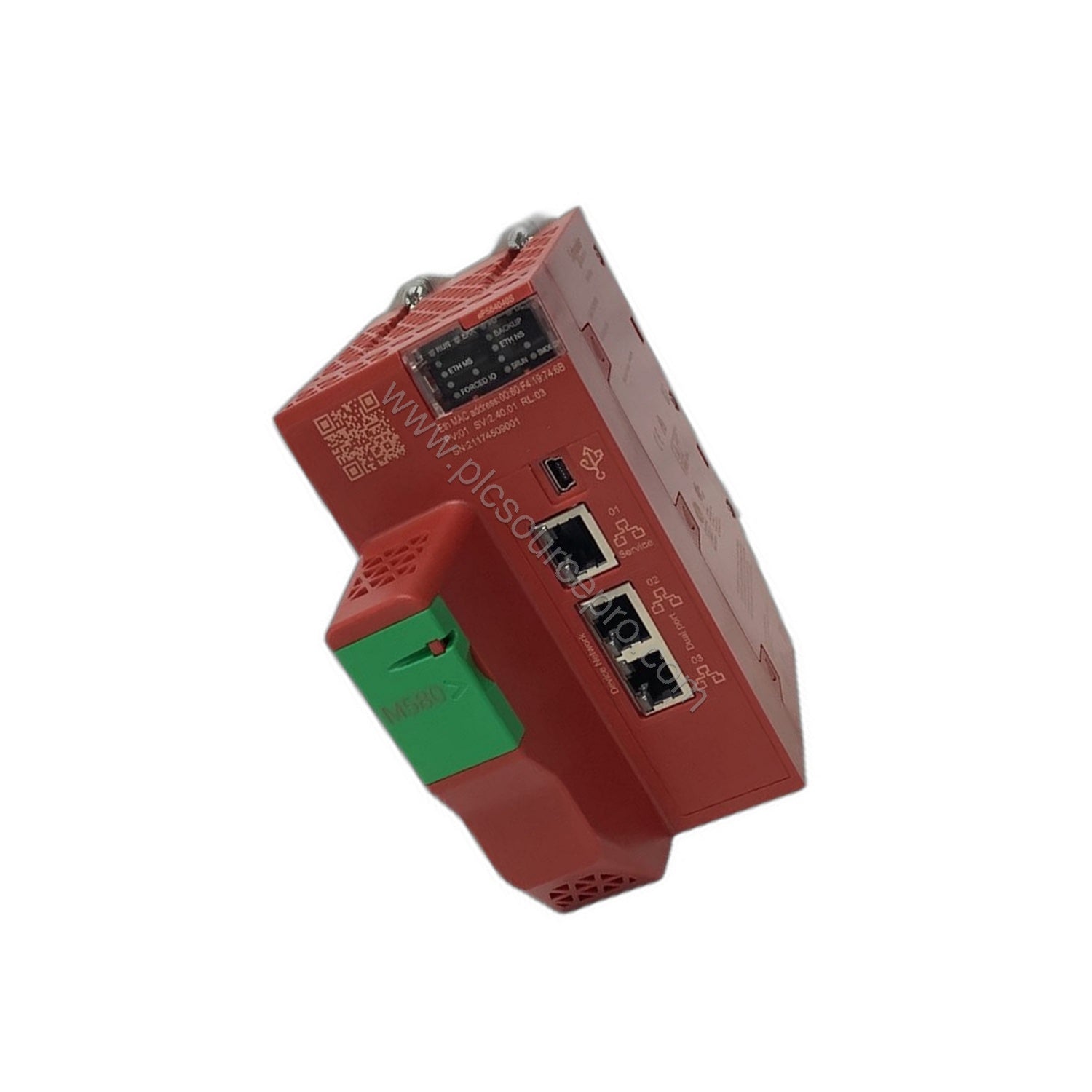

When upgrading your safety control infrastructure, the Schneider BMEP584040S processor module from the Modicon M580 family delivers unmatched performance. This standalone safety processor is designed to replace older safety controllers while integrating seamlessly with existing Quantum and X80 remote I/O racks. With 16 MB of program memory and support for up to 61 Ethernet devices and 64 CIP safety devices, the BMEP584040S ensures a robust, scalable safety solution for demanding industrial environments.
Technical Specifications
The table below highlights key parameters derived directly from the product datasheet:
| Specification |
Value |
| Memory (Program + Safety) |
16 MB program, 4 MB safety |
| Number of Racks |
8 local, 16 remote (2 racks per drop) |
| Discrete I/O Capacity |
4096 I/O |
| Analog I/O Capacity |
1024 I/O |
| Application Specific I/O |
Counter, Motion, SSI Encoder, HART, Process Control |
| Communication |
1 Ethernet TCP/IP service, 2 device network, USB Mini B |
| Safety Level |
SIL 3 per IEC 61508, SIL 4 per EN 50126 |
| Current Consumption |
295 mA at 24 V DC |
| MTBF |
775,000 hours |
| Operating Temperature |
-25 to 60 °C |
| Protection |
Conformal coating, IP20 |
Every specification for the Schneider BMEP584040S is engineered to provide reliable safety control in harsh environments. The processor supports multiple communication services including RIO and DIO scanner, and is certified for ATEX Zone 2/22 and IECEx.
Industry Applications
The Schneider BMEP584040S excels in safety-critical applications such as chemical processing, oil and gas, and power generation. Its support for 64 CIP safety devices makes it ideal for distributed safety architectures. In a typical upgrade scenario, existing Quantum safety racks can be replaced or supplemented with this module, reducing wiring and improving diagnostics. The built-in cybersecurity features (Achilles certified, IPSec, embedded firewall) ensure secure operation even in connected plants.
Compatibility & Integration
This processor integrates directly into any Modicon M580 main rack and communicates with up to 16 remote I/O stations (X80 or Quantum). It supports up to 64 CIP safety IO devices and 4 Ethernet communication modules. The BMEP584040S works seamlessly with AS-Interface modules and provides both periodic and event-driven task execution. For upgrades, it is a direct fit for existing M580 backplanes and offers backward compatibility with older Quantum remote racks via appropriate adapters.
Selection Guide & Purchasing Advice
Before purchasing the Schneider BMEP584040S, verify that your rack supply matches the 24 V DC requirement (295 mA) and that your application’s safety level matches SIL3 or SIL4. Ensure you have the correct Ethernet and USB cables for programming. For reliable sourcing, UBEST Automation (ubest101.myshopify.com) offers genuine parts with verified specifications and fast shipping.
