Product Introduction

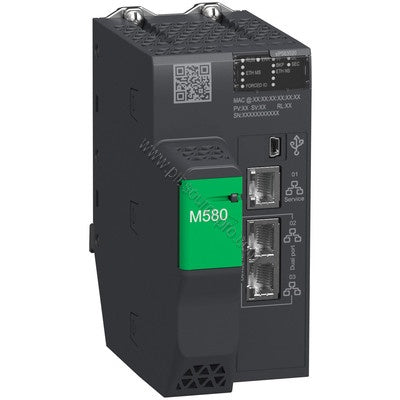

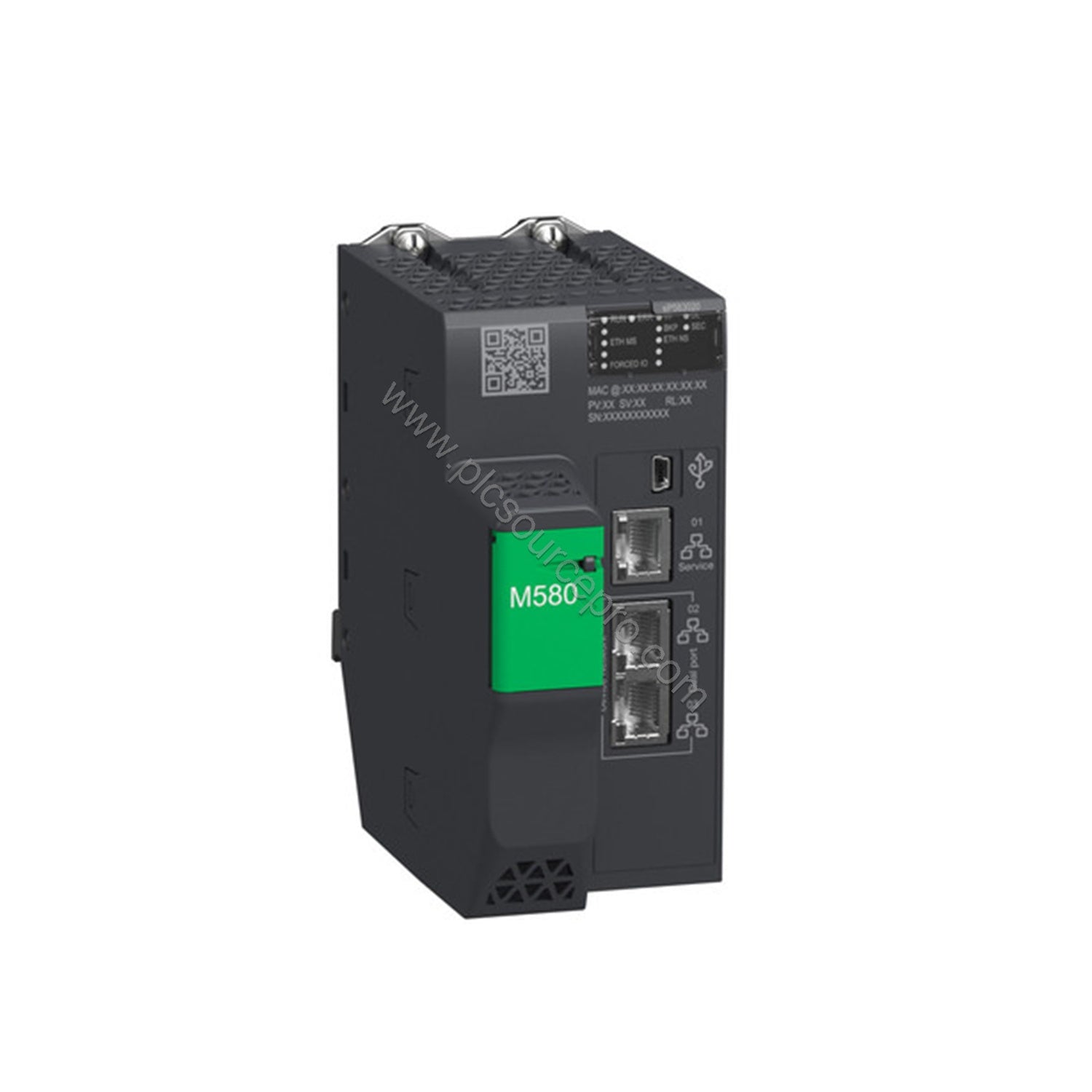

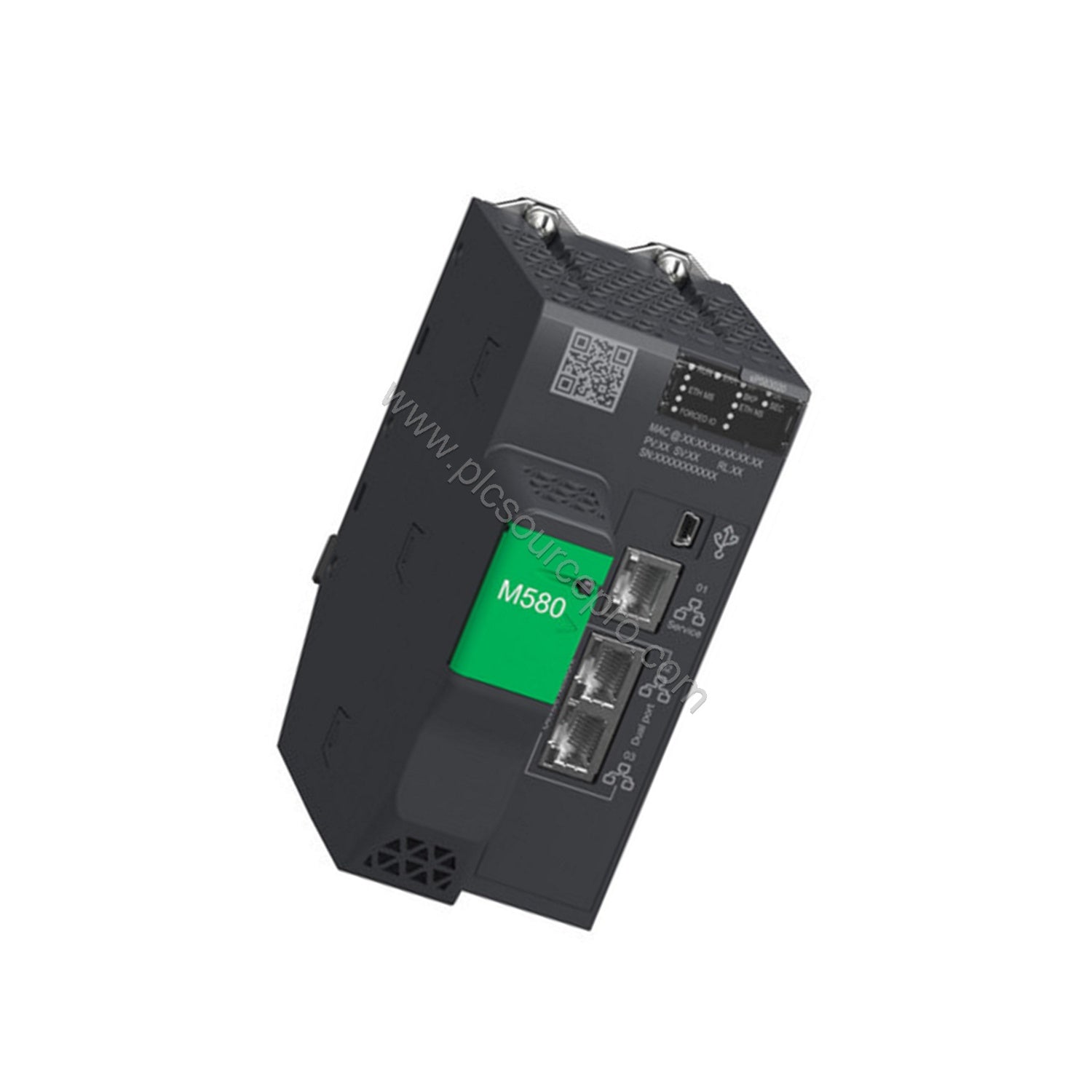

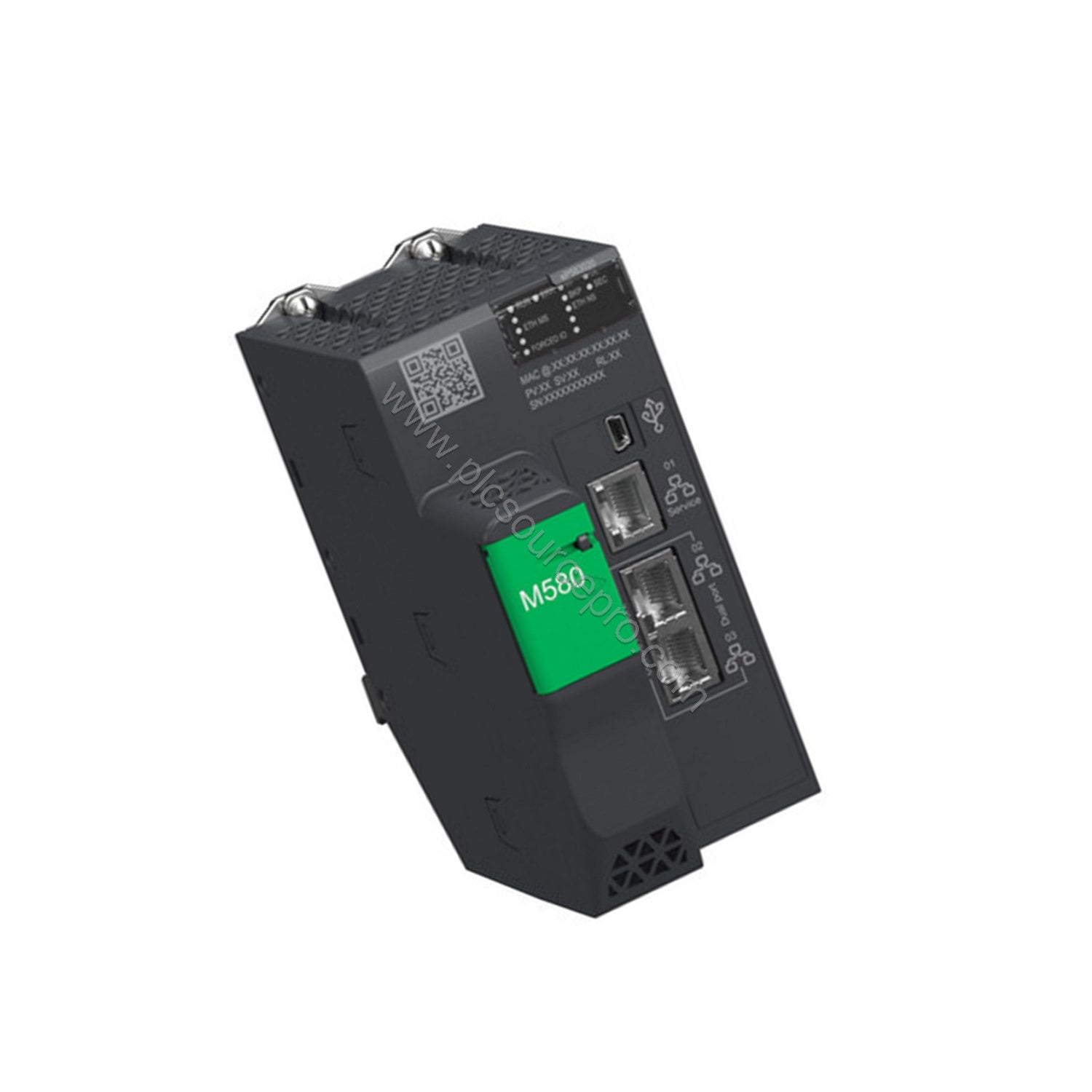

When demanding process control applications require a robust and secure processor, the Schneider BMEP583020 stands out. This Modicon M580 processor module delivers standalone processing power with 12MB of program memory and support for 125 Ethernet devices. Designed for high reliability, the BMEP583020 ensures minimal downtime in critical industrial environments.
Technical Specifications
The Schneider BMEP583020 offers impressive performance metrics. Below are key specifications extracted from the product datasheet:
| Parameter |
Value |
| Program Memory |
12 MB |
| Data Memory |
1024 kB integrated RAM + 10 kB system memory |
| Local Discrete I/O Capacity |
3072 I/O |
| Local Analog I/O Capacity |
768 I/O |
| Number of Local Racks |
8 |
| Ethernet Device Capacity |
125 |
| Distributed Equipment |
128 |
| Current Consumption |
295 mA at 24 V DC |
| MTBF Reliability |
775,000 hours |
| Operating Temperature |
32…140 °F (0…60 °C) |
| Vibration Resistance |
3 gn |
| Shock Resistance |
30 gn |
Industry Applications
The Schneider BMEP583020 excels in discrete manufacturing, process control, and hybrid applications. With its built-in cybersecurity features (Achilles certified, firewall, secure communication), it is ideal for critical infrastructure where uptime and safety are paramount. For example, in a water treatment plant, the BMEP583020 manages 8 local racks with up to 3072 digital I/O, ensuring precise control of pumps and valves.
Maintenance & Reliability
With an MTBF of 775,000 hours, the Schneider BMEP583020 minimizes unexpected failures. The module operates in harsh conditions: 0–60°C ambient temperature, 3 gn vibration, and 30 gn shock. Routine inspection of the power supply via the rack and checking Ethernet cable integrity ensures long-term reliability. The IP20 protection rating suits clean industrial enclosures.
Compatibility & Integration
The BMEP583020 integrates seamlessly into Modicon M580 architectures. It supports 1 Ethernet TCP/IP service port and 2 device network ports, plus a USB mini B connection. Communication services include DIO scanner and support for up to 6 Ethernet communication modules and 8 AS-Interface modules. The processor is compatible with standard IEC 61131-2 environments.
Selection Guide & Purchasing Advice
Before purchasing the Schneider BMEP583020, verify your rack's internal power supply compatibility. The module comes in a single unit package (PCE) weighing 0.849 kg (1.872 lb). For volume orders, UBEST Automation offers competitive discounts under schedule PC34. Ensure your application requires the 12MB program memory and Ethernet capacity; if not, consider the BMEP580 series alternatives. Contact UBEST Automation for detailed ordering support.
