Product Introduction

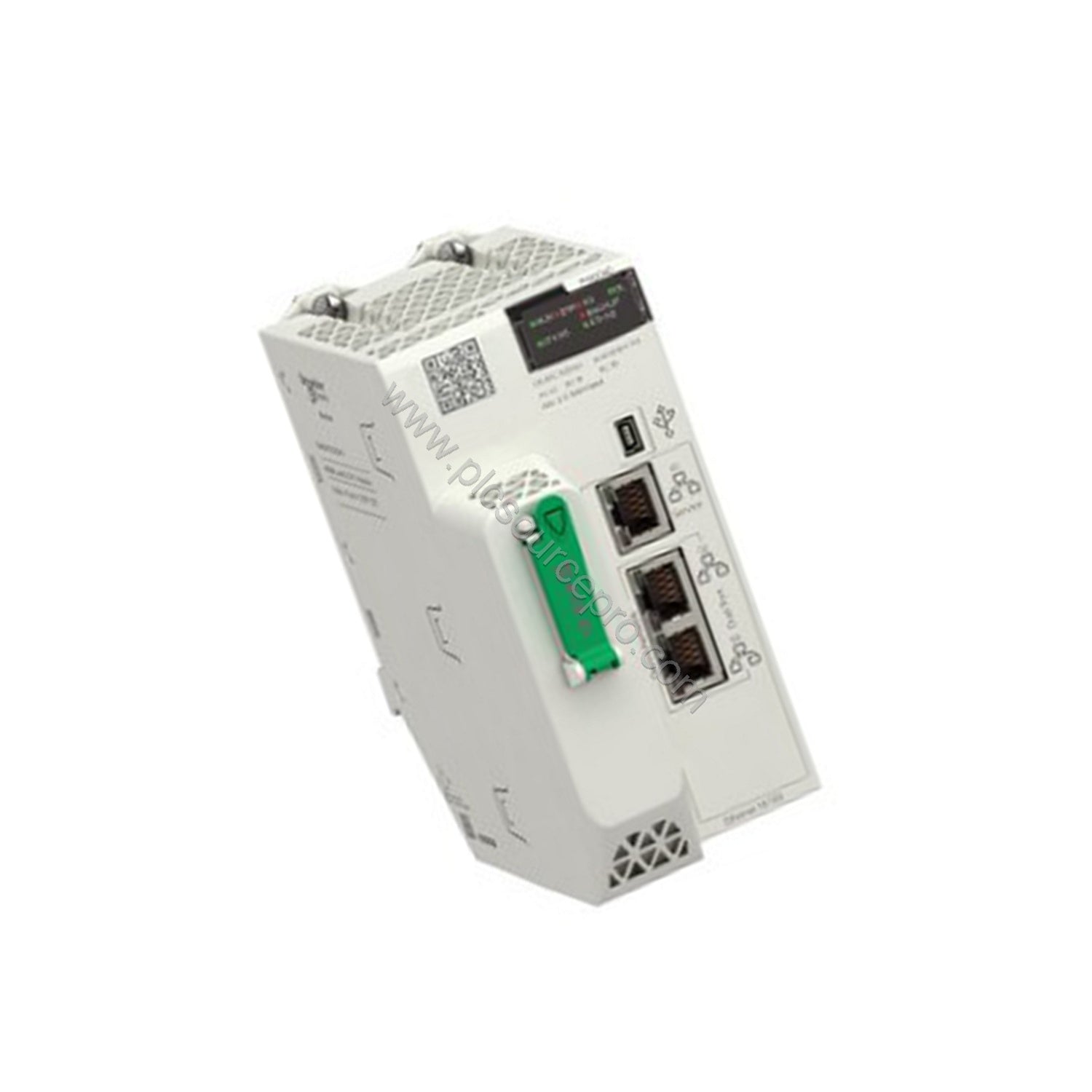

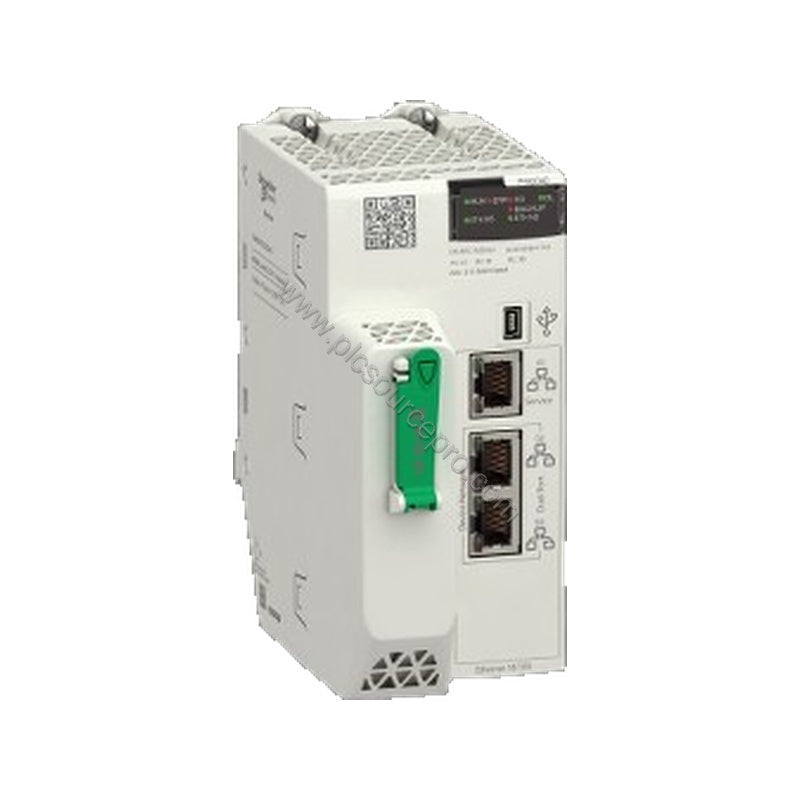

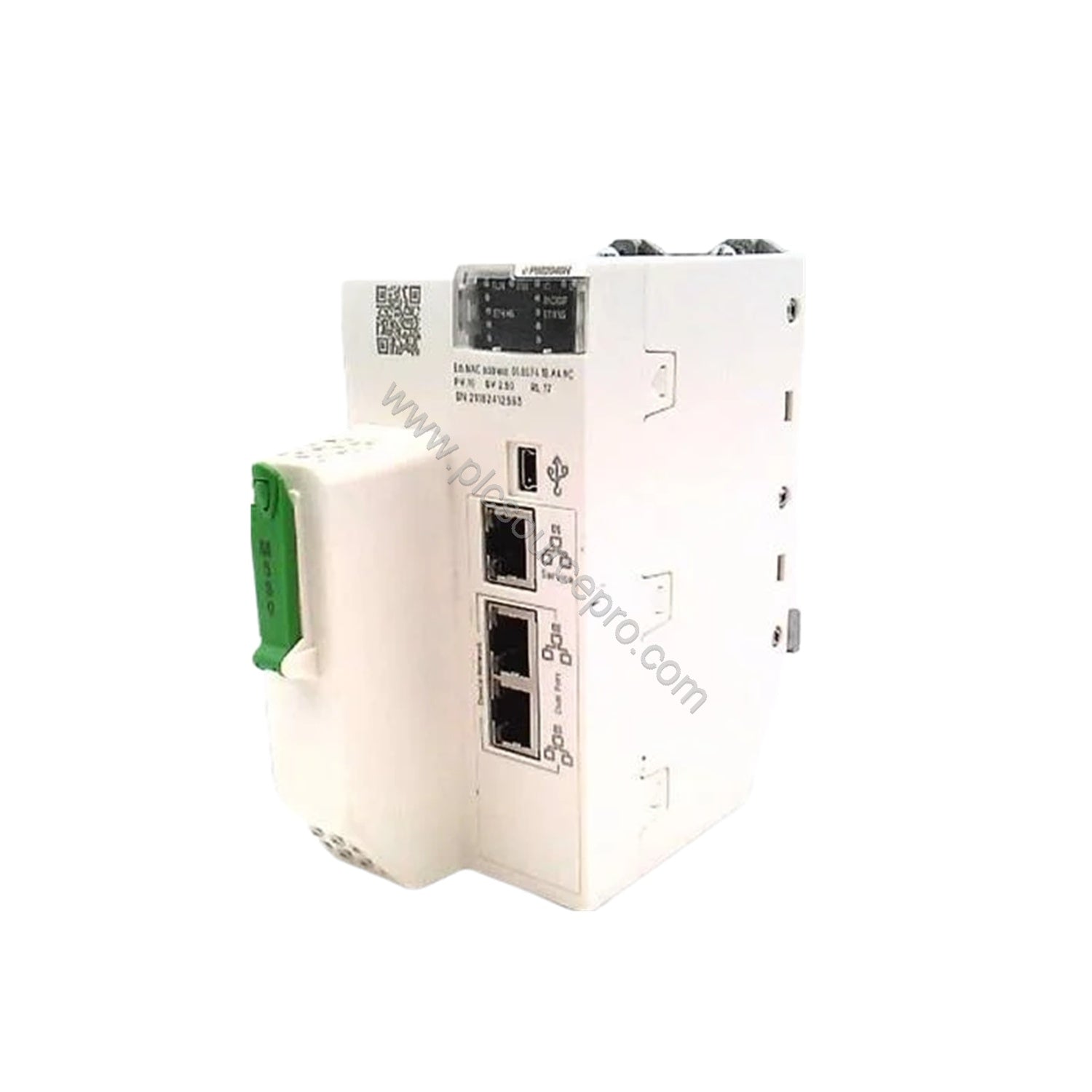

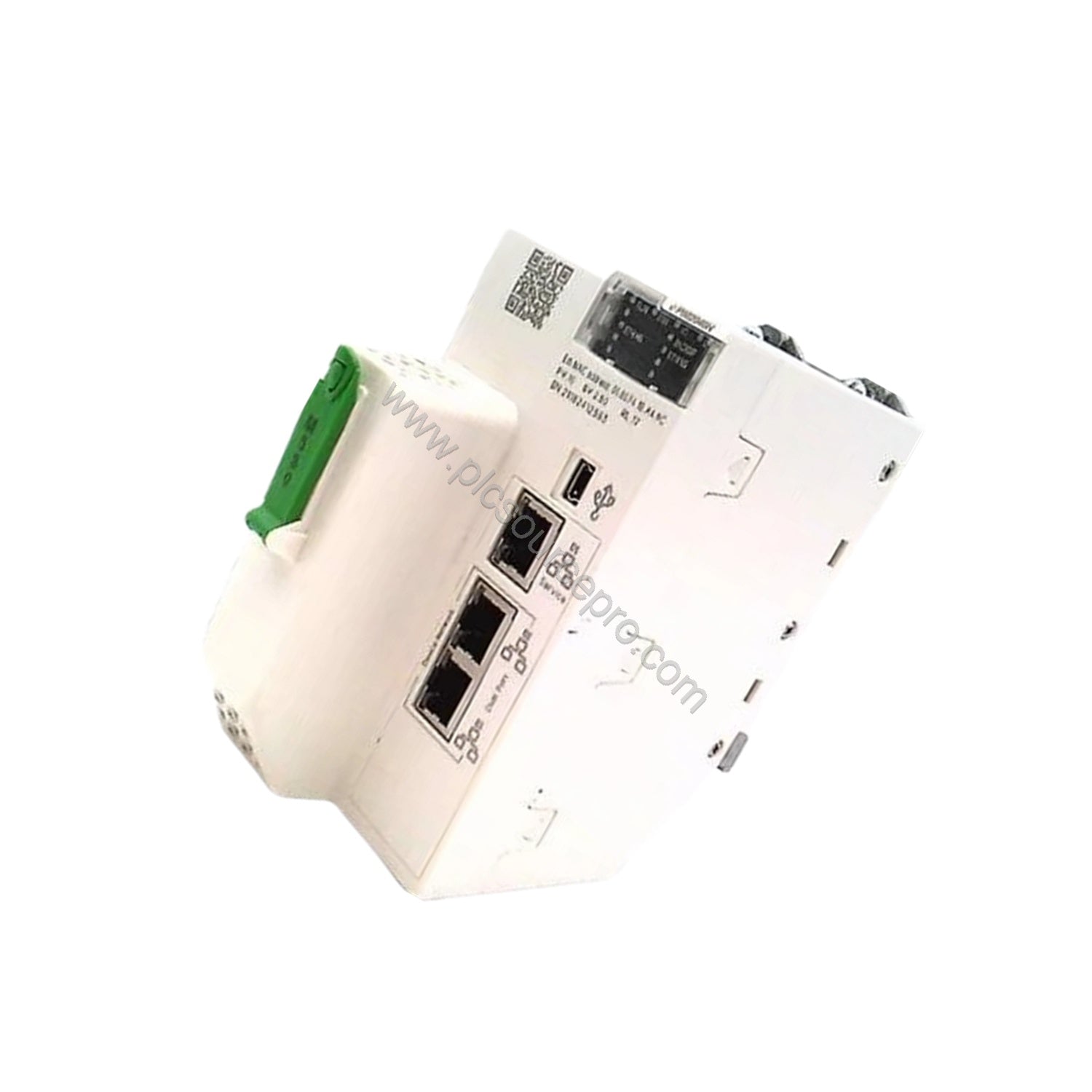

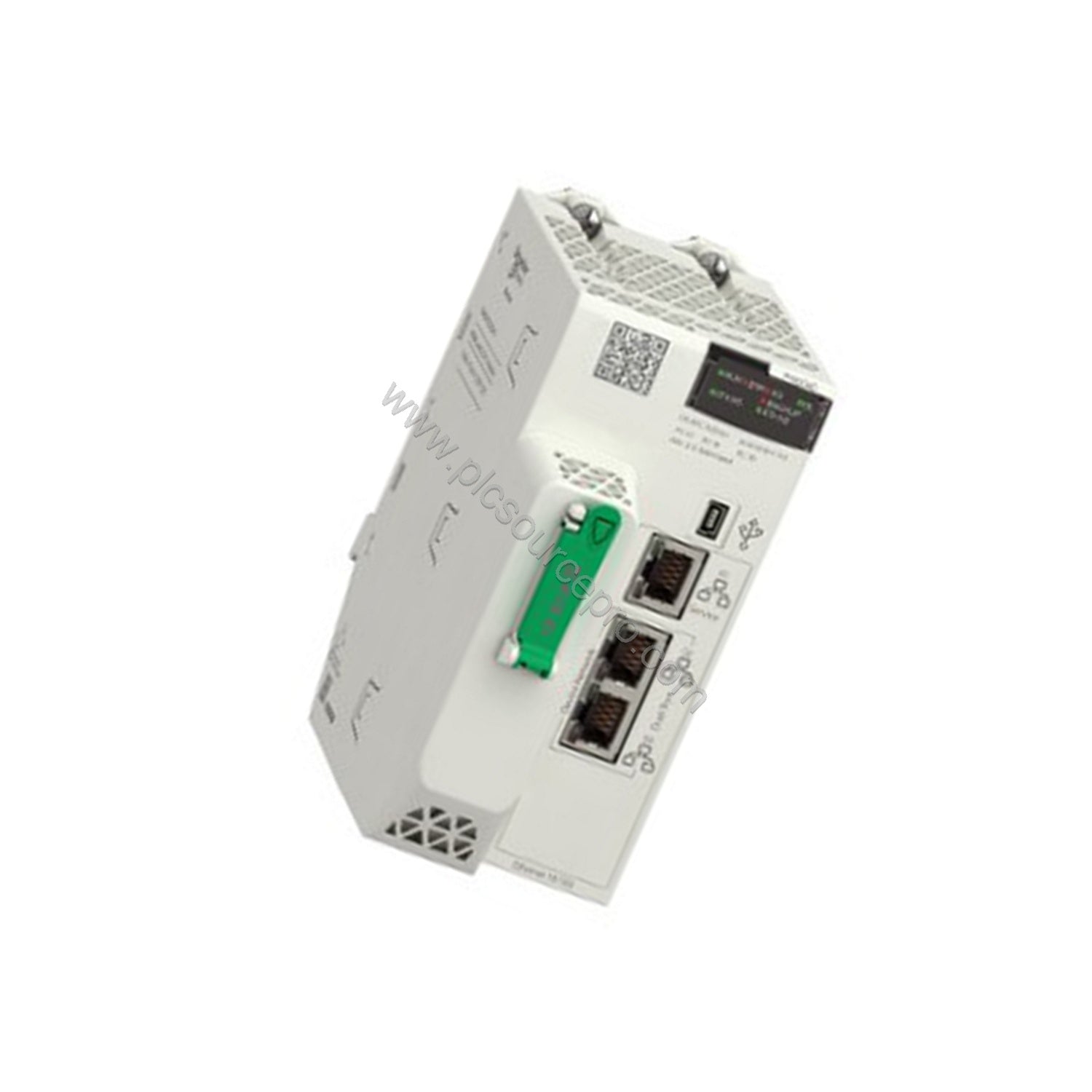

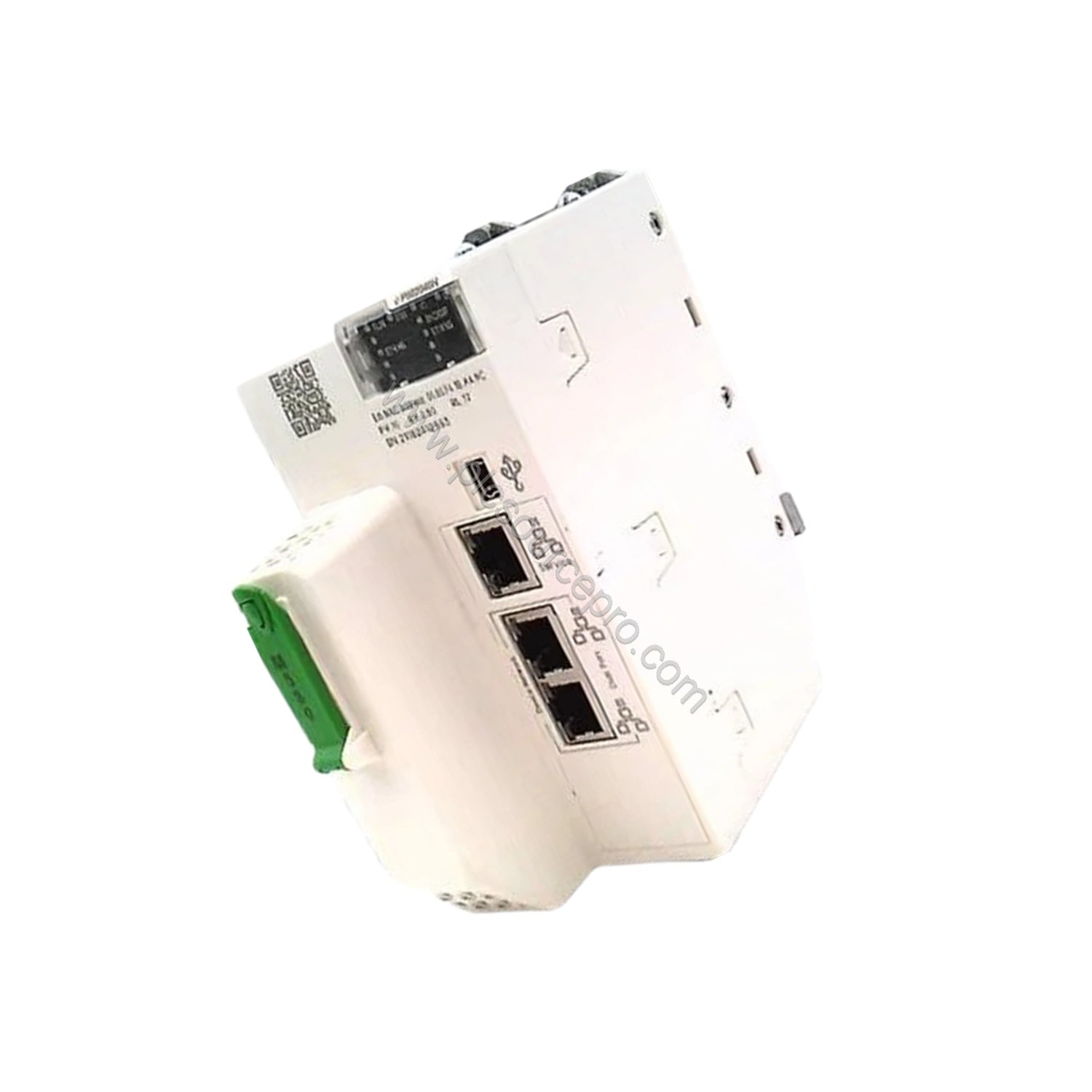

The Schneider BMEP582040H is a high-performance processor module from the Modicon M580 range, engineered for severe industrial environments. This module delivers robust processing power with 8 MB program memory and 768 kB data memory, supporting up to 4 racks and 2048 discrete I/O points. Its conformal coating and wide operating temperature range (-25…70 °C) make it ideal for demanding applications where reliability is paramount.
Technical Specifications
Below are key technical parameters of the Schneider BMEP582040H that drive its exceptional performance:
| Parameter |
Value |
| Number of racks |
4 |
| Local I/O capacity (discrete) |
2048 I/O |
| Local I/O capacity (analog) |
512 I/O |
| Application specific channels |
72 |
| Integrated RAM (program) |
8 MB |
| Current consumption |
270 mA at 24 V DC |
| MTBF reliability |
775,000 hours |
| Operating temperature |
-25…70 °C |
| Shock resistance |
30 gn |
| Vibration resistance |
3 gn |
| IP degree of protection |
IP20 |
| Weight |
0.849 kg |
These specifications translate into superior uptime and reduced total cost of ownership. The high MTBF of 775,000 hours minimizes unplanned shutdowns, while the robust environmental ratings ensure consistent operation in harsh conditions.
Industry Applications
The Schneider BMEP582040H excels in applications requiring high availability and resistance to contaminants. Typical use cases include:
-
Oil & Gas: Handles gas, dust, and salt exposure with conformal coating and hazardous location certification (Class I Division 2).
-
Water & Wastewater: Reliable operation in humid environments (up to 95% RH at 55 °C) with mold and fungal spore resistance.
-
Discrete Manufacturing: Supports fast task execution (30 Kinst/ms) for high-speed production lines.
By choosing the Schneider BMEP582040H, you reduce maintenance costs and extend equipment life, delivering strong ROI through fewer replacements and simplified logistics.
Maintenance & Reliability
The Schneider BMEP582040H is designed for minimal intervention. Its conformal coating protects against corrosive gases and dust, reducing cleaning frequency. The MTBF of 775,000 hours means you can expect over 88 years of continuous operation under normal conditions before a failure. Regular inspection of the status LEDs (RUN, ERR, I/O, DL, BACKUP) provides instant health monitoring. Ambient air temperature for storage ranges from -40 to 85 °C, so spares can be stored without special climate control.
Compatibility & Integration
The Schneider BMEP582040H integrates seamlessly into Modicon M580 architectures. It supports up to 8 remote I/O stations and 64 distributed devices via Ethernet TCP/IP (2 device network ports and 1 service port). The module works with 2 Ethernet communication modules and 16 AS-Interface modules. Communication services include RIO scanner and DIO scanner. The USB mini B port allows local programming and diagnostics. This extensive compatibility simplifies system design and reduces integration costs.
Selection Guide & Purchasing Advice
When purchasing a Schneider BMEP582040H, verify that your rack power supply meets the 270 mA current draw at 24 V DC. The module requires an internal power supply via the rack. Ensure you have the correct firmware version for your application. For high-reliability projects, consider ordering a spare unit to capitalize on the long service life. UBEST Automation stocks genuine Schneider BMEP582040H modules with fast shipping. Contact ubest101 for bulk pricing or customization options.
