Product Introduction

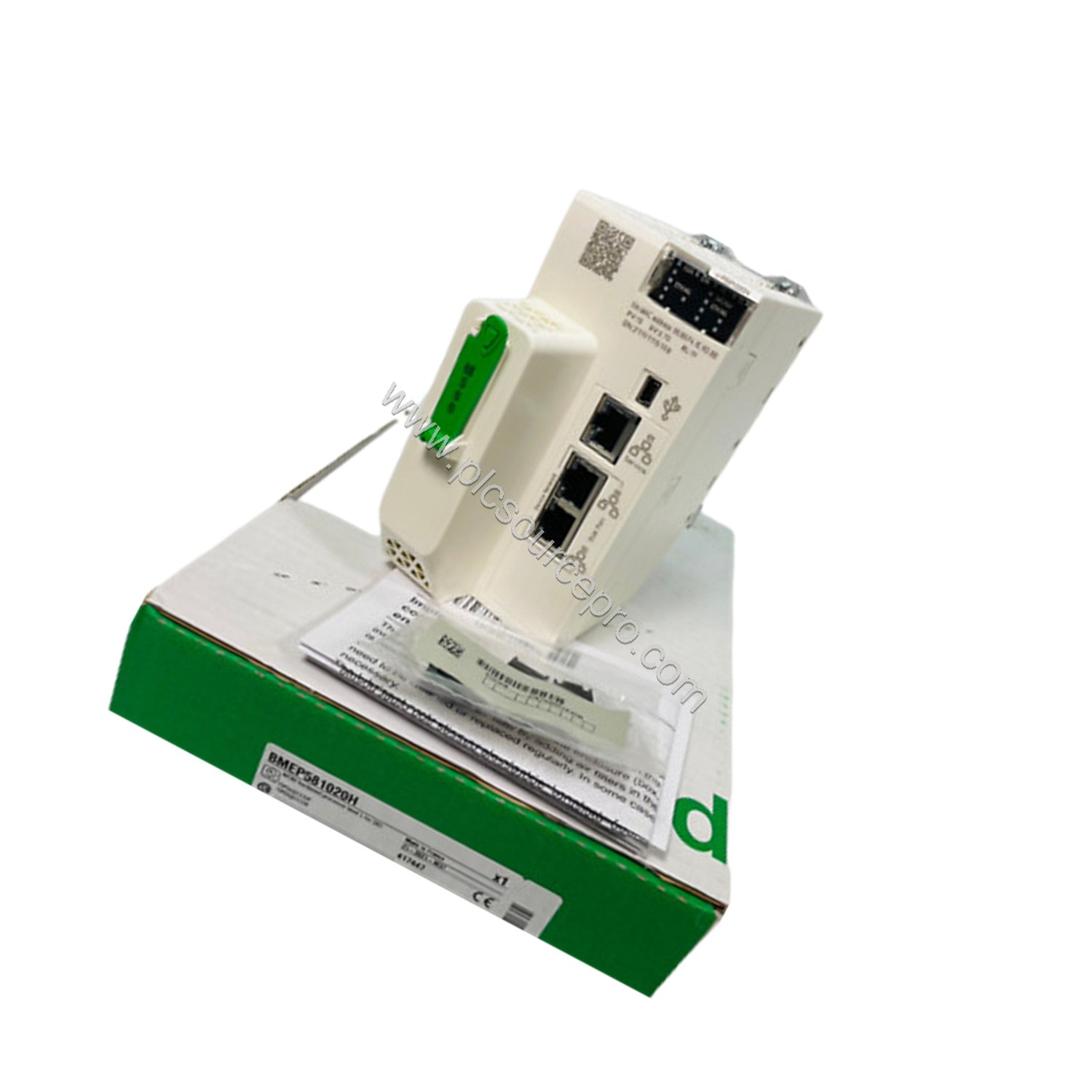

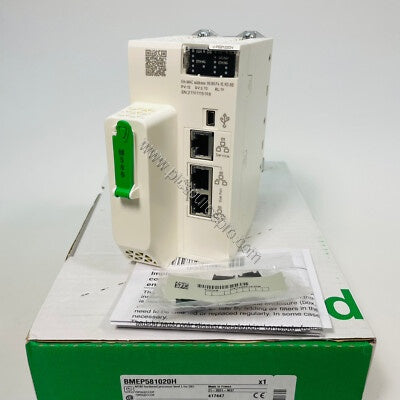

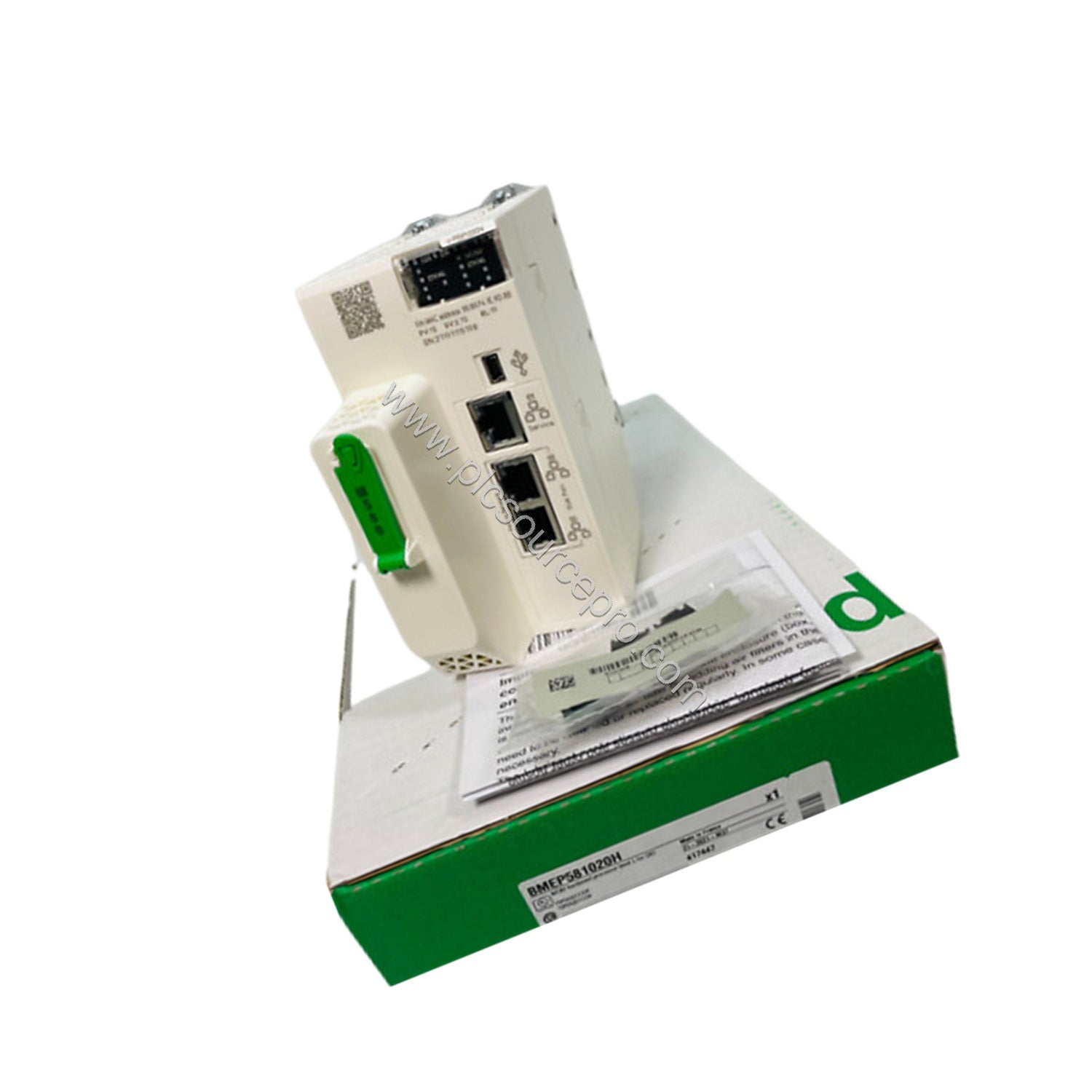

The Schneider BMEP581020H is a high-performance processor module from the Modicon M580 range, designed specifically for severe environments. This BMEP581020H module delivers robust control for demanding industrial automation applications, ensuring reliable operation even under extreme conditions. With a modular rack-based design, it supports up to 4 racks and provides local I/O capacity of 1024 discrete and 256 analog I/O points. The BMEP581020H integrates seamlessly into existing Modicon systems, offering a cost-effective upgrade path for legacy installations.
Technical Specifications

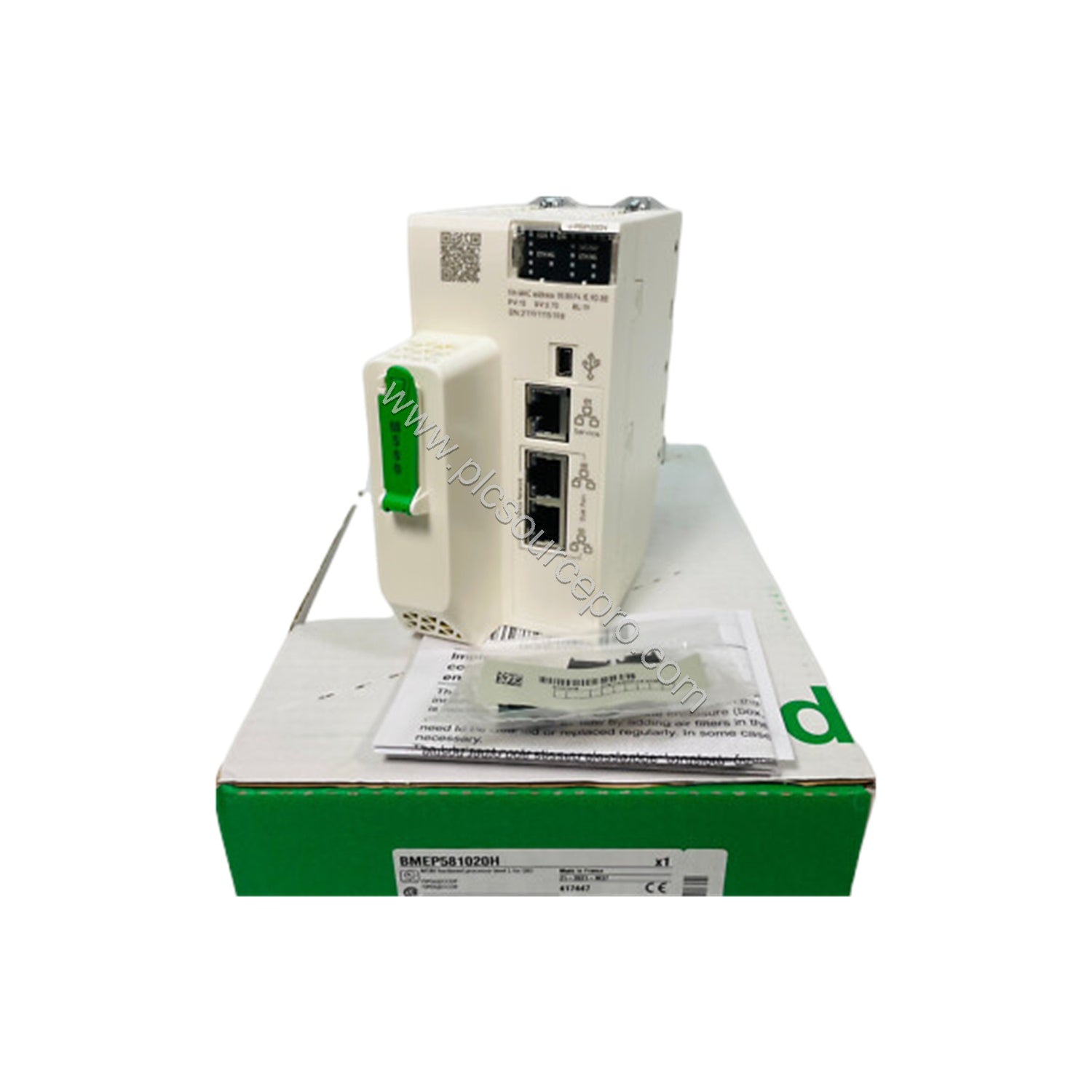

The Schneider BMEP581020H features an integrated RAM of 4 MB for program memory and 384 kB for data, plus expandable flash storage up to 4 GB. Key performance metrics include 30 Kinst/ms (65% Boolean + 35% fixed arithmetic) and 40 Kinst/ms (100% Boolean). Current consumption is 270 mA at 24 V DC. The module boasts an MTBF of 775,000 hours, indicating exceptional reliability. It operates in an ambient temperature range of -13 to 158 °F (-25 to 70 °C) and withstands vibration of 3 gn and shock of 30 gn. Protection is IP20, with certifications including CE, UL, CSA, ATEX zone 2/22, and IECEx zone 2/22.
Industry Applications
The BMEP581020H is ideal for harsh environments such as oil and gas, chemical processing, and marine applications. Its gas resistance (ISA S71.04 class Gx), dust and sand resistance (IEC 60721-3-3 class 3S4), and conformal coating make it suitable for offshore platforms and desert installations. The module’s high MTBF reduces unplanned downtime, directly lowering total cost of ownership. By upgrading to the Schneider BMEP581020H, operators can extend system life and improve process reliability without major capital expenditure.
Maintenance & Reliability
With a projected MTBF of 775,000 hours, the BMEP581020H minimizes maintenance intervals. Routine checks should focus on environmental conditions — ensure ambient temperature stays within -25 to 70 °C and humidity below 95% at 55 °C without condensation. The IP20 enclosure requires clean, dry conditions; periodic inspection of conformal coating integrity is recommended. The Schneider BMEP581020H’s built-in status LEDs (RUN, ERR, I/O, DL, BACKUP, ETH MS, ETH NS) simplify diagnostics, enabling quick identification of faults and reducing repair time.
Compatibility & Integration
The BMEP581020H integrates with Modicon M580 racks and supports up to 64 distributed devices. It accommodates 2 Ethernet communication modules and 2 AS-Interface modules. Communication services include DIO scanner. Integrated connections: 1 Ethernet TCP/IP service port, 2 Ethernet TCP/IP device network ports, and a USB type mini B port. The module is backward compatible with older Modicon systems via the same rack architecture, allowing smooth upgrades. For integration, ensure the internal power supply is provided through the rack. This Schneider BMEP581020H processor module works with standard IEC 61131-2 compliant systems.
Selection Guide & Purchasing Advice
When purchasing the Schneider BMEP581020H, verify compatibility with your existing Modicon M580 rack and power supply. The module ships as a single unit (package 1) weighing 0.849 kg. For volume orders, package 2 contains 6 units. Confirm the required ambient conditions match your site’s environment. As a trusted supplier, ubest101 offers genuine Schneider BMEP581020H modules with full traceability. Ensure you order the correct part number – BMEP581020H – for severe environment applications. Check for any required accessories like memory cards or communication modules separately.
