Product Introduction

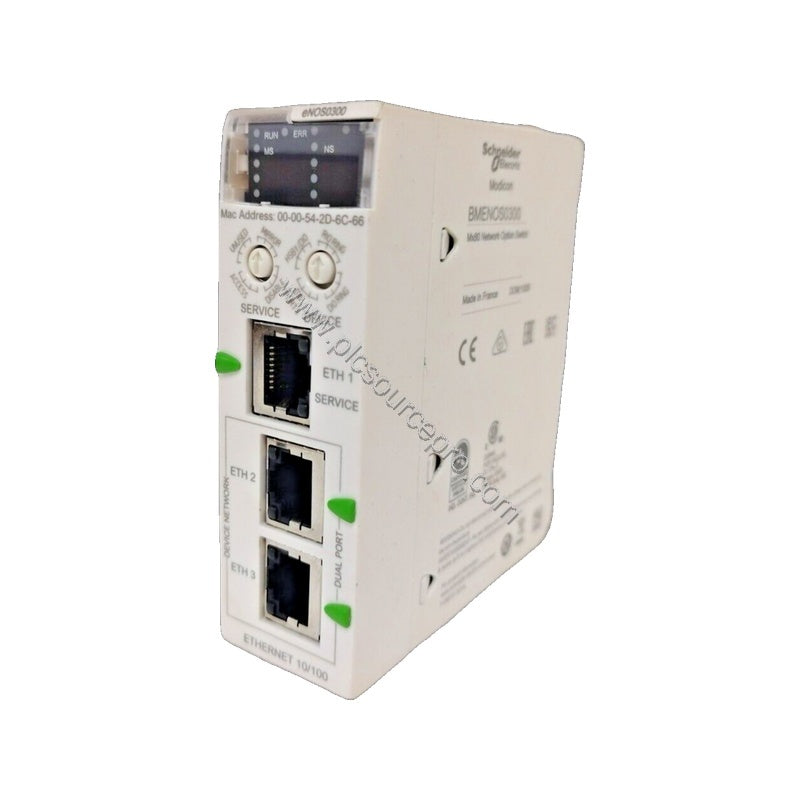

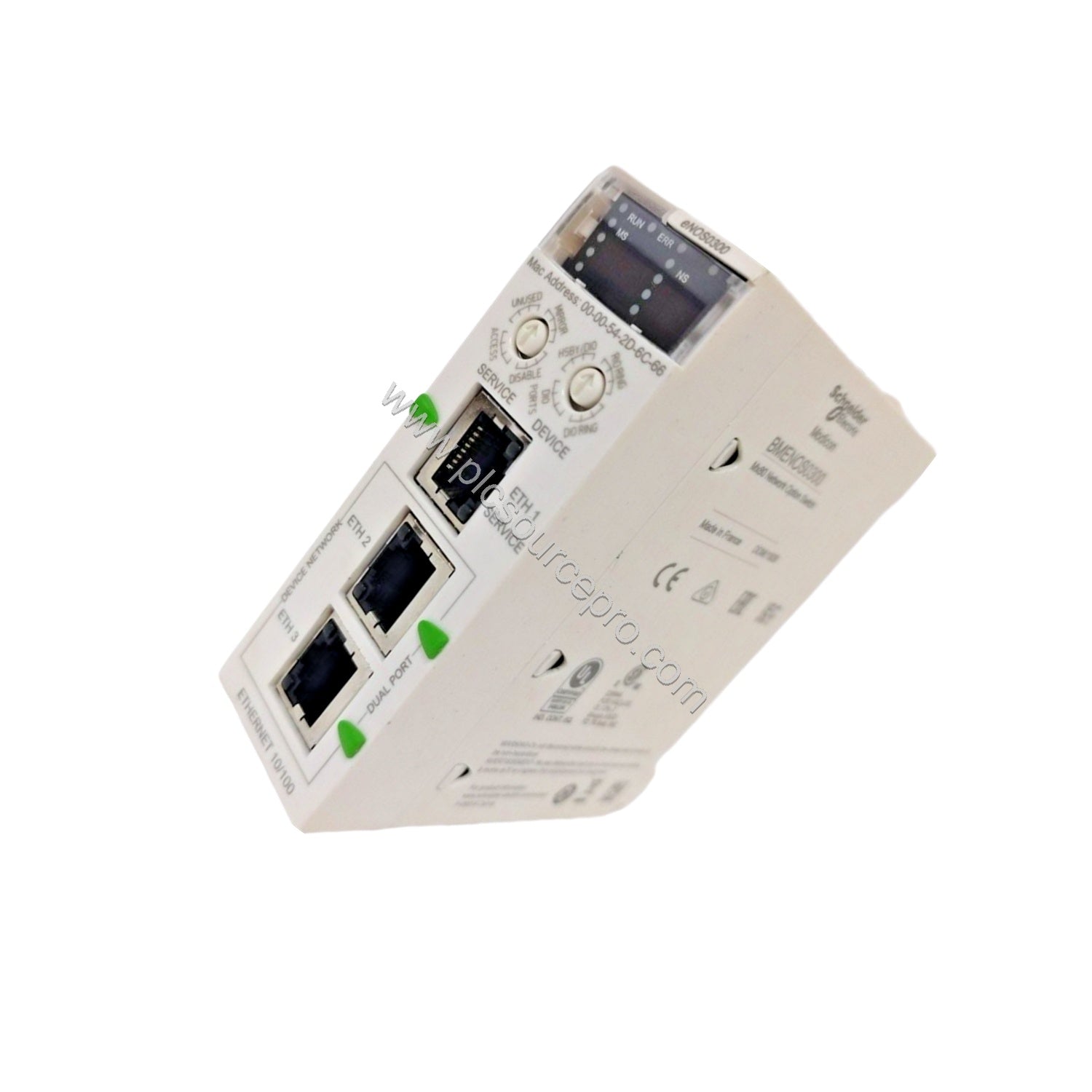

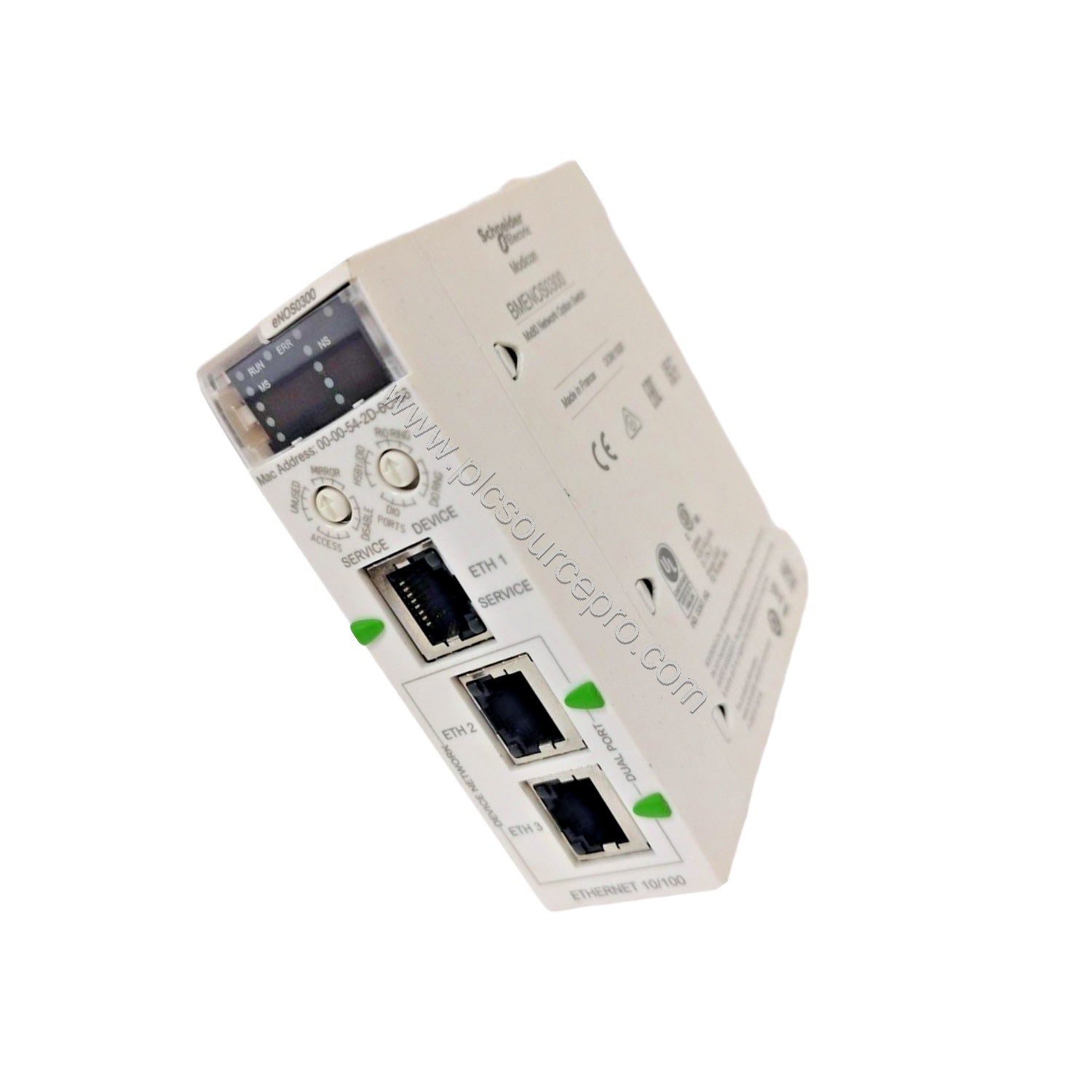

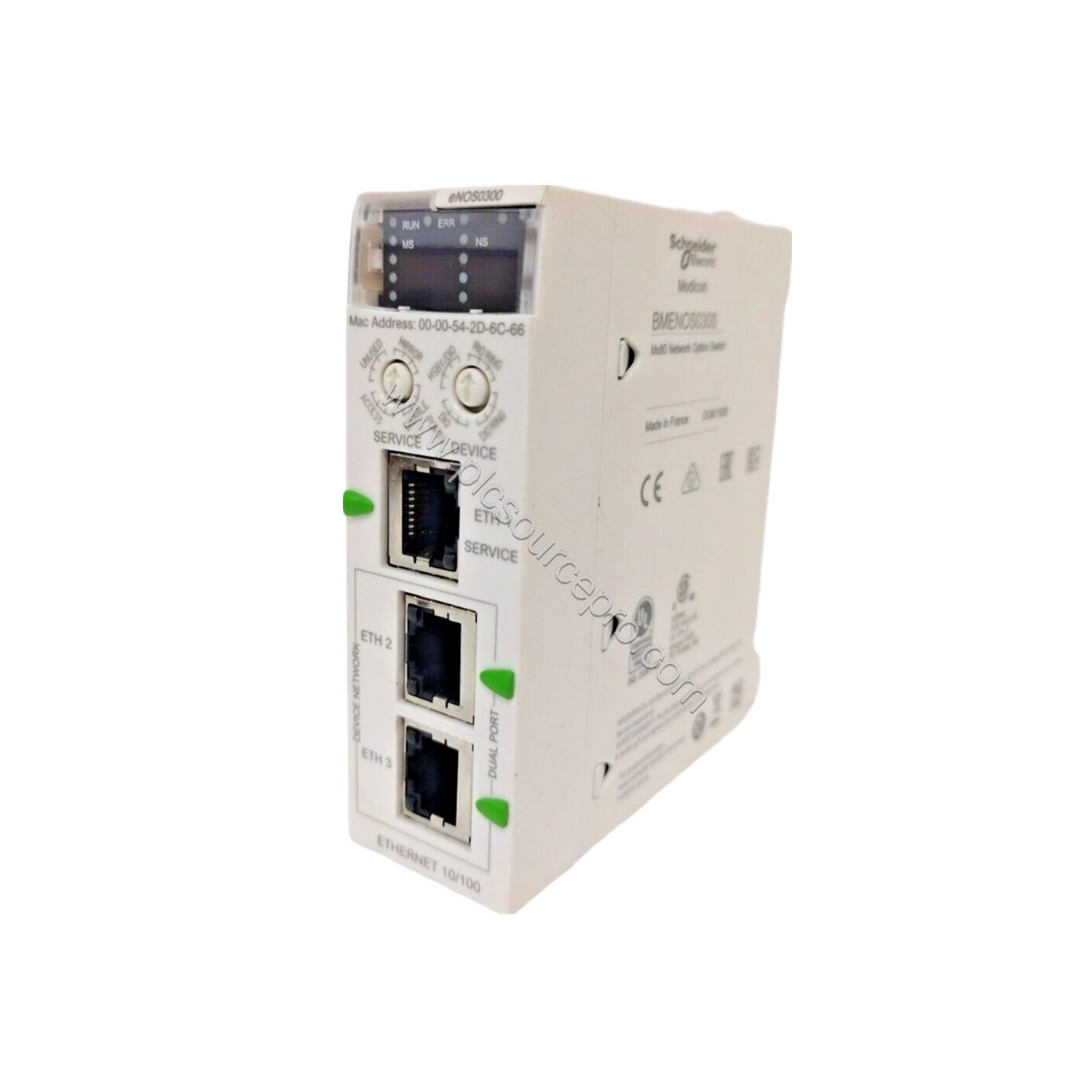

When selecting a reliable switch module for your Modicon X80 system, the Schneider BMENOS0300 delivers robust performance and energy efficiency. This industrial automation module integrates seamlessly into BMEXBP backplanes, providing three EtherNet/IP ports for device network and service connectivity. Part of the Modicon X80 family, the BMENOS0300 ensures long-term value with low power consumption and compact design.
Technical Specifications
| Parameter |
Value |
| Rated Supply Voltage |
24 V back plane |
| Power Consumption (25°C) |
3.3 W / 135 mA |
| Power Consumption (60°C) |
4.5 W / 185 mA |
| Number of Ports |
3 |
| Communication Protocol |
EtherNet/IP |
| Operating Temperature |
32…140°F (0…60°C) |
| Storage Temperature |
-40…185°F (-40…85°C) |
| Ingress Protection |
IP20 |
| Relative Humidity |
95% without condensation |
The Schneider BMENOS0300 draws only 3.3 W at 25°C, reducing energy costs over time. Its three Ethernet/IP ports allow flexible network topography while the diagnostic LEDs provide immediate status feedback.
Industry Applications
The BMENOS0300 excels in manufacturing environments requiring deterministic Ethernet/IP communication. Use it for connecting PLCs, drives, and I/O modules in packaging lines or material handling systems. Its compact standard format fits easily into existing Modicon X80 racks, minimizing downtime during upgrades. The low power consumption of the BMENOS0300 directly contributes to a lower total cost of ownership, aligning with energy-saving initiatives.
Compatibility & Integration
Designed for Modicon X80 backplanes compatible with BMEXBP series, the Schneider BMENOS0300 integrates natively into Schneider Electric control systems. The three EtherNet/IP ports support device network and service port configurations, enabling seamless communication with other EtherNet/IP compliant devices. For mixed-protocol environments, ensure your network infrastructure is configured for EtherNet/IP.
Installation & Setup
Mount the BMENOS0300 onto the Modicon X80 backplane by aligning the connectors and securing with the locking mechanism. Connect the 24 V backplane power; the module draws power from the rack. Attach Ethernet cables to the RJ45 ports for device and service networks. Verify LED indicators: green RUN for active, red ERR for errors, and combined status LEDs for module and network health.
Selection Guide & Purchasing Advice
Before purchasing, confirm your backplane part number is compatible with BMEXBP series. The BMENOS0300 is a standard-format module; check for adequate slot space and power budget. For reliable supply and technical support, consider ordering from ubest101, an experienced industrial automation parts supplier. Always verify the exact model BMENOS0300 to ensure compatibility with your Modicon X80 system.
