Product Introduction

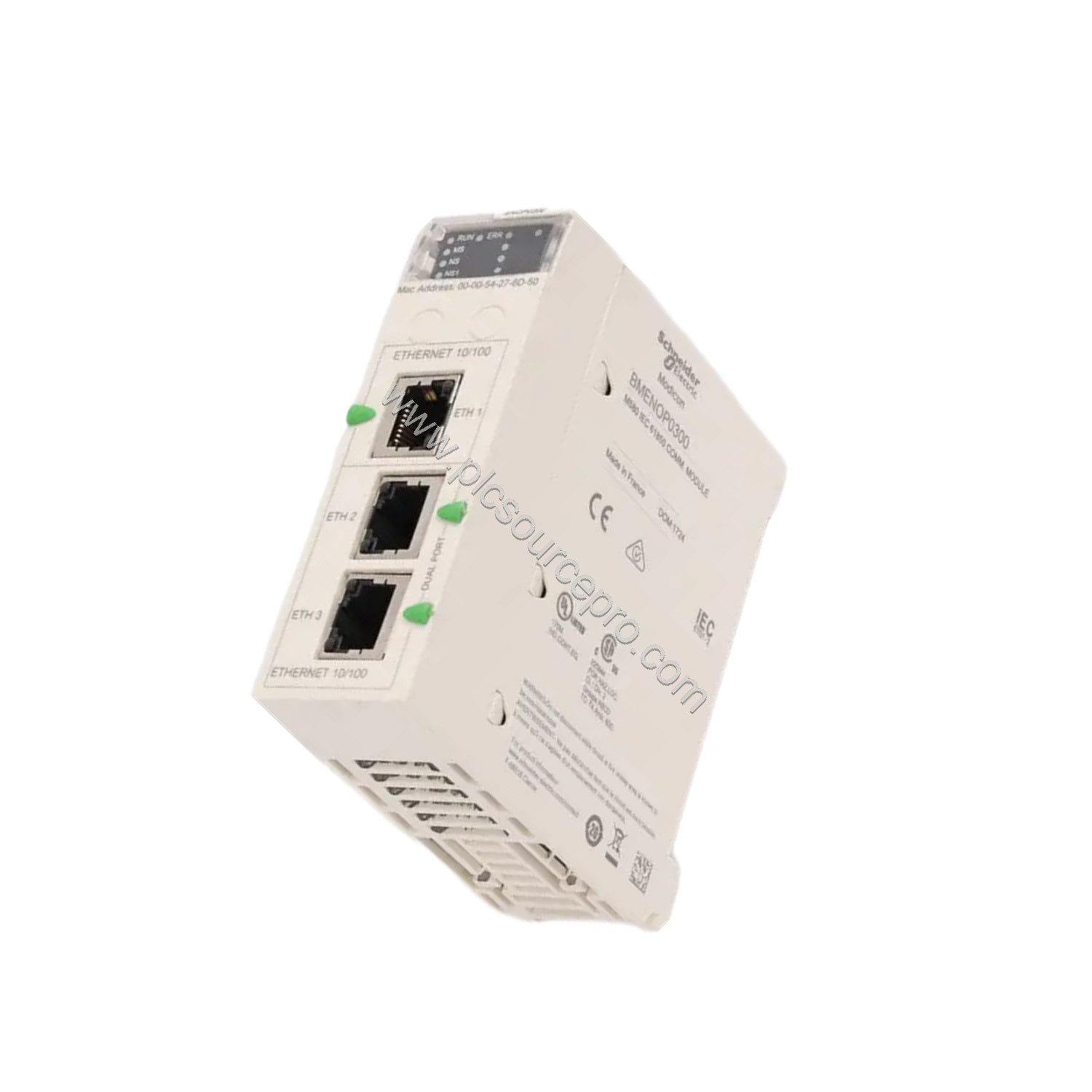

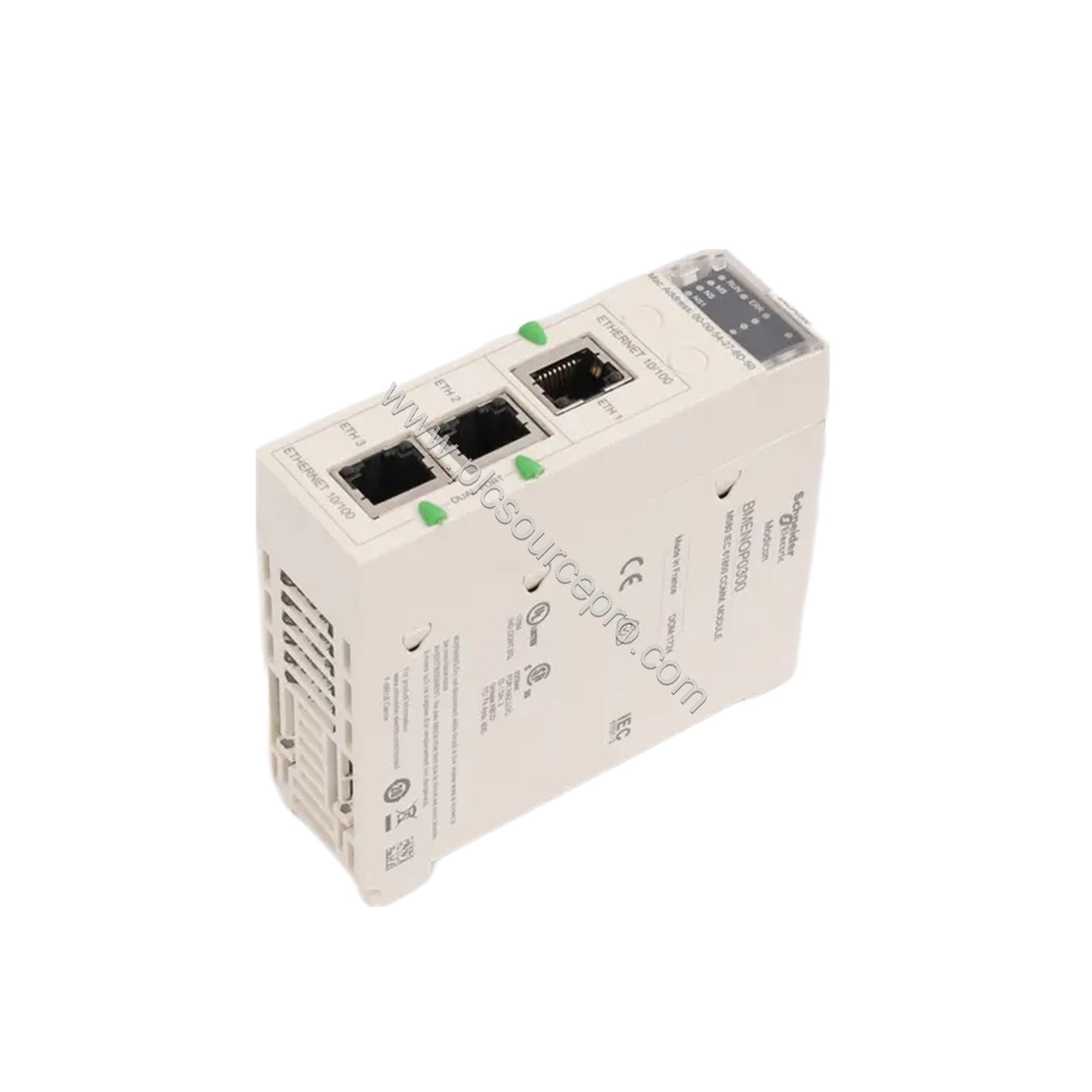

When reliable data communication is critical for industrial automation, the Schneider BMENOP0300 communication module delivers advanced network capabilities. As part of the Modicon M580 range, this module provides three Ethernet 10/100BASE-TX interfaces supporting MMS messaging, Goose, and Modbus TCP services. Designed for the M580 PAC, the BMENOP0300 ensures seamless integration and high-speed data transfer at 10 and 100 Mbit/s. This module enhances system reliability and reduces potential downtime through robust communication protocols.
Technical Specifications Breakdown
Key parameters of the BMENOP0300 ensure performance in demanding environments:
- Current Consumption: 1250 mA at 3.3 V DC internal
- Transmission Rate: 10 Mbit/s and 100 Mbit/s
- Physical Interface: 3 Ethernet 10/100BASE-TX ports
- Communication Services: MMS messaging client/server IEC 61850, Goose IEC 61850, Modbus TCP messaging, RSTP support, IP forwarding
- Operating Temperature: 32 to 140 °F (0 to 60 °C)
- Storage Temperature: -40 to 185 °F (-40 to 85 °C)
- Relative Humidity: 0 to 95% without condensation
- Net Weight: 0.53 lb (0.24 kg)
These specs indicate the module is built for continuous operation in industrial settings, with low power consumption and wide temperature tolerance contributing to long-term reliability and cost savings.
Compatibility & Integration
The Schneider BMENOP0300 is specifically designed for Modicon M580 PACs. It supports multiple communication protocols including IEC 61850 MMS messaging, Goose, Modbus TCP, as well as RSTP and IP forwarding. This allows seamless integration into substation automation, process control, and industrial network architectures. Ensure your system uses the M580 platform and has available slots for standard format modules.
Industry Applications
The BMENOP0300's robust communication capabilities make it ideal for power generation, substation automation, and manufacturing lines requiring high availability. For example, in a substation, the module handles Goose messages for fast tripping while simultaneously serving MMS data to the SCADA system. This multi-service capability reduces the need for additional hardware, lowering total cost of ownership.
Installation & Setup Guidance
Install the BMENOP0300 into a standard module slot within the M580 PAC rack. Ensure the internal power supply meets the 1250 mA at 3.3 V DC requirement. Use standard Ethernet cables with RJ45 connectors for the three 10/100BASE-TX ports. Configure the communication services via the M580 programming software, setting IP addresses and enabling desired protocols like IEC 61850 and Modbus TCP. Refer to the M580 system manual for mounting guidelines and environmental recommendations.
Selection Guide & Purchasing Advice
When ordering the Schneider BMENOP0300, verify compatibility with your existing M580 system. Check that your power supply can deliver the required current. For reliable sourcing, consider purchasing from PLC Source PRO (formerly known as ubest101) – a trusted supplier of industrial automation spares. Each unit comes with the GTIN 3606481285980 for easy identification. Ensure you have the necessary mounting hardware and Ethernet cables.
