Product Overview
The Schneider BMENOC0321 is a communication module designed for the Modicon M580 programmable automation controller (PAC) platform. This module provides high-performance Ethernet connectivity for industrial automation systems, enabling seamless integration of control, monitoring, and data exchange across your plant network. As part of the Modicon M580 family, the BMENOC0321 ensures reliable and deterministic communication for demanding applications.
Key Features and Capabilities
The Schneider BMENOC0321 module incorporates a robust set of communication services to meet the needs of modern automated facilities. Highlights include:
-
Integrated 4-port Ethernet switch: Simplifies network topology and reduces need for external switches.
-
Modbus TCP I/O Scanner and Messaging: Enables efficient data exchange with distributed I/O and devices.
-
EtherNet/IP I/O Scanner and Messaging: Supports standard CIP-based networking for multi-vendor interoperability.
-
Bandwidth management: Prioritizes critical traffic to maintain deterministic performance.
-
FDR server (Faulty Device Replacement): Automatically reconfigures replacement devices to minimize downtime.
-
RSTP support (Rapid Spanning Tree Protocol): Provides network redundancy and fault tolerance.
-
Advanced web server: Allows web-based diagnostics and configuration via FactoryCast technology.
-
IP forwarding: Enables routing between networks for expanded system architectures.
Compatibility and Integration

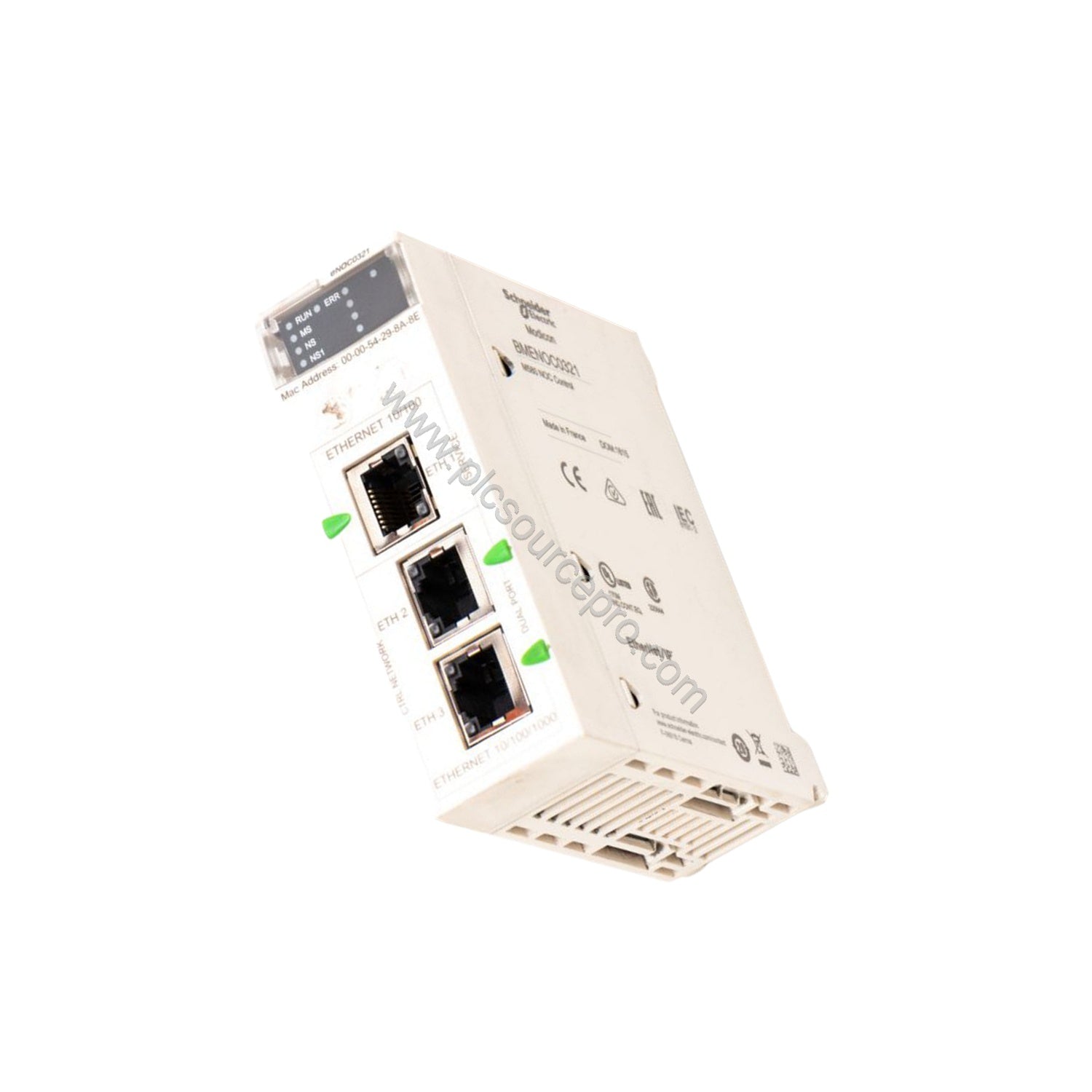

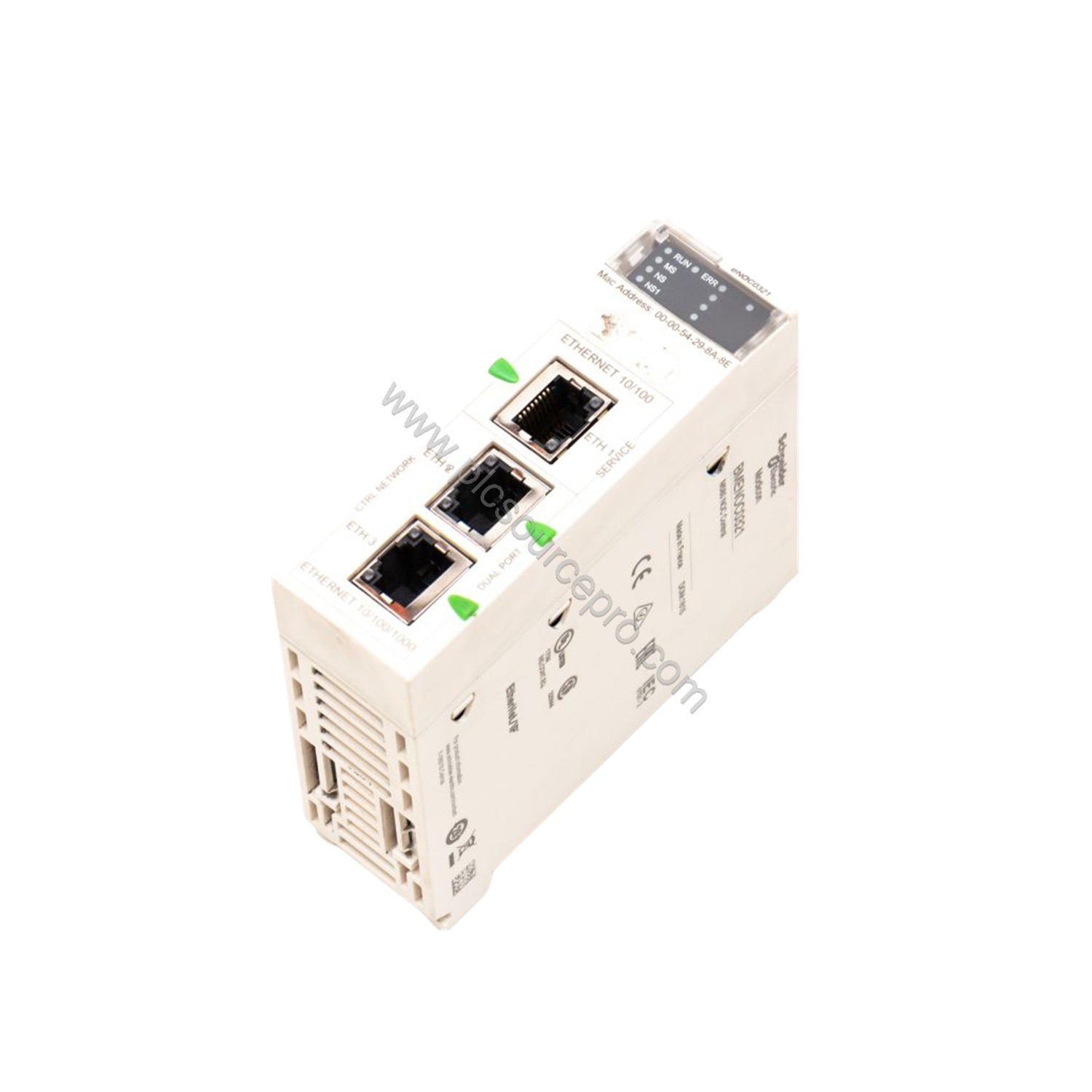

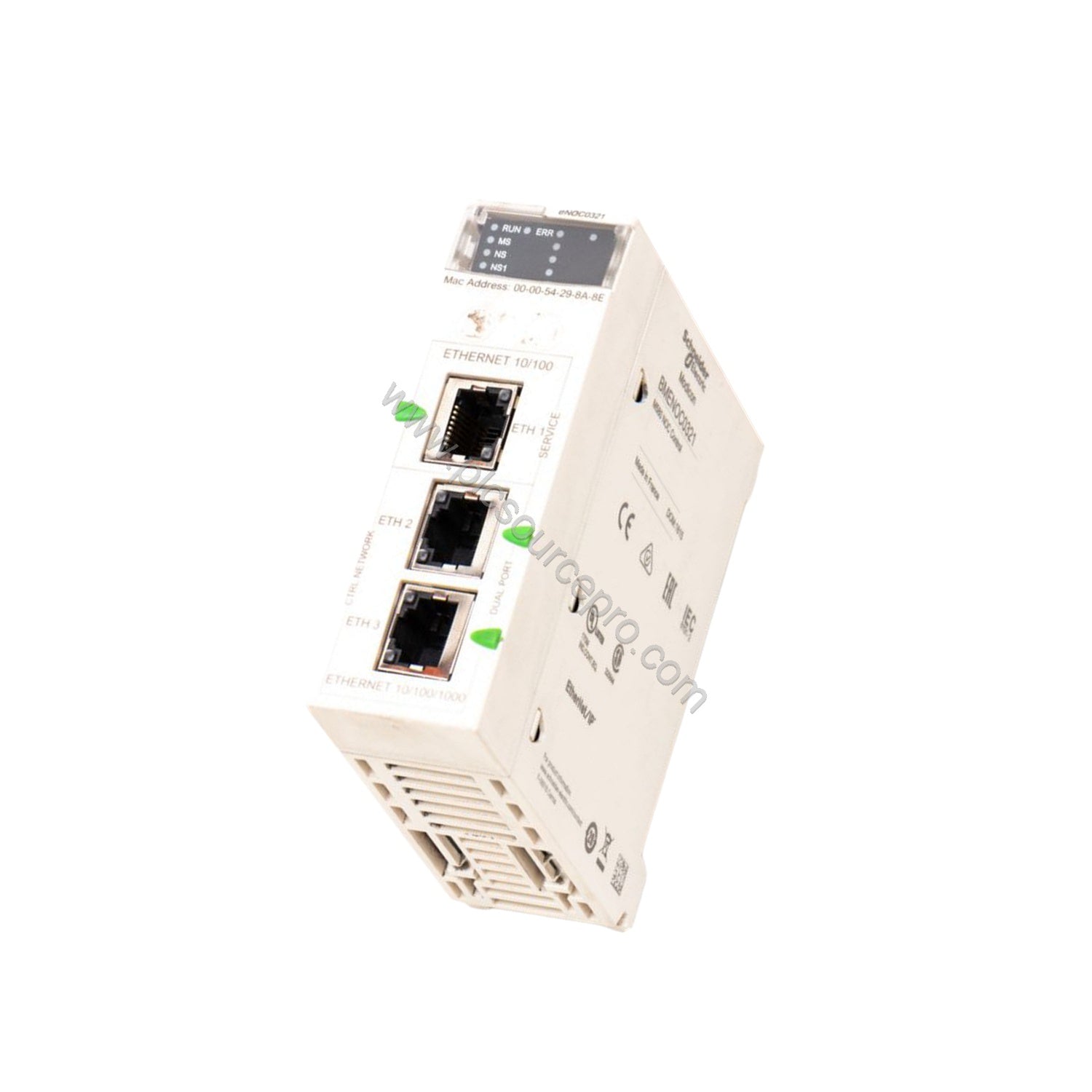

The BMENOC0321 is designed to work with Modicon M580 racks, specifically the BMEXBP series Ethernet + X-bus backplanes. It draws power directly from the rack, simplifying wiring. The module provides three RJ45 ports supporting 10/100/1000 Mbps over double-shielded twisted-pair cables, ensuring fast and reliable communication. It is fully compatible with Modicon M580 automation controllers and programming software such as EcoStruxure Control Expert.
Industry Applications
This communication module is ideal for a wide range of industrial automation environments, including:
-
Discrete manufacturing: Connecting PLCs to HMI, drives, and sensors on assembly lines.
-
Process control: Integrating distributed I/O and field devices in chemical, oil and gas, or pharmaceutical plants.
-
Infrastructure automation: Deploying in water treatment, power distribution, or building management systems where high availability is critical.
-
Machine builder applications: Providing a future-proof networking core for OEM machinery requiring multiple protocols.
Installation and Setup Guidance
Installing the Schneider BMENOC0321 is straightforward. Insert the module into an available slot on a BMEXBP rack; it will receive power via the backplane. Connect the EtherNet network using standard RJ45 cables to the integrated switch ports. The module supports auto-negotiation and Auto-MDI/MDIX, minimizing cabling issues. For initial configuration, use the embedded web server or EcoStruxure Control Expert to set up IP addressing, protocol selection (Modbus TCP, EtherNet/IP), and bandwidth management rules. The module's LED indicators provide immediate status feedback: a green RUN LED, red ERR LED, and multi-color MS/NS LEDs for Ethernet port and network status.
Maintenance and Reliability
Routine maintenance is limited to periodic inspection of Ethernet connections and verifying LED status. The BMENOC0321 is designed for long-term reliability in industrial environments. Its IP20 protection rating (though not explicitly listed in technical specifications, it is standard for rack modules) suits clean, indoor installations. The module automatically logs events and can be monitored via the web server for predictive maintenance. For critical systems, the FDR server ensures that a faulty unit can be swapped quickly without manual reconfiguration, reducing downtime.
Selection Guide and Purchasing Advice
When selecting the BMENOC0321, verify that your rack is a BMEXBP series model and that you have an available slot with backplane power. Ensure your control system software supports the module's features. The BMENOC0321 is a stock item at UBEST Automation (ubest101), where we offer competitive pricing and fast shipping. Contact our team for assistance with compatibility or to discuss volume discounts.
