Product Overview

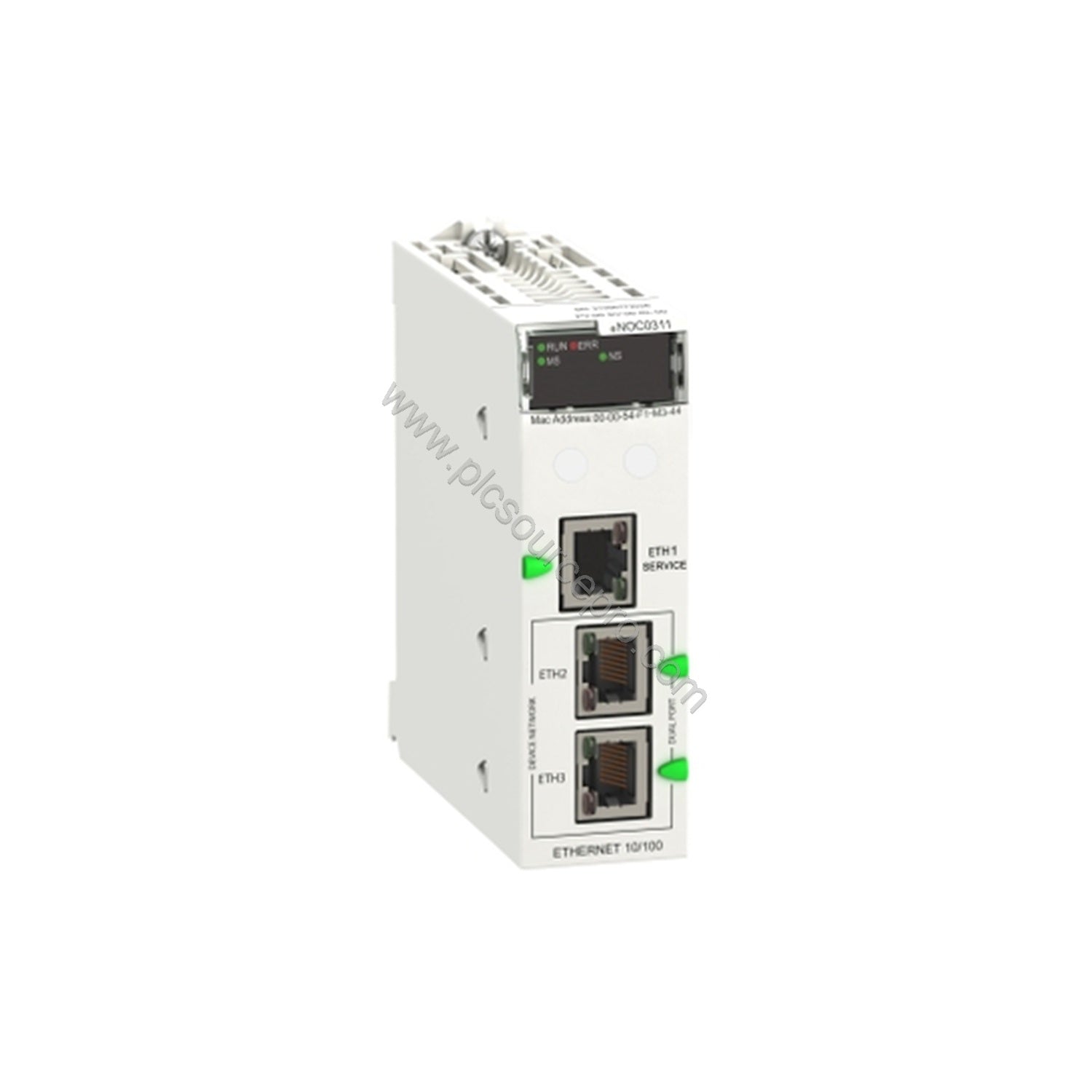

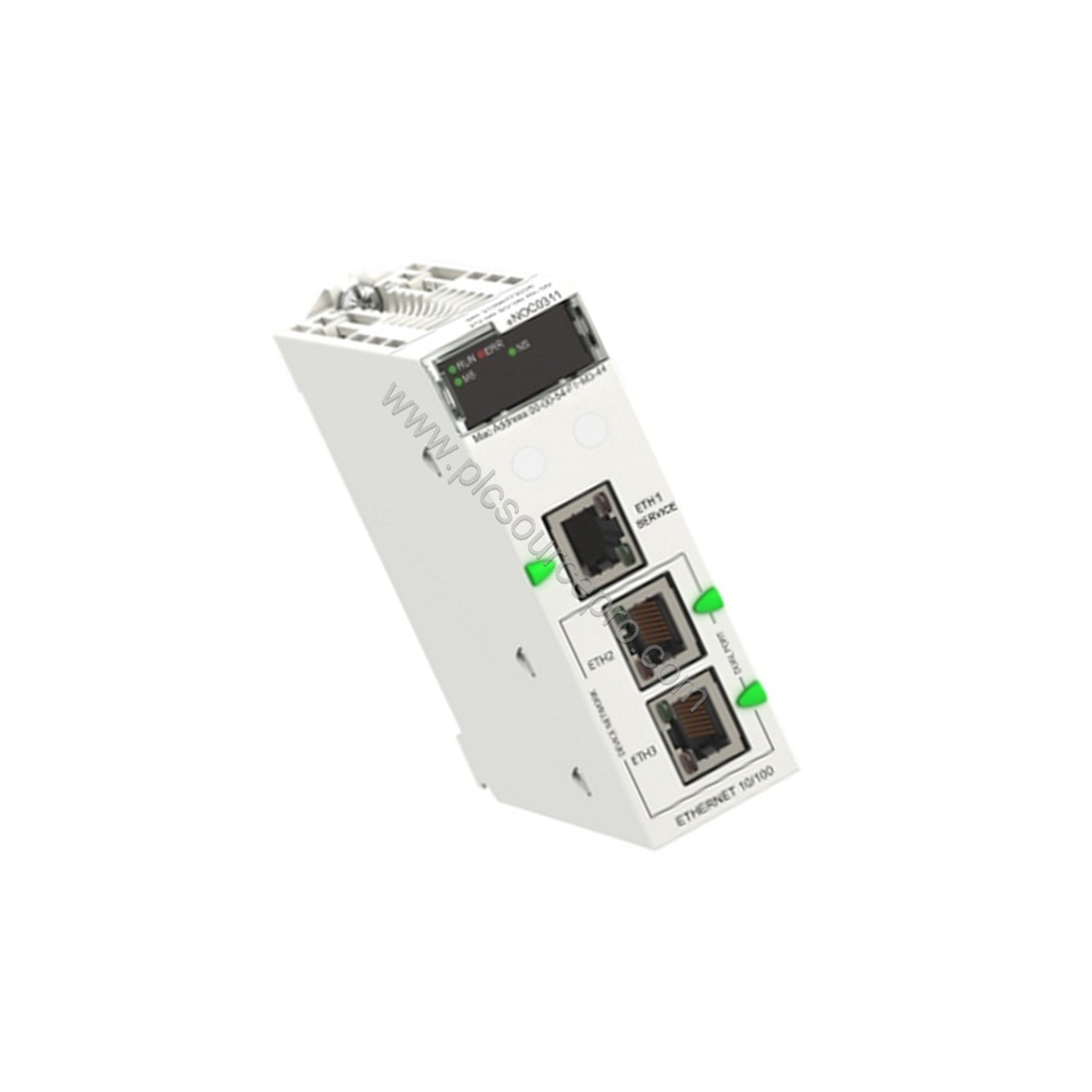

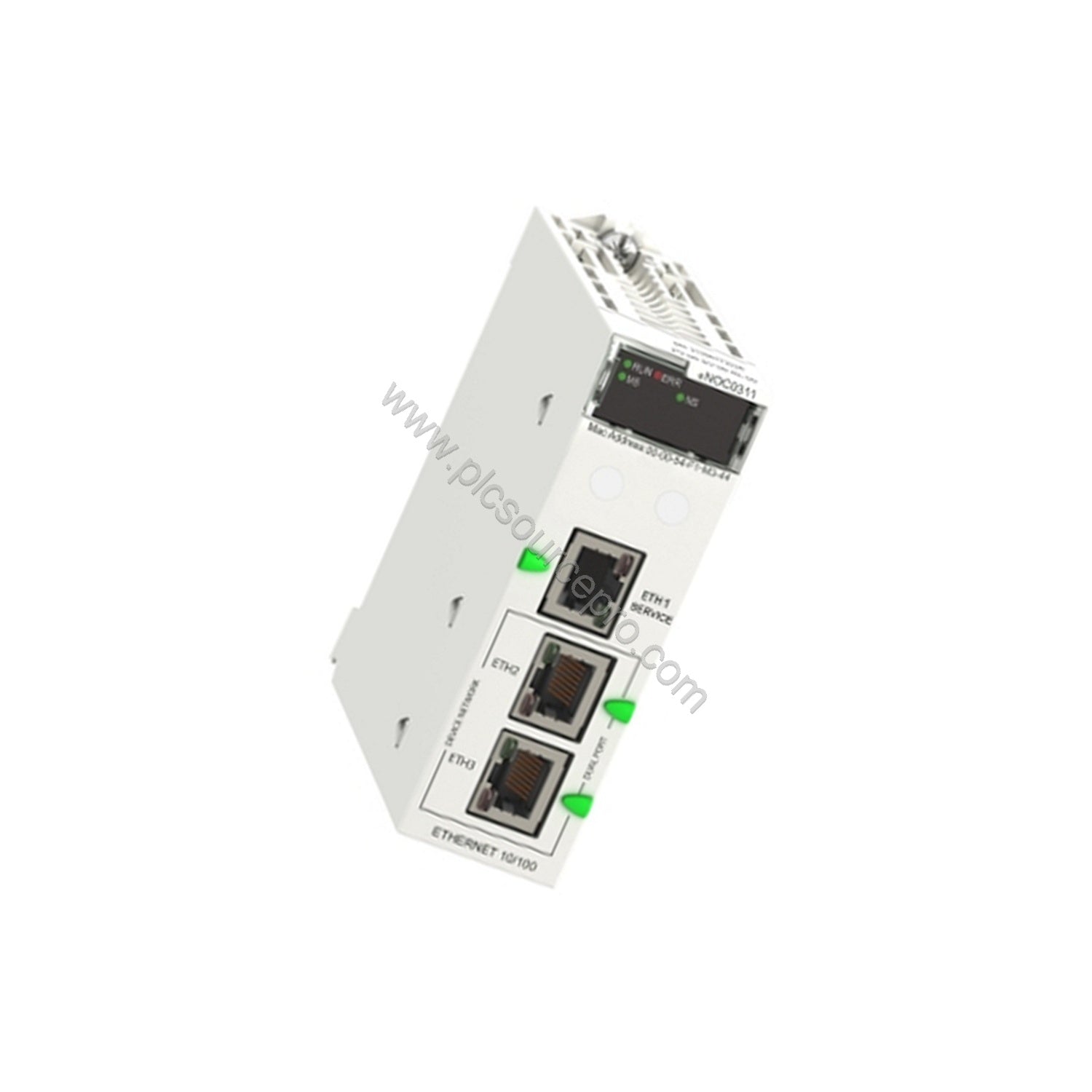

When upgrading legacy Modicon systems to modern Ethernet-based control, the Schneider BMENOC0311 communication module provides a seamless integration path. Part of the Modicon M580 family, this network module delivers FactoryCast Ethernet capabilities for real-time data exchange and remote monitoring. Using an internal power supply via the rack, the BMENOC0311 minimizes wiring complexity while offering three RJ45 ports for 10/100 Mbit/s double-shielded twisted pair connections. Its embedded multiport switch and support for RSTP, port mirroring, and SNMP network administration make it an ideal choice for upgrading existing installations to a robust, managed Ethernet infrastructure.
Technical Specifications
| Parameter |
Value |
| Product or Component Type |
Communication module |
| Range of Product |
Modicon M580 |
| Product Compatibility |
BMEXBP... - Ethernet + X-bus rack |
| Supply |
Internal power supply via rack |
| Integrated Connection Type |
3 Ethernet RJ45 10/100 Mbit/s double shielded twisted pair |
| Communication Service |
Bandwidth management, FDR server, SNMP, Modbus TCP I/O Scanner and Messaging, Ethernet/IP I/O Scanner and Messaging, RSTP support, Port mirroring, Embedded multiport switch, Web services, FactoryCast configurable, Web server |
| Current Consumption (≥ version 13) |
900 mA at 3.3 V DC |
| Current Consumption (< version 13) |
1800 mA at 3.3 V DC |
| Local Signalling |
1 green RUN LED, 1 red ERR LED, 1 green/red ETH MS, 1 green/red Eth NS |
| Net Weight |
0.4 lb (0.2 kg) |
| IP Degree of Protection |
IP20 |
| Ambient Air Temperature for Operation |
32…140 °F (0…60 °C) |
| Marking |
CE |
Integration and Compatibility

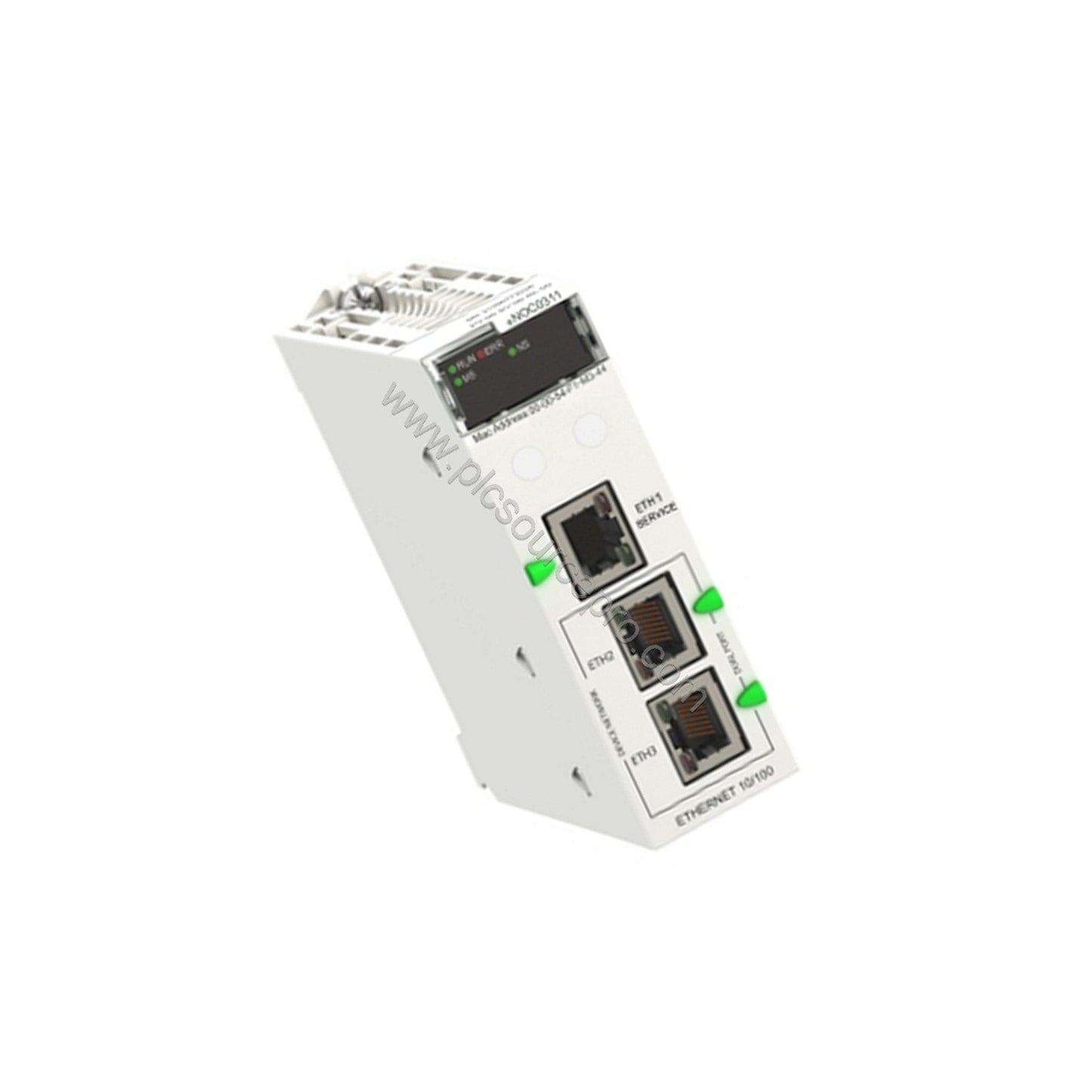

The Schneider BMENOC0311 is designed for deep integration with Modicon M580 automation platforms. It mounts directly onto a BMEXBP rack combining Ethernet and X-bus backplanes, ensuring high-speed data transfer between the controller and remote I/O. The module supports both Modbus TCP and EtherNet/IP I/O Scanner and Messaging, making it compatible with a wide range of third-party devices. Its built-in FDR server simplifies device replacement, while RSTP ensures network redundancy for mission-critical processes. For IT-friendly management, SNMP and port mirroring are included.
Industry Applications
Manufacturers upgrading from legacy point-to-point fieldbus systems will find the Schneider BMENOC0311 essential. In automotive assembly lines, for example, the module’s bandwidth management prevents congestion when multiple vision systems and robots communicate simultaneously. In water treatment facilities, the embedded web server allows operators to monitor pump status and tank levels via any standard browser, reducing the need for dedicated HMI stations. The upgrade-ready design of the BMENOC0311 minimizes downtime during retrofits.
Selection Guide and Purchasing Advice
Before purchasing a Schneider BMENOC0311, verify that your existing rack supports BMEXBP backplanes and that your control software is compatible with FactoryCast configuration. If you are running firmware version 13 or later, current consumption is lower (900 mA vs. 1800 mA for earlier versions). For a reliable supply of genuine BMENOC0311 modules, contact UBEST Automation (ubest101). Our inventory includes new and factory-sealed units with fast worldwide shipping.
