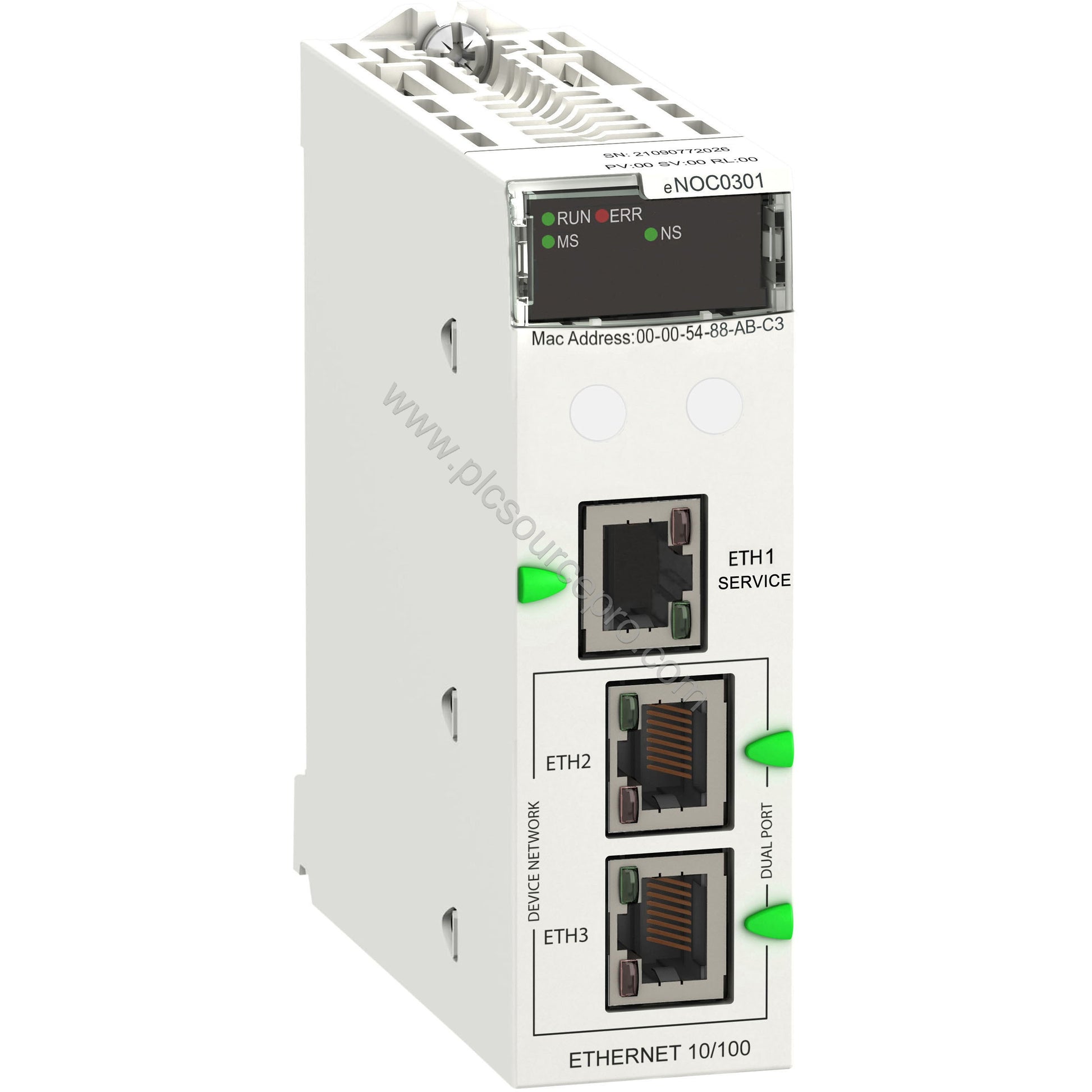

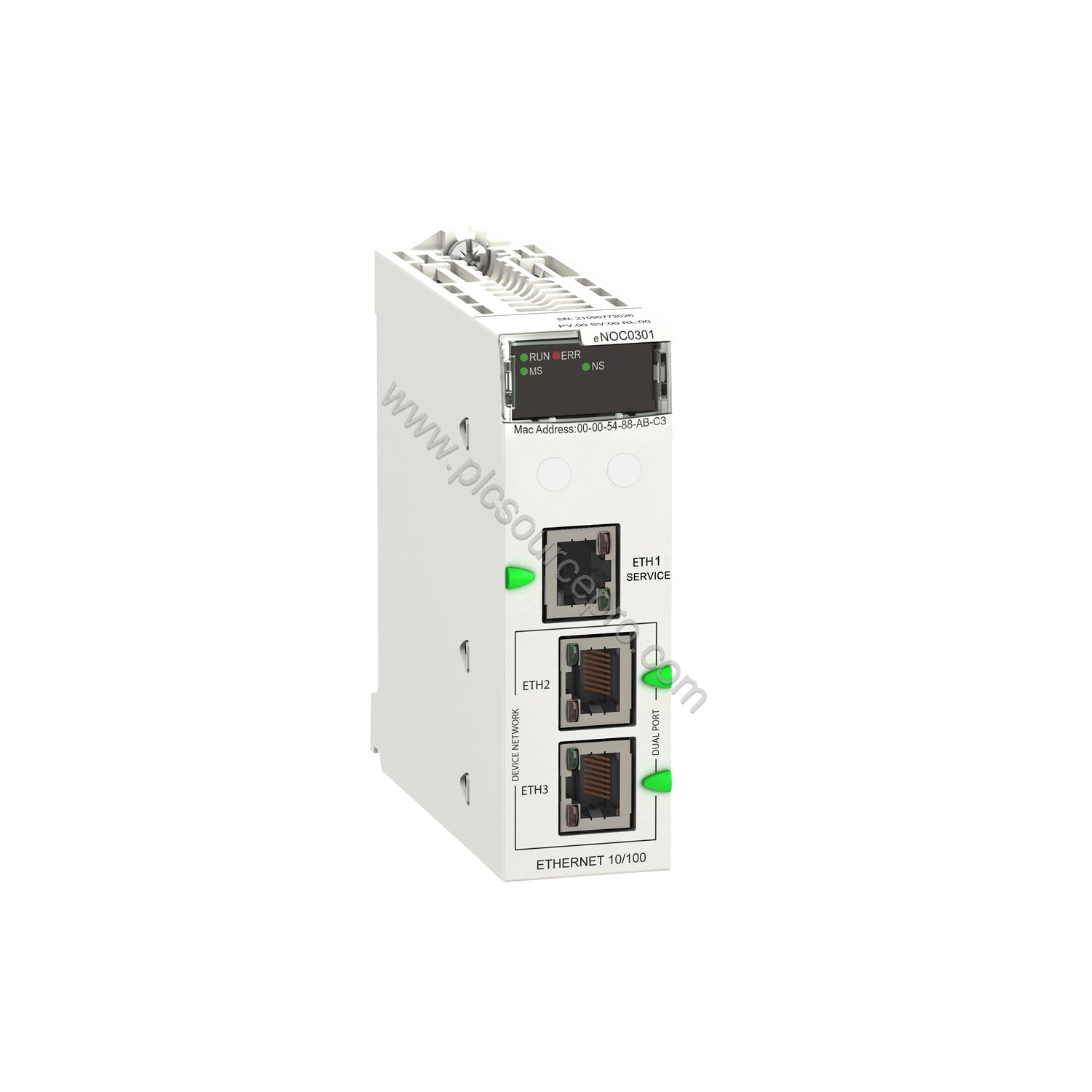

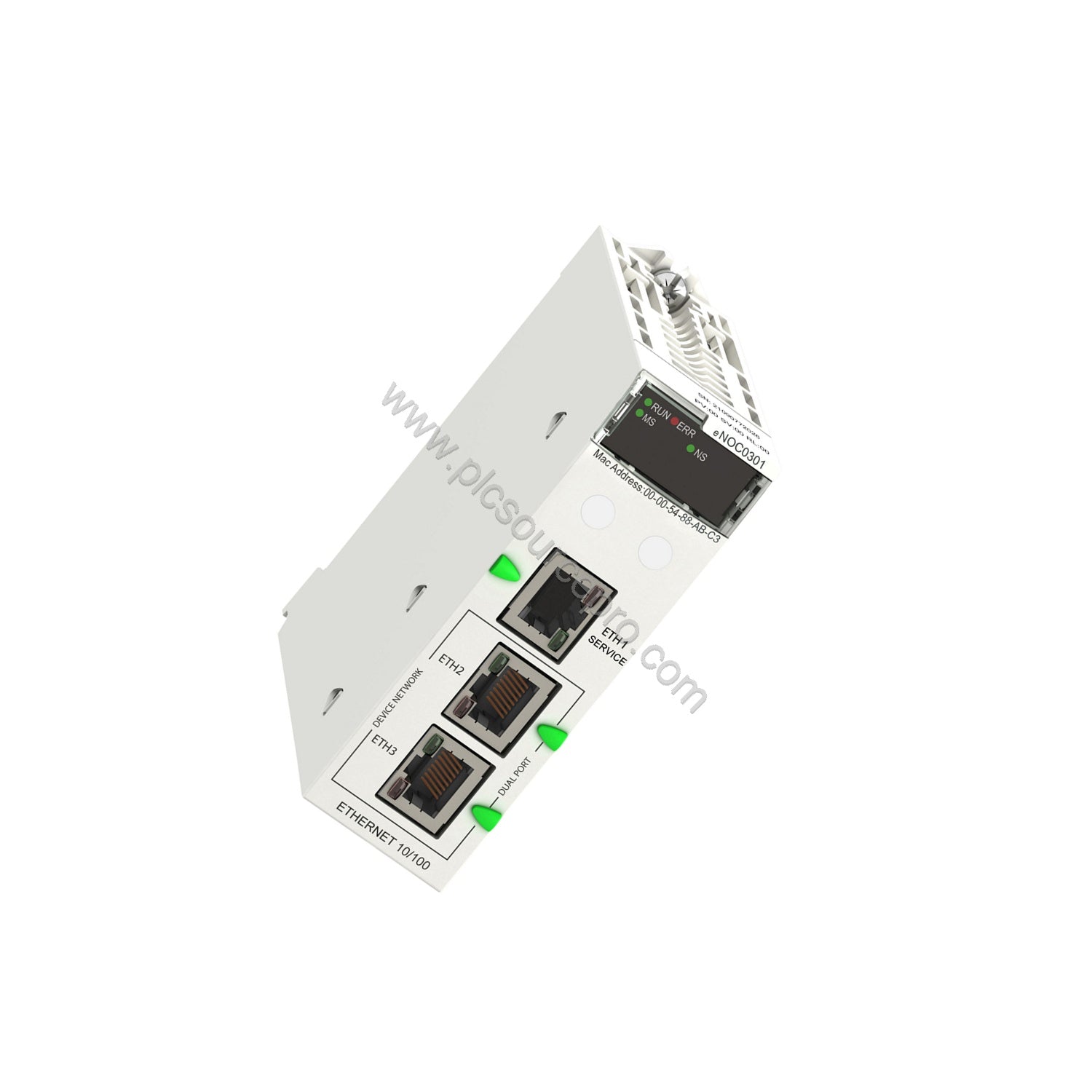

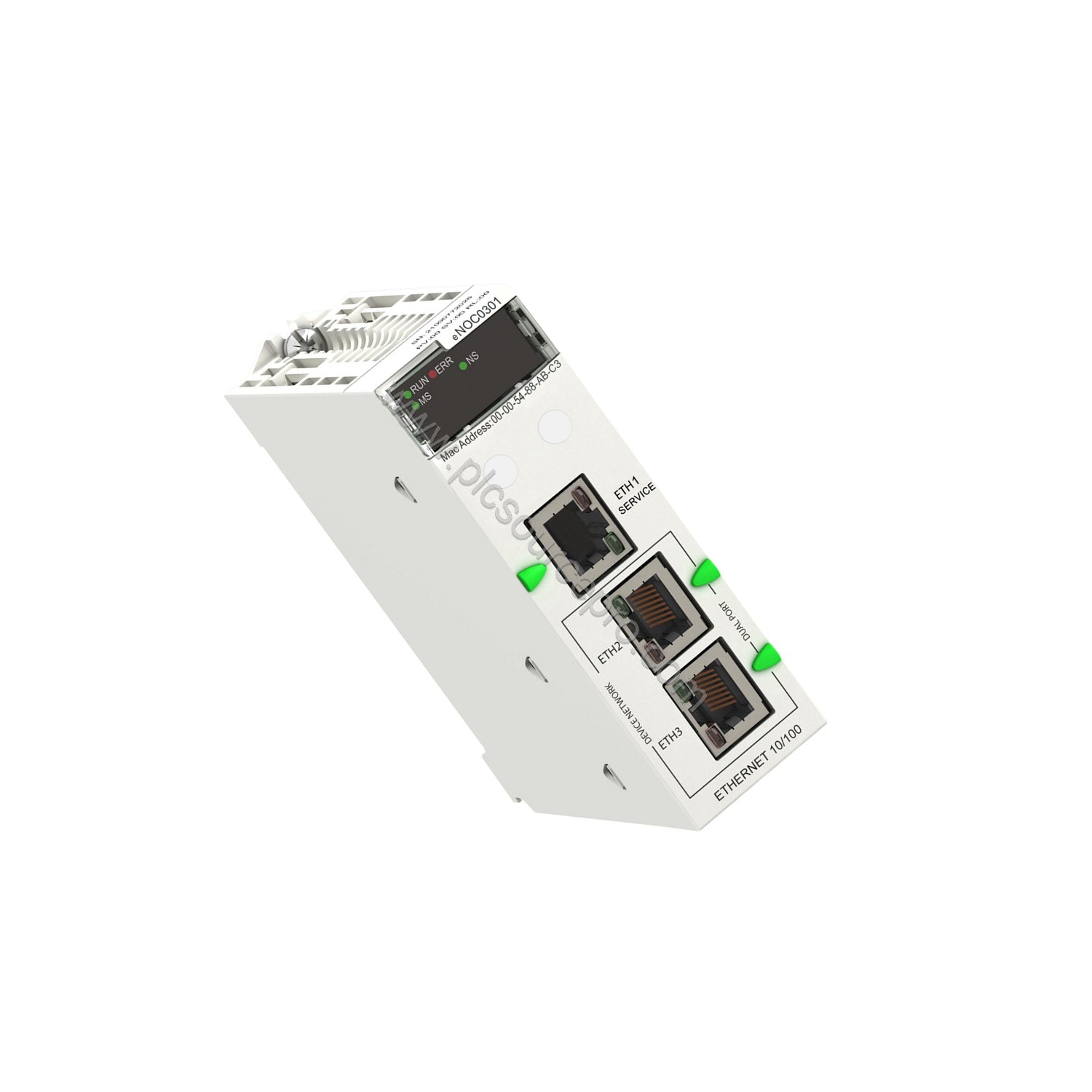

Upgrade Your Control Network with the Schneider BMENOC0301C
When expanding or modernizing an industrial control system, the network backbone plays a critical role in data throughput and reliability. The Schneider BMENOC0301C communication module offers a direct upgrade path for Modicon M580 platforms, replacing older Ethernet modules with advanced bandwidth management, integrated multiport switching, and dual‑protocol I/O scanning.
Part of the Modicon M580 family, this module provides a versatile Ethernet interface that supports both Modbus TCP and EtherNet/IP concurrently, allowing seamless integration with PLCs, drives, and HMI systems. Its embedded web server simplifies diagnostics, while the RSTP support ensures network redundancy for critical processes.
Key Specifications of the BMENOC0301C
| Parameter |
Value |
| Product Component Type |
Communication module |
| Range |
Modicon M580 |
| Compatibility |
BMEXBP… Ethernet + X‑bus rack |
| Integrated Connection |
3 x RJ45 10/100 Mbit/s, shielded twisted pair |
| Transmission Medium |
Ethernet backplane |
| Communication Services |
Bandwidth management, FDR server, SNMP, Modbus TCP I/O Scanner & Messaging, EtherNet/IP I/O Scanner & Messaging, RSTP, port mirroring, embedded multiport switch, web server (basic) |
| Current Consumption |
900 mA @ 3.3 V DC (product version ≥13); 1800 mA @ 3.3 V DC (version <13) |
| Dimensions (H×W×L) |
4.08 in (103.7 mm) × 1.3 in (32 mm) × 3.4 in (86 mm) |
| Net Weight |
0.4 lb (0.2 kg) |
| Operating Temperature |
32…140 °F (0…60 °C) |
| Protection |
IP20, conformal coating |
| Certifications |
CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22 |
| Standards |
EN/IEC 61131‑2, EN/IEC 61010‑2‑201, UL 61010‑2‑201, CSA C22.2 No 61010‑2‑201, IACS E10, EN/IEC 61000‑6‑5, EN/IEC 61850‑3, EN/IEC 60079‑0 |
| Environmental Resistance |
Gas Gx (ISA S71.04), 3C4, 3S4, salt level 2, mold 3B2, fungal 3B2, hazardous location Class I Division 2 |
Real-World Applications
-
Upgrading legacy Modicon networks – Replace older Ethernet modules with the BMENOC0301C to gain dual‑protocol I/O scanning and integrated bandwidth management, reducing network congestion during high‑speed production.
-
Distributed control systems (DCS) – Use the module’s RSTP support and port mirroring to create a resilient control ring for oil & gas or water treatment facilities, ensuring minimal downtime.
-
Machine builder integration – The embedded web server and SNMP allow OEMs to offer remote diagnostics and proactive maintenance alerts to their customers.
Integration with Modicon M580 Systems
The Schneider BMENOC0301C is designed specifically for Modicon M580 racks (BMEXBP…). It communicates over the Ethernet backplane, drawing power directly from the rack. Up to four such modules can be installed per rack, providing scalable Ethernet connectivity.
The module supports both Modbus TCP and EtherNet/IP I/O scanners and messaging, making it compatible with a wide range of third‑party devices – including drives, sensors, and remote I/O – without additional protocol converters. The embedded multiport switch eliminates the need for external switches in small topologies.
Selection Guide for the BMENOC0301C
Before purchasing, verify that your Modicon M580 rack backplane supports Ethernet. Confirm the required number of Ethernet ports and protocol support (Modbus TCP, EtherNet/IP, or both). The module’s current consumption differs by firmware version; ensure your power supply can deliver 900 mA or 1800 mA at 3.3 V DC as applicable. For bulk orders or technical questions, contact UBEST Automation (ubest101) for competitive pricing and lead times.
