Product Overview: The Schneider BMEH586040C Redundant Processor Module

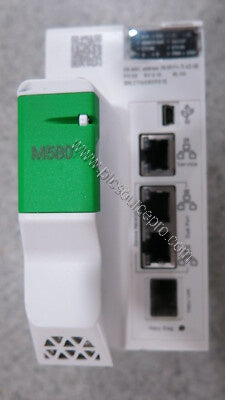

When process uptime is critical, the Schneider BMEH586040C provides a robust redundant processing core for Modicon M580 systems. This module ensures continuous operation even if one processor fails, making it ideal for mission-critical applications. Part of the Modicon M580 range, the Schneider BMEH586040C is a redundant processor module with conformal coating for harsh environments.
Technical Specifications Breakdown
| Parameter |
Value |
| Memory - Expandable flash |
4 GB for data storage |
| Memory - Integrated RAM |
10 kB system, 64 MB program/data, 4096 kB HSBY data |
| Current consumption |
365 mA at 24 V DC |
| MTBF reliability |
650,000 H |
| Operating temperature |
-25…60 °C |
| Vibration resistance |
3 gn |
| Shock resistance |
30 gn |
| IP degree of protection |
IP20 |
Installation & Setup Guidance
Mount the Schneider BMEH586040C onto a compatible Modicon M580 rack. The module receives internal power via the rack. Connect the Ethernet TCP/IP service port, device network ports, and HSBY port for redundancy. Use the USB mini B port for local programming. Verify rack capacity and ensure proper grounding for reliable operation.
Maintenance & Reliability
The conformal coating on the Schneider BMEH586040C protects against moisture and contaminants, extending service life in demanding environments. With an MTBF of 650,000 hours, this module minimizes unplanned downtime. Monitor the 15 status LEDs to quickly identify processor, I/O, network, or HSBY link faults. Periodic visual inspection of LED indicators is recommended.
Compatibility & Integration
The Schneider BMEH586040C integrates seamlessly with X80 and Quantum I/O drops, supporting up to 31 remote I/O stations and 64 distributed devices. It handles RIO and DIO scanner services, and works with up to 6 Ethernet communication modules or 16 AS-Interface modules. The module supports serial links, HART, and motion control.
Selection Guide & Purchasing Advice
Before purchasing, confirm that your system rack supports internal power supply and that the firmware is compatible with your existing Modicon M580 setup. For genuine Schneider BMEH586040C modules with verified quality, choose PLC Source PRO. Contact us at ubest101.myshopify.com for bulk orders or technical assistance.
