Product Overview

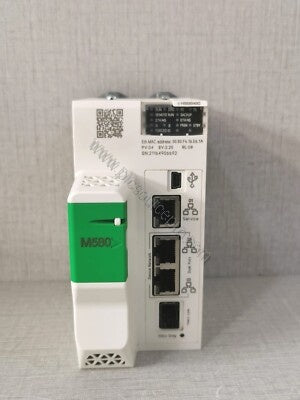

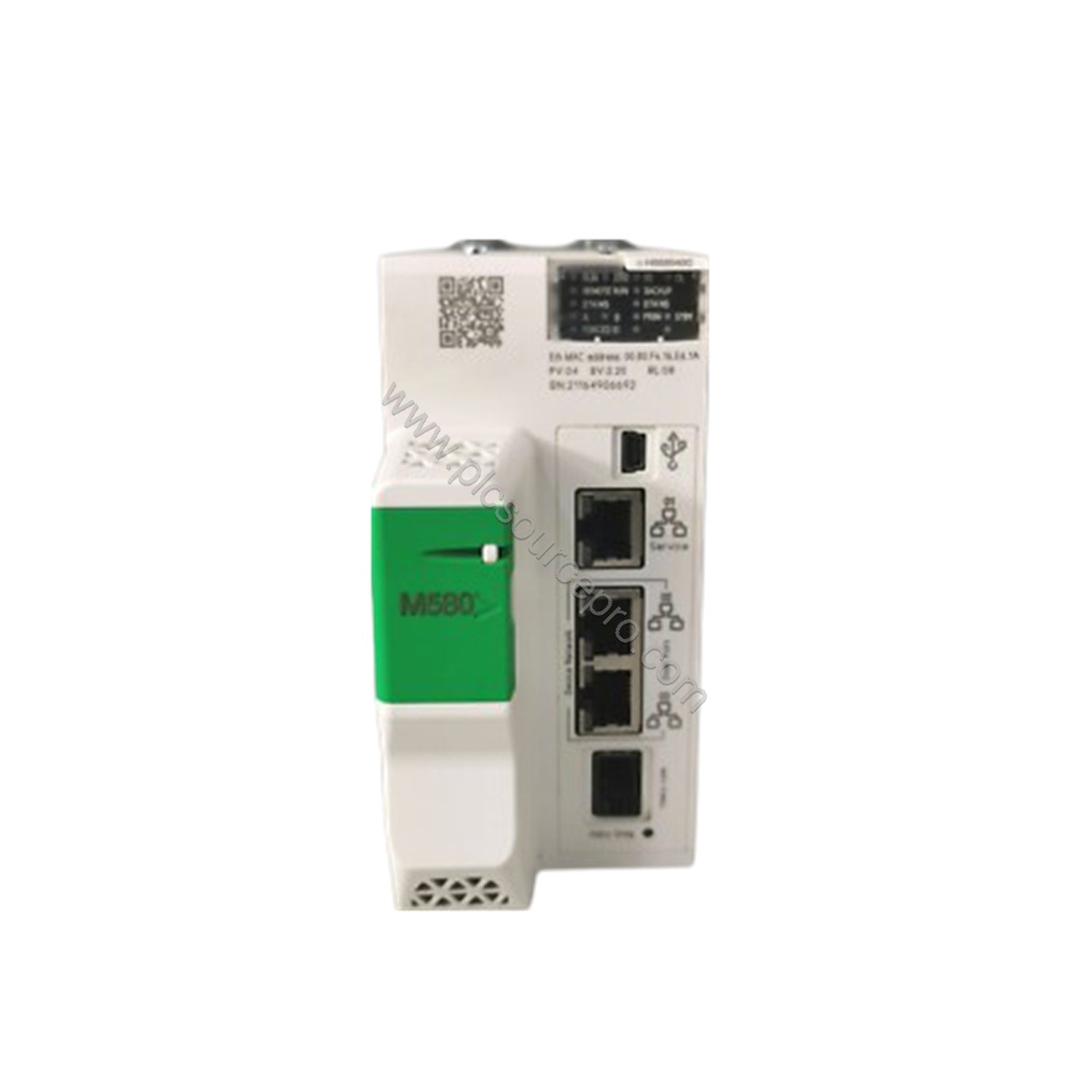

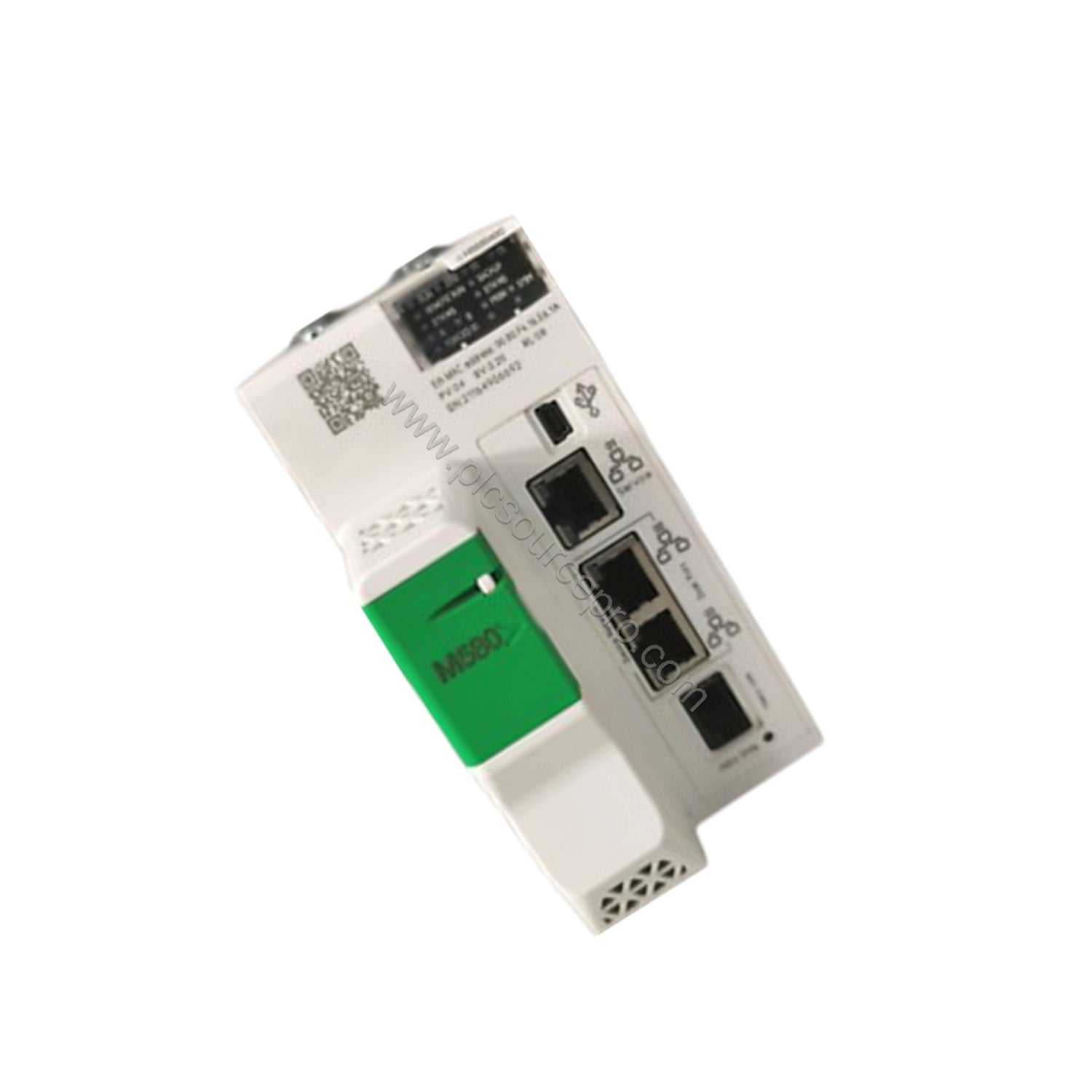

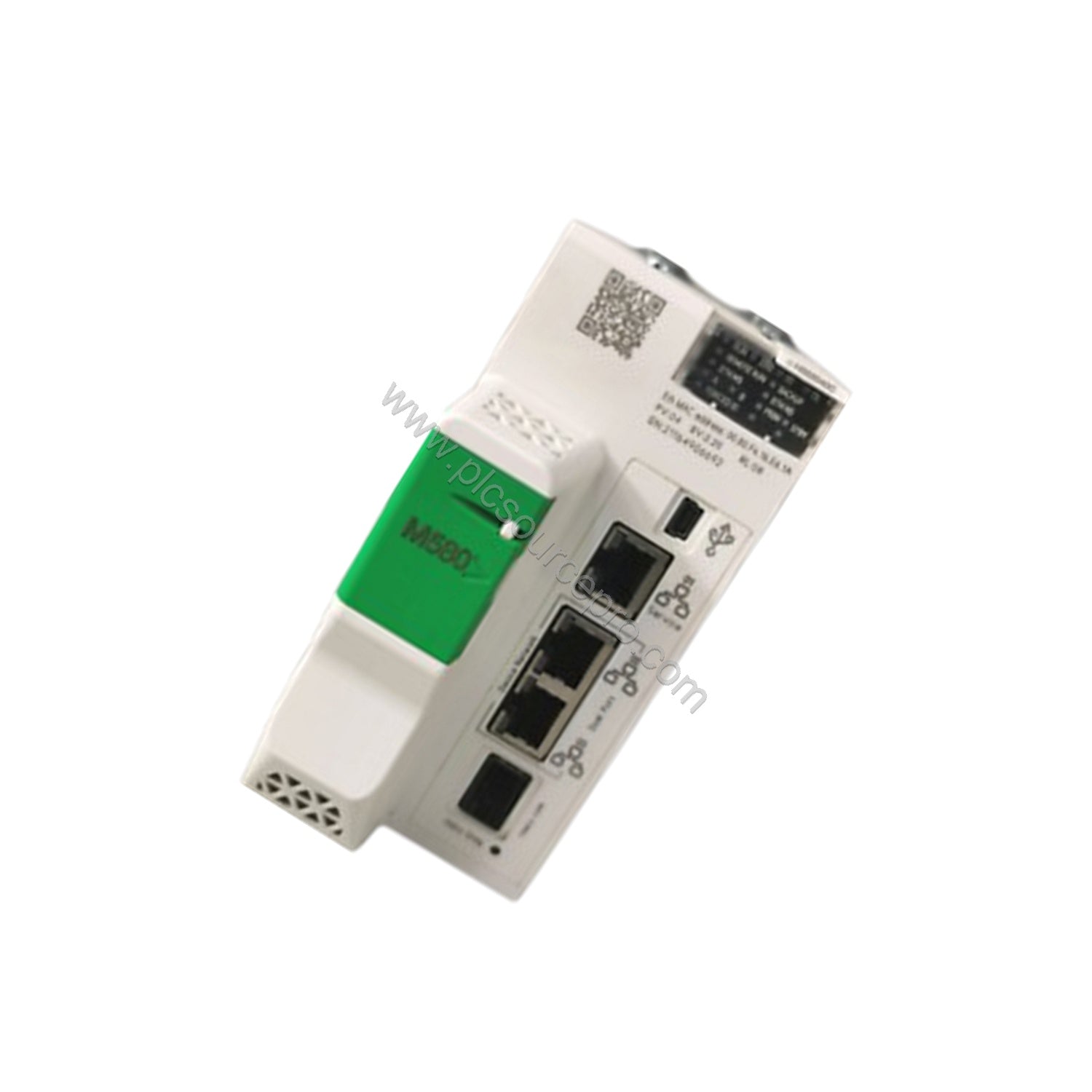

When system downtime in critical industrial processes costs thousands per minute, the Schneider BMEH582040C redundant processor module ensures uninterrupted operation. Part of the Modicon M580 family, this module is designed for high-availability control systems where continuous operation is paramount. Its conformal coating protects against moisture and corrosive gases, making it suitable for harsh environments. The BMEH582040C handles redundant processor configurations, automatically failing over to maintain process continuity.
Technical Specifications
The BMEH582040C delivers exceptional reliability with a mean time between failures (MTBF) of 650,000 hours, reducing unplanned downtime and maintenance costs. Key parameters include:
| Parameter |
Value |
| Product Type |
Redundant processor module |
| Range |
Modicon M580 |
| Memory |
8 MB program RAM, 768 kB data RAM, 4 GB flash storage |
| Current Consumption |
270 mA at 24 V DC |
| MTBF |
650,000 hours |
| Operating Temperature |
-25 to 60 °C |
| Vibration Resistance |
3 gn |
| Shock Resistance |
30 gn |
| Certifications |
CE, UL, CSA, ATEX Zone 2/22 |
These specifications ensure the BMEH582040C can withstand demanding conditions while providing stable control.
Real-World Applications
In process industries such as oil and gas, chemical, or water treatment, the BMEH582040C excels in redundant control architectures. It supports up to 8 remote I/O stations and 64 distributed devices, making it ideal for large-scale distributed control systems. The module also integrates HART, motion control, and accurate time stamping, enabling precise monitoring and control in applications requiring high reliability and low latency.
Compatibility & Integration
The Schneider BMEH582040C integrates seamlessly with Modicon M580 racks and communicates via Ethernet TCP/IP for device and service networks. It supports RIO and DIO scanner services, allowing connection to X80 remote drops and AS-Interface modules. The Hot Standby (HSBY) port enables redundant processor synchronization, ensuring failover without data loss.
Selection Guide & Purchasing Advice
When selecting the BMEH582040C, verify your rack configuration – the module fits in a single rack slot and requires an internal power supply via the rack. For a reliable source, consider UBEST Automation (ubest101). Ensure your system meets the ambient temperature and humidity specifications for optimal performance. The module's conformal coating makes it suitable for corrosive environments, but proper cabinet ventilation is still recommended.
