Product Introduction
When a processor failure can halt an entire production line, the Schneider BMEH582040C Redundant Processor Module ensures continuous operation. This Modicon M580 module features conformal coating and redundant architecture to withstand harsh environments and prevent downtime. With a high MTBF of 650,000 hours, it delivers exceptional reliability for critical industrial automation applications.
Technical Specifications
| Parameter |
Value |
| MTBF Reliability |
650,000 hours |
| Current Consumption |
270 mA at 24 V DC |
| Memory – Program RAM |
8 MB |
| Memory – Data RAM |
768 kB |
| Memory – System RAM |
10 kB |
| Expandable Flash Storage |
4 GB |
| Number of Remote I/O Stations |
8 (2 racks per X80 drop) |
| Distributed Equipment |
64 |
| Ethernet Ports |
1 service, 2 device, 1 HSBY |
| USB Port |
Mini B |
| Number of Instructions per ms |
30 Kinst/ms (65% Boolean + 35% fixed arithmetic) / 40 Kinst/ms (100% Boolean) |
| Vibration Resistance |
3 gn |
| Shock Resistance |
30 gn |
| Operating Temperature |
-25 to 60 °C |
| Storage Temperature |
-40 to 85 °C |
| IP Degree of Protection |
IP20 |
| Net Weight |
0.849 kg |
Industry Applications
The Schneider BMEH582040C is ideal for process control, motion control, and accurate time stamping. It supports HART, SSI encoder, and counter operations, making it suitable for oil and gas refineries, chemical plants, and water treatment facilities. The redundant configuration ensures zero downtime during maintenance or unexpected failures.
Compatibility & Integration
This module integrates seamlessly with Modicon M580 ecosystem. It supports up to 8 remote I/O stations via X80 drops and 64 distributed devices. Communication services include RIO and DIO scanners. It can work with up to 2 Ethernet communication modules and 16 AS-Interface modules. The HSBY port enables hot standby redundancy between two processors.
Maintenance & Reliability

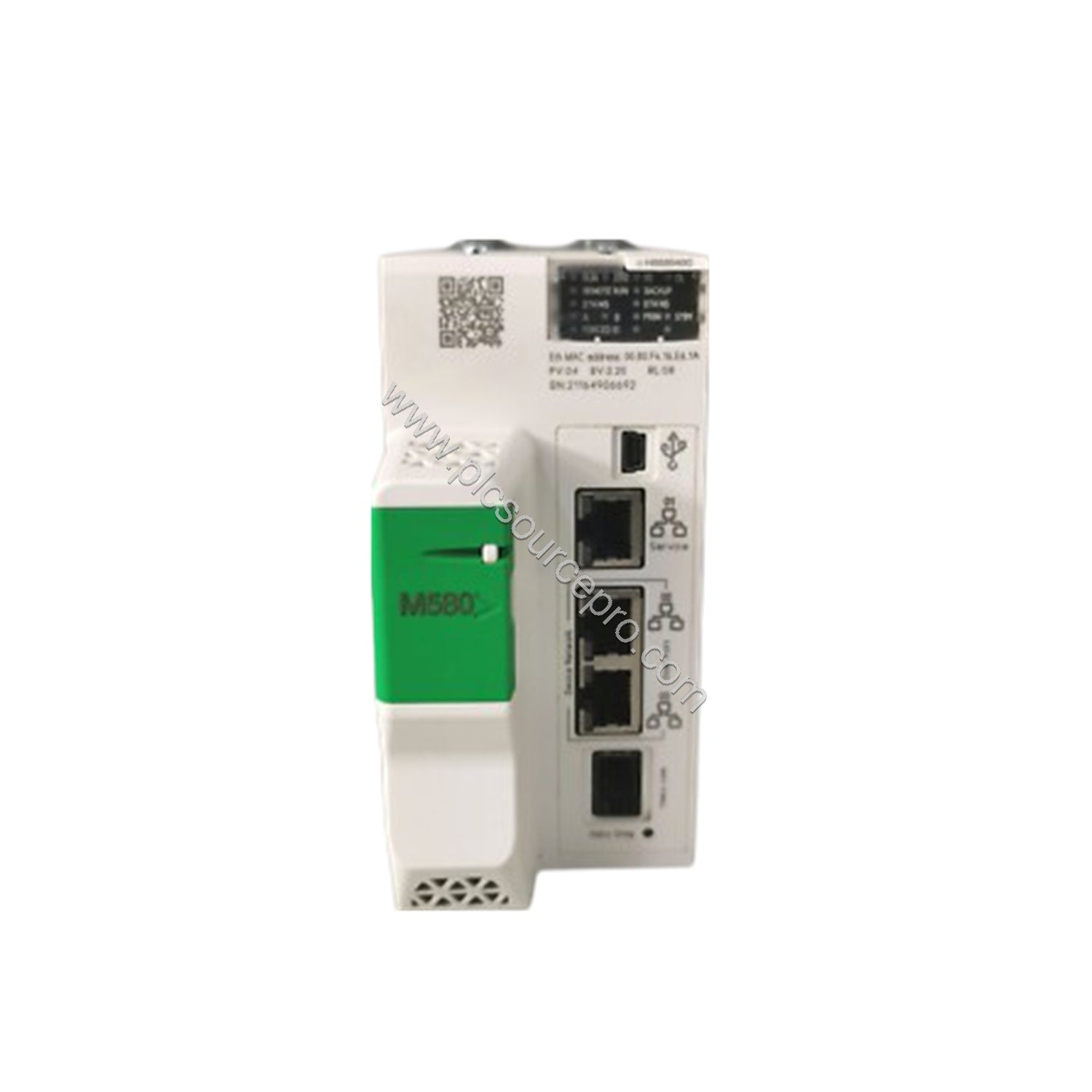

The conformal coating provides protection against moisture, dust, and gas (ISA S71.04 Gx, IEC 60721-3-3 3C4). With a high MTBF, the BMEH582040C reduces maintenance frequency. Regular inspection of the status LEDs (RUN, ERR, BACKUP, etc.) and ensuring proper power supply via rack will prolong service life. The module is designed for harsh environments with vibration and shock resistance.
Troubleshooting & Common Issues

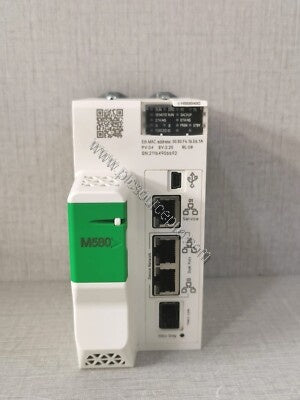

Use the front-panel LEDs for quick diagnostics: ERR indicates processor or system fault; I/O indicates I/O module fault; BACKUP indicates memory card or CPU flash fault. Ensure the primary and standby processors are correctly configured via the HSBY link. Confirm the internal power supply via rack is providing 24 V DC. For further assistance, the modular design allows easy replacement.
For purchasing genuine Schneider BMEH582040C modules, rely on PLC Source PRO (available at ubest101) for fast shipping and quality assurance.
