Product Introduction

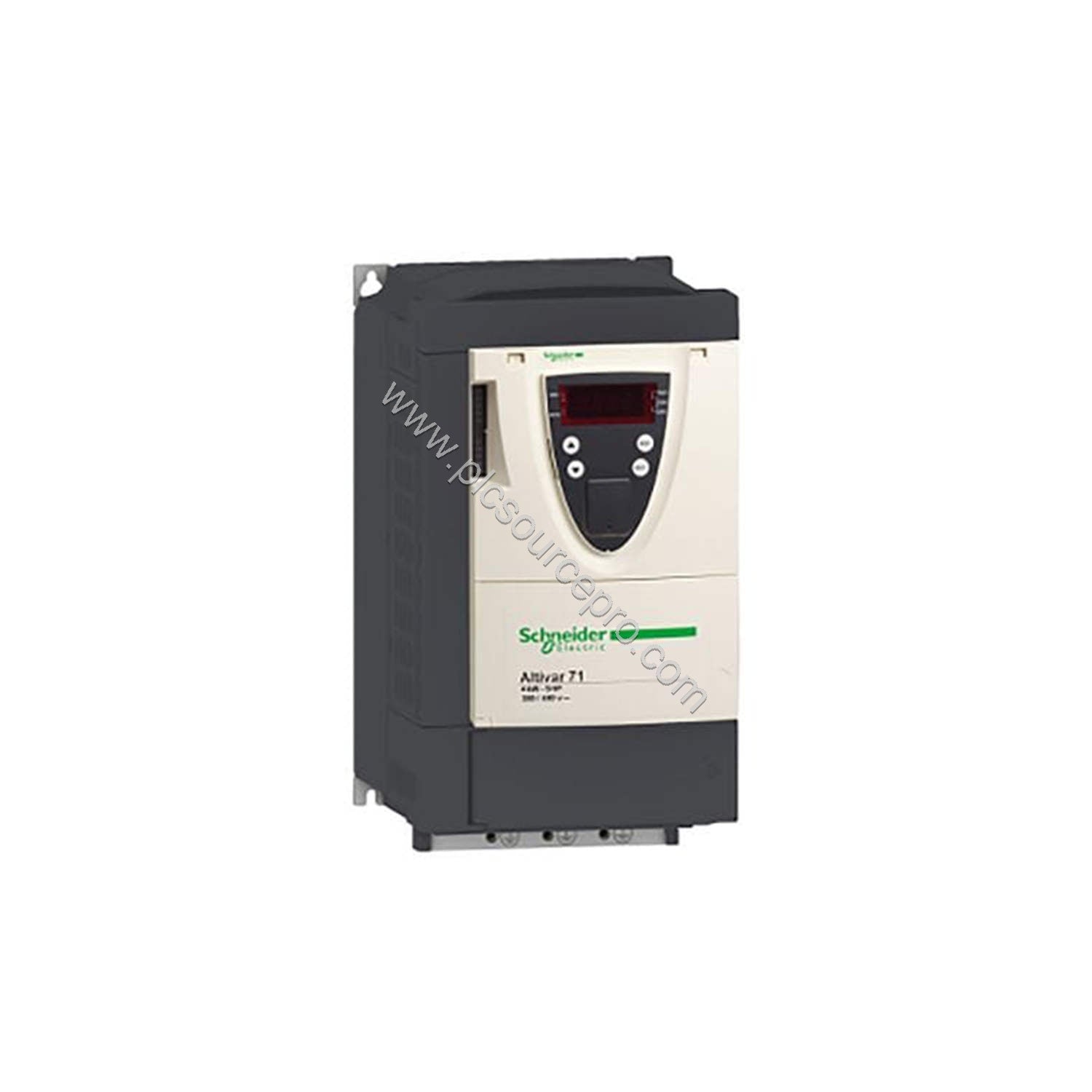

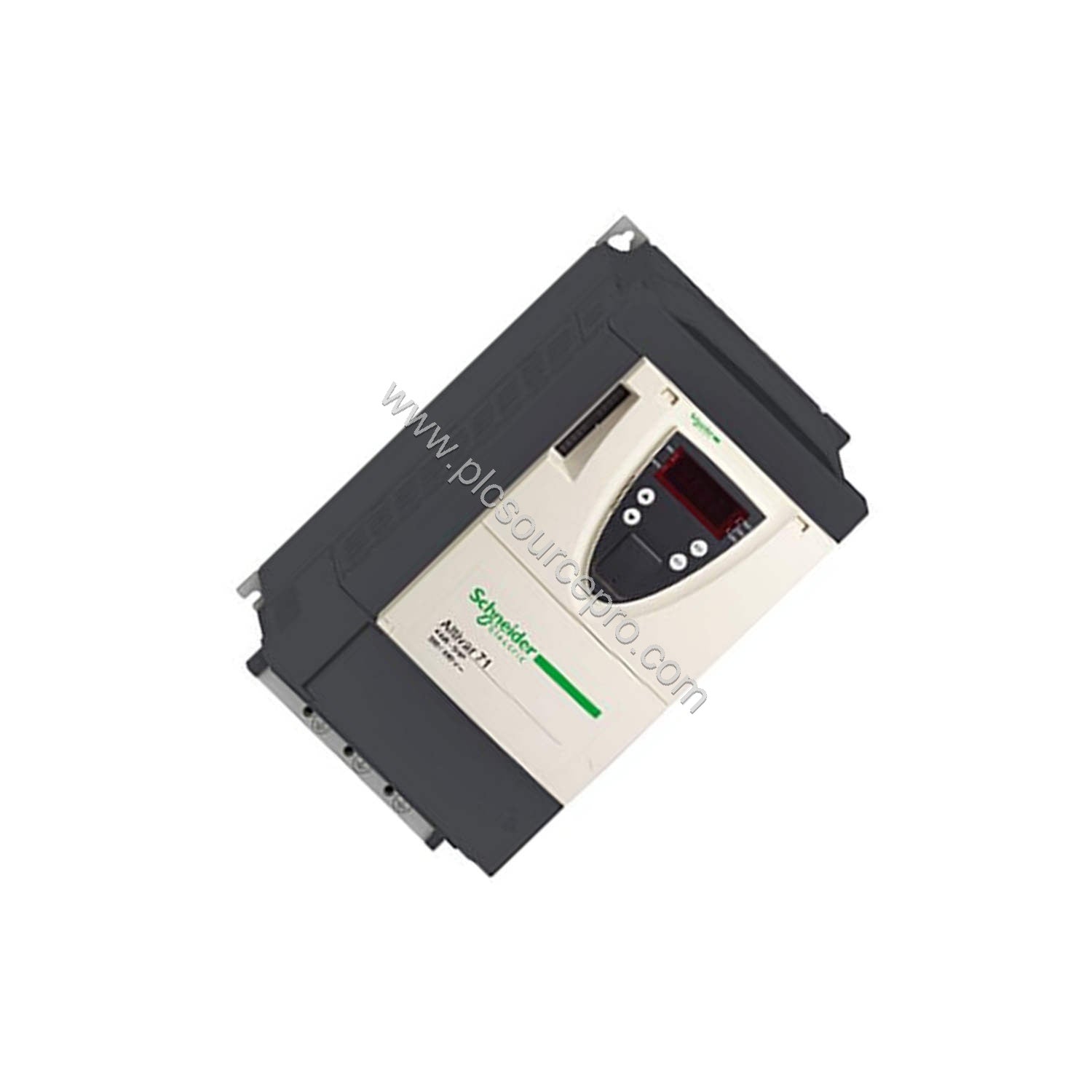

When critical motor applications demand precise speed control and robust protection, the Schneider ATV71HU75N4 variable speed drive delivers reliable performance. Part of the Altivar 71 series, this drive is engineered for complex, high-power machines requiring 7.5 kW (10 hp) output. It operates on a 480 V three-phase supply and supports both asynchronous and synchronous motors, ensuring versatility in demanding industrial environments.
Technical Specifications Breakdown
The Schneider ATV71HU75N4 offers a comprehensive set of specifications for demanding motor control tasks. Below are key parameters with practical implications:
-
Motor Power: 7.5 kW (10 hp) – suitable for medium-duty applications such as conveyors, pumps, and fans.
-
Power Supply Voltage: 380…480 V three-phase AC – compatible with standard industrial mains.
-
Maximum Cable Length: 50 m shielded / 100 m unshielded – allows flexible installation distances while maintaining signal integrity.
-
EMC Filter: Integrated – reduces electromagnetic interference, meeting EN 55011 Class A Group 2 emissions standards.
-
Control Types: Sensorless vector and flux vector – provides high torque accuracy and dynamic response for a wide range of loads.
-
Switching Frequency: Up to 16 kHz adjustable (with derating above 4 kHz) – enables quiet motor operation and refined performance tuning.
-
Enclosure Rating: IP20 – protects against solid objects larger than 12.5 mm, suitable for clean indoor environments.
-
Operating Temperature: -10°C to +50°C – ensures reliable operation in moderate industrial conditions.
Failure Mode Analysis – Built‑in Protection Against Common Issues
Variable speed drives often face challenges such as overvoltage, overheating, phase loss, and short circuits. The Schneider ATV71HU75N4 addresses these with multiple integrated protection features, minimizing downtime and repair costs. Key protective functions include:
- Overcurrent between output phases and earth
- Line supply overvoltage and undervoltage
- Input phase loss and phase breaks
- Overheating and thermal protection for both drive and motor
- Short-circuit between motor phases
- DC bus overvoltage
These safeguards ensure the drive operates reliably even under adverse conditions, reducing the risk of catastrophic failure and extending equipment life.
Compatibility & Integration

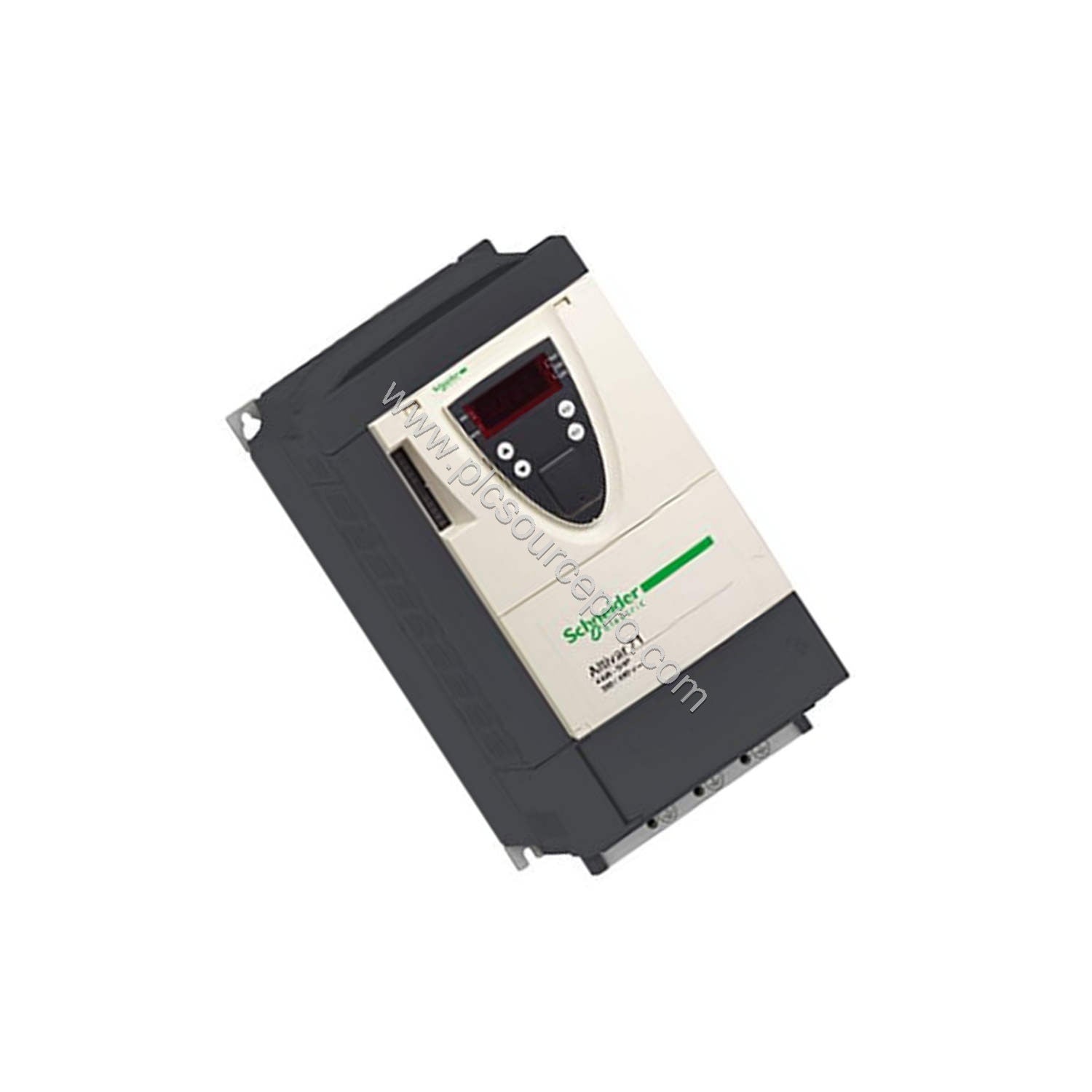

The Schneider ATV71HU75N4 integrates easily into existing automation networks. It supports native Modbus and CANopen communication protocols via dual RJ45 connectors on the front face and terminal, plus a SUB-D 9 connector for CANopen. This enables direct connectivity with PLCs, HMIs, and SCADA systems without additional gateways. For advanced fieldbus requirements, optional communication cards (DeviceNet, EtherNet/IP, Profibus DP, etc.) can be added, making the drive adaptable to diverse industrial architectures.
Maintenance & Reliability
Routine maintenance for the Schneider ATV71HU75N4 is straightforward. The integrated graphic terminal provides real‑time monitoring of drive status, fault logs, and motor parameters, reducing diagnostic time. Environmental considerations include operation within -10°C to +50°C and altitude up to 1000 m without derating (with current derating above 1000 m). The IP20 enclosure and pollution degree 2 rating ensure durability in typical control cabinets. Periodic inspection of fan filters and tightening of power terminals (recommended torque 3 Nm for main power connections) helps maintain long‑term reliability.
Selection Guide & Purchasing Advice
Before purchasing a Schneider ATV71HU75N4, verify your motor power (up to 7.5 kW) and supply voltage (380…480 V three‑phase). Ensure adequate space for the drive’s dimensions: 11.6 in (295 mm) height, 7.4 in (187 mm) depth, 6.9 in (175 mm) width. For shielded cable runs longer than 50 m, consider using output reactors or shorter distances. At PLC Source PRO, we offer genuine Schneider ATV71HU75N4 units with fast shipping and technical support. Contact us for configuration assistance or optional accessory cards.
