Product Overview

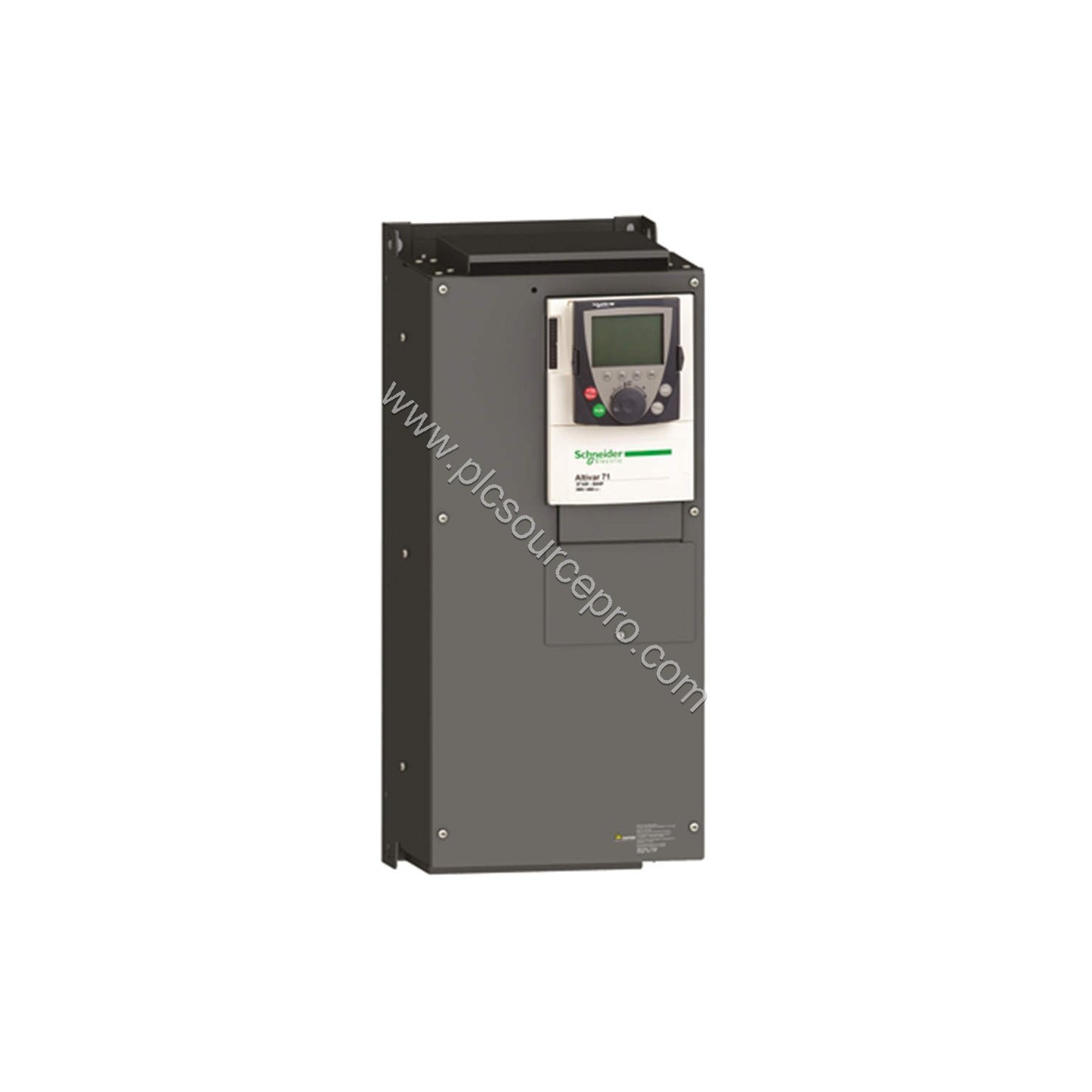

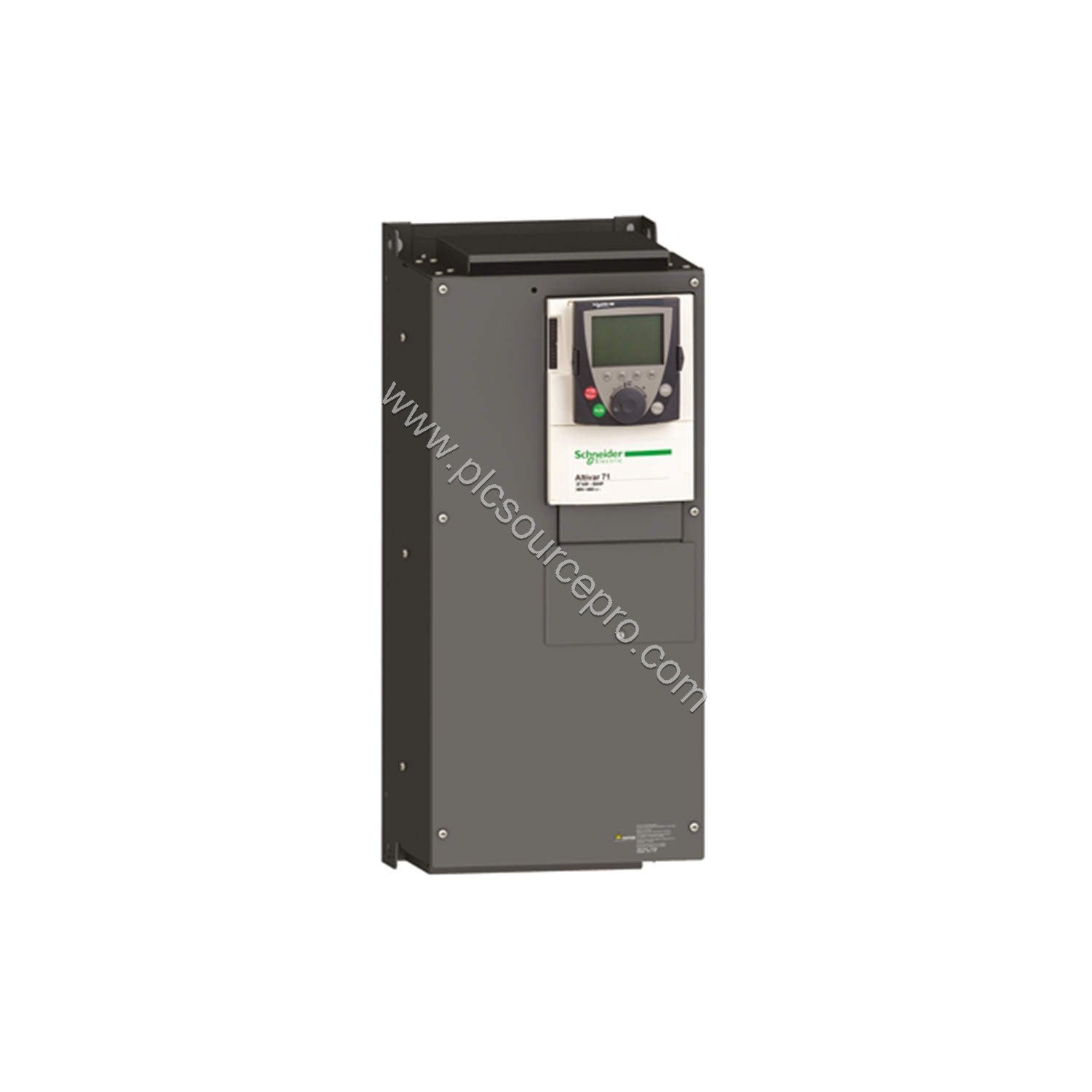

The Schneider ATV71HD45N4 from the Altivar 71 series is a robust variable-speed drive designed for 3-phase motor control. Rated at 45 kW (60 HP), this drive delivers efficient performance across a wide range of industrial applications. Its operating temperature range of -10 to 50 °C ensures reliable operation in challenging environments.
Technical Specifications
The Schneider ATV71HD45N4 comes with an extensive set of technical parameters that make it a versatile solution for motor speed control:
-
Input Voltage: 380–480 V AC (-15% / +10%)
-
Phase: 3-phase
-
Frequency Range: 0.1–500 Hz
-
Motor Power: 45 kW (60 HP)
-
Current Range: 84–104 A
-
Nominal Switching Frequency: 2.5 kHz (standard)
-
IP Rating: IP20
-
Assembly Style: With heat sink
-
EMC Filter: Integrated
-
Weight: 45.36 kg (100 lbs)
These specs ensure that the Schneider ATV71HD45N4 handles substantial loads with high reliability and minimal electromagnetic interference.
Industry Applications
Designed for both synchronous and asynchronous motors, the Schneider ATV71HD45N4 excels in applications requiring precise speed control and energy efficiency. Common use cases include conveyors, pumps, fans, and compressors in manufacturing, water treatment, and material handling. The integrated EMC filter reduces electrical noise, making it suitable for sensitive environments.
Compatibility & Integration
The drive supports Modbus and CANopen communication protocols via RJ45 and SUB-D connectors. This allows seamless integration with industrial networks and PLC systems. The Schneider ATV71HD45N4 can be paired with optional communication cards for DeviceNet, EtherNet/IP, Profibus DP, and more, ensuring flexibility in diverse automation architectures.
Selection Guide & Purchasing Advice
Before purchasing the Schneider ATV71HD45N4, verify your motor specifications and cable lengths. For optimal performance, use shielded cable up to 100 m or unshielded up to 200 m. PLC Source PRO offers this drive with fast shipping and genuine parts. For inquiries, visit ubest101 or contact our team for assistance with your specific application.
