Product Overview

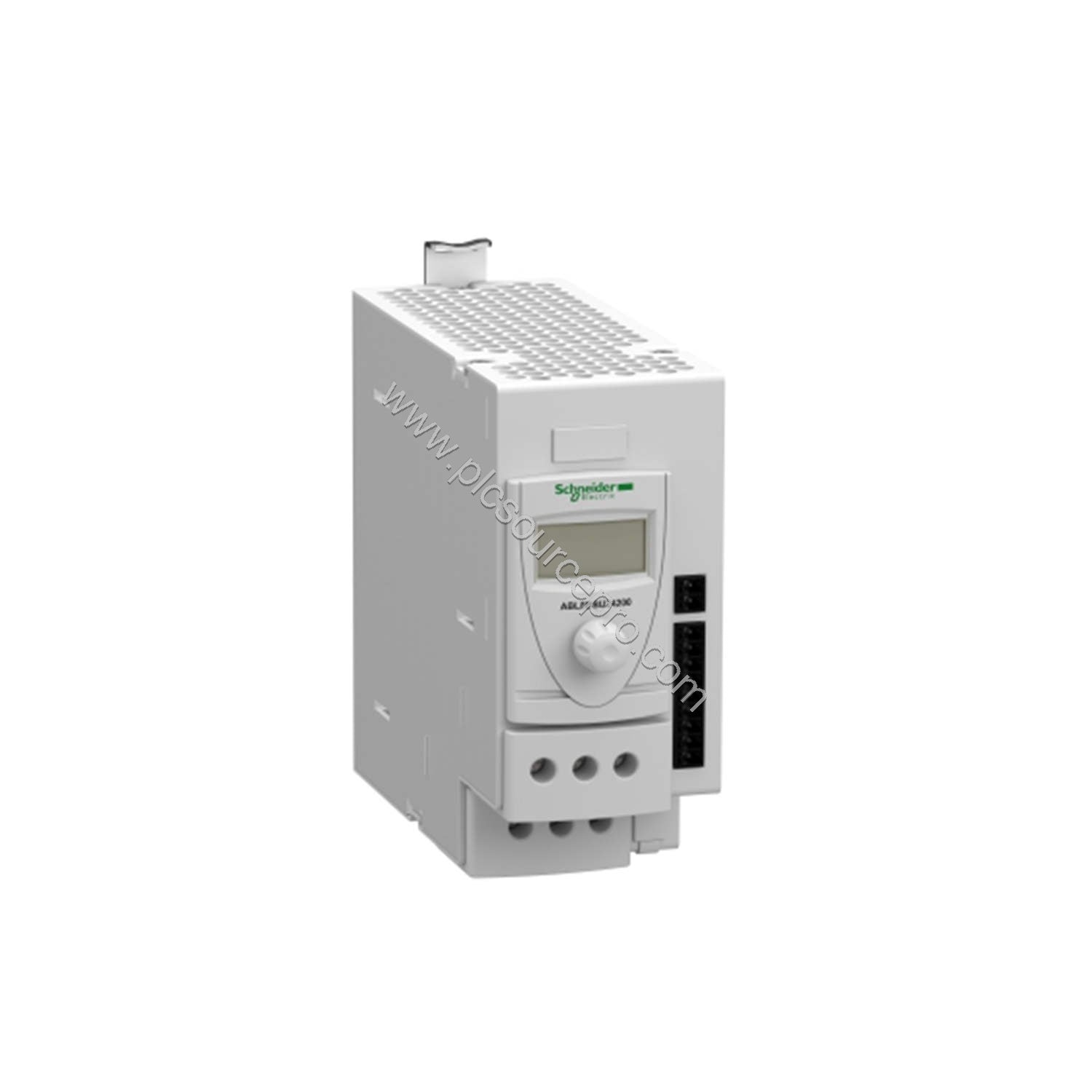

When system reliability is critical, the Schneider ABL8RPS24100 universal power supply delivers stable, regulated 24 V DC output from a wide AC input range. Part of the Modicon Power Supply family, this module ensures consistent operation in demanding industrial environments.
Technical Specifications
The Schneider ABL8RPS24100 offers key performance metrics:
- Power Rating: 240 W
- Output Voltage: 24 V DC, adjustable 24...28.8 V
- Output Current: 10 A
- Efficiency: 87%
- Input Voltage: 100...120 V AC single phase or 200...500 V AC phase to phase
- Power Dissipation: 31 W
Additional protection features include overload, overvoltage (30...32 V), short-circuit, and undervoltage (tripping below 21.6 V) with manual or automatic reset.
Industry Applications
The Schneider ABL8RPS24100 is suitable for control cabinets, PLC systems, and automation cells. Its wide input range makes it ideal for global installations. Use it to power sensors, actuators, and control logic in manufacturing lines.
Installation Guide
Mount the ABL8RPS24100 vertically on a 35 mm DIN rail. Use removable screw terminals for input/output connections. Ensure proper grounding: input ground terminal uses screw type terminals for 1 x 0.5...1 x 4 mm² wire. The unit operates at -25...50 °C without derating, or up to 60 °C with derating.
Maintenance & Reliability
The regulated switch mode design provides high efficiency (87%) reducing heat dissipation. Regular inspection of LED status indicators (green/red for voltage, green/red/orange for current) helps detect issues early. The IP20 enclosure protects against dust and accidental contact.
Selection Guide
Before purchasing the Schneider ABL8RPS24100, verify your input voltage range and required output current. This module supports parallel and series output coupling for flexibility. For reliable sourcing, contact PLC Source PRO (ubest101) for genuine Schneider parts.
