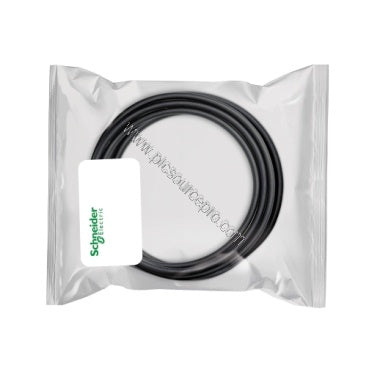

Product Overview: Schneider ABFM32H300 Modicon Quantum Cabled Connector
Part of the Modicon Quantum series, the Schneider ABFM32H300 is a 32-channel cabled connector designed for reliable relay I/O signaling in industrial automation systems. This connector replaces older cabling solutions with a robust, shielded design that ensures signal integrity over a 9.8 ft (3 m) length. The Schneider ABFM32H300 is essential for upgrading or maintaining Modicon Quantum PLC setups.
Technical Specifications of ABFM32H300
| Specification |
Value |
| Manufacturer |
Schneider Electric (ABFM32H300) |
| Product Type |
Cabled connector |
| Product Line |
Modicon Quantum |
| Number of Channels |
32 |
| Cable Length |
9.8 ft (3 m) |
| Signal Type |
Relay I/O |
| Electrical Connection |
2 connectors |
| AWG Gauge |
AWG 22 |
| Connector Type |
HE10 |
| Wire Section |
0.324 mm² |
| Number of Ways |
20 ways |
| Operating Temperature Range |
–20 °C to +60 °C |
| Channel Splitting |
2 x 16 |
| Cable Construction |
Multi-conductor shielded cable |
| Current Rating |
2A |
| Voltage Rating |
250 V |
| Net Weight |
1.15 kg (2.54 lb) |
Industry Applications and Upgrade Benefits
In manufacturing lines, the Schneider ABFM32H300 provides reliable connection for relay outputs from a Modicon Quantum PLC to actuators and indicators. For process control environments, its shielded cable reduces electromagnetic interference, making it ideal for noisy surroundings. Upgrading to the Schneider ABFM32H300 ensures backward compatibility while improving signal reliability and reducing downtime.
Installation and Setup Guidance
Installing the Schneider ABFM32H300 is straightforward. Connect the HE10 connector to the corresponding module port on the Modicon Quantum PLC. Use AWG 22 wire for the relay connections, ensuring proper termination in the 20-way connectors. The cable length of 9.8 ft allows flexibility in cabinet layouts. Secure the cable to avoid strain on the connector and maintain signal integrity.
Selection Guide and Purchasing Advice
When ordering the Schneider ABFM32H300, verify compatibility with your specific Modicon Quantum CPU model. This connector supports 32 channels with 2 x 16 splitting for efficient wiring. For bulk orders, consider packaging options: single unit or multi-packs. At PLC Source PRO, we stock genuine Schneider ABFM32H300 units ready for immediate shipment. Contact us via ubest101.myshopify.com for orders and ensure you have the correct part number before purchase.
