Product Overview

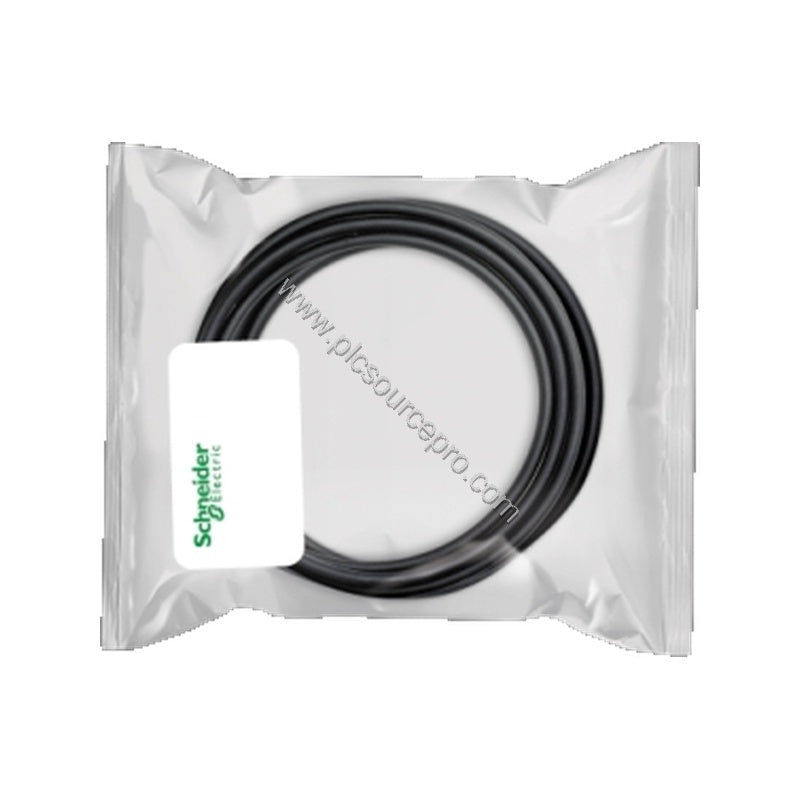

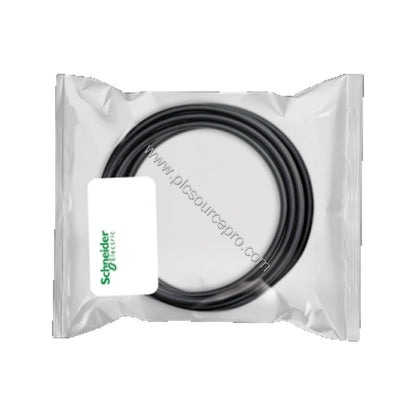

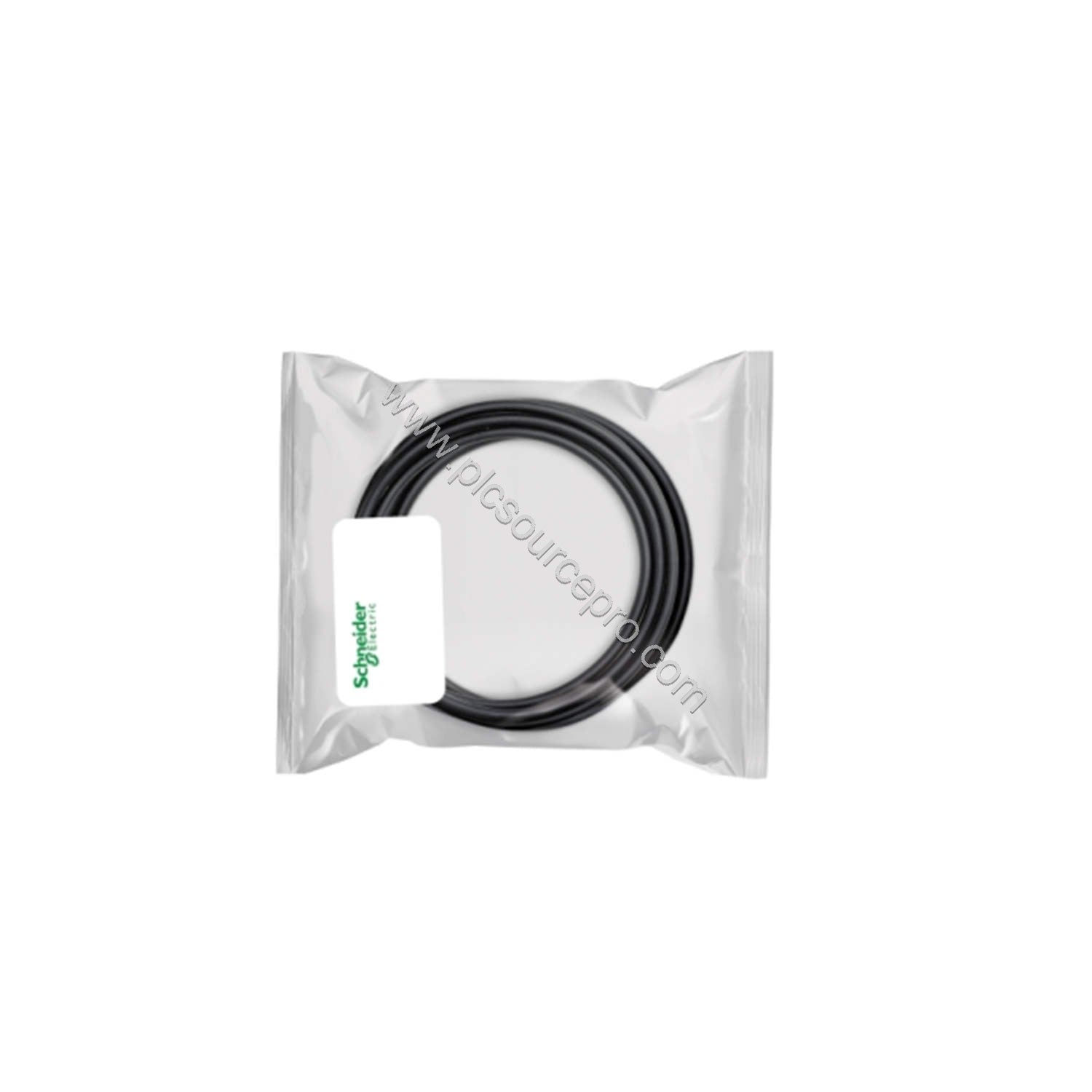

The Schneider ABFM16S201 is a cabled connector from the Modicon Quantum series, designed for reliable analog input transmission in industrial automation systems. This module ensures efficient signal transfer with 16 channels and two connectors, supporting robust electrical connectivity across various operating conditions.
Technical Specifications
| Specification |
Value |
| Manufacturer |
Schneider Electric |
| Part Number |
ABFM16S201 |
| Product Line |
Modicon Quantum |
| Number of Channels |
16 |
| Cable Length |
6.6 ft (2 m) |
| Signal Type |
Analog Input |
| Connector Type |
SUB-D, 25 ways |
| Electrical Connection |
2 connectors |
| Wire Section |
0.22 mm² (AWG 24) |
| Current Rating |
1 A |
| Voltage Rating |
250 V |
| Operating Temperature Range |
–20 °C to +60 °C |
| Insulation Material |
PVC |
| Cable Construction |
Multi-conductor shielded cable |
| Net Weight |
0.62 kg (1.37 lb) |
Application Scenarios
The ABFM16S201 excels in environments requiring precise analog signal acquisition. Use it for temperature monitoring, pressure sensing, or level measurement in process control. With its shielded construction, it minimizes electromagnetic interference, making it ideal for noisy industrial settings. Install it as a replacement for outdated Quantum system connectors or upgrade existing installations to benefit from reliable 1A current handling.
Compatibility & Integration
Designed for the Modicon Quantum PLC family, the ABFM16S201 works seamlessly with compatible modules such as the 140ACI04000. Its 25-way SUB-D connectors ensure straightforward integration into existing backplane connections. For upgrades, verify that your Quantum rack supports the 16-channel configuration.
Selection Guide & Purchasing Advice
Before purchasing, confirm that your system requires a cabled connector for analog inputs. The ABFM16S201 is a direct replacement for many Quantum accessories. For bulk orders or technical questions, contact ubest101 for competitive pricing and stock availability. Ensure your order includes the correct part number ABFM16S201.
Troubleshooting & Common Issues
If signal integrity issues arise, check the SUB-D connector pins for damage or corrosion. Verify that the cable is not excessively bent or stressed, as this can degrade the shield. The PVC insulation withstands temperatures up to +60 °C, but exposure beyond that may cause degradation. For noise problems, ensure proper grounding of the shielded cable.
