Introduction

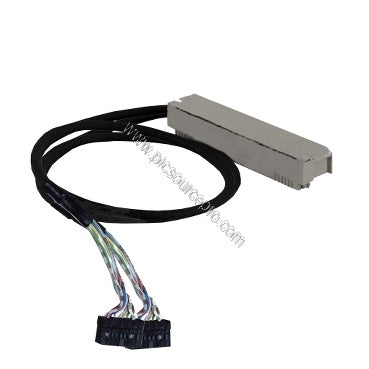

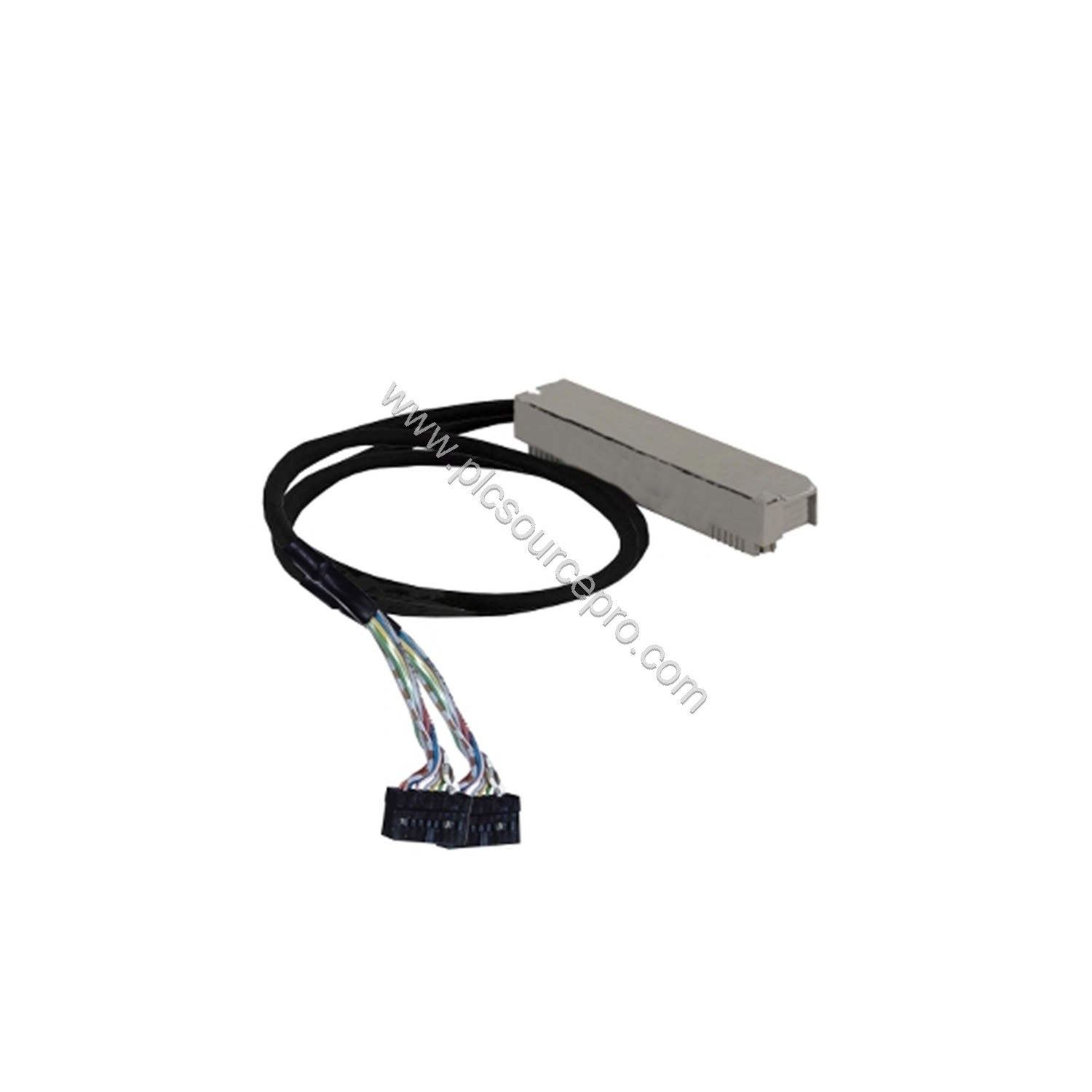

When signal interference or connector fatigue disrupts your Modicon Quantum PLC system, the Schneider ABFM16H301 cabled connector provides a robust solution. This 16-channel digital relay output connector ensures reliable signal transfer in demanding industrial environments. Part of the Modicon Quantum series, the Schneider ABFM16H301 features two HE10 connectors and a shielded 3-meter cable to minimize noise and maintain signal integrity.
Technical Specifications
The following table details the key parameters of the Schneider ABFM16H301:
| Parameter |
Value |
| Manufacturer |
Schneider Electric |
| Product Type |
Cabled Connector |
| Product Line |
Modicon Quantum |
| Part Number |
ABFM16H301 |
| Number of Channels |
16 |
| Signal Type |
Digital relay output signals |
| Cable Length |
9.8 ft (3 m) |
| Connector Type |
HE10 |
| Number of Connectors |
2 |
| AWG Gauge |
AWG 22 |
| Wire Section |
0.324 mm² |
| Number of Ways |
20 |
| Channel Splitting |
2 x 8 |
| Current Rating |
0.5 A |
| Voltage Rating |
250 V |
| Operating Temperature Range |
–20 °C to +60 °C |
| Cable Construction |
Multi-conductor shielded cable |
| Weight |
2.2 lb (1 kg) |
Application Cases
The Schneider ABFM16H301 excels in controlling discrete actuators such as solenoids, relays, and indicator lights in Modicon Quantum PLC systems. In a manufacturing line, it reliably handles digital relay outputs for sorting mechanisms and conveyor controls. Its shielded cable prevents electromagnetic interference, making it ideal for electrically noisy environments like motor control centers. The 16-channel split into two groups of eight allows flexible wiring for clustered outputs.
Maintenance & Reliability
Environmental stress is a common failure mode for cabled connectors. The Schneider ABFM16H301 operates reliably from –20 °C to +60 °C, reducing thermal fatigue. The multi-conductor shielded cable resists mechanical wear and signal degradation. Periodic inspection of the HE10 connectors for dust or corrosion and verifying the cable integrity every 6 months extends service life. The 0.5 A current rating ensures safe operation for low-power digital outputs, preventing overheating.
Selection Guide & Purchasing Advice
Before ordering, confirm your Modicon Quantum PLC base unit (e.g., 984A120 Compact) and verify that you need 16 digital relay output channels. The Schneider ABFM16H301 is a drop-in connector – no special tools required. For genuine Schneider parts, consider sourcing from PLC Source PRO (formerly ubest101) to ensure authenticity and support.
