Product Introduction

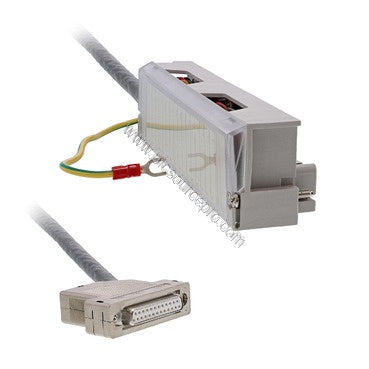

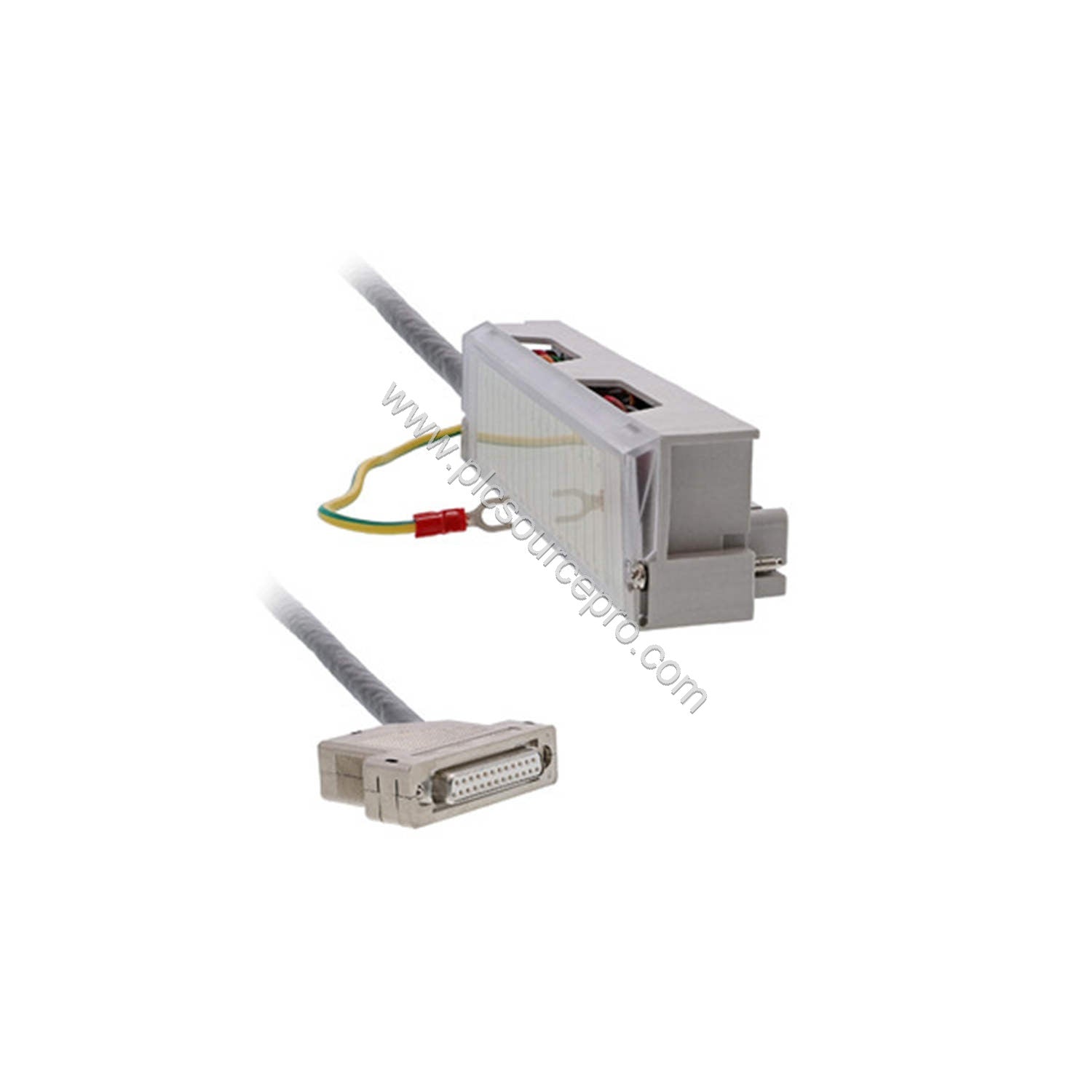

When upgrading or replacing connection accessories in a Modicon Quantum PLC system, the Schneider ABFM08S201 cabled connector provides a robust solution. Part of the Modicon Quantum range, this connector is specifically designed for analogue input applications and supports up to 8 channels for efficient data transmission.
Technical Specifications
The Schneider ABFM08S201 offers precise electrical and mechanical parameters to ensure reliable performance. Key specifications include:
- Number of Channels: 8
- Cable Length: 2 m (6.6 ft)
- Signal Type: Analogue input
- Connector Type: SUB-D, 25 ways
- AWG Gauge: 24
- Wire Section: 0.22 mm² (0.0003 in²)
- Current Rating: 1 A
- Voltage Rating: 250 V
- Operating Temperature Range: -20 °C to +60 °C
- Insulation Material: PVC
- Cable Construction: Multi-conductor, ribbon
- Net Weight: 0.6 kg (1.3 lb)
Industry Applications
Ideal for retrofitting older wiring assemblies in industrial automation, the Schneider ABFM08S201 integrates seamlessly with compatible input modules. Use it to upgrade analogue input connections on 140AVI03000 and 140ACI03000 modules. The 2-meter cable length offers flexibility in cabinet layout.
Installation & Setup Guidance
To install the Schneider ABFM08S201, simply connect the 25-way SUB-D connector to the mating port on your Modicon Quantum analogue input module. Ensure the cable is routed away from high-voltage sources to maintain signal integrity. The ribbon cable construction allows easy bending within the enclosure.
Compatibility & Integration
This cabled connector is specifically designed for Modicon Quantum PLC systems. It is compatible with analogue input modules such as 140AVI03000 and 140ACI03000. Verify module compatibility before purchasing to ensure a proper fit.
Selection Guide & Purchasing Advice
When selecting a replacement connector for your Quantum system, verify the channel count and signal type. The Schneider ABFM08S201 is a proven replacement for worn or damaged cables. For genuine Schneider parts, trust ubest101 as a reliable industrial automation supplier.
