Product Overview

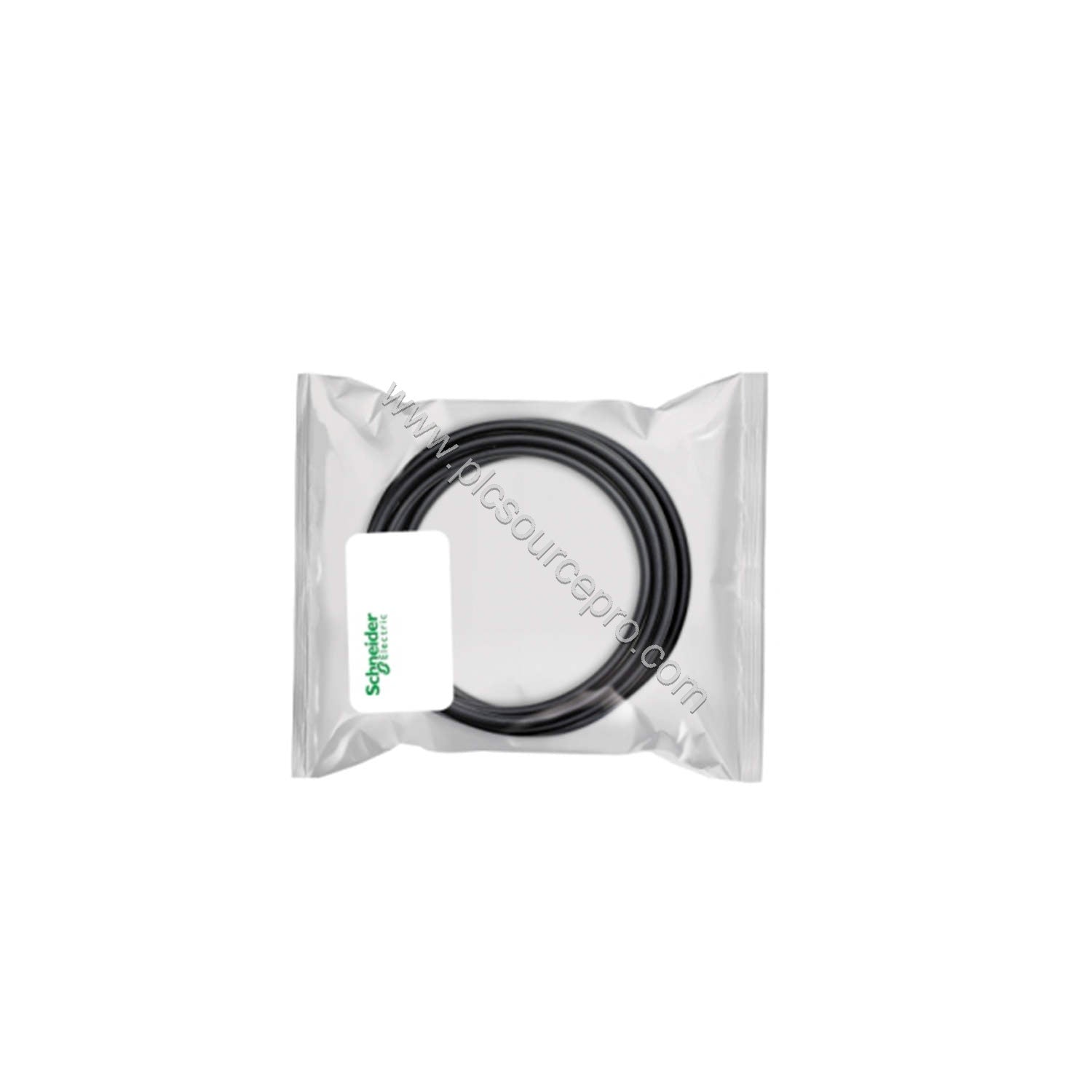

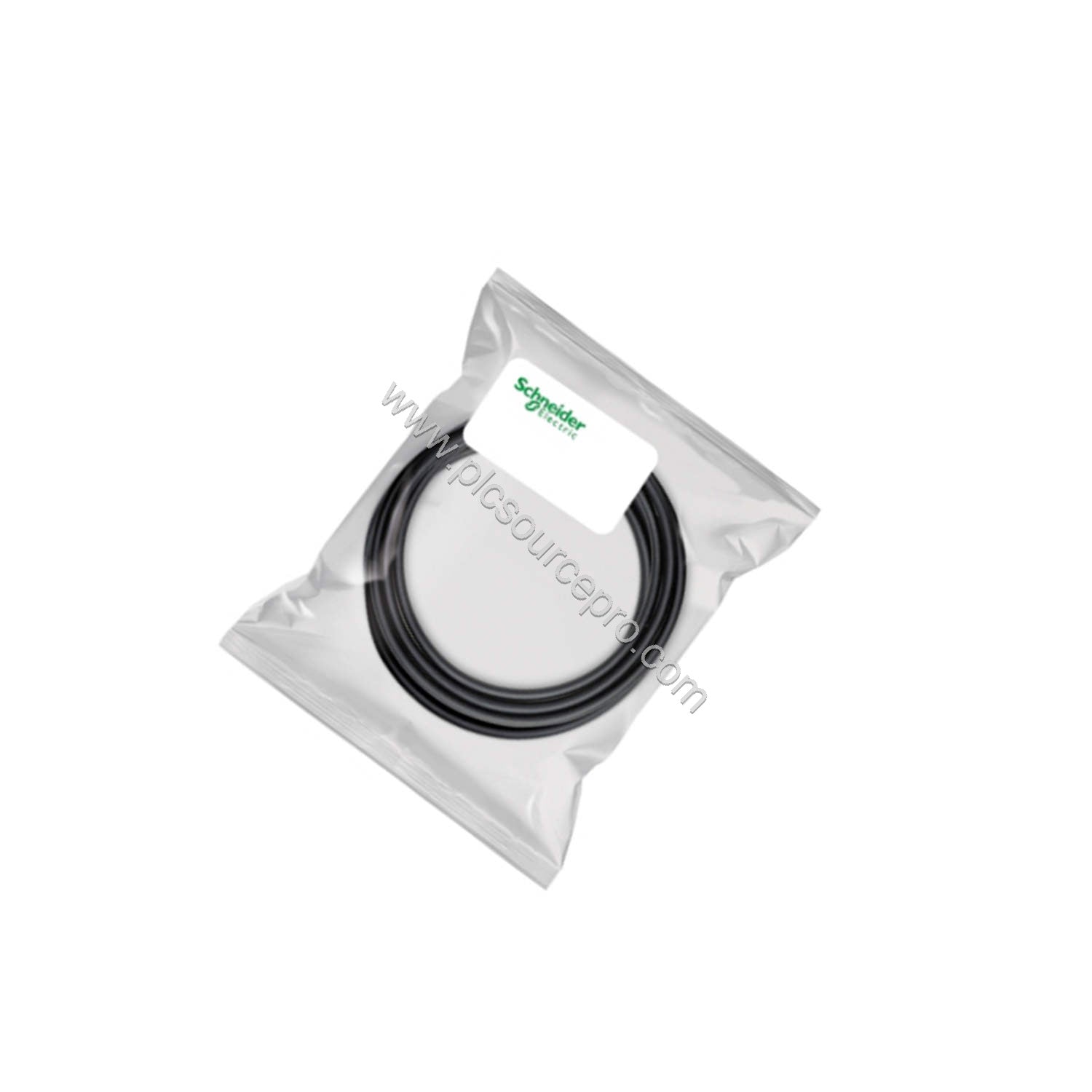

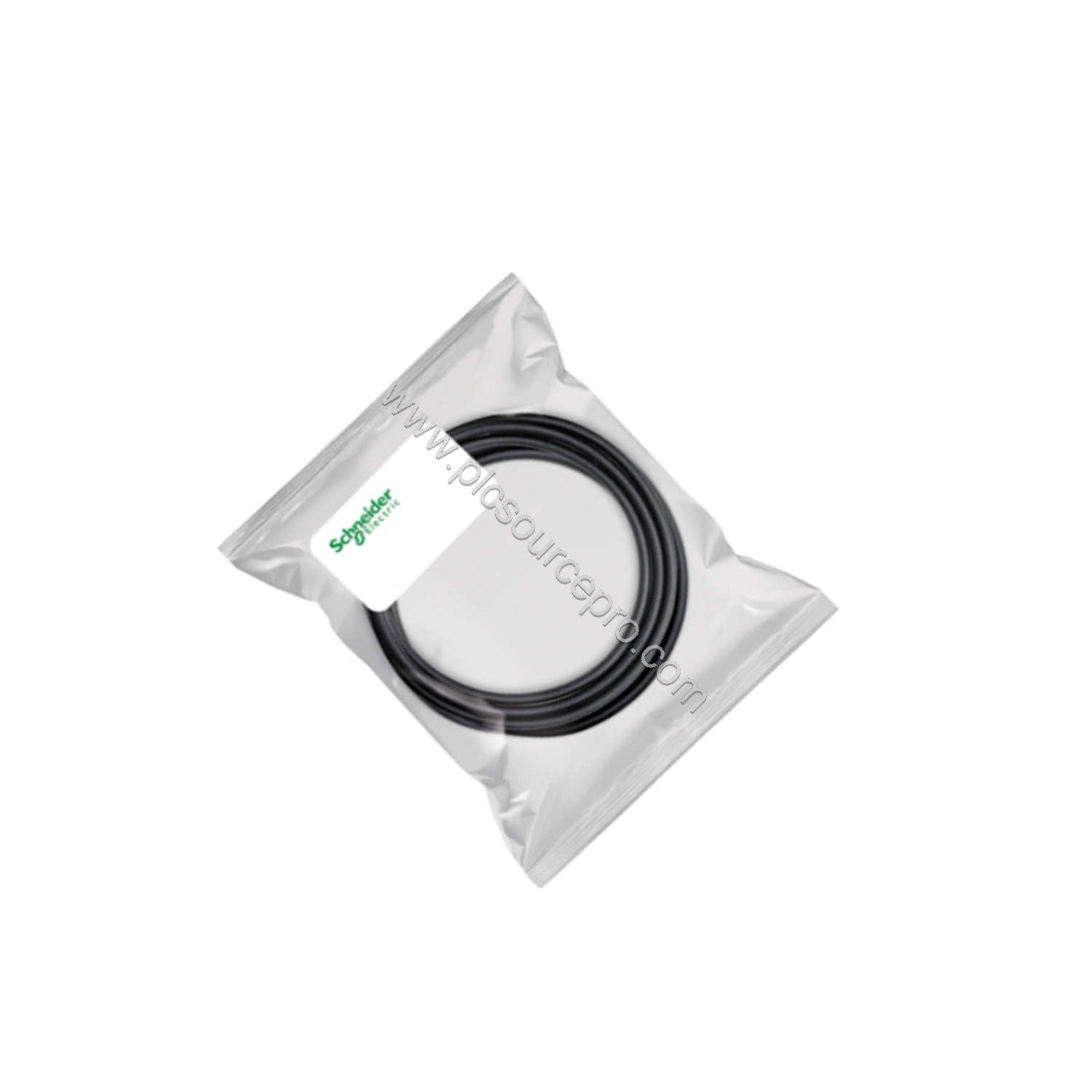

For industrial environments where reliable analog output connections are critical, the Schneider ABFM04S200 provides a robust solution. This cabled connector is purpose-built for the Modicon Quantum series, offering a cost-effective upgrade path for existing wiring or a straight replacement for worn connectors. With a 6.6-foot (2-meter) ribbon cable and 4-channel support, the ABFM04S200 streamlines installation while ensuring signal integrity.
Part of Schneider Electric's renowned product line, the Schneider ABFM04S200 comes with an EAN of 3389110945270 and is designed for analog output applications. Its construction includes a multi-conductor ribbon cable with PVC insulation, AWG 24 gauge wire, and a 25-way SUB-D connector. These features make it a dependable component for control cabinets and field wiring.
Technical Specifications
| Parameter |
Value |
| Manufacturer |
Schneider Electric |
| Product Type |
Cabled connector |
| Product Line |
Modicon Quantum |
| Part Number |
ABFM04S200 |
| Number of Channels |
4 |
| Cable Length |
6.6 ft (2 m) |
| Signal Type |
Analogue output |
| Electrical Connection |
1 connector |
| AWG Gauge |
AWG 24 |
| Connector Type |
SUB-D |
| Wire Section |
0.22 mm² |
| Number of Ways |
25 ways |
| Operating Temperature Range |
–20 °C to +60 °C |
| Insulation Material |
PVC |
| Cable Construction |
Multi-conductor, ribbon |
| Current Rating |
1 A |
| Voltage Rating |
250 V |
These specifications ensure the Schneider ABFM04S200 meets the demands of industrial environments. The 4-channel analog output capability allows efficient wiring of multiple signals through a single cable assembly, reducing cabinet clutter and potential points of failure.
Industry Applications
The Schneider ABFM04S200 excels in applications requiring clean analog signal transmission. In a typical process control setup, it connects a Modicon Quantum analog output module to field devices such as I/P transducers, valve positioners, or variable frequency drives. For example, in a water treatment plant, this connector enables precise control of chemical dosing pumps by routing 4–20 mA signals from the PLC to the actuators.
Similarly, in manufacturing lines, the Schneider ABFM04S200 supports multi-channel analog outputs for speed regulation of conveyor motors or setpoint control for heaters. Its 25-way SUB-D connector provides a secure, standardized interface that simplifies troubleshooting and replacement.
Installation & Setup Guidance
Mounting the Schneider ABFM04S200 is straightforward. The connector plugs directly into the mating SUB-D port on the analog output module. Ensure the cable is routed away from high-voltage power lines to avoid noise coupling. Use the included strain relief (if provided) to secure the cable and prevent accidental disconnection. For optimal performance, tighten the mounting screws on the SUB-D connector to 0.5 Nm (typical torque).
When wiring the other end, follow the pinout diagram provided by the Modicon Quantum manual. The 25-way connector offers ample terminals; typically, each pair of wires corresponds to one analog channel. Verify the wire section matches the terminal block specifications (0.22 mm² recommended). After installation, perform a continuity check and loop calibration to confirm signal integrity.
Maintenance & Reliability
Routine inspection of the Schneider ABFM04S200 should focus on the cable jacket (PVC) for cuts or abrasion, especially in high-vibration environments. The connector contacts may accumulate dust over time; periodic cleaning with compressed air or contact cleaner prevents intermittent faults. Given the operating temperature range of –20 °C to +60 °C, the connector is suitable for most indoor industrial settings. However, avoid installation near extreme heat sources or in condensing humidity. With proper care, the ABFM04S200 provides years of service, reducing total cost of ownership—a key benefit for upgrade projects.
Selection Guide & Purchasing Advice
Before purchasing the Schneider ABFM04S200, verify that your Modicon Quantum analog output module has a compatible SUB-D port. Also confirm the required cable length; the standard 6.6 ft (2 m) suits most cabinets, but longer distances may require signal repeaters. For reliable sourcing, PLC Source PRO (available at ubest101.myshopify.com) stocks genuine Schneider parts with fast shipping. When ordering, specify part number ABFM04S200 to ensure correct delivery.
