Product Introduction

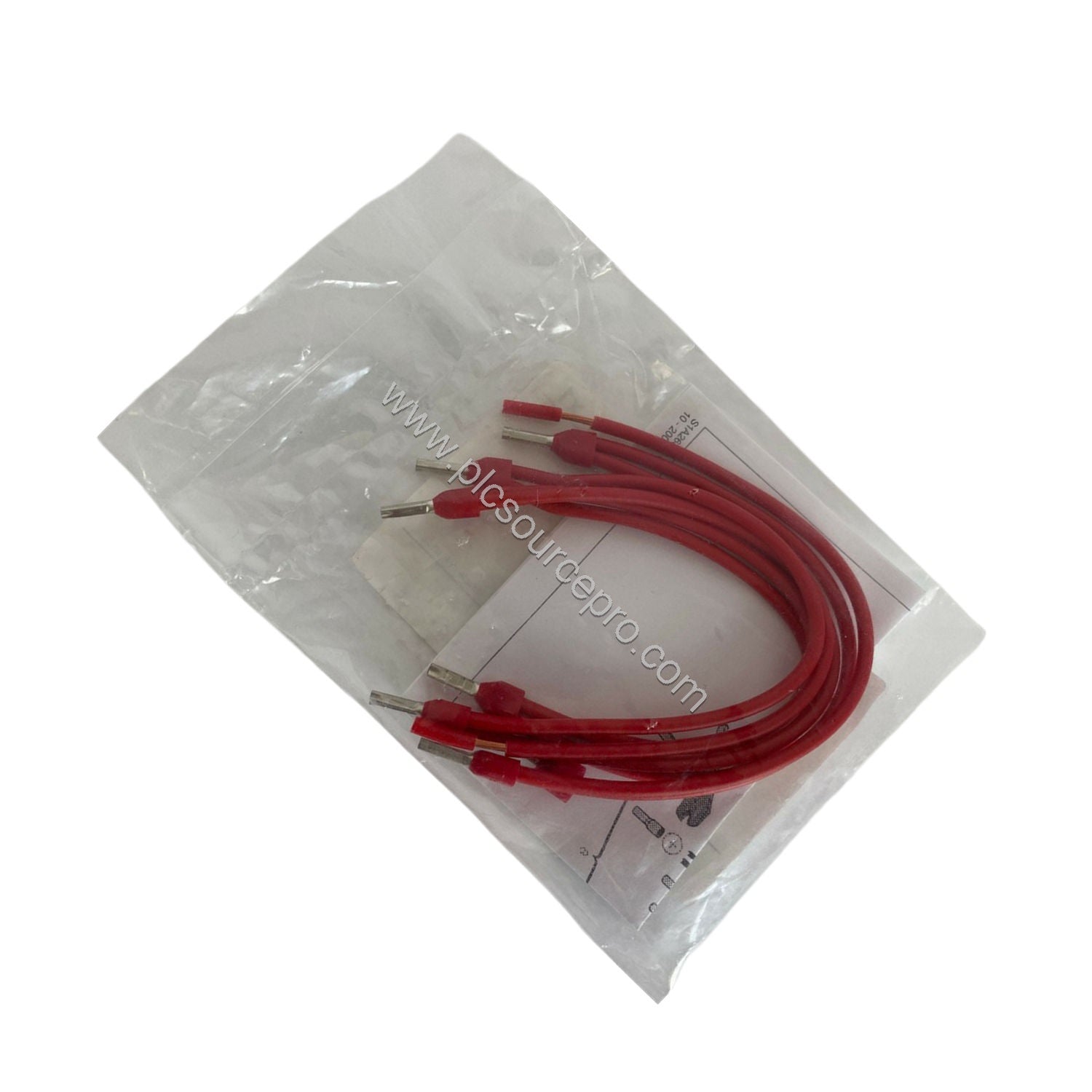

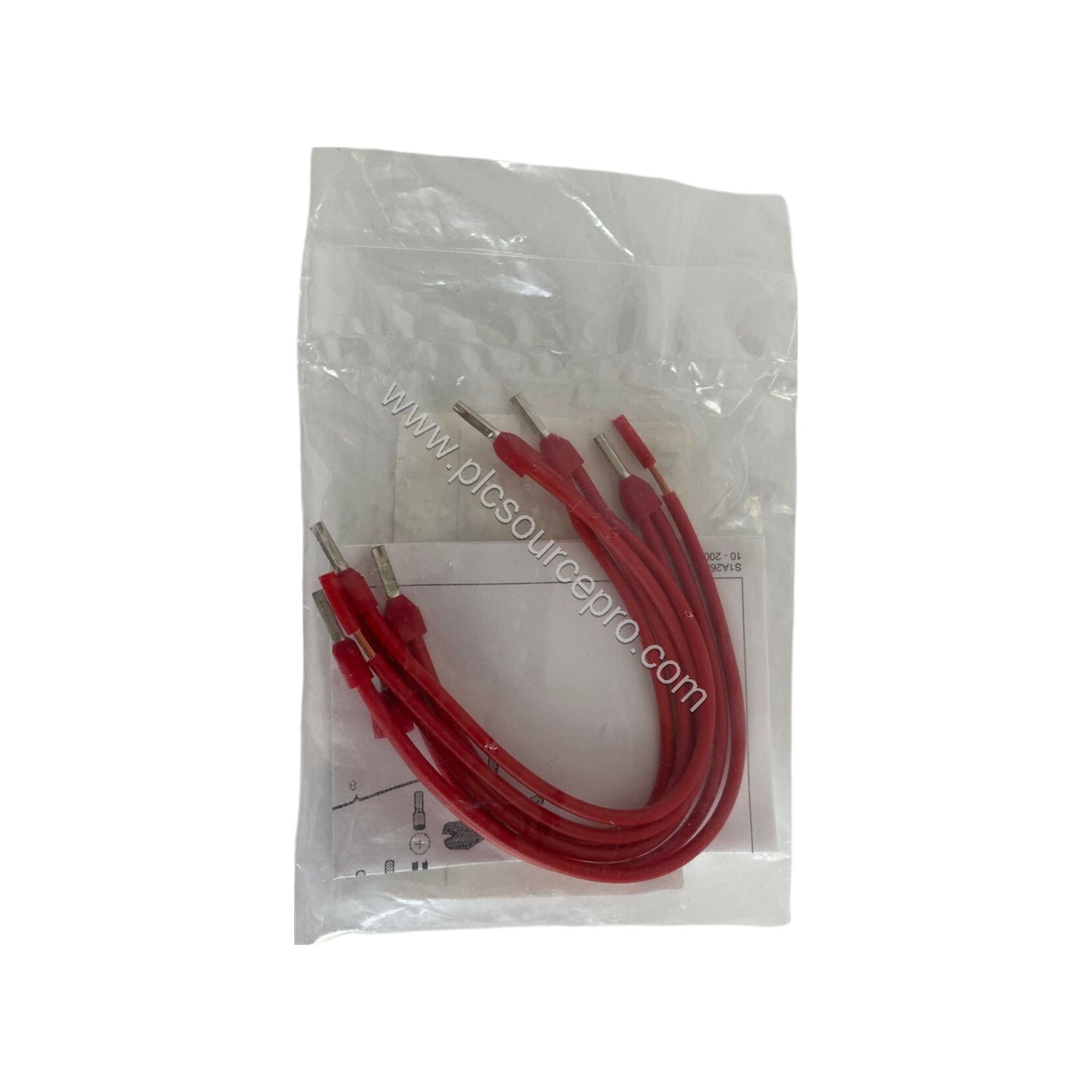

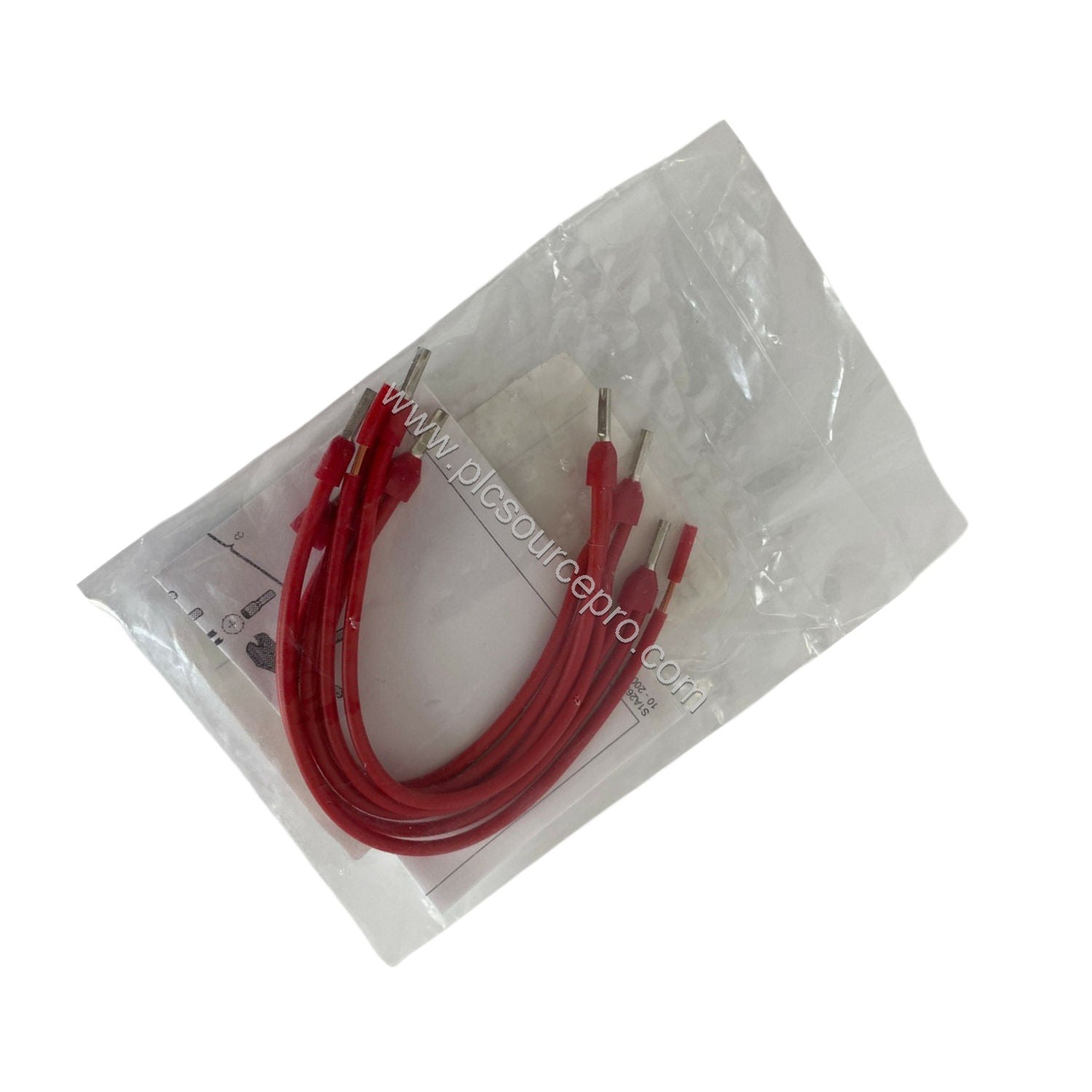

The Schneider ABFC08R12R commoning link from the Modicon Momentum series is designed to streamline connections in industrial automation systems. Its compact, lightweight red housing simplifies identification and installation, making it a reliable choice for efficient wiring in crowded control panels.
Technical Specifications
Below are the key parameters for the Schneider ABFC08R12R commoning link, sourced directly from the manufacturer:
| Parameter |
Value |
| Manufacturer |
Schneider Electric |
| Product Type |
Commoning link |
| Product Line |
Modicon Momentum |
| Part Number |
ABFC08R12R |
| EAN |
3389110449273 |
| Color |
Red |
| Height |
0.31 inches |
| Width |
2.76 inches |
| Length |
3.15 inches |
| Standard Compliance |
CE |
| Maximum Ambient Temperature |
60 degrees Celsius |
| Minimum Ambient Temperature |
0 degrees Celsius |
| Max. Operating Humidity |
95% (non-condensing) |
| Max. Storage Humidity |
95% (non-condensing) |
| Max. Altitude |
1000m above sea level |
Installation & Setup Guidance
Mount the Schneider ABFC08R12R easily on standard DIN rails or directly in your control cabinet. The compact dimensions (3.15 x 2.76 x 0.31 inches) allow placement in tight spaces. Ensure the ambient temperature stays between 0°C and 60°C and humidity below 95% non-condensing for optimal operation. No special tools required for wiring; follow standard electrical safety practices.
Maintenance & Reliability
Thanks to its robust construction and CE compliance, the Schneider ABFC08R12R requires minimal maintenance. Periodically inspect connections for tightness and cleanliness. The wide operating temperature range and high humidity tolerance reduce the risk of failure in demanding environments, delivering long-term reliability and cost savings.
Selection Guide & Purchasing Advice
Before purchasing the ABFC08R12R, verify compatibility with your Modicon Momentum system. This commoning link suits new installations or as a spare part. For genuine Schneider parts and expert support, trust plc source PRO (visit ubest101.myshopify.com). Ensure you order the correct part number: ABFC08R12R.
